Introduction:
Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, entrepreneurs, etc. The storing temperature in the body can set by the temperature button on the control panel. The application is convenient and the performance is reliable.
| Quantity: | |
|---|---|

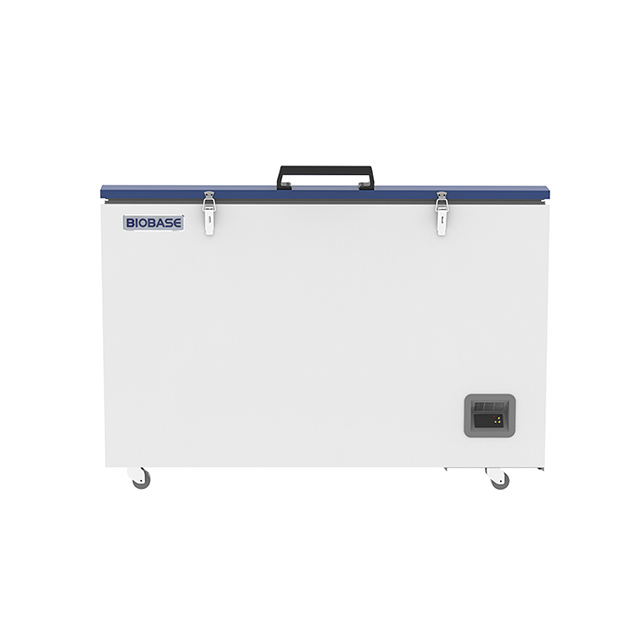

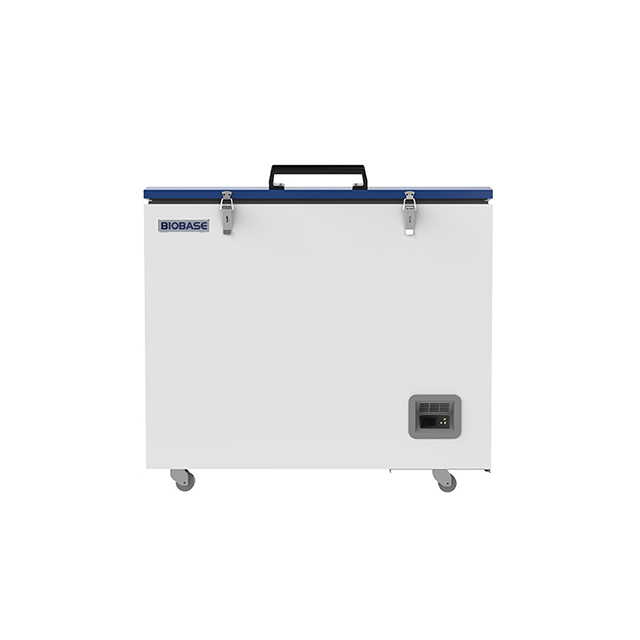

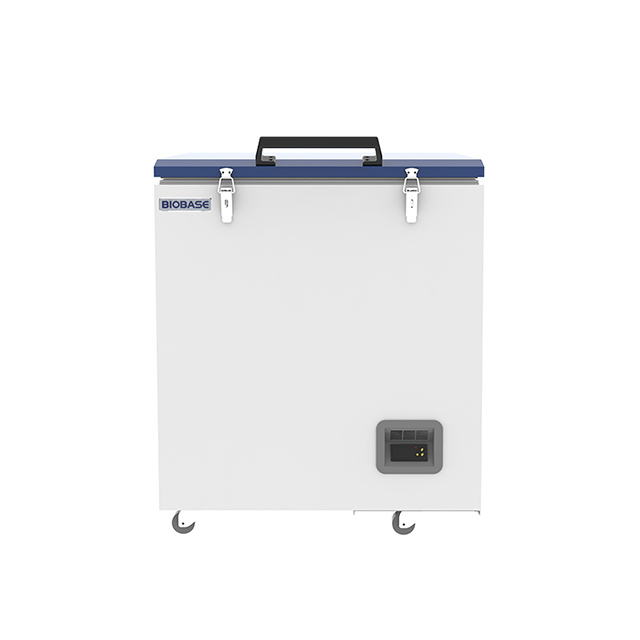

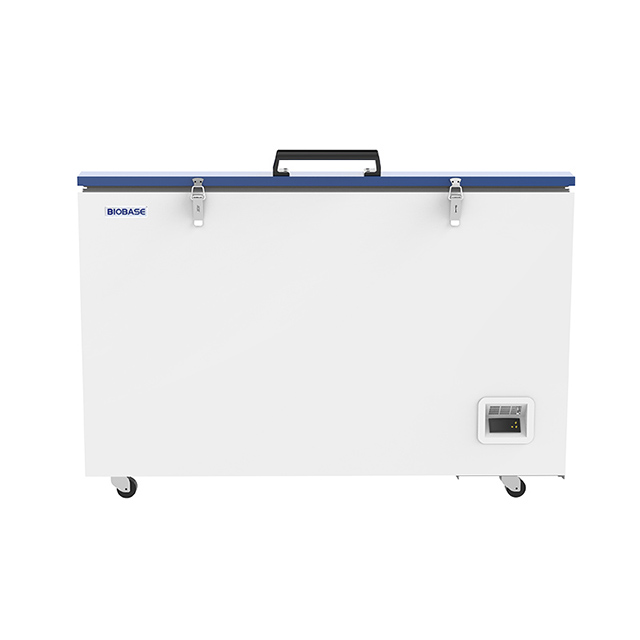

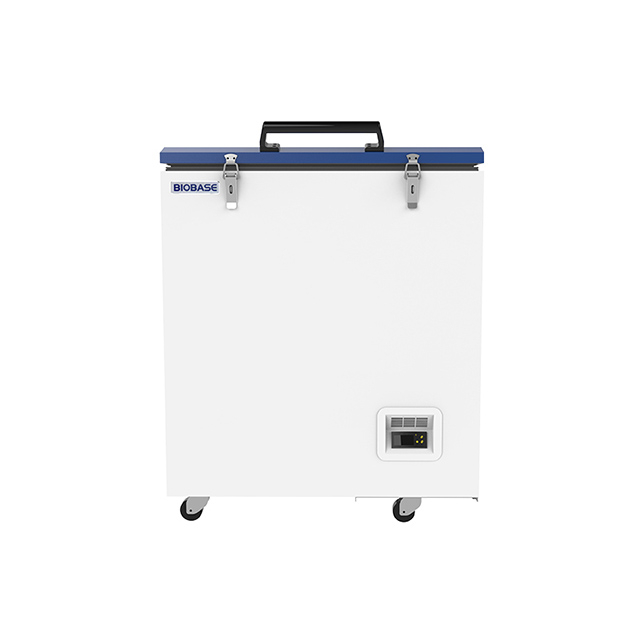

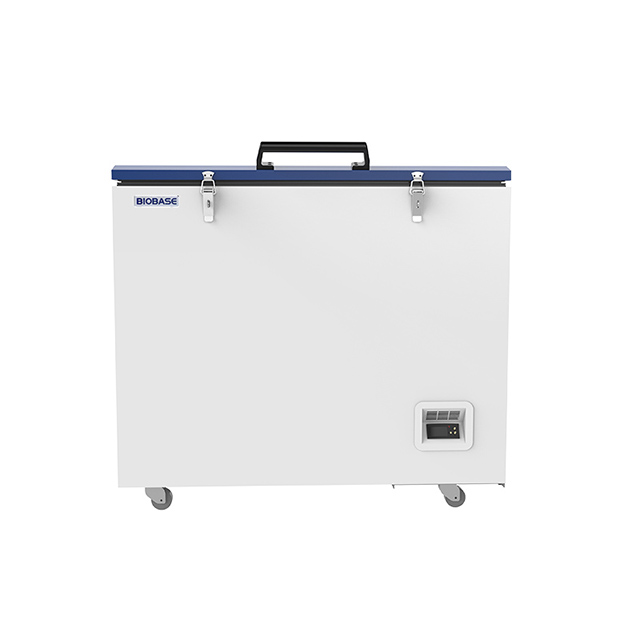

BDF-60H110 BDF-60H210 BDF-60H310
BIOBASE

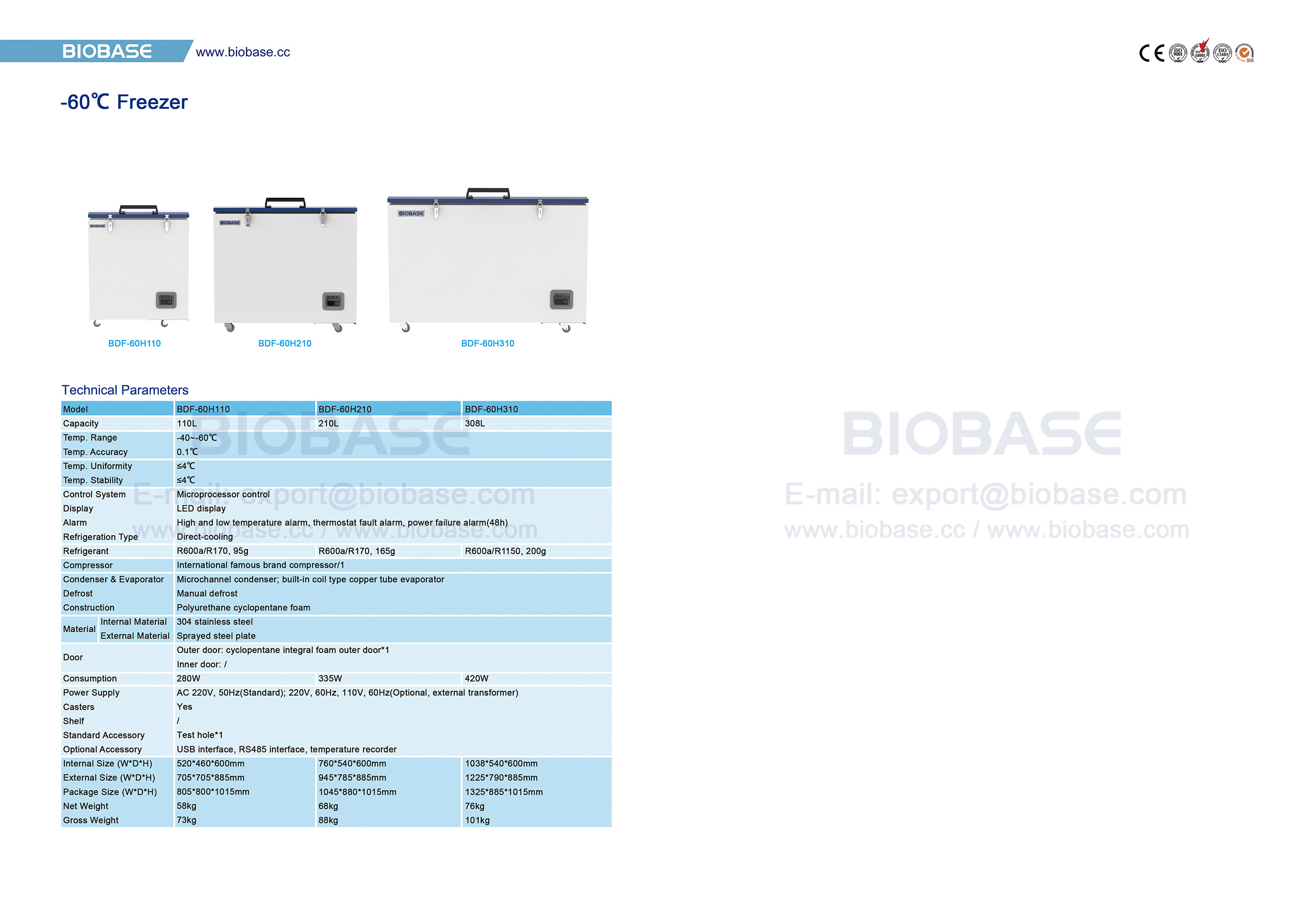

Technical Parameters:
Model | BDF-60H110 | BDF-60H210 | BDF-60H310 | |
Capacity | 110L | 210L | 308L | |
Temp. Range | -40~-60℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ≤4℃ | |||
Temp. Stability | ≤4℃ | |||
Control System | Microprocessor control | |||
Display | LED display | |||
Alarm | High and low temperature alarm, thermostat fault alarm, power failure alarm(48h) | |||
Refrigeration Type | Direct-cooling | |||
Refrigerant | R600a/R170, 95g | R600a/R170, 165g | R600a/R1150, 200g | |
Compressor | International famous brand compressor/1 | |||
Condenser & Evaporator | Microchannel condenser; built-in coil type copper tube evaporator | |||
Defrost | Manual defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | 304 stainless steel | ||
External Material | Sprayed steel plate | |||
Door | Outer door: cyclopentane integral foam outer door*1 Inner door: / | |||
Consumption | 280W | 335W | 420W | |
Power Supply | AC 220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | |||
Casters | Yes | |||
Shelf | / | |||
Standard Accessory | Test hole*1 | |||
Optional Accessory | USB interface, RS485 interface, temperature recorder | |||
Internal Size (W*D*H) | 520*460*600mm | 760*540*600mm | 1038*540*600mm | |
External Size (W*D*H) | 705*705*885mm | 945*785*885mm | 1225*790*885mm | |
Package Size (W*D*H) | 805*800*1015mm | 1045*880*1015mm | 1325*885*1015mm | |
Net Weight | 58kg | 68kg | 76kg | |
Gross Weight | 73kg | 88kg | 101kg | |
