Introduction:
Suitable for ultra-low temperature experiments in scientific research institutions, special materials, electronics industry, chemical industry, university experiments, biotechnology, offshore fishing, etc
| Quantity: | |
|---|---|

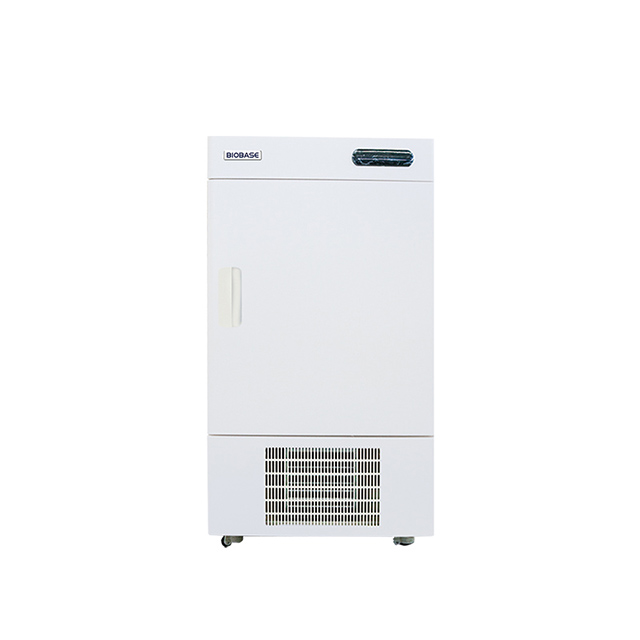

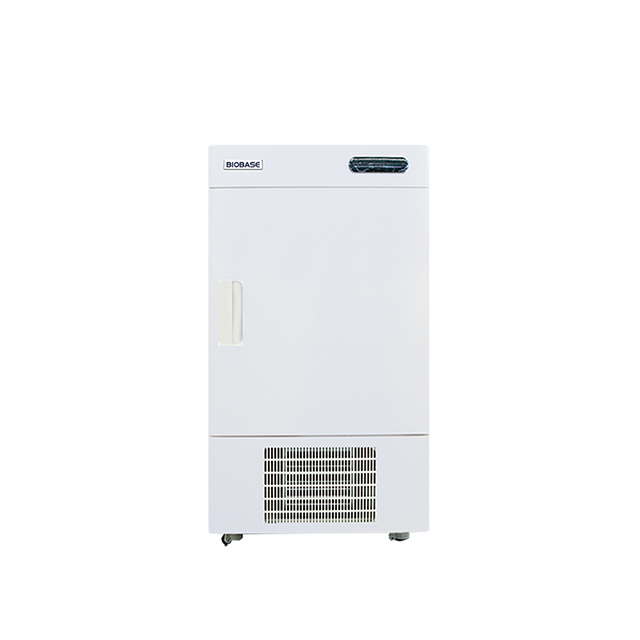

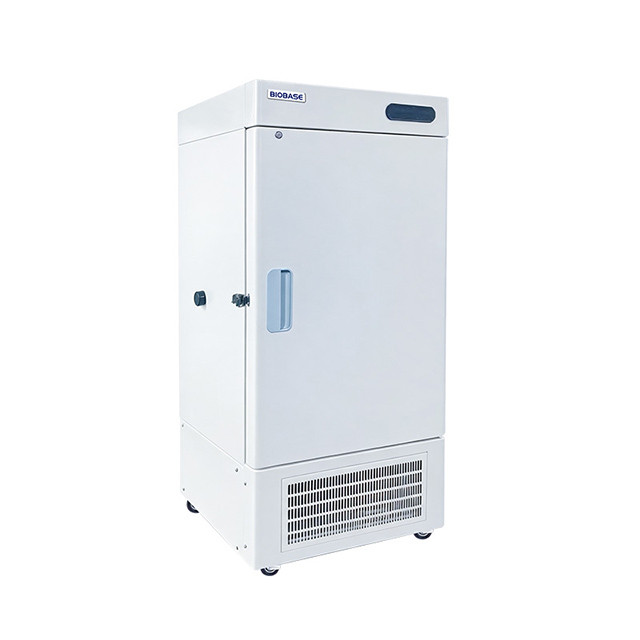

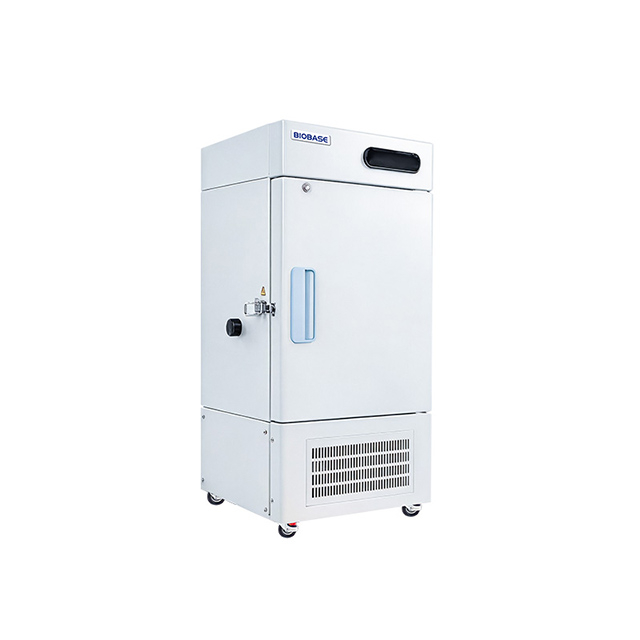

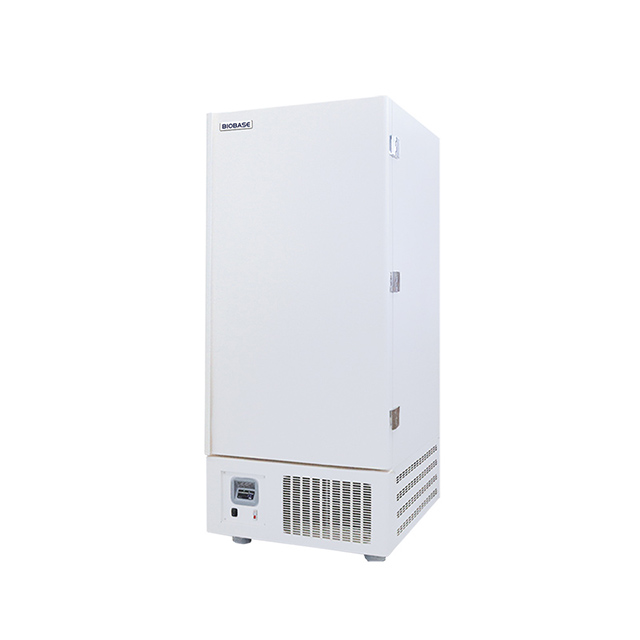

BDF-60V30 BDF-60V58 BDF-60V108 BDF-60V158 BDF-60V398
BIOBASE
Technical Parameters:
Model | BDF-60V30 | BDF-60V58 | BDF-60V108 | BDF-60V158 | BDF-60V398 | ||||
Capacity | 28L | 58L | 108L | 158L | 408L | ||||
Temp. Range | -25~-60°C | ||||||||
Temp. Accuracy | 0.1°C | ||||||||
Temp. Uniformity | ±2°C | ||||||||
Temp. Stability | ±2°C | ||||||||
Control System | Microprocessor control | ||||||||
Display | LED display | ||||||||
Alarm | High and low temperature alarm, thermostat fault alarm | ||||||||
Refrigeration Type | Direct-cooling | ||||||||
Refrigerant | R404A/R23 110g | R404A/R23 130g | R404A/R23 220g | R404A/R23 240g | R404A/R23 380g | ||||
Compressor | International famous brand compressor /1 | ||||||||
Condenser & Evaporator | Copper tube aluminum fin condenser; cabinet-wrapped copper tube evaporator | ||||||||
Defrost | Manual defrost | ||||||||
Construction | Polyurethane cyclopentane foam | ||||||||
Material | Internal Material | 304 stainless steel | |||||||
External Material | Sprayed steel plate | ||||||||
Door | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*1 | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*2 | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*3 | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*4 | |||||
Consumption | 370W | 380W | 400W | 450W | 800W | ||||
Power Supply | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||||||||
Casters | Yes | ||||||||
Shelf | 1 | 2 | 3 | ||||||
Standard Accessory | Test hole | ||||||||
Optional Accessory | Temperature recorder | ||||||||
Internal Size (W*D*H) | 270*265*400mm | 364*405*410mm | 460*460*510mm | 460*455*800mm | 610*615*1120mm | ||||
External Size (W*D*H) | 505*520*1165mm | 540*620*1115mm | 700*730*1260mm | 700*700*1580mm | 850*900*1780mm | ||||
Package Size (W*D*H) | Plywood: 535*575*1290mm Honeycomb cardboard box: 595*640*1335mm | Plywood: 670*760*1290mm Honeycomb cardboard box: 590*785*1320mm | Plywood: 765*815*1395mm Honeycomb cardboard box: 790*850*1430mm | Plywood: 760*790*1720mm Honeycomb cardboard box: 790*820*1750mm | 980*980*1930mm | ||||
Net Weight | 71kg | 78kg | 107kg | 123kg | 188kg | ||||
Gross Weight | 90kg | 98kg | 133kg | 150kg | 238kg | ||||
Technical Parameters:
Model | BDF-60V30 | BDF-60V58 | BDF-60V108 | BDF-60V158 | BDF-60V398 | ||||
Capacity | 28L | 58L | 108L | 158L | 408L | ||||
Temp. Range | -25~-60°C | ||||||||
Temp. Accuracy | 0.1°C | ||||||||
Temp. Uniformity | ±2°C | ||||||||
Temp. Stability | ±2°C | ||||||||
Control System | Microprocessor control | ||||||||
Display | LED display | ||||||||
Alarm | High and low temperature alarm, thermostat fault alarm | ||||||||
Refrigeration Type | Direct-cooling | ||||||||
Refrigerant | R404A/R23 110g | R404A/R23 130g | R404A/R23 220g | R404A/R23 240g | R404A/R23 380g | ||||
Compressor | International famous brand compressor /1 | ||||||||
Condenser & Evaporator | Copper tube aluminum fin condenser; cabinet-wrapped copper tube evaporator | ||||||||
Defrost | Manual defrost | ||||||||
Construction | Polyurethane cyclopentane foam | ||||||||
Material | Internal Material | 304 stainless steel | |||||||
External Material | Sprayed steel plate | ||||||||
Door | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*1 | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*2 | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*3 | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*4 | |||||
Consumption | 370W | 380W | 400W | 450W | 800W | ||||
Power Supply | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||||||||
Casters | Yes | ||||||||
Shelf | 1 | 2 | 3 | ||||||
Standard Accessory | Test hole | ||||||||
Optional Accessory | Temperature recorder | ||||||||
Internal Size (W*D*H) | 270*265*400mm | 364*405*410mm | 460*460*510mm | 460*455*800mm | 610*615*1120mm | ||||
External Size (W*D*H) | 505*520*1165mm | 540*620*1115mm | 700*730*1260mm | 700*700*1580mm | 850*900*1780mm | ||||
Package Size (W*D*H) | Plywood: 535*575*1290mm Honeycomb cardboard box: 595*640*1335mm | Plywood: 670*760*1290mm Honeycomb cardboard box: 590*785*1320mm | Plywood: 765*815*1395mm Honeycomb cardboard box: 790*850*1430mm | Plywood: 760*790*1720mm Honeycomb cardboard box: 790*820*1750mm | 980*980*1930mm | ||||
Net Weight | 71kg | 78kg | 107kg | 123kg | 188kg | ||||
Gross Weight | 90kg | 98kg | 133kg | 150kg | 238kg | ||||
