Introduction:

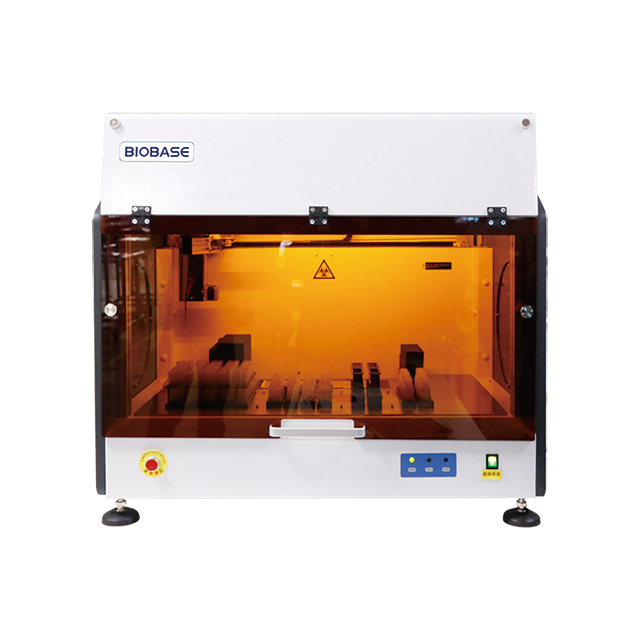

The auto elisa processor is an analytical instrument used in the field of hospital, laboratory. Its main function is to analyze sample pre-processing, sample analysis and data processing.
| Quantity: | |
|---|---|
BIOBASE 1000
BIOBASE
Features:
1. 1 robotic arm, 1 pipetting probe(10~1000μl).
2. 2 units 96 well microplates(independent incubating).
3. 1 unit reader&washer(auto reading and washing).
Technical Parameters:
Model | BIOBASE1000 | |

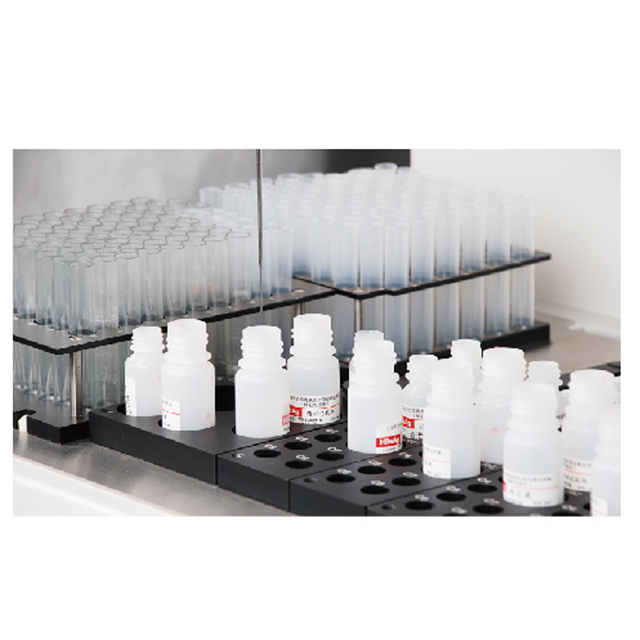

Sample Unit | Sample Racks | Standard 192 sample position (expandable, up to 384) |
Pipetting | 10~1000μl | |
Dispensing System | 1 aspirating-dispensing probe(X-Y-Z movement) | |
Reagent Unit | Reagent Racks | Universal reagent position: Standard 6 universal reagent positions(expandable, up to 32); Original reagent bottle: Standard 20 reagent bottles position(expandable, up to 80) |
Pipetting Range | 10~1000μl, 1μl stepping | |
Pipetting Precision | (100μl)CV≤0.5% | |
Dispensing Time | 5 minutes to whole 96 well microplates | |
Incubation Unit | Incubation | 2 independent incubators |
Temperature Range | RT to 45 °C | |
Temperature Accuracy | ±0.5°C | |
Washing Unit | Washing Probes | Two line 8-nozzle manifolds |
Wash Containers | 2 wash buffers 2L, 1 distilled water, 1 waste water | |
Washing Residual | <2μl | |
Reading Unit | Reading Channels | 8 independent photometric channels, mono and dichromatic reading |
Absorbance | 0.0~3.0OD | |
Spectral Range | 400~700nm | |
Optical Filters | 2 standard filters(450, 630nm); 2 more on request(405nm/450nm/492nm/630nm) | |
Data Management | Software | Windows 7 |
LIS System | Bi-direction, support HL7 protocol | |
Results | Absorbance and results reviewable by software | |
Printer | External optional | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 400W |
Temperature | 10~30℃ | |
Humidity | 30~80% | |
Size&Weight | External Size(W*D*H) | 935*665*860mm |
Net Weight | 112kg | |
Package Size(W*D*H) | 1115*920*1398mm | |
Gross Weight | 160kg | |
