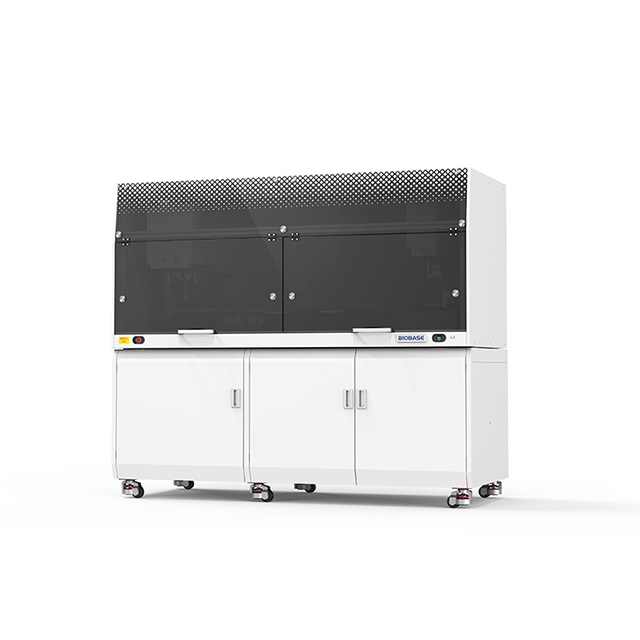

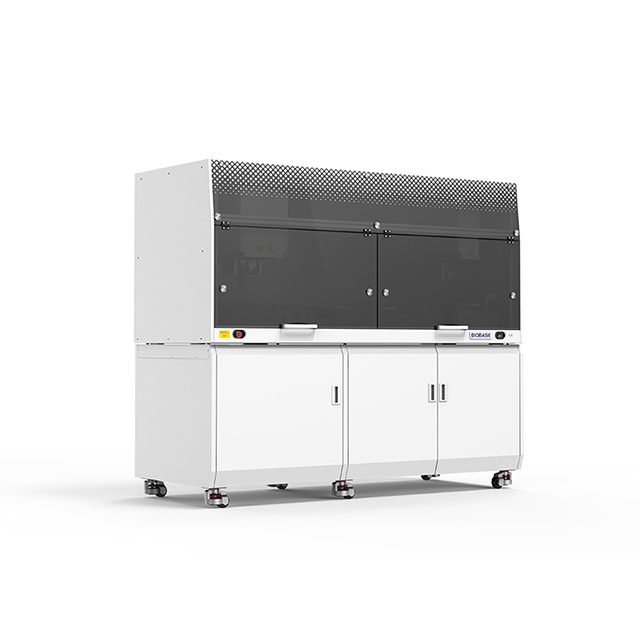

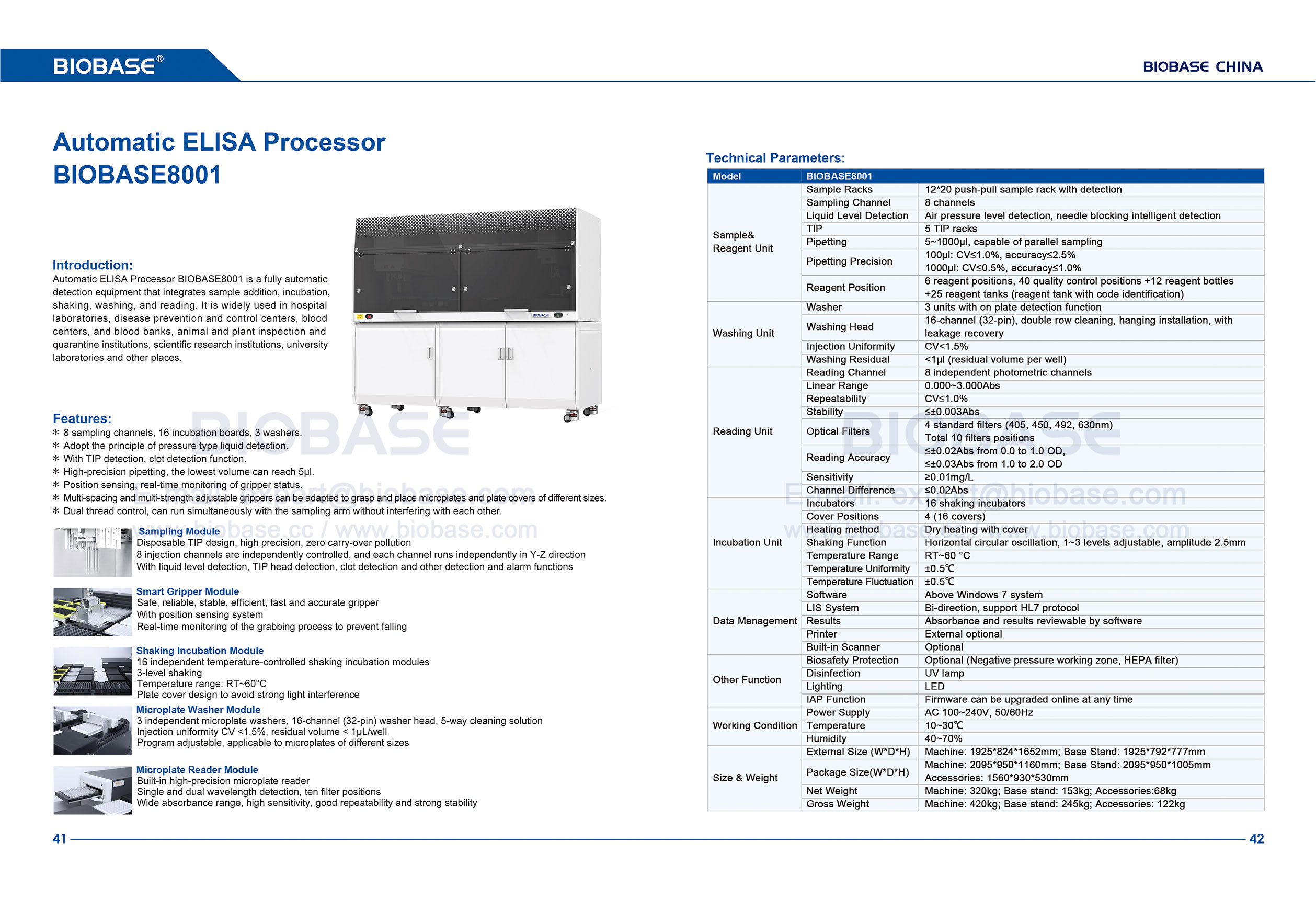

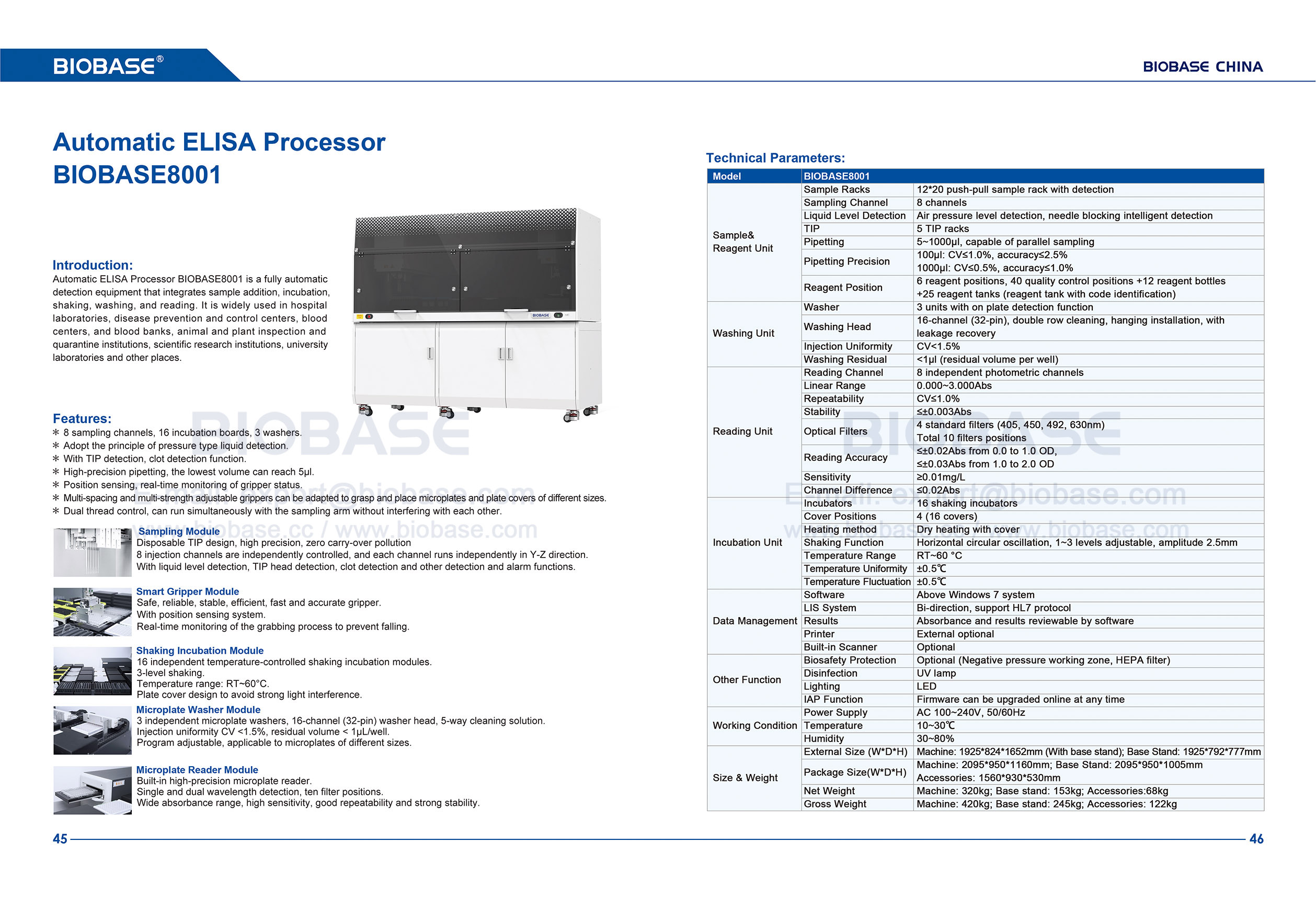

BIOBASE8001
BIOBASE

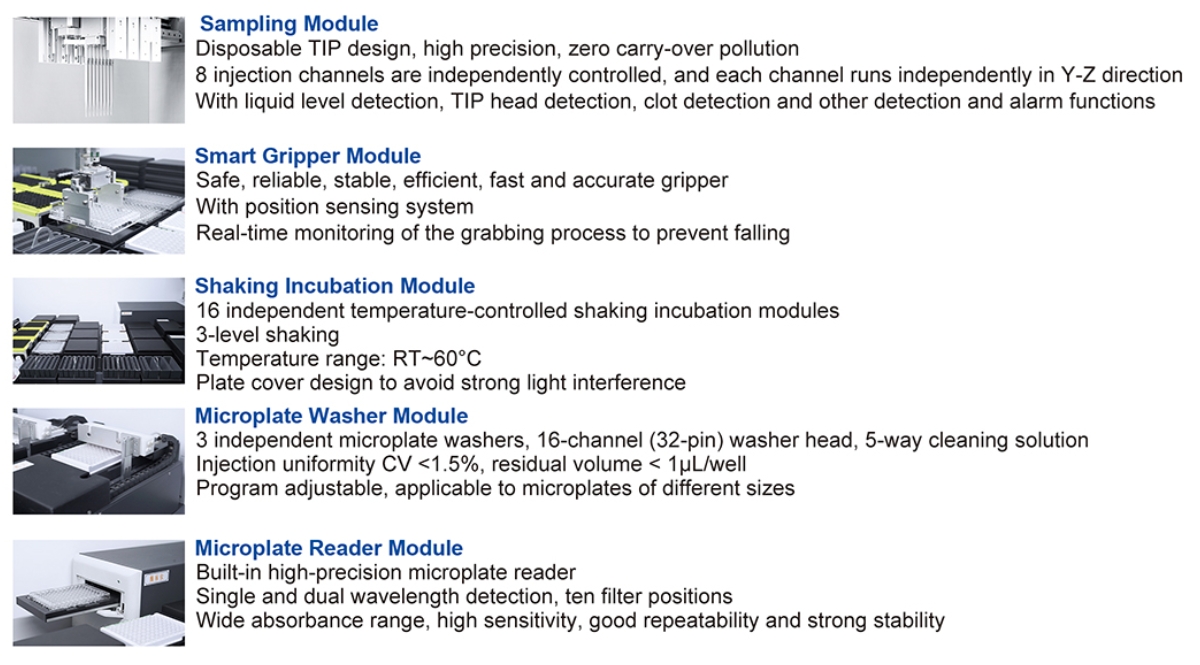

Features:

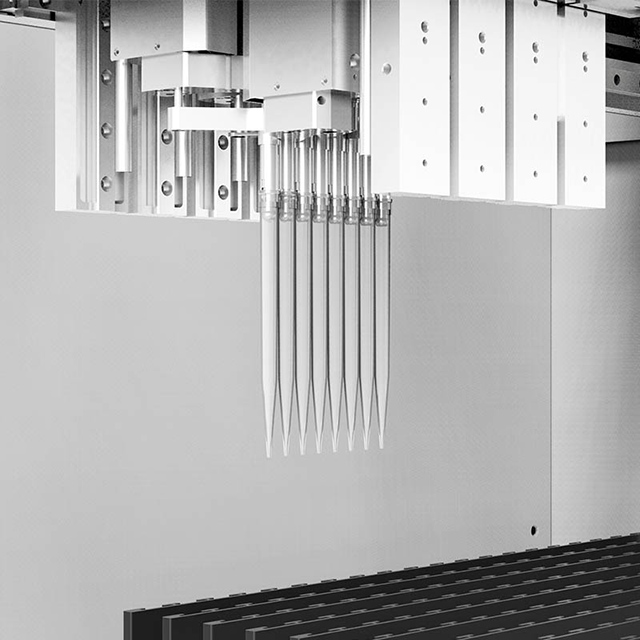

1. 8 sampling channels, 16 incubation boards, 3 washers.
2. Adopt the principle of pressure type liquid detection.
3. With TIP detection, clot detection function.
4. High-precision pipetting, the lowest volume can reach 5μl.

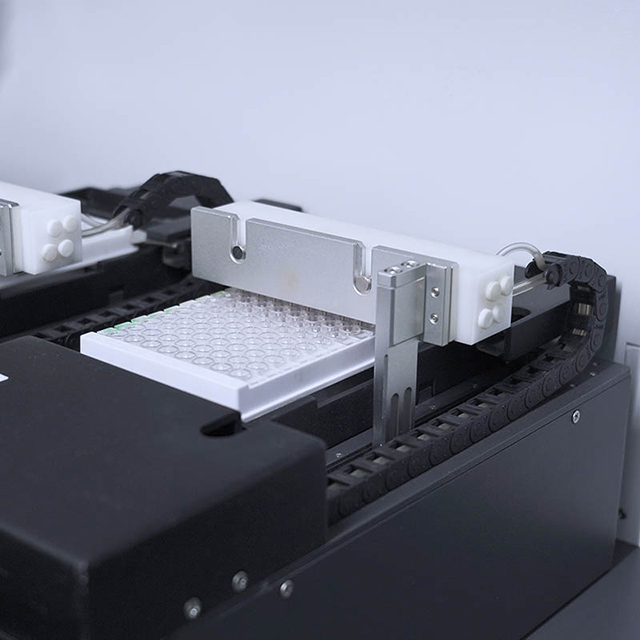

5. Position sensing, real-time monitoring of gripper status.

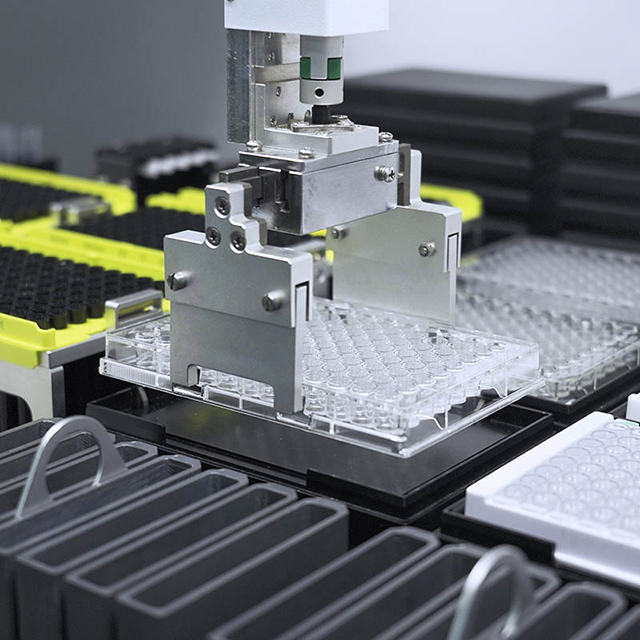

6. Multi-spacing and multi-strength adjustable grippers can be adapted to grasp and place microplates and plate covers of different sizes.
7. Dual thread control, can run simultaneously with the sampling arm without interfering with each other.

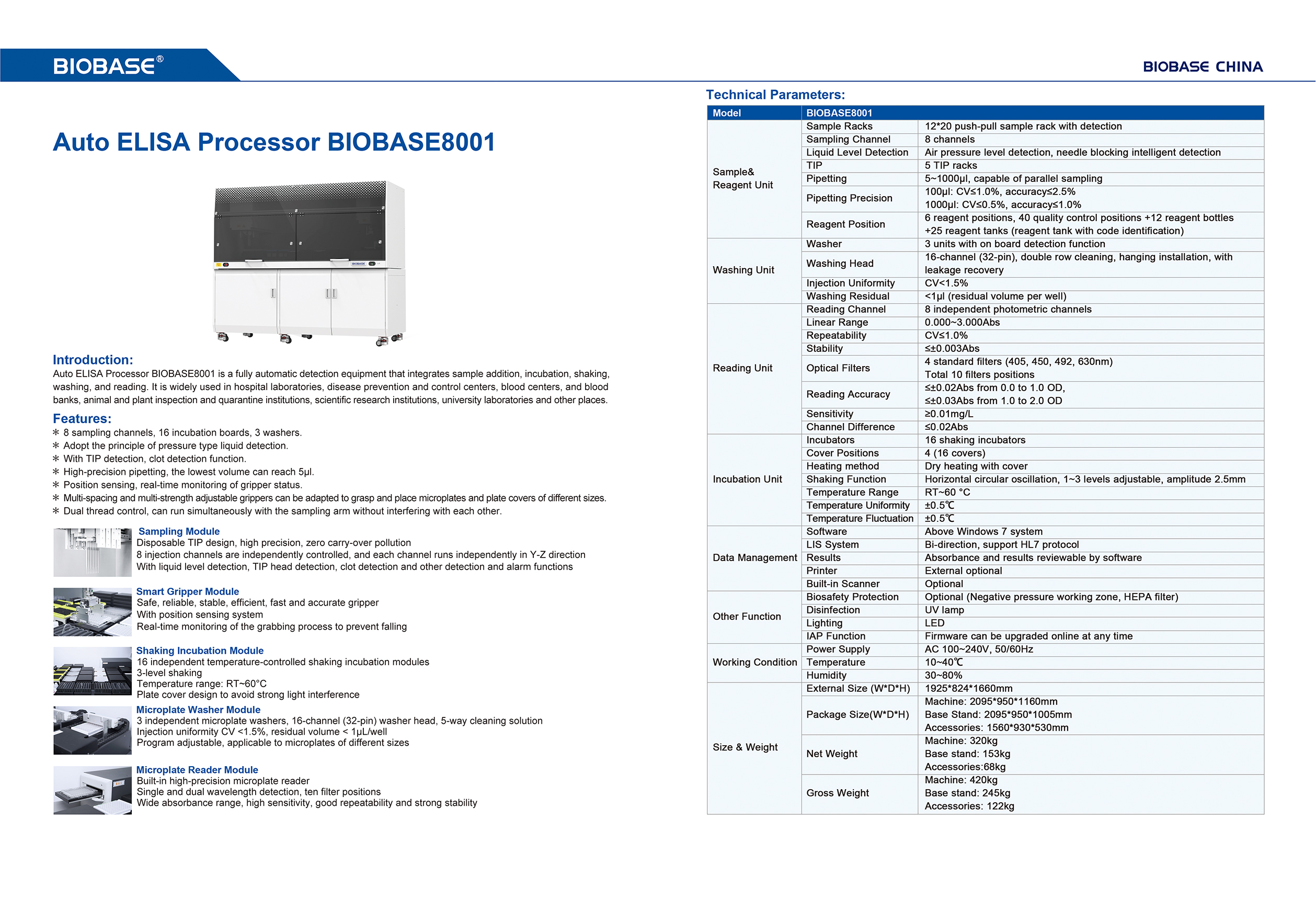

Technical Parameters:
Model | BIOBASE8001 | |
Sample&Reagent Unit | Sample Racks | 12*20 push-pull sample rack with detection |
Sampling Channel | 8 channels | |
Liquid Level Detection | Air pressure level detection, needle blocking intelligent detection | |
TIP | 5 TIP racks | |
Pipetting | 5~1000μl, capable of parallel sampling | |
Pipetting Precision | 100μl: CV≤1.0%, accuracy≤2.5% 1000μl: CV≤0.5%, accuracy≤1.0% | |
Reagent Position | 6 reagent positions, 40 quality control positions +12 reagent bottles +25 reagent tanks(reagent tank with code identification) | |
Washing Unit | Washer | 3 units with on board detection function |
Washing Head | 16-channel(32-pin), double row cleaning, hanging installation, with leakage recovery | |
Injection Uniformity | CV<1.5% | |
Washing Residual | <1μl(residual volume per well) | |
Reading Unit | Reading Channel | 8 independent photometric channels |
Linear Range | 0.000~3.000Abs | |
Repeatability | CV≤1.0% | |
Stability | ≤±0.003Abs | |
Optical Filters | 4 standard filters(405, 450, 492, 630nm) Total 10 filters positions | |
Reading Accuracy | ≤±0.02Abs from 0.0 to 1.0 OD, ≤±0.03Abs from 1.0 to 2.0 OD | |
Sensitivity | ≥0.01mg/L | |
Channel Difference | ≤0.02Abs | |

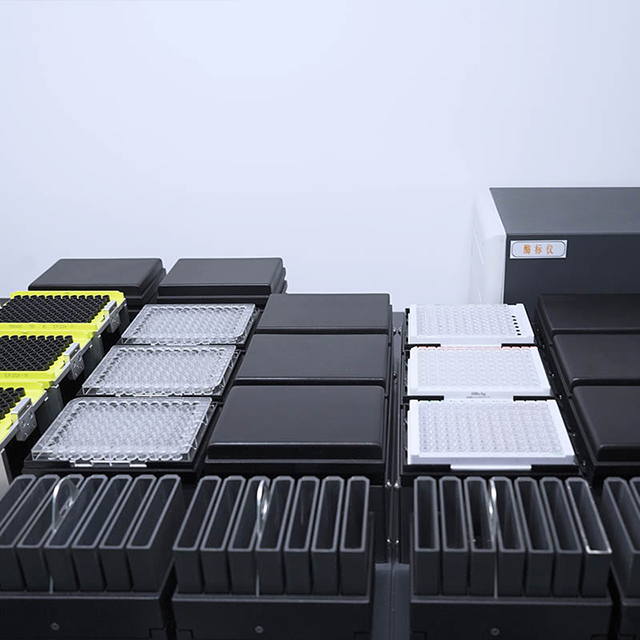

Incubation Unit | Incubators | 16 shaking incubators |
Cover Positions | 4(16 covers) | |
Heating method | Dry heating with cover | |
Shaking Function | Horizontal circular oscillation, 1~3 levels adjustable, amplitude 2.5mm | |
Temperature Range | RT~60 °C | |
Temperature Uniformity | ±0.5℃ | |
Temperature Fluctuation | ±0.5℃ | |
Data Management | Software | Above Windows 7 system |
LIS System | Bi-direction, support HL7 protocol | |
Results | Absorbance and results reviewable by software | |
Printer | External optional | |
Built-in Scanner | Optional | |
Other Function | Biosafety Protection | Optional(Negative pressure working zone, HEPA filter) |
Disinfection | UV lamp | |
Lighting | LED | |
IAP Function | Firmware can be upgraded online at any time | |
Working Condition | Power Supply | AC100~240V, 50/60Hz |
Temperature | 10~40℃ | |
Humidity | 30~80% | |
Size&Weight | External Size(W*D*H)mm | 1925*824*1660mm |
Package Size(W*D*H)mm | Machine: 2095*950*1160 Base Stand: 2095*950*1005 Accessories: 1560*930*530 | |
Net Weight(kg) | Machine: 320 Base stand: 153 Accessories: 68 | |
Gross Weight(kg) | Machine: 420 Base stand: 245 Accessories: 122 | |
