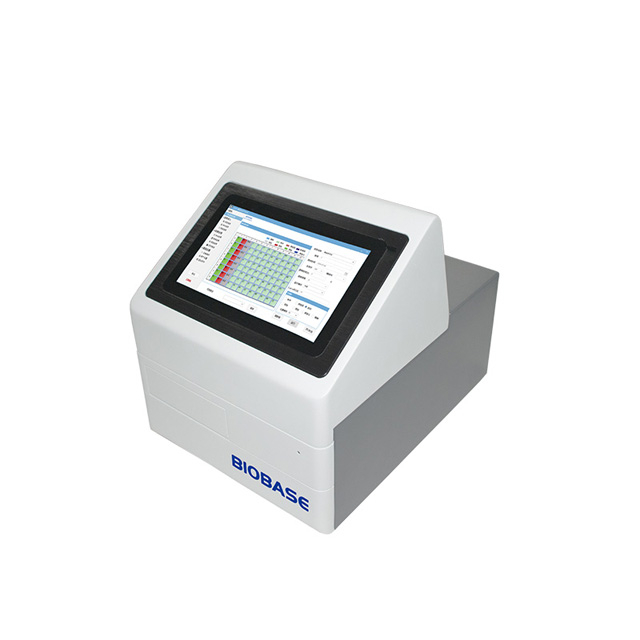

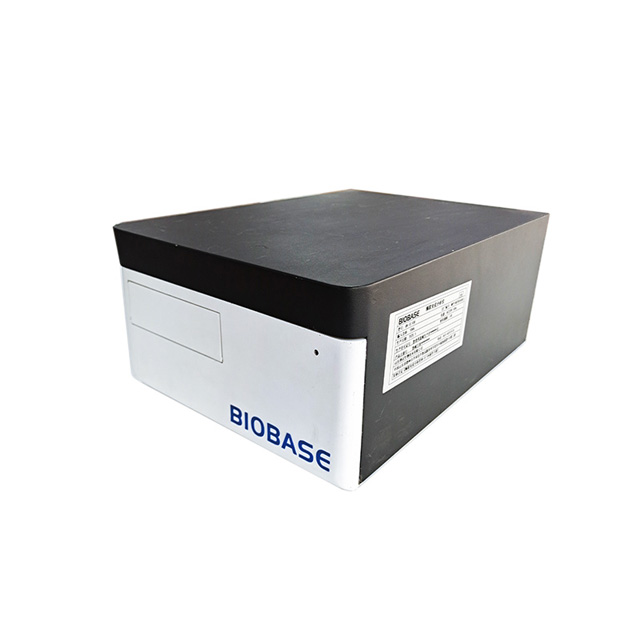

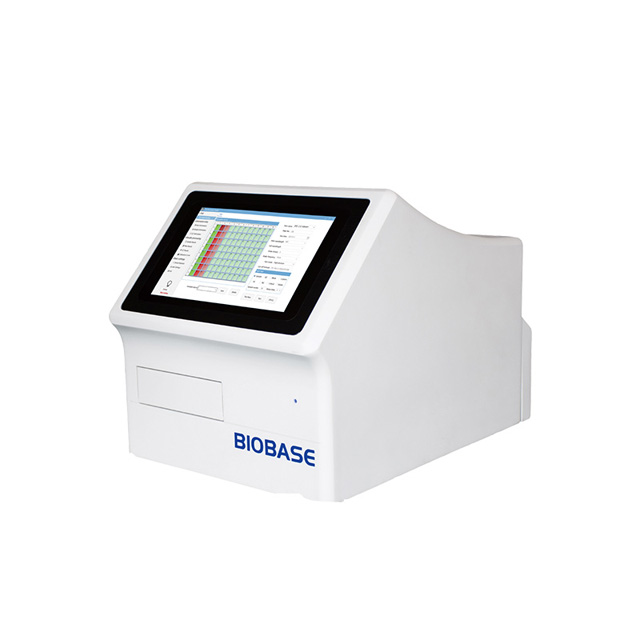

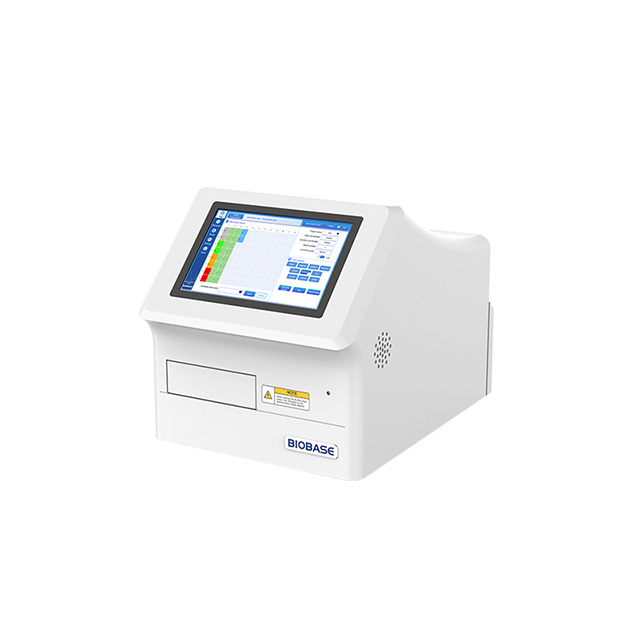

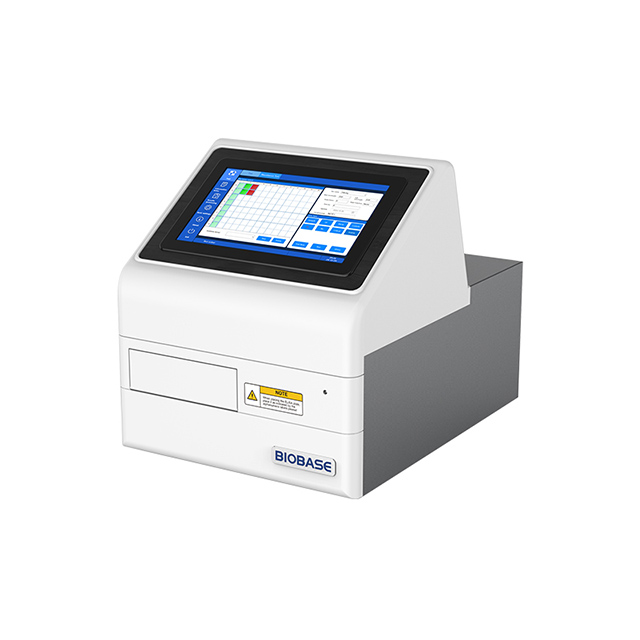

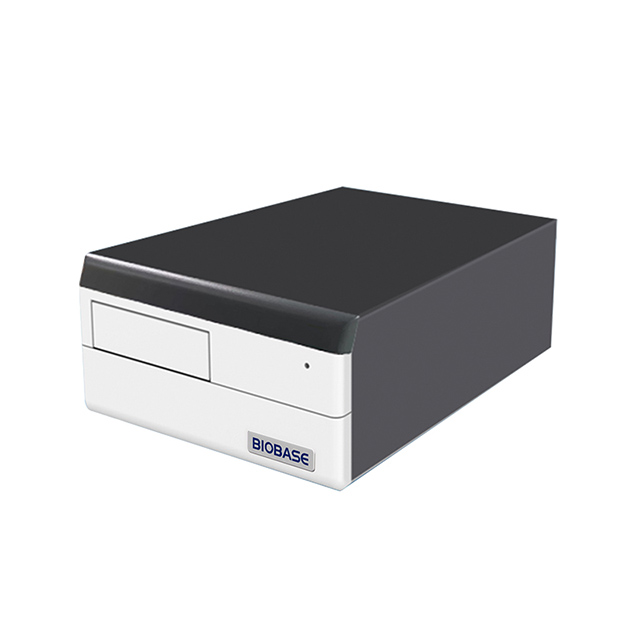

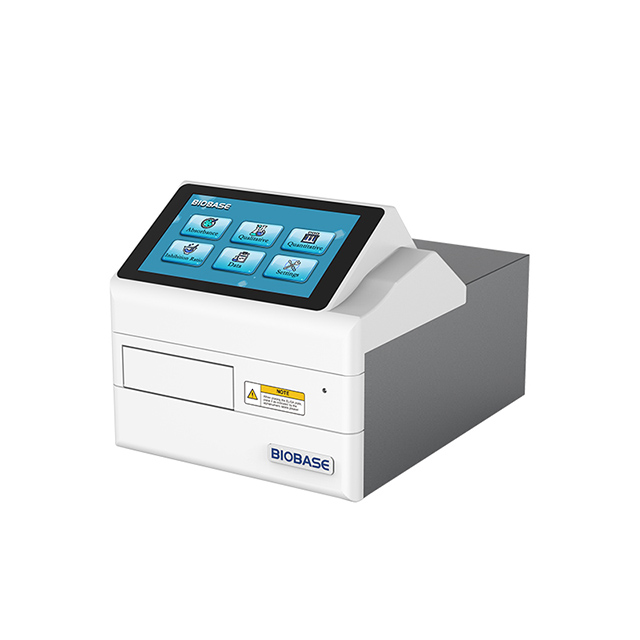

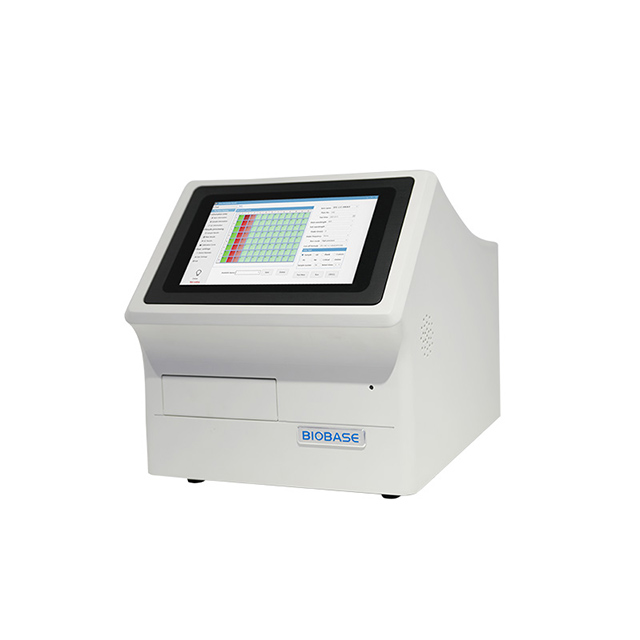

BK-EL10A, BK-EL10B, BK-EL10C, BK-EL10D, BK-EL10DA
BIOBASE
Features:
1. 10.1-inch large touch screen operation(Except BK-EL10B).
2. High precision and accurate results.
3. Software: Single wavelength and double wavelengths detection methods.
4. BK-EL10D is the Windows operating interface, and BK-EL10DA is the Android operating interface.
Technical Parameters:
Model | BK-EL10A | BK-EL10B | BK-EL10C | BK-EL10D | BK-EL10DA | ||
Measurement Channel | Vertical 8 optical channels | ||||||
Plate Type | 96-well microplate | ||||||
Wavelength Range | 400~750nm | 340~850nm | |||||
Filter | Standard 4 wavelengths of 405, 450, 492, 630nm(BK-EL10A, BK-EL10B, BK-EL10C) Standard 5 wavelengths of 340, 405, 450, 492, 630nm(BK-EL10D, BK-EL10DA) Optional: Up to 10 wavelengths | ||||||
Linear Range | 0.000~3.000Abs | ||||||
Reading Range | 0.000~4.000Abs | 0.000~4.500Abs | |||||
Resolution | 0.0001Abs | ||||||
Repeatability | CV≤0.2% | ||||||
Stability | ≤±0.003Abs/10min | ||||||
Sensitivity | ≥0.01L/mg | ||||||
Channel Difference | ≤0.02Abs | ||||||
Vibration Plate Function | 3 kinds of vibration plate function, adjustable 0~255s(BK-EL10C) 5 kinds of vibration plate function, adjustable 0~255s(BK-EL10A, BK-EL10B, BK-EL10D, BK-EL10DA) | ||||||
Incubation Function | Time Range: 0~60min Temp. Range: RT+4℃~50℃(Only for BK-EL10D, BK-EL10DA) | ||||||
Software (Standard) | Detection Mode | Single/double wavelength | |||||
Qualitative | Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions | ||||||
Quantitative | Support linear, semi-log, natural logarithm, log-log, point-to-point, four-parameter equation and other quantitative analysis fitting algorithms | ||||||
Others | Display | 10.1 inch color touch capacitive screen(BK-EL10A, BK-EL10D, BK-EL10DA) 10.1 inch resistive touch screen(BK-EL10C) | |||||
Operating Mode | Touch screen operation, equipped with capacitive stylus, support for external keyboard and mouse(BK-EL10A, BK-EL10D, BK-EL10DA) | ||||||
Printer(Optional) | BK-EL10A, BK-EL10D, BK-EL10DA: Support external USB, RJ45 network port and other universal interface printer(A4 printer can be optional) BK-EL10B: Workstation software supports normal printer(A4 printer can be optional) BK-EL10C: Workstation software supports normal printer(A4 printer and thermal printer can be optional) | ||||||
Interface | USE2.0*4, RJ45 network port*1, RS-232*1(BK-EL10A, BK-EL10D, BK-EL10DA) RS232 serial port(BK-EL10B) RS-232*2(Standard RS232 to USB cable)(BK-EL10C) | ||||||
Power Supply | AC100~240V, 50/60Hz | ||||||
Instrument Size(W*D*H) | 450*320*300mm | 450*320*190mm | 450*320*300mm | 495*340*370mm | |||
Package Size(W*D*H) | 540*400*460mm | 585*425*405mm | 610*440*475mm | ||||
Net/Gross Weight | 13/15kg | 10/12kg | 11/13kg | 12/14kg | |||
