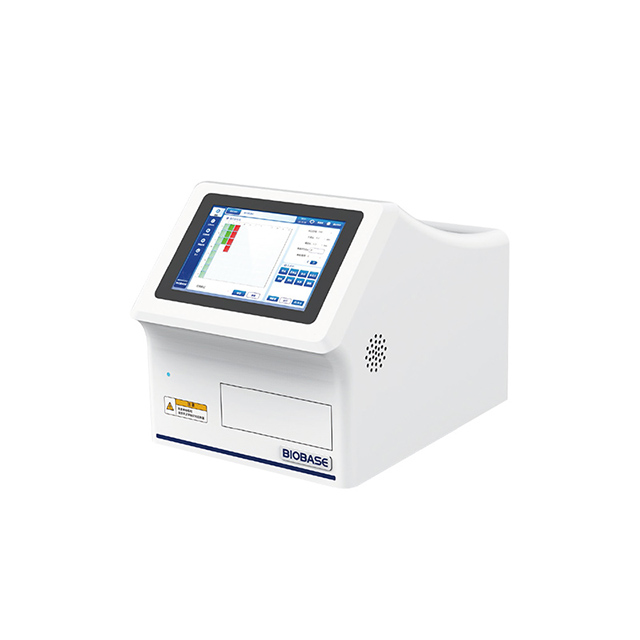

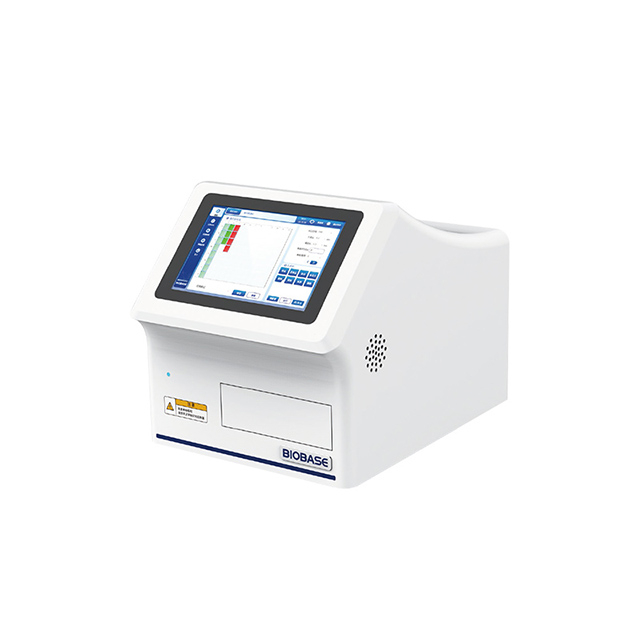

ELISA Microplate Reader BK-EL10E

Introduction:
Elisa reader is a kind of analytical instrument widely used in biology, clinical and other fields. It uses enzyme-linked immunosorbent assay (ELISA) and other experimental methods to measure the absorbance and fluorescence intensity of reactants to quantitatively analyze specific components in samples. The main functions of ELISA include but are not limited to the detection of light absorption, fluorescence intensity, chemiluminescence, etc. These functions make ELISA an indispensable tool in the laboratory.
Availability:
Quantity:
  • BK-EL10E

  • BIOBASE

Features:

1. 96-well full wavelength scanning, wavelength range 190nm~1000nm.

2. No need to preheat when starting up, can be detected directly.

3. 10. 1-inch color touch screen, visual free layout, improve user operation experience.

4. Comes with incubation heating function.

5. Comes with microplate oscillation mixing function, no need to use an external shaker.

6. Suitable for all light absorption and turbidity research applications, supports spectral scanning, endpoint method, and kinetic method.

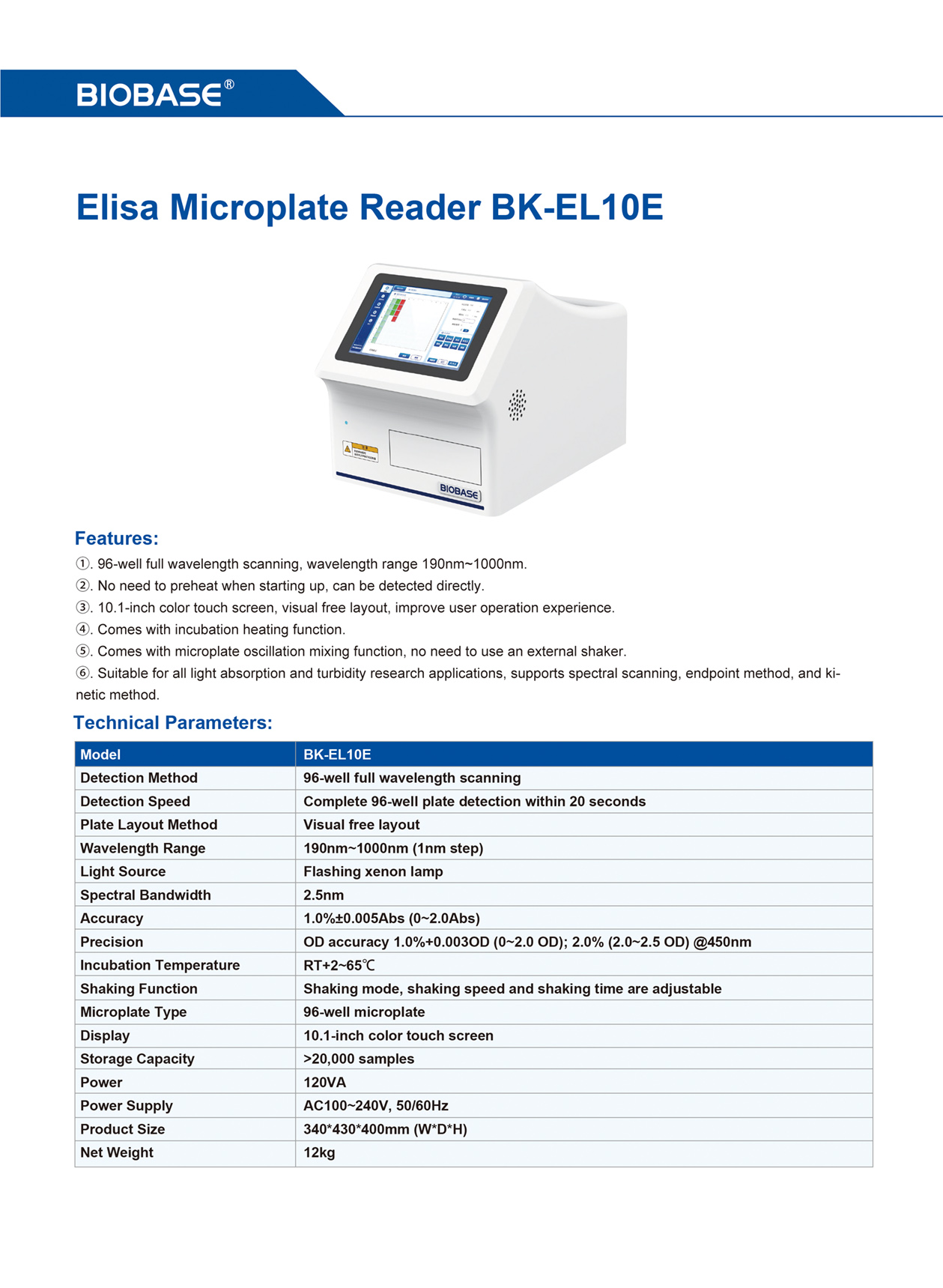

Technical Parameters:

Model

BK-EL10E

Detection Method

96-well full wavelength scanning

Detection Speed

Complete 96-well plate detection within 20 seconds

Plate Layout Method

Visual free layout

Wavelength Range

190nm~1000nm(1nm step)

Light Source

Flashing xenon lamp

Spectral Bandwidth

2.5nm

Accuracy

1.0%±0.005Abs(0~2.0Abs)

Precision

OD accuracy 1.0%+0.003OD(0~2.0 OD); 2.0%(2.0~2.5 OD)@450nm

Incubation Temperature

RT+2~65℃

Shaking Function

Shaking mode, shaking speed and shaking time are adjustable

Microplate Type

96-well microplate

Display

10.1-inch color touch screen

Storage Capacity

>20,000 samples

Power

120VA

Power Supply

AC100~240V, 50/60Hz

Product Size

340*430*400mm(W*D*H)

Net Weight

12kg
