Availability: | |
---|---|
Quantity: | |
MFW805AT MFN805ATQ
BIOBASE
Features:

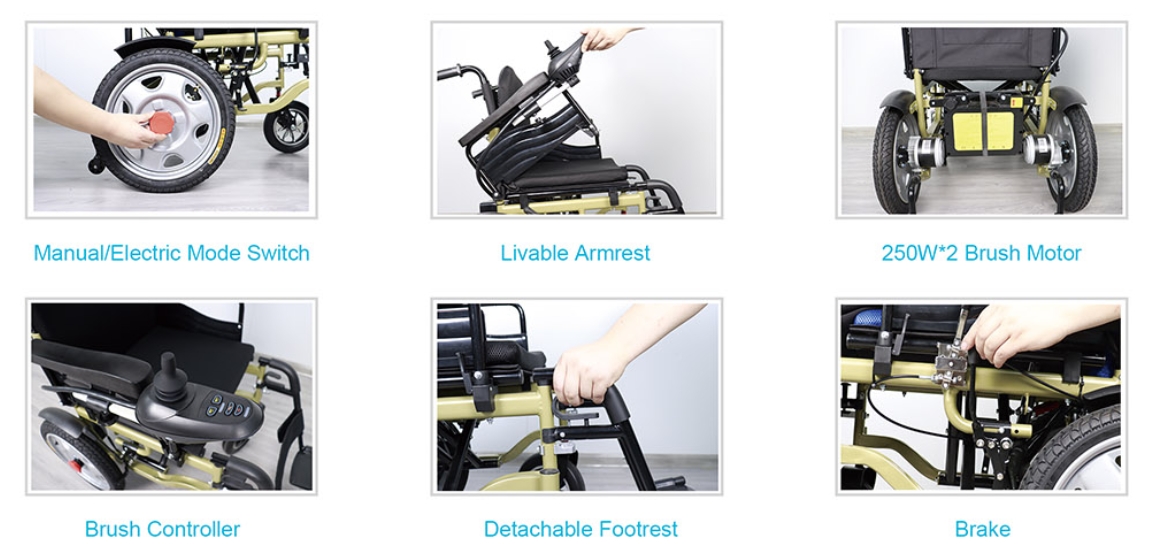

1. Humanized intelligent controller, 360°sensitive control, mobile APP control, optional wireless telecontroller.
2. The front wheels are 10-inch aluminum alloy wheel with free-inflation PU tires, with good obstacle crossing ability and shock-absorbing function; the rear wheels are 16-inch inflation tires.
3. The backrest is fixed and low so that user can not lie back.
4. 250W high efficiency energy-saving dual motor.
5. Durable battery (Lead-acid or lithium battery alternative), stable power supply performance, easy to disassemble.
6. High-elastic memory sponge back cushion, breathable and indeformable, comfortable and stable.
7. Detachable footrest, livable armrest and folding backrest, convenient to assemble and carry.
8. High-quality carbon steel frame, folded left and right, bearing 120kg without deformation, optional color can be customized.
Technical Parameters:
Model | MFW805AT |
Front Wheel Diameter | 10 inches |
Rear Wheel Diameter | 16 inches |
Seat Width | 460mm |
Seat Depth | 400mm |
Seat Height | 575mm |
Max. Speed | 4.5km/h |
Endurance Mileage | 15~20km |
Climbing Ability | ≥3° |
Loading Capacity | 120kg |
Fold Mode | Manual |
Battery | Lithium battery(MFN805AT) Lead-acid battery(MFN805ATQ) Standard: 24V12Ah Optional: 24V20Ah |
Motor | DC24V 250W*2, brush motor |
Power Supply | AC100~240V, 50/60Hz |
Controller | 45A, brush controller |
Charge Time | 2A charger, 6~8h |
Standard Accessory | 250W*2 brush motor, Brush controller |
Optional Accessory | Front wheel, Rear wheel, Controller, Remote control handle, Mobile APP |
Unfold Size | 1130*650*985mm |
Net Weight | 34.5kg(Not including charger and battery) |
Package Size | 680*450*880mm |
Gross Weight | 39kg |
Features:
1. Humanized intelligent controller, 360°sensitive control, mobile APP control, optional wireless telecontroller.
2. The front wheels are 10-inch aluminum alloy wheel with free-inflation PU tires, with good obstacle crossing ability and shock-absorbing function; the rear wheels are 16-inch inflation tires.
3. The backrest is fixed and low so that user can not lie back.
4. 250W high efficiency energy-saving dual motor.
5. Durable battery (Lead-acid or lithium battery alternative), stable power supply performance, easy to disassemble.
6. High-elastic memory sponge back cushion, breathable and indeformable, comfortable and stable.
7. Detachable footrest, livable armrest and folding backrest, convenient to assemble and carry.
8. High-quality carbon steel frame, folded left and right, bearing 120kg without deformation, optional color can be customized.
Technical Parameters:
Model | MFW805AT |
Front Wheel Diameter | 10 inches |
Rear Wheel Diameter | 16 inches |
Seat Width | 460mm |
Seat Depth | 400mm |
Seat Height | 575mm |
Max. Speed | 4.5km/h |
Endurance Mileage | 15~20km |
Climbing Ability | ≥3° |
Loading Capacity | 120kg |
Fold Mode | Manual |
Battery | Lithium battery(MFN805AT) Lead-acid battery(MFN805ATQ) Standard: 24V12Ah Optional: 24V20Ah |
Motor | DC24V 250W*2, brush motor |
Power Supply | AC100~240V, 50/60Hz |
Controller | 45A, brush controller |
Charge Time | 2A charger, 6~8h |
Standard Accessory | 250W*2 brush motor, Brush controller |
Optional Accessory | Front wheel, Rear wheel, Controller, Remote control handle, Mobile APP |
Unfold Size | 1130*650*985mm |
Net Weight | 34.5kg(Not including charger and battery) |
Package Size | 680*450*880mm |
Gross Weight | 39kg |

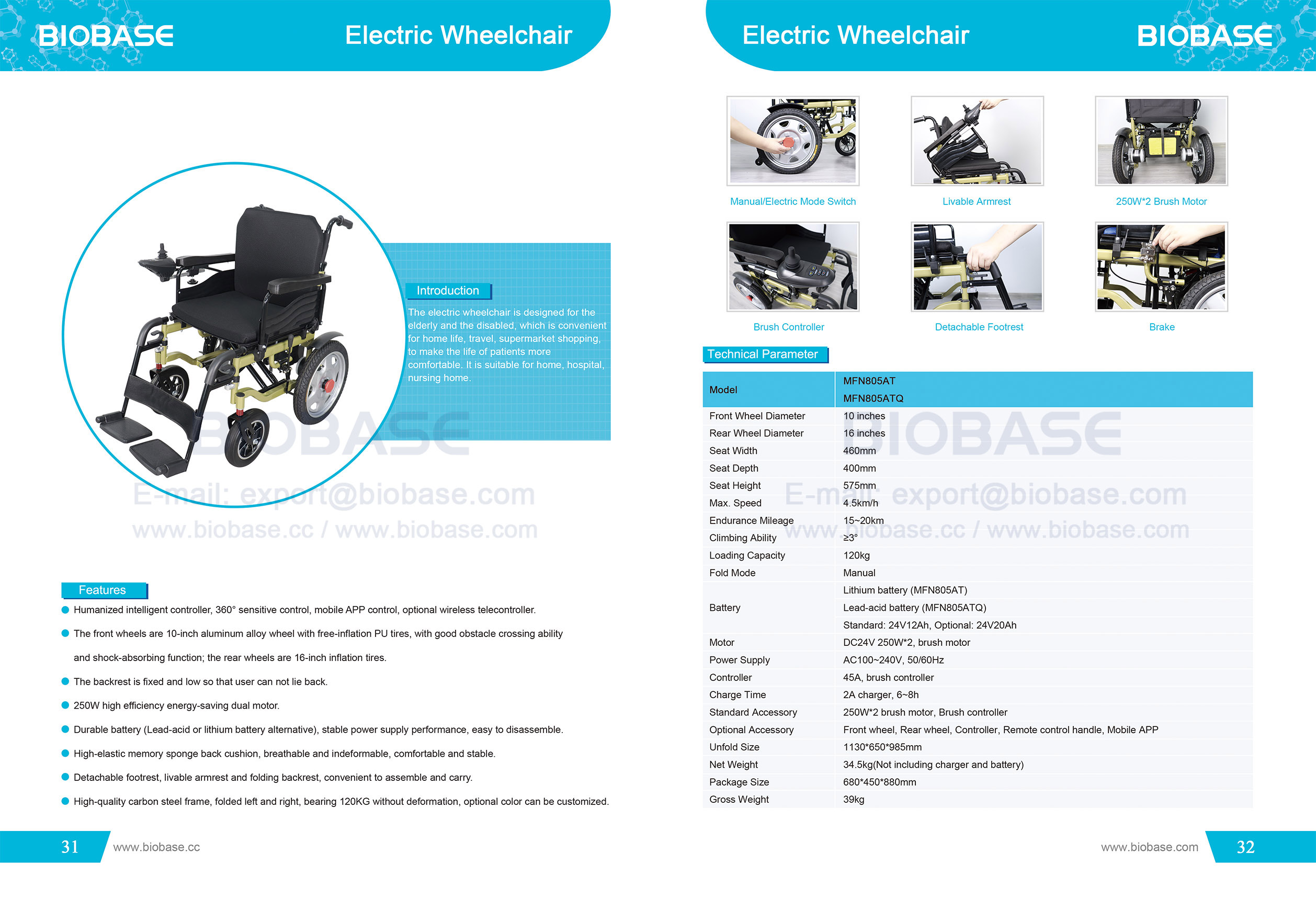

Download: 31-32 Electric wheelchair.jpg
