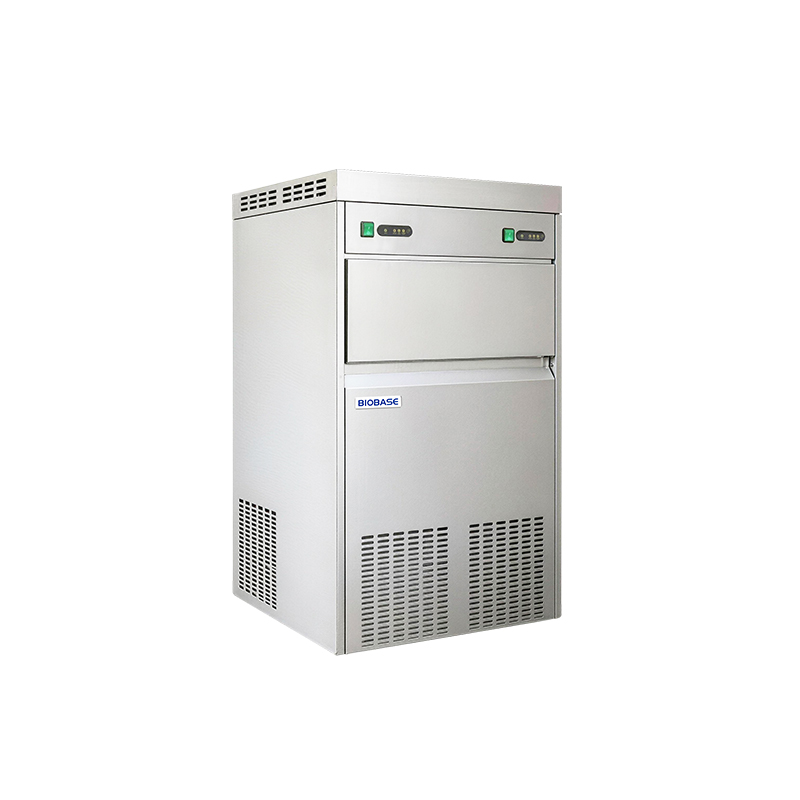

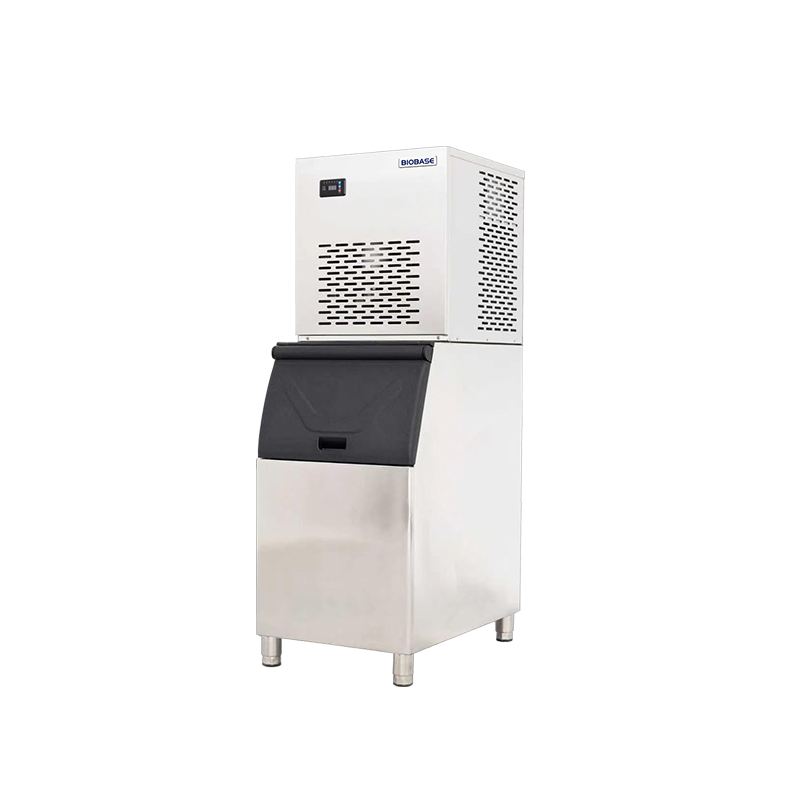

Flake Ice Maker 20kg 30kg 40kg 50kg 85kg 200kg 300kg

Introduction:
Flake ice maker is a device that condenses water into ice and then uses a motor to crush the ice. The produced irregular crushed ice can be applied in the catering industry, medical field, food storage, and other areas.

Availability:

Quantity:



Inquire Add to Basket

Model:
BK-IMS20 BK-IMS30 BK-IMS40 BK-IMS50 BK-IMS85 BK-IMS200 BK-IMS300A
Brand:
BIOBASE

Features:

1. Equipped with a high-quality and efficient compressor. Uses environmentally friendly refrigerant with an Ozone Depletion Potential (ODP) of 0.

2. The insulation layer of the inner tank is made of fluorine-free polyurethane foam, offering excellent thermal insulation.

3. The exterior is made of high-quality 304 stainless steel. It features an integrated design, compact structure, and ease of use.

4. The motor shaft has a spiral cutter design, and the ice knife edge is optimized, resulting in smaller ice particles that are versatile and practical.

5. The water tank is designed with a float valve to prevent excess water consumption, saving water and energy.

6. The ice-making evaporator is made of pure copper, and the ice knife is made of 304 stainless steel.

7. It includes protective shutdown features such as ice full, water shortage, compressor fault alarms, and protection against continuous compressor startups.

Technical Parameters:

Model	BK-IMS20	BK-IMS30	BK-IMS40	BK-IMS50	BK-IMS85	BK-IMS200	BK-IMS300A
Ice Making Capacity	20kg/24h	30kg/24h	40kg/24h	50kg/24h	85kg/24h	200kg/24h	300kg/24h
Max. Ice Storage Capacity	10kg		15kg		20kg	60kg	128kg
Water Consumption	≤1.2L/h					≤1.5L/h	≤2.0L/h
Ice Shape	Small particle of irregular snow ice
Way of Condensation	Air cooling
Ambient Temperature	10~35℃
Water Temperature	2~15℃
Refrigerant	R290
Standard Accessory	Water inlet pipe1, drainage pipe1, ice spoon*1
Optional Accessory	Filter
Consumption	300W		420W		480W	900W	1560W
Power Supply	AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
External Size(WDH)	330480620mm		400535740mm		420527925mm	6806121100mm	Ice maker head: 560620620mm Ice storage bin: 5608201045mm
Package Size(WDH)	470610860mm		5306601050mm		6007101250mm	7508151260mm	Ice maker head: 625685760mm Ice storage bin: 630880960mm
Net Weight	28kg		43kg		50kg	98kg	Ice maker head: 48kg Ice storage bin: 27kg
Gross Weight	45kg		65kg		75kg	110kg	Ice maker head: 55kg Ice storage bin: 35kg
