Introduction:
Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets hotels and other seafood products stores etc.
| Quantity: | |
|---|---|

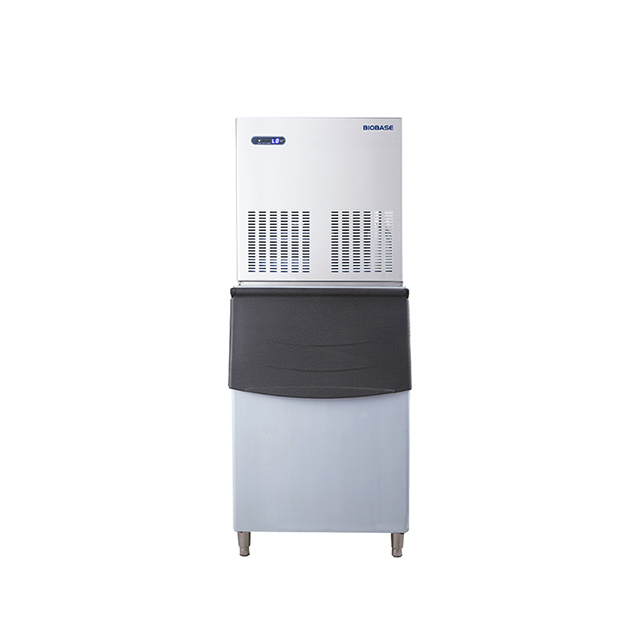

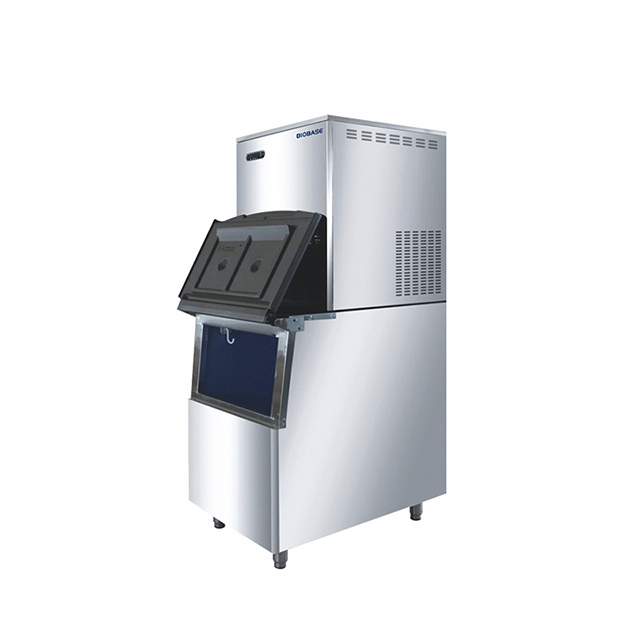

FIM300, FIM500
BIOBASE
Technical Parameters:
| Model | FIM300 | FIM500 | |
| Ice Making Capacity(kg/24h) | 300 | 500 | |
| Ice Storage Capacity | 200kg | 300kg | |
| Ice Shape | Small particle of irregular snow ice | ||
| Input Current(W) | 1360W | 1650W | |
| Way of Condensation | Air cooling | ||
| Ambient Temperature | 10~35℃ | ||
| Water Temperature | 2~15℃ | ||
| Tank Shell | Stainless steel | ||
| Compressor | SECOP | Embraco | |
| Refrigerant | R404a, 420g | R404a, 600g | |
| Standard Accessories | Water inlet pipe*1, Drainage pipe*1, Ice spoon*1 | ||
| Optional Accessories | Filter | ||
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | ||
| External Size(W*D*H)mm | Head Size | 565*575*570mm | 600*760*740mm |
| Ice Tank Size | 570*800*1020mm | 760*840*1120mm | |
| Package Size(W*D*H)mm | Head Size | 675*680*880mm | 720*860*995mm |
| Ice Tank Size | 600*835*920mm | 810*900*1050mm | |
| Net Weight | 95kg | 125kg | |
| Gross Weight | 143kg | 175kg | |
| Applicable Area | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | ||
