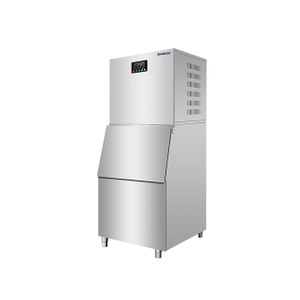

Cube Ice Machine

Features:
* Cube ice, large contact area, adjustable ice thickness.
* Stainless steel and ABS engineering plastic shell, beautiful shape, strong, practical.
* Nickel-plated copper ice plate, flowing vertical ice making, high ice making efficiency, energy saving.
* "Intelligent core" control system, automatic ice making, automatic ice falling, ice full detection.
* One-button cleaning function, convenient daily maintenance.
* LED screen, clear operation, accurate understanding of the machine's working conditions.
* The tank, sink, and water distribution pipe all meet the food grade standards, safe and hygienic.
* Built-in refrigerator.
* The three basic parts(computer board, fan, condenser) are guaranteed for five years.
Availability:
Quantity:
  • CIM-65 CIM-80 CIM-120 CIM-180 CIM-210 CIM -260
  • BIOBASE

Technical Parameters:

Model

CIM-65

CIM-80

CIM-120

CIM-180

CIM-210

CIM-260


Ice Making Capacity(kg/24h)

30

40

60

80

100

120


Ice Storage Capacity(kg)

15

45

Ice Shape

Standard:Cube Ice 22*22*22mm 10g

Optional: Cube Ice 28*13*23mm 7g, Cube Ice 28*28*23mm 15g

Choose one of the three Types.

Ice Grid

4*9

4*10

5*12

5*16

5*18

6*18


Way of Condensation

Standard: Air cooling  Optional: Water cooling

Ambient Temperature

1℃~40℃

Water Temperature

5℃~35℃

Compressor

Wanbao

Refrigerant

R404A/R290

Optional Accessories

UV lamp

Power Supply

Standard: AC220V±10%, 50Hz

Optional: AC220V±10%, 60Hz  AC110V±10%, 60Hz

Input Current(W)

280

300

360

580

600

650


Net Weight(kg)

34

34

35

54

55

56


Gross Weight(kg)

38

38

39

59

60

61


External Size(W*D*H)mm

500*450*800

500*450*800

500*450*800

660*680*930

660*680*930

660*680*930


Package Size(W*D*H)mm

580*510*850

580*510*850

580*510*850

740*750*920

740*750*920

740*750*920
