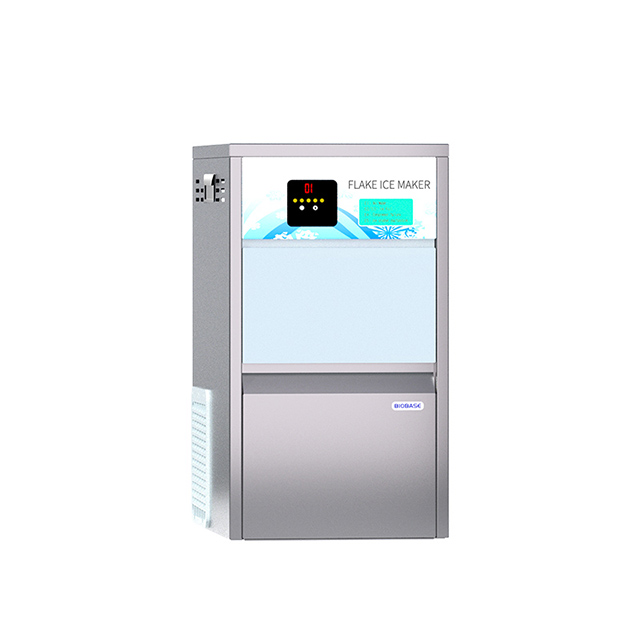

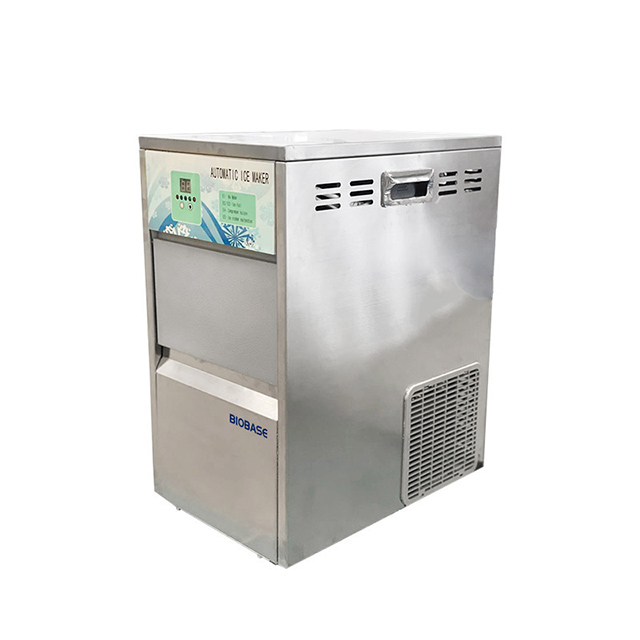

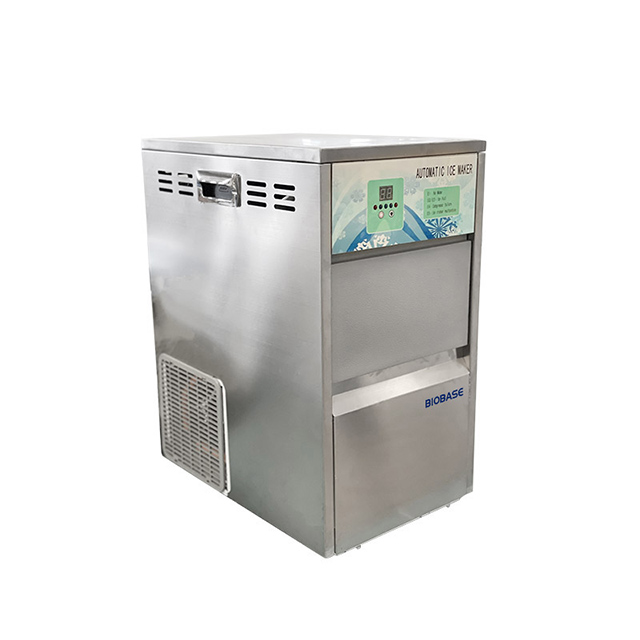

BK-IMS20 BK-IMS30
BIOBASE
Features:
1. Equipped with a high-quality and efficient compressor. Uses environmentally friendly refrigerant with an Ozone Depletion Potential(ODP) of 0.
2. The insulation layer of the inner tank is made of fluorine-free polyurethane foam, offering excellent thermal insulation.
3. The exterior is made of high-quality 304 stainless steel. It features an integrated design, compact structure, and ease of use.
4. The motor shaft has a spiral cutter design, and the ice knife edge is optimized, resulting in smaller ice particles that are versatile and practical.
5. The water tank is designed with a float valve to prevent excess water consumption, saving water and energy.
6. The ice-making evaporator is made of pure copper, and the ice knife is made of 304 stainless steel.
7. It includes protective shutdown features such as ice full, water shortage, compressor fault alarms, and protection against continuous compressor startups.
Technical Parameters:
Model | BK-IMS20 | BK-IMS30 |
Ice Making Capacity | 20kg/24h | 30kg/24h |
Max. Ice Storage Capacity | 10kg | |
Water Consumption | ≤1.2L/h | |
Ice Shape | Small particle of irregular snow ice | |
Way of Condensation | Air cooling | |
Ambient Temperature | 10~35℃ | |
Water Temperature | 2~15℃ | |
Refrigerant | R290 | |
Standard Accessory | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | |
Optional Accessory | Filter | |
Consumption | 300W | |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | |
External Size(W*D*H) | 330*480*605mm | |
Package Size(W*D*H) | 380*570*650mm | |
Net Weight | 26kg | |
Gross Weight | 38kg | |
Features:
1. Equipped with a high-quality and efficient compressor. Uses environmentally friendly refrigerant with an Ozone Depletion Potential(ODP) of 0.
2. The insulation layer of the inner tank is made of fluorine-free polyurethane foam, offering excellent thermal insulation.
3. The exterior is made of high-quality 304 stainless steel. It features an integrated design, compact structure, and ease of use.
4. The motor shaft has a spiral cutter design, and the ice knife edge is optimized, resulting in smaller ice particles that are versatile and practical.
5. The water tank is designed with a float valve to prevent excess water consumption, saving water and energy.
6. The ice-making evaporator is made of pure copper, and the ice knife is made of 304 stainless steel.
7. It includes protective shutdown features such as ice full, water shortage, compressor fault alarms, and protection against continuous compressor startups.
Technical Parameters:
Model | BK-IMS20 | BK-IMS30 |
Ice Making Capacity | 20kg/24h | 30kg/24h |
Max. Ice Storage Capacity | 10kg | |
Water Consumption | ≤1.2L/h | |
Ice Shape | Small particle of irregular snow ice | |
Way of Condensation | Air cooling | |
Ambient Temperature | 10~35℃ | |
Water Temperature | 2~15℃ | |
Refrigerant | R290 | |
Standard Accessory | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | |
Optional Accessory | Filter | |
Consumption | 300W | |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | |
External Size(W*D*H) | 330*480*605mm | |
Package Size(W*D*H) | 380*570*650mm | |
Net Weight | 26kg | |
Gross Weight | 38kg | |
