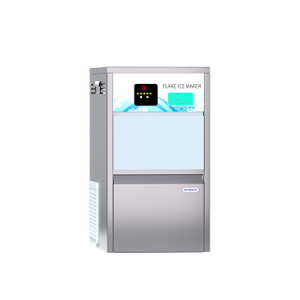

FIM100, FIM120, FIM150, FIM200, FIM250
BIOBASE
Technical Parameters:
Model | FIM100 | FIM120 | FIM150 | FIM200 | FIM250 |
Ice Making Capacity(kg/24h) | 100 | 120 | 150 | 200 | 250 |
Ice Storage Capacity(kg) | 40 | 40 | 40 | 60 | 60 |
Ice Shape | Small particle of irregular snow ice | ||||
Input Current(W) | 520 | 550 | 680 | 1040 | 1100 |
Way of Condensation | Air cooling | ||||
Ambient Temperature | 10~35℃ | ||||
Water Temperature | 2~15℃ | ||||
Tank Shell | Stainless steel | ||||
Compressor | Panasonic wanbao | Donper | Panasonic wanbao | ||
Refrigerant | R290 | ||||
Standard Accessories | Water inlet pipe*1, Drainage pipe*1, Ice spoon*1 | ||||
Optional Accessories | Filter | ||||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Net Weight(kg) | 58 | 60 | 80 | ||
Gross Weight(kg) | 82 | 84 | 105 | ||
External Size(W"D*H)mm | 500*611*940 | 680*611*1100 | |||
Package Size(W'D*H)mm | 720*620*1160 | 730*790*1320 |
Various types of experiments, hospitals, schools, laboratories,medical, chemical applications, supermarkets, hotels and other seafood products stores etc.
Technical Parameters:
Model | FIM100 | FIM120 | FIM150 | FIM200 | FIM250 |
Ice Making Capacity(kg/24h) | 100 | 120 | 150 | 200 | 250 |
Ice Storage Capacity(kg) | 40 | 40 | 40 | 60 | 60 |
Ice Shape | Small particle of irregular snow ice | ||||
Input Current(W) | 520 | 550 | 680 | 1040 | 1100 |
Way of Condensation | Air cooling | ||||
Ambient Temperature | 10~35℃ | ||||
Water Temperature | 2~15℃ | ||||
Tank Shell | Stainless steel | ||||
Compressor | Panasonic wanbao | Donper | Panasonic wanbao | ||
Refrigerant | R290 | ||||
Standard Accessories | Water inlet pipe*1, Drainage pipe*1, Ice spoon*1 | ||||
Optional Accessories | Filter | ||||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
Net Weight(kg) | 58 | 60 | 80 | ||
Gross Weight(kg) | 82 | 84 | 105 | ||
External Size(W"D*H)mm | 500*611*940 | 680*611*1100 | |||
Package Size(W'D*H)mm | 720*620*1160 | 730*790*1320 |
Various types of experiments, hospitals, schools, laboratories,medical, chemical applications, supermarkets, hotels and other seafood products stores etc.
