Introduction:

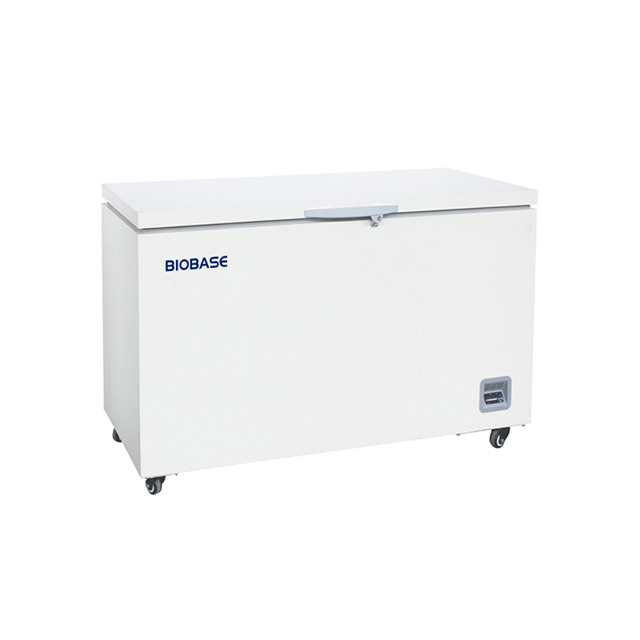

Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, entrepreneurs, etc. The storing temperature in the body can set by the temperature button on the control panel. The application is convenient and the performance is reliable.
| Quantity: | |
|---|---|
BDF-60H58 BDF-60H118A BDF-60H218 BDF-60H318 BDF-60H458
BIOBASE
Safety System:
1. Perfect alarm system with buzzer sound and lamp flashing alarm functions.
2. High temperature alarm&temperature sensor failure alarm.
3. Multiple-protection function(Password protection, power-on delay, time between stops, refrigeration system operation protection during sensor failure).
Technical Parameters:
Model | BDF-60H58 | BDF-60H118A | BDF-60H218 | BDF-60H318 | BDF-60H458 | |
External Size(W*D*H)mm | 670*765*905 | 900*765*945 | 1160*765*885 | 1530*765*885 | 2115*895*1095 | |
Internal Size(W*D*H)mm | 470*470*300 | 696*470*385 | 960*470*595 | 1330*470*595 | 1380*500*660 | |
Capacity | 60L | 118L | 220L | 320L | 458L | |
Temp. Range | -25℃~-60℃, adjustable | |||||
Temp. Accuracy | 0.1℃ | |||||
Control System&Display | Microprocessor control, LED display | |||||
Audio&Visual Alarm | High or low temperature alarm, Sensor failure alarm | |||||
Refrigeration Type | Optimized auto-cascade refrigerating system | |||||
Refrigerant | Unique fluoride-free mixed refrigerant, CFC-Free | |||||
Condenser&Evaporator | Optimized evaporation and condensation system, strong cooling and low energy consumption | |||||
Construction | Structure | 100mm(150mm only for BDF-60H458) ultra-thick foam layer, dual-sealing design of door, for effective temperature protection | ||||
Internal Material | 304 stainless steel | |||||
External Material | Sprayed steel plate | |||||
Consumption | 330W/990VA | 340W/1020VA | 400W/1200VA | 480W/1440VA | 520W/1560VA | |
Power Supply | AC110V/220V±10%, 50/60Hz | |||||
Optional Accessory | USB port | / | / | USB port | ||
Package Size(W*D*H)mm | 740*835*1075 | 1020*830*1075 | 1230*835*1055 | 1600*835*1055 | 2215*935*1245 | |
Gross Weight(kg) | 101 | 128 | 143 | 170 | 255 | |
