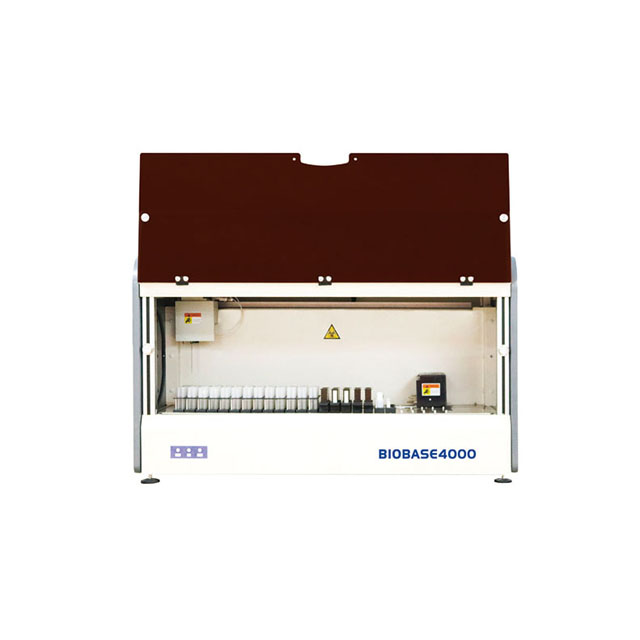

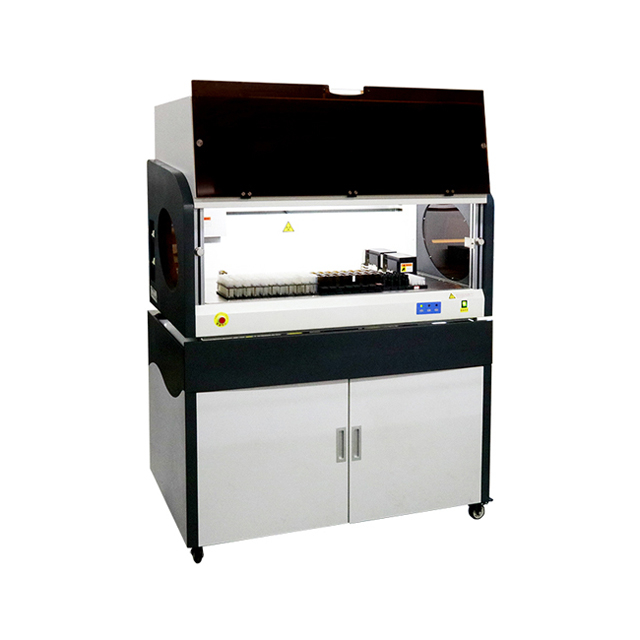

The auto elisa processor is an analytical instrument used in the field of pharmacy. Its main function is to analyze sample pre-processing, sample analysis and data processing.
BIOBASE
Features:
1. 1 robotic arm, 4 pipetting probe(10~1000μl).
2. 8 unit 96 well microplates(independent incubating).
3. 2 unit readers, 2 unit washer (auto reading and washing).

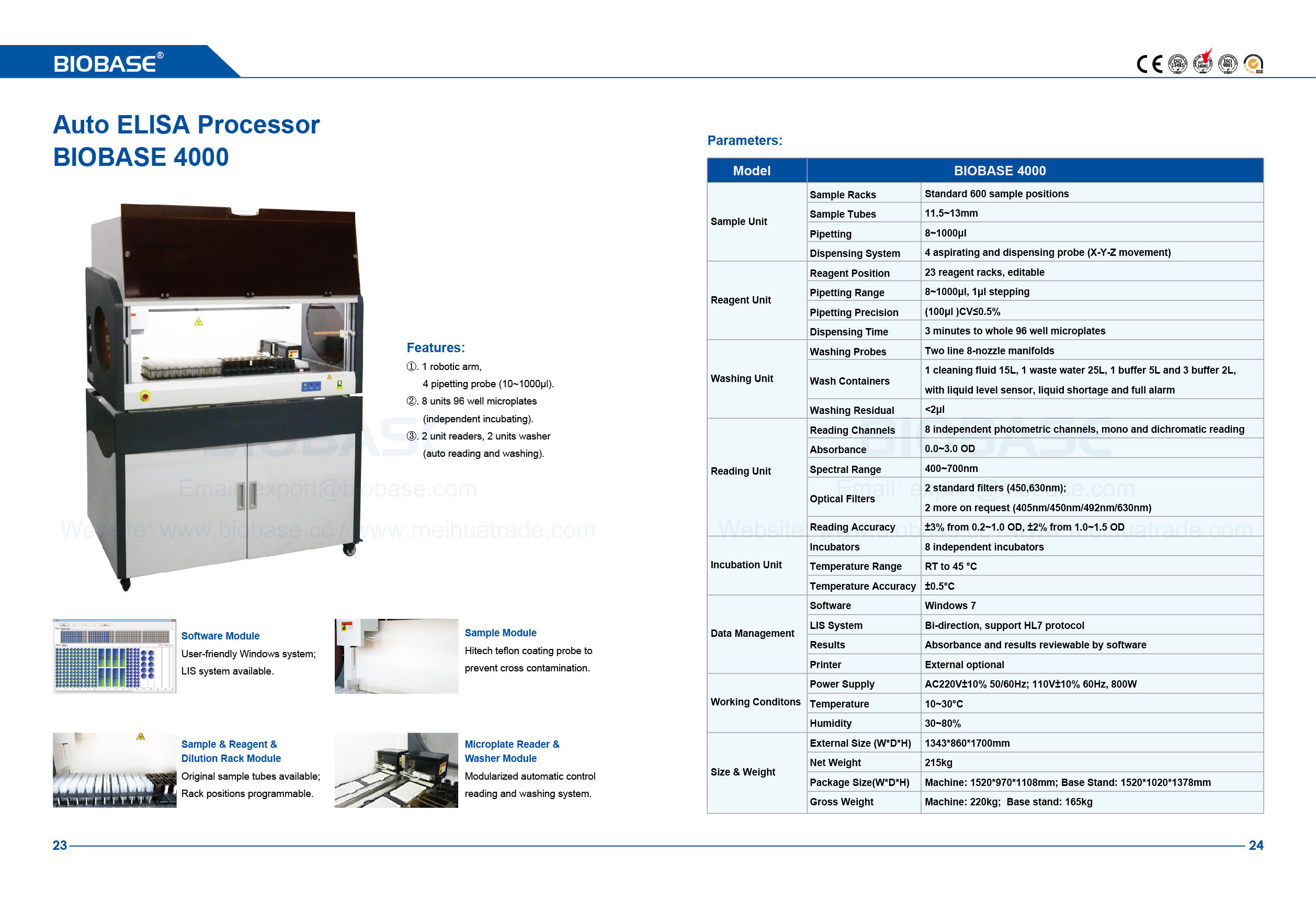

Models:
Model | BIOBASE 4000 | |

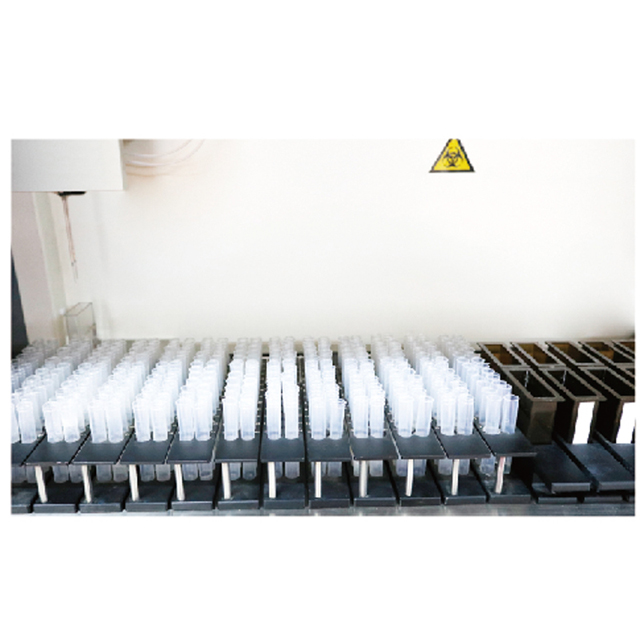

Sample Unit | Sample Racks | Standard 600 samplepositions |
Sample Tubes | 11.5~13mm | |
Pipetting | 8~1000ul | |

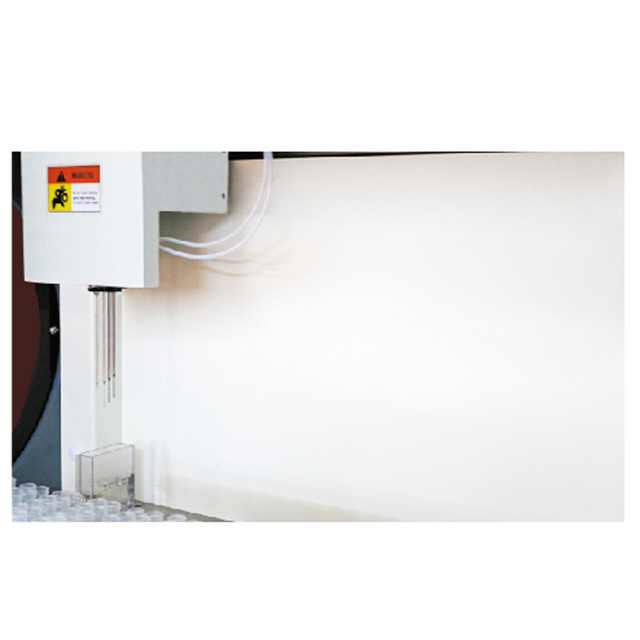

Dispensing system | 4aspirating-dispensing probe( X-Y-Z movement) | |
Reagent Unit
| Reagent Position | 23 reagent racks, editable |
Pipetting Range | 8~1000ul, 1ul stepping | |
Pipetting Precision | (100ul )CV≤0.5% | |
DispensingTime | 3 minutesto whole96well microplates | |
Washing Probes | Two line 8-nozzle manifolds | |
Wash Containers | 1Cleaning fluid 15L, 1waste water 25L, 1Buffer 5L and 3 Buffer 2L, with liquid level sensor,liquid shortage and full alarm | |
Washing Residual | <2μl | |
Reading Unit
| Reading Channels | 8 independent photometric channels, mono anddichromatic reading |
Absorbance | 0.0~3.0 OD | |
Spectral Range | 400-700nm | |
Optical Filters | 2standard filters (450,630nm); 2 more on request (405nm/450nm/492nm/630nm) | |
Reading Accuracy | ±3% from 0.2~1.0 OD, ±2% from 1.0 to1.5 OD | |
Incubation Unit | Incubation | 8 independentincubators |
Temperature Range | RT to 45 °C | |
Temperature Accuracy | ±0.5°C | |

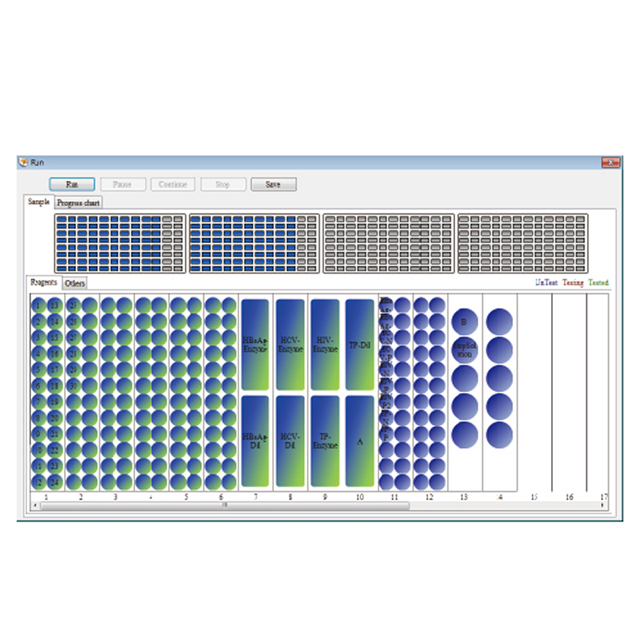

Data Management | Software | Windows 7 |
LIS System | Bi-direction,support HL7 protocol | |
Results | Absorbance and results reviewable by software | |
Printer | External optional | |
Working Conditions | Power Supply | AC220V±10%,50/60Hz, 110V±10%,60Hz, 800W |
Temperature | 10～30℃ | |
Humidity | 30-80% | |
Size & Weight | External Size (W*D*H) | 1343*860*1700mm |
Net Weight | 215kg | |
Package Size (W*D*H) | Machine:1520*970*1108mm Base Stand:1520*1020*1378mm | |
Gross Weight | Machine:220kg Base Stand: 165kg | |
