Introduction:
BK-PR96 Automated Sample Processing System can be used with a biological safety cabinet. Could complete lid opening/closing, dispensing, proteinase K/internal control addition, it only takes 20 minutes to transfer 96 samples at one time, which helps laboratories quickly improve their large-scale nucleic acid detection capabilities
Application:
Sample processing for clinical diagnosis, epidemic surveillance, food safety, forensic identification, scientific research, etc., especially for samples of SARS-CoV-2 or other virulent infectious diseases.

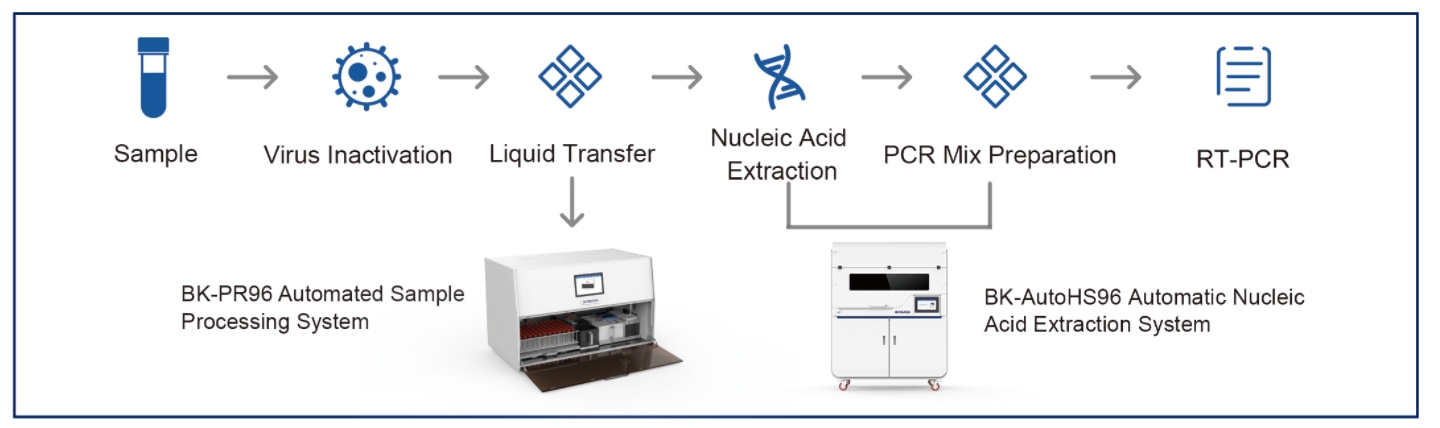

Work Process：
Features:
Safety: Equipped with double independent, specific anti aerosol cross contamination device, high efficiency ultraviolet disinfection module, external liquid trap tray
Efficient: 96 samples were processed within 20 minutes, with double manipulator, double sample addition and double screw cover channel
Convenient: 10.1-inch HD touch screen, user-friendly operation interface, one-click software operation, quick mastery; Pull-out scrap TIP storage box design, more convenient cleaning.
Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes. (including blood collection tubes) specifications
Smart: One-key operation, smart dispensation
Technical Parameter:
Model | BK-PR96 |
Throughput | 1-96 |
Processing Time | 96 samples/20min |
Sample Type | Plasma, serum, whole blood, swab solution and other samples |
Sample Rack | 1pc (compatible with a variety of sampling tubes) |
Robot Arm | |
Clamping Arm | 2pcs, Independence Movement |
Pipetting Method | Specific mechanical pipetting fluids |
Plate Position | 3 pcs（Compatible with multi-specification deep-well plates） |
Tip Position | 3 pcs（Including tip waste box position） |
Reagent Rack | Yes, 4*4 reagent carrier, can hold bullet cryotube |
Protective Function | Can be used in a biological safety cabinet |
External droplet catch tray design | |
With air-tight and anti-drip design | |
Liquid Detection | Pneumatic liquid level detection principle, intelligent detection of blocked needle |
Pipetting Volume | 5-1000ul |
Pipetting Accuracy | 20ul, CV≤2%, Accuracy≤5.0%, 50ul Tip |
1000ul, CV≤0.5%, Accuracy≤1.0%,1000ul Tip | |
Power Supply | Standard: 220V 50/60Hz; optional: 110V 50/60Hz |
Power | 350W |
External Size (W*D*H) | 1180*680*760mm |
Net Weight | 105kg |
Package Size (W*D*H) | Main instrument: 1293*793*970mm Accessory 1: 645*185*440mm Accessory 2: 645*185*440mm |
Gross Weight | Main instrument: 156kg Accessory 1: 6.1kg Accessory 2: 4kg |
