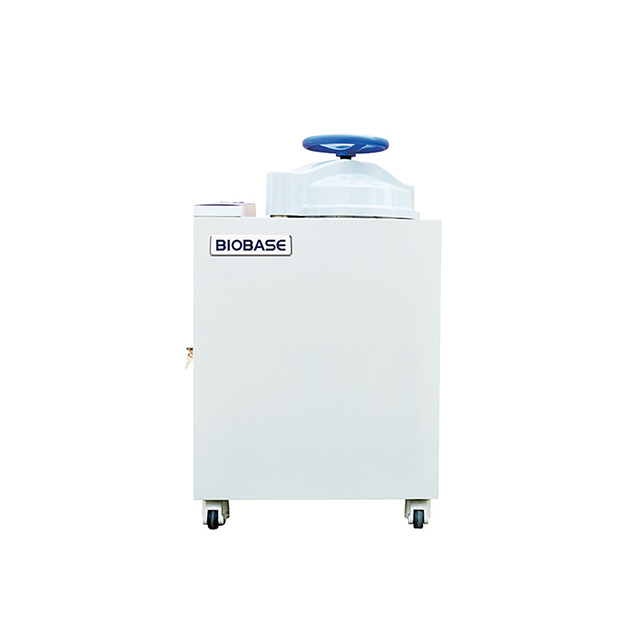

Biosafety Autoclave BKQ-B Series

Applications
Biosafety autoclave is suitable for the sterilization of materials, instruments, utensils, culture media and wastes for the purpose of biosafety, in order to prevent the spread of pathogenic factors through aerosols to people, animals and plants or the environment pollution.
Availability:
Quantity:
  • BKQ-B50BL BKQ-B75BL BKQ-B100BL BKQ-B120BL
  • BIOBASE

Features:

True color touch control panel with clear display and easy operation.

With waste water collection and waste gas filtration system, it can ensure the sterility of waste water and waste gas finally discharged.

The equipment occupies a small space and has a large cavity volume.

Footmaster casters, easy to move the equipment.

With a quick service window, electrical equipment can be serviced without removing the cover.

The machine has a built-in independent steam generator.

Self-expanding silicone sealing ring, with good sealing effect and long service life, is made of medical transparent silicone molding.

Using single chip control, water injection, heating, sterilization, exhaust, drying, collection, filtration, automatic control, no manual operation.

Built-in printer, which can print sterilization data in real time.

Deionized water connection for supplying the steam generator.


Technical Parameters:

Model

BKQ-B50BL

BKQ-B75BL

BKQ-B100BL

BKQ-B120BL

Capacity

50L

75L

100L

120L

Design Pressure

0.28MPa

0.28MPa

0.28MPa

0.28MPa

Rated Working Pressure

0.23MPa

0.23MPa

0.23MPa

0.23MPa

Working Temperature

134℃

134℃

134℃

134℃

Chamber Material

S304

S304

S304

S304

Internal Chamber Size(Φ*L)mm

Φ386×515

Φ386×695

Φ386×1280

Φ386×1380

Working Noise

≤65dB

Power Supply

Standard: 220V 50Hz; optional: 110V 60Hz(internal transformer)

Rated Power

4kW

External Size(L*D*H)mm

700*610*1070

700*610*1070

700*610*1250

700*610*1070

Net Weight

118kg

122kg

130kg

122kg

Packing Size(L*D*H)mm

760*670*1130

760*670*1130

760*670*1310

760*670*1130

Gross Weight

134kg

138kg

146kg

138kg
