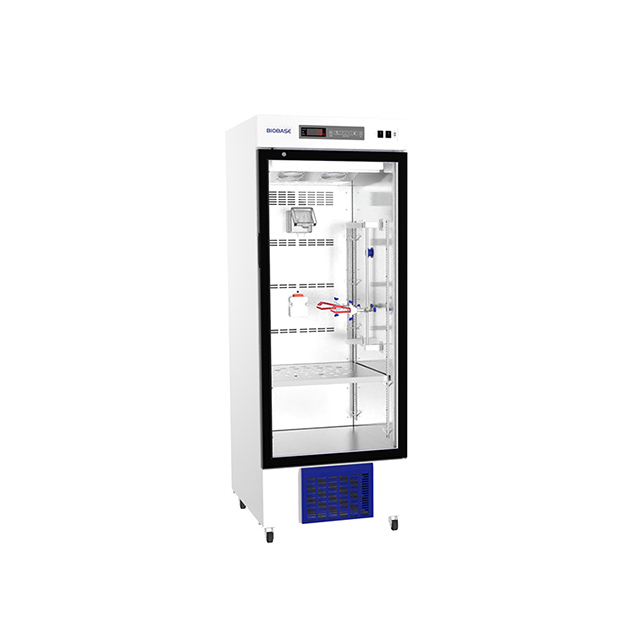

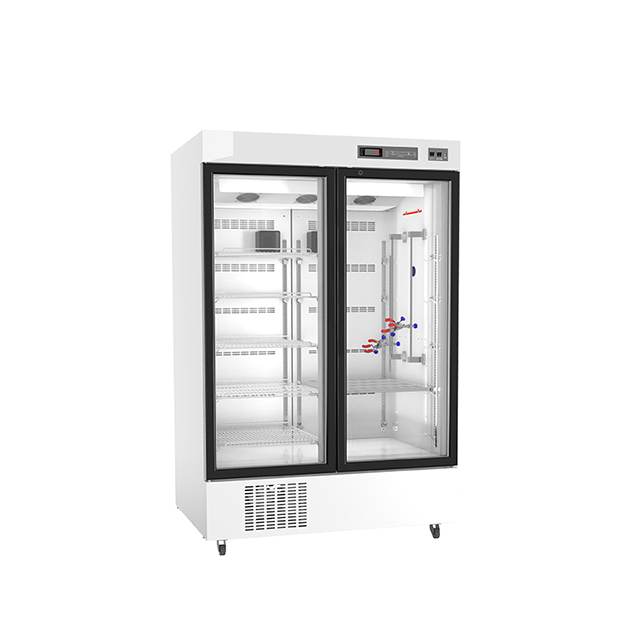

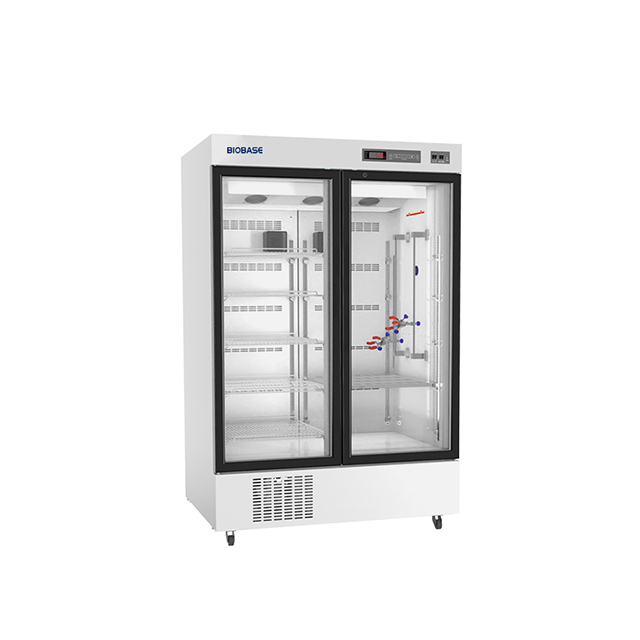

BSR-5V450 BSR-5V1000
BIOBASE

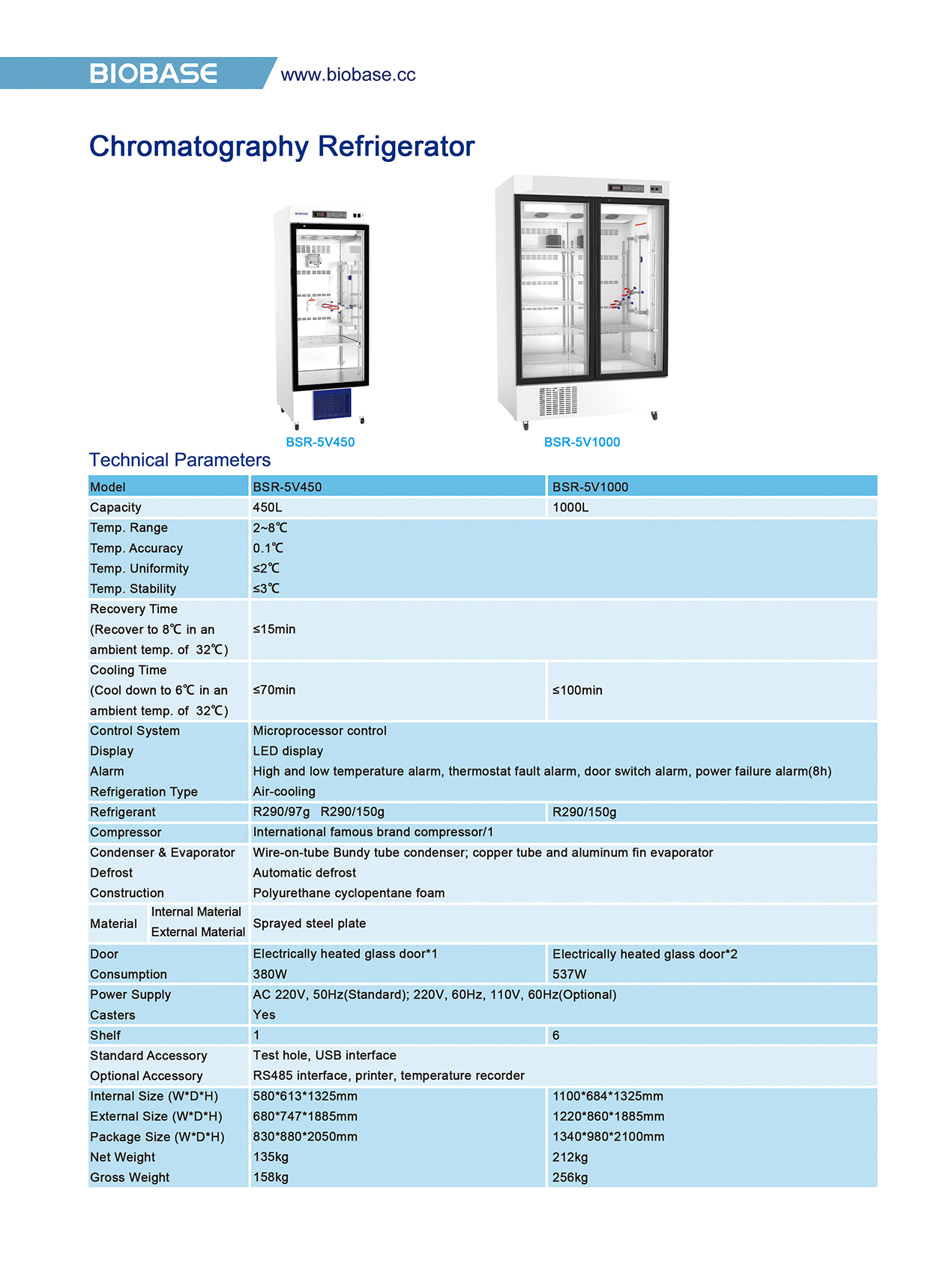

Technical Parameters:
Model | BSR-5V450 | BSR-5V1000 | ||
Capacity | 450L | 1000L | ||
Temp. Range | 2~8℃ | |||
Temp. Accuracy | 0.1℃ | |||
Temp. Uniformity | ≤2℃ | |||
Temp. Stability | ≤3℃ | |||
Recovery Time(Recover to 8℃ in an ambient temp. of 32℃) | ≤15min | |||
Cooling Time(Cool down to 6℃ in an ambient temp. of 32℃) | ≤70min | ≤100min | ||
Control System | Microprocessor control | |||
Display | LED display | |||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h) | |||
Refrigeration Type | Air-cooling | |||
Refrigerant | R290/97g; R290/150g | R290/150g | ||
Compressor | International famous brand compressor/1 | |||
Condenser&Evaporator | Wire-on-tube Bundy tube condenser, copper tube and aluminum fin evaporator | |||
Defrost | Automatic defrost | |||
Construction | Polyurethane cyclopentane foam | |||
Material | Internal Material | Sprayed steel plate | ||
External Material | ||||
Door | Electrically heated glass door*1 | Electrically heated glass door*2 | ||
Consumption | 380W | 537W | ||
Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional) | |||
Casters | Yes | |||
Shelf | 1 | 6 | ||
Standard Accessory | Test hole, USB interface | |||
Optional Accessory | RS485 interface, printer, temperature recorder | |||
Internal Size(W*D*H) | 580*613*1325mm | 1100*684*1325mm | ||
External Size(W*D*H) | 680*747*1885mm | 1220*860*1885mm | ||
Package Size(W*D*H) | 830*880*2050mm | 1340*980*2100mm | ||
Net Weight | 135kg | 212kg | ||
Gross Weight | 158kg | 256kg | ||
