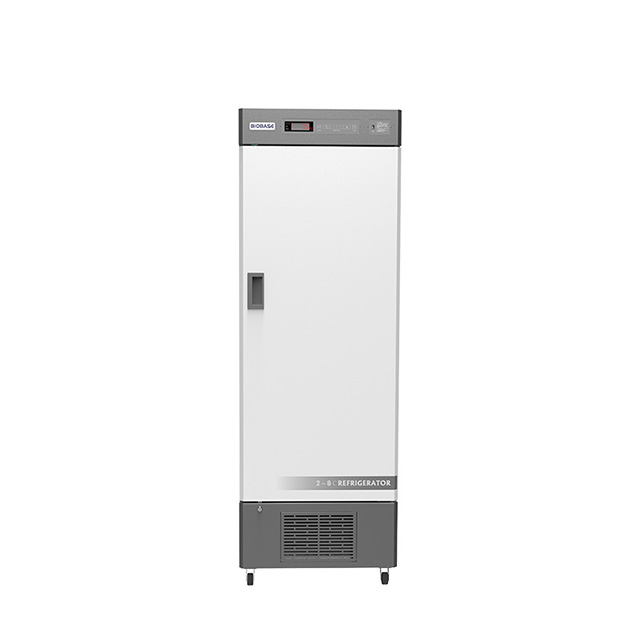

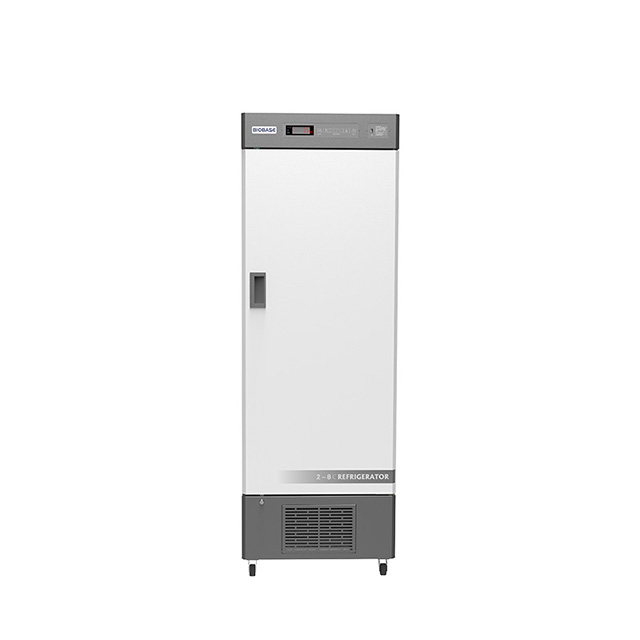

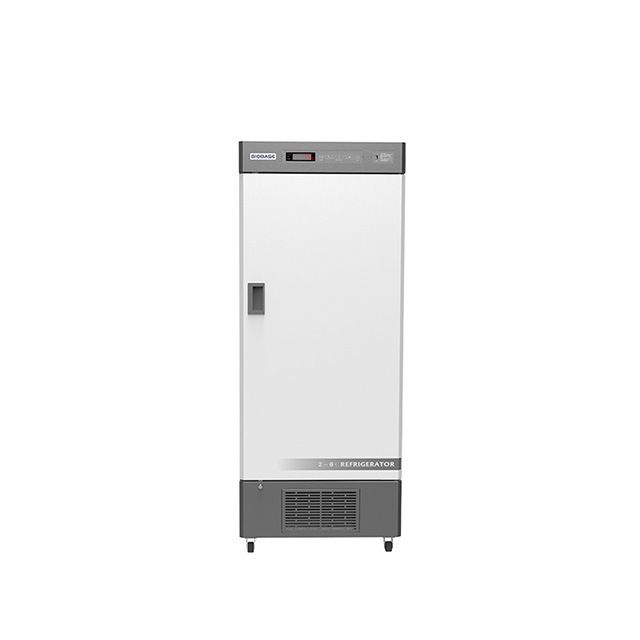

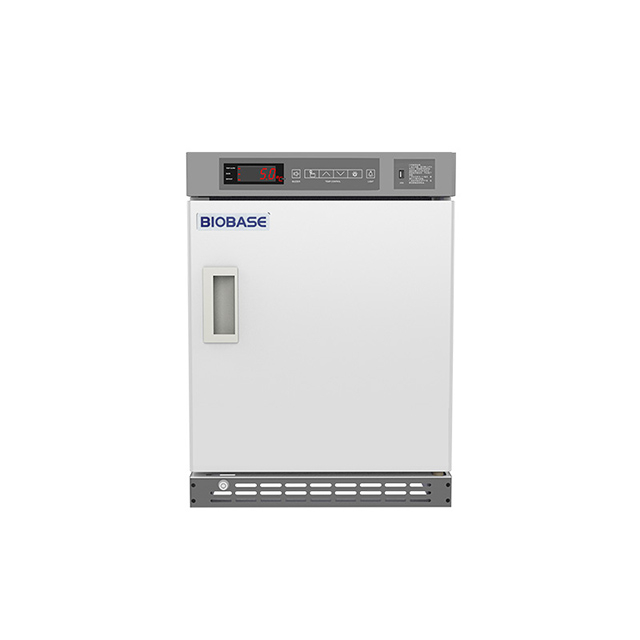

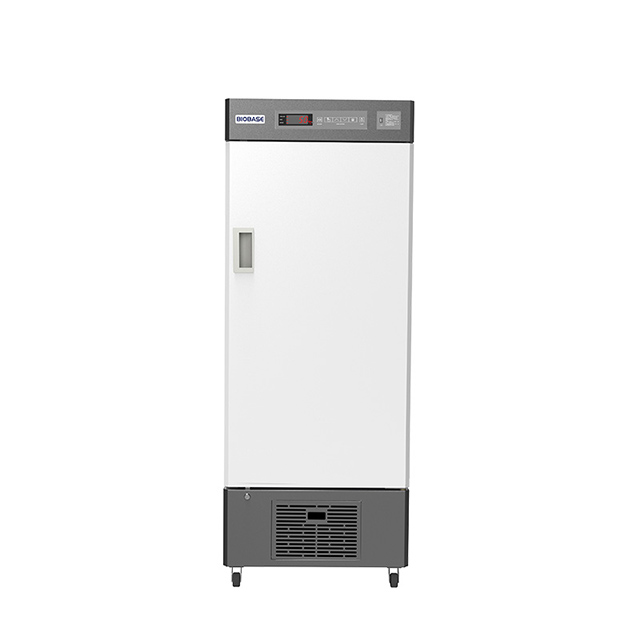

BPR-5V68F BPR-5V108F BPR-5V288F BPR-5V358F BPR-5V468F
BIOBASE

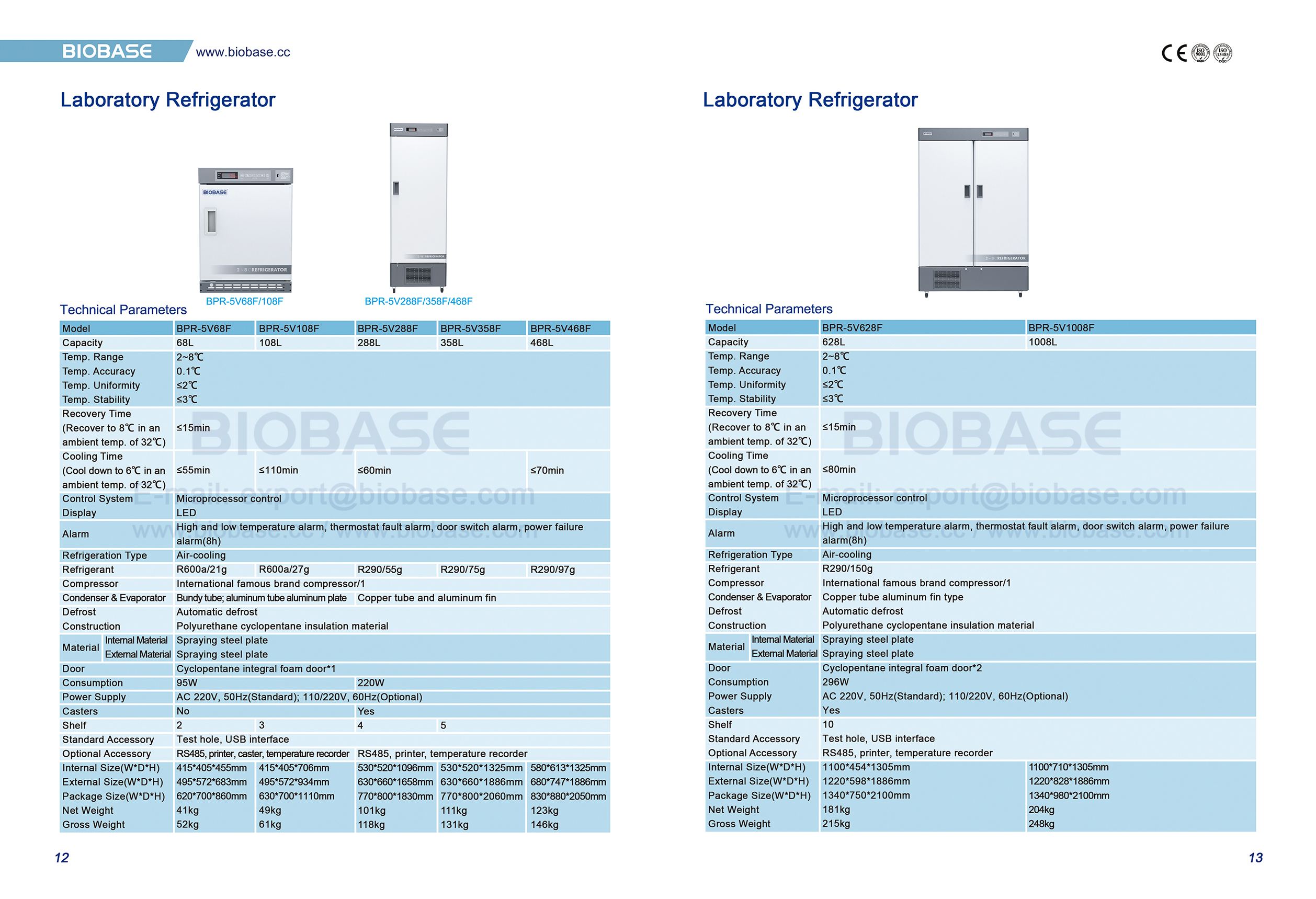

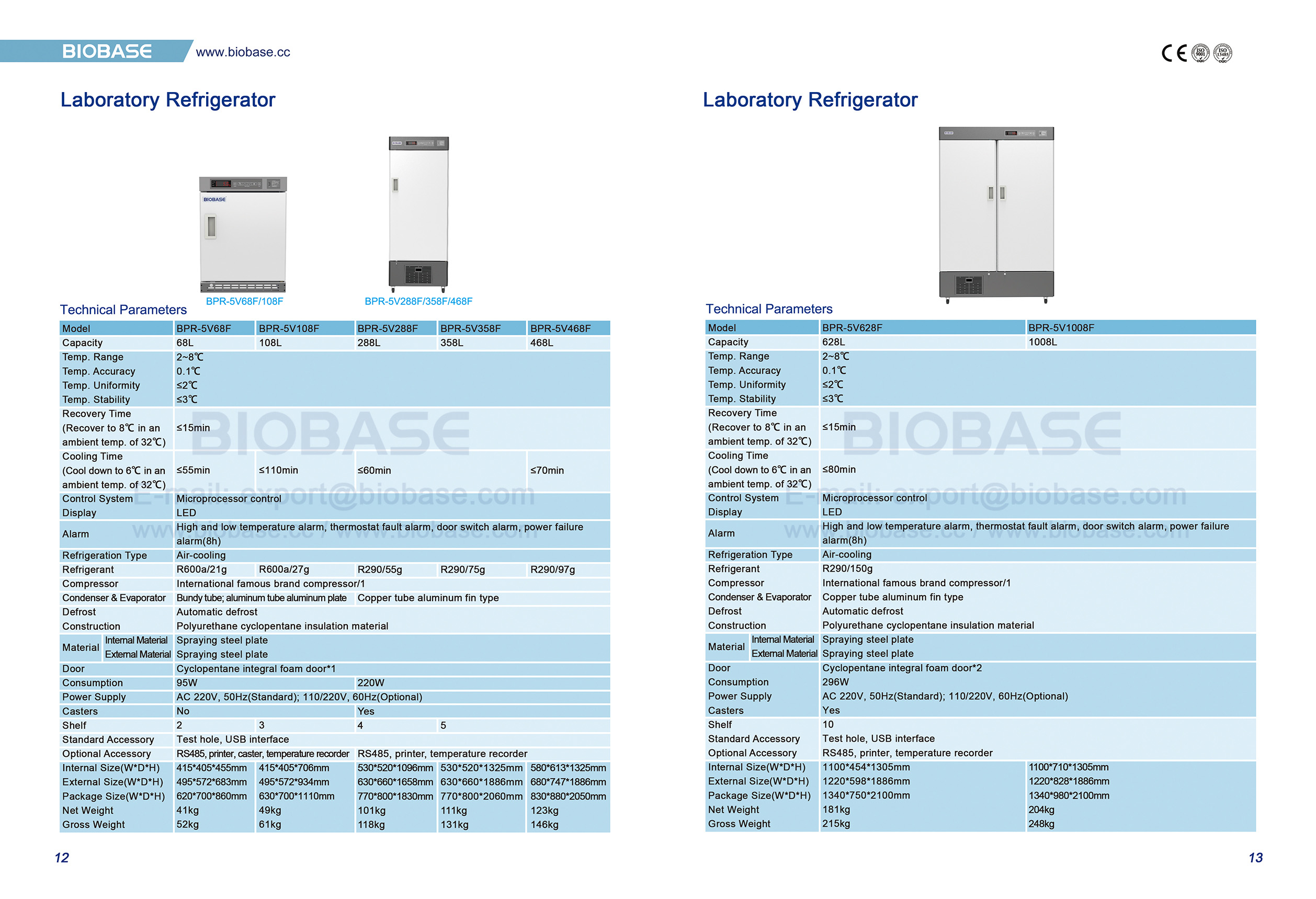

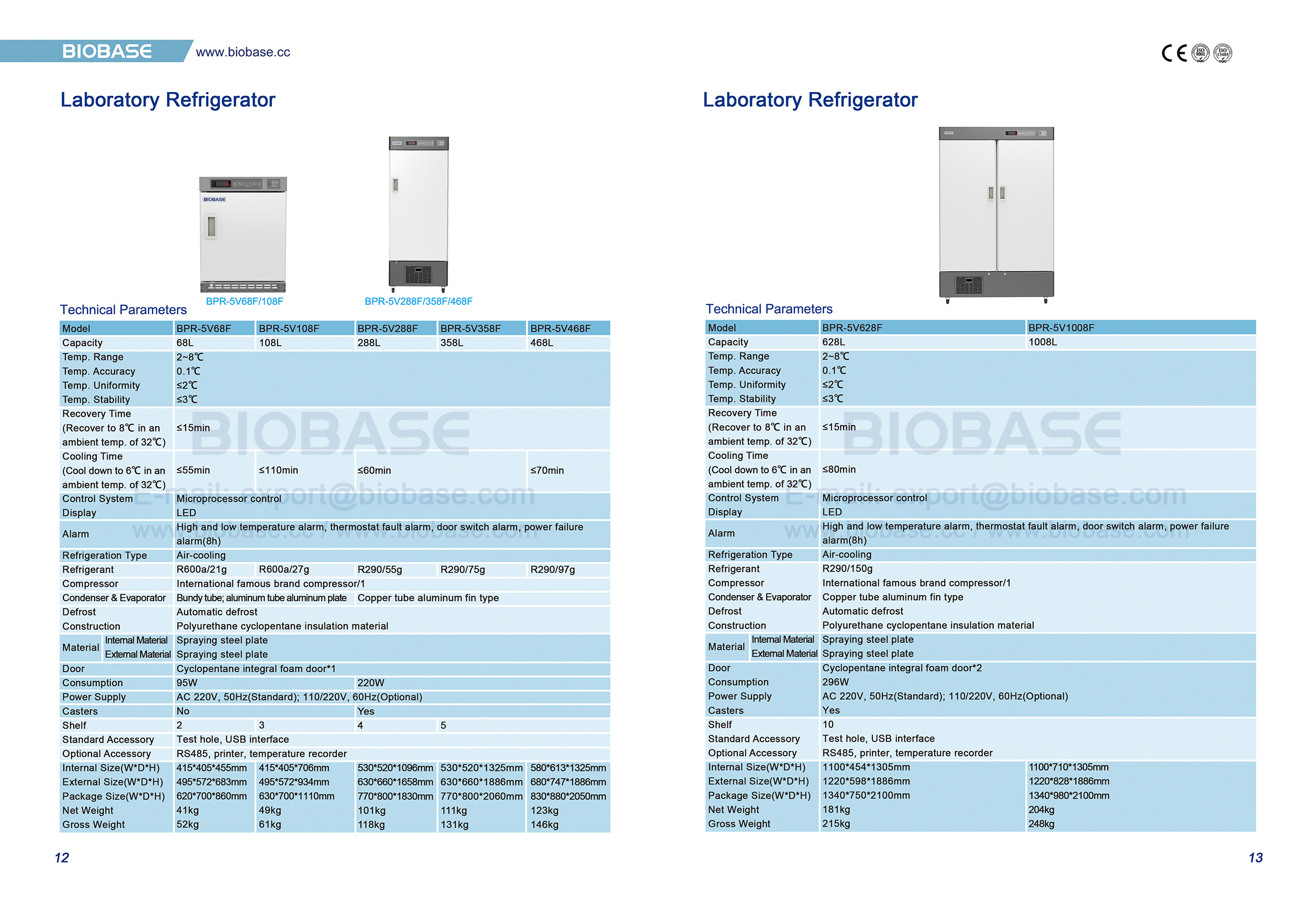

Technical Parameters:
Model | BPR-5V68F | BPR-5V108F | BPR-5V288F | BPR-5V358F | BPR-5V468F | ||
Capacity | 68L | 108L | 288L | 358L | 468L | ||
Temp. Range | 2~8℃ | ||||||
Temp. Accuracy | 0.1℃ | ||||||
Temp. Uniformity | ≤2℃ | ||||||
Temp. Stability | ≤3℃ | ||||||
Recovery Time (Recover to 8℃ in an ambient temp. of 32℃) | ≤15min | ||||||
Cooling Time (Cool down to 6℃ in an ambient temp. of 32℃) | ≤55min | ≤110min | ≤60min | ≤70min | |||
Control System | Microprocessor control | ||||||
Display | LED | ||||||
Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h) | ||||||
Refrigeration Type | Air-cooling | ||||||
Refrigerant | R600a/21g | R600a/27g | R290/55g | R290/75g | R290/97g | ||
Compressor | International famous brand compressor/1 | ||||||
Condenser & Evaporator | Bundy tube; aluminum tube aluminum plate | Copper tube and aluminum fin | |||||
Defrost | Automatic defrost | ||||||
Construction | Polyurethane cyclopentane insulation material | ||||||
Material | Internal Material | Spraying steel plate | |||||
External Material | Spraying steel plate | ||||||
Door | Cyclopentane integral foam door*1 | ||||||
Consumption | 95W | 220W | |||||
Power Supply | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||||||
Casters | No | Yes | |||||
Shelf | 2 | 3 | 4 | 5 | |||
Standard Accessory | Test hole, USB interface | ||||||
Optional Accessory | RS485, printer, caster, temperature recorder | RS485, printer, temperature recorder | |||||
Internal Size(W*D*H) | 415*405*455mm | 415*405*706mm | 530*520*1096mm | 530*520*1325mm | 580*613*1325mm | ||
External Size(W*D*H) | 495*572*683mm | 495*572*934mm | 630*660*1658mm | 630*660*1886mm | 680*747*1886mm | ||
Package Size(W*D*H) | 620*700*860mm | 630*700*1110mm | 770*800*1830mm | 770*800*2060mm | 830*880*2050mm | ||
Net Weight | 41kg | 49kg | 101kg | 111kg | 123kg | ||
Gross Weight | 52kg | 61kg | 118kg | 131kg | 146kg | ||

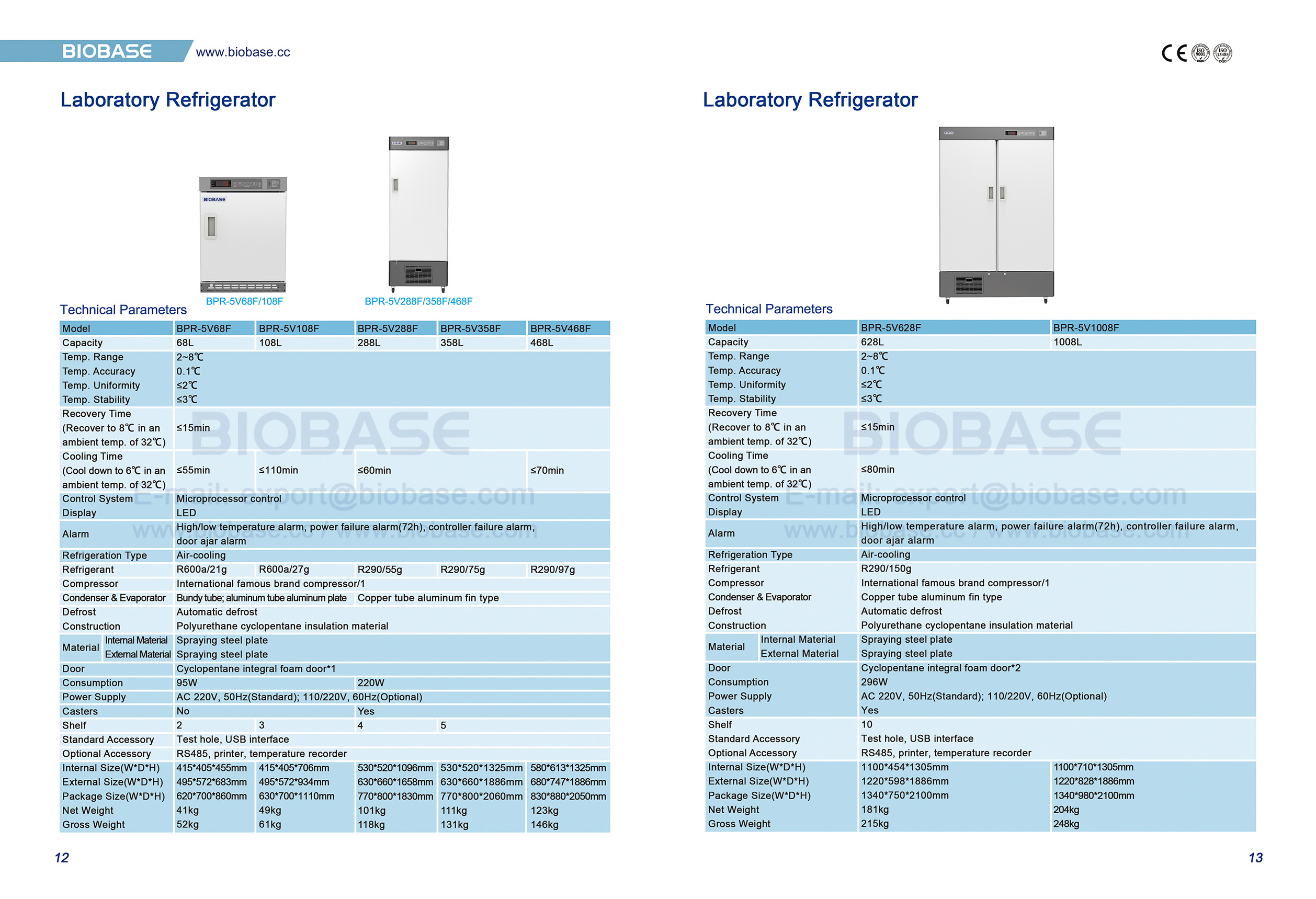

Technical Parameters:
