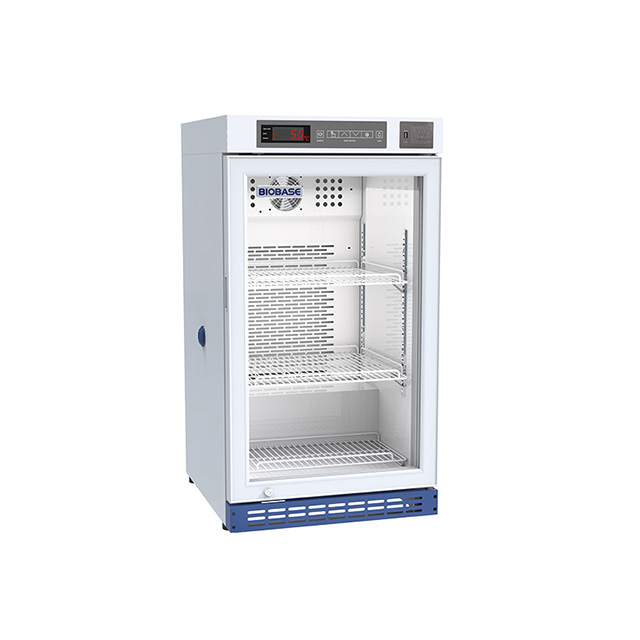

Introduction:
Laboratory refrigerator series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, entrepreneurs, etc. The storing temperature in the body can be regulated by the temperature button on the control panel. The application is convenient and the performance is reliable.
| Quantity: | |
|---|---|

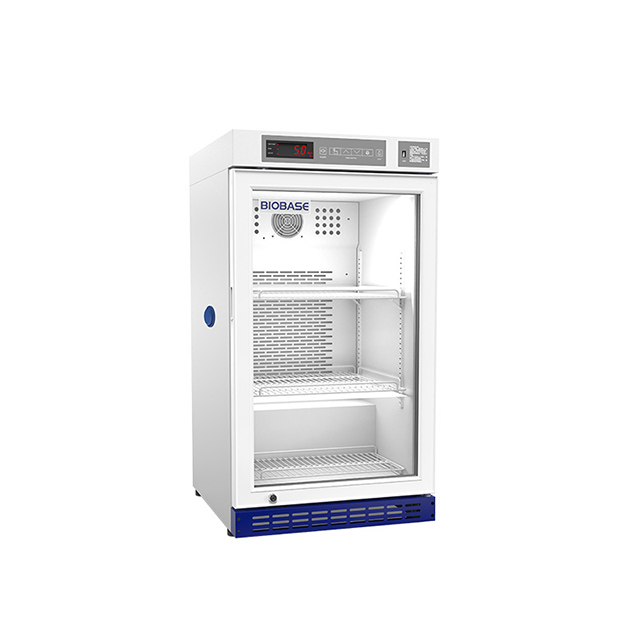

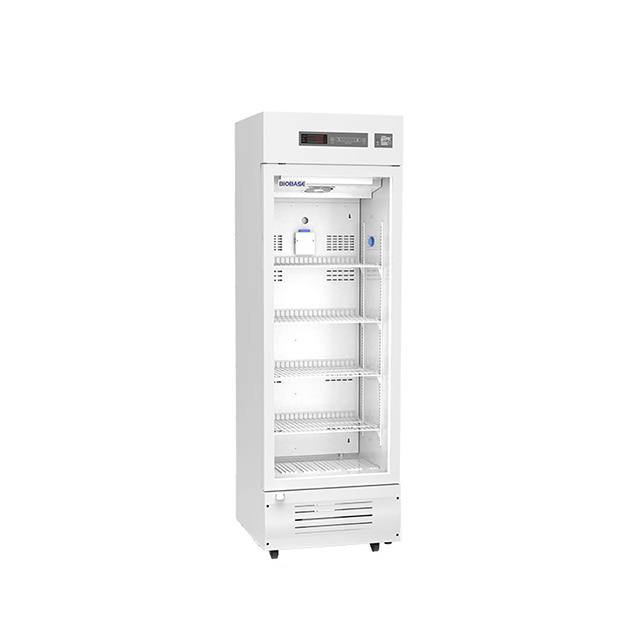

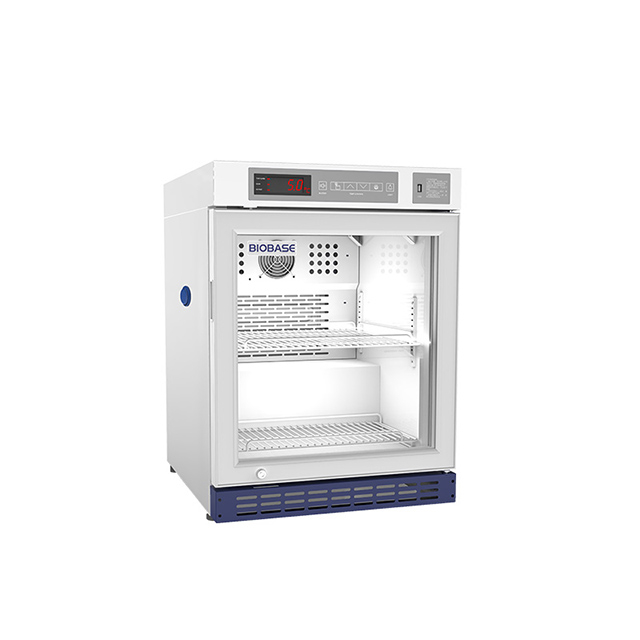

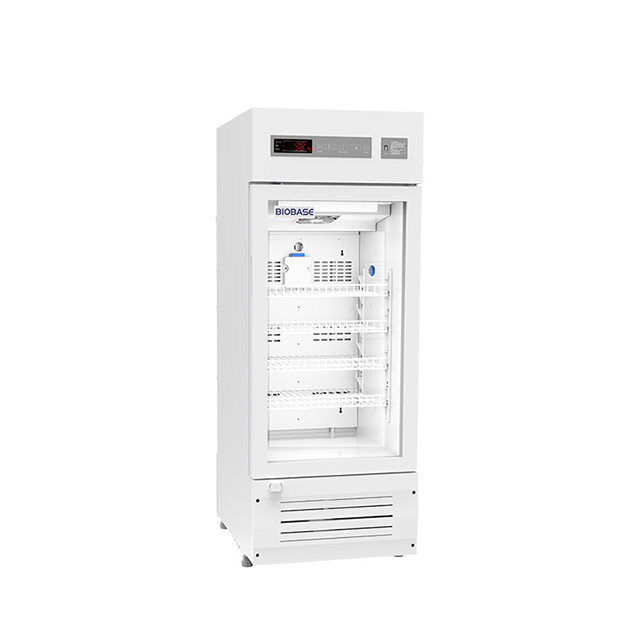

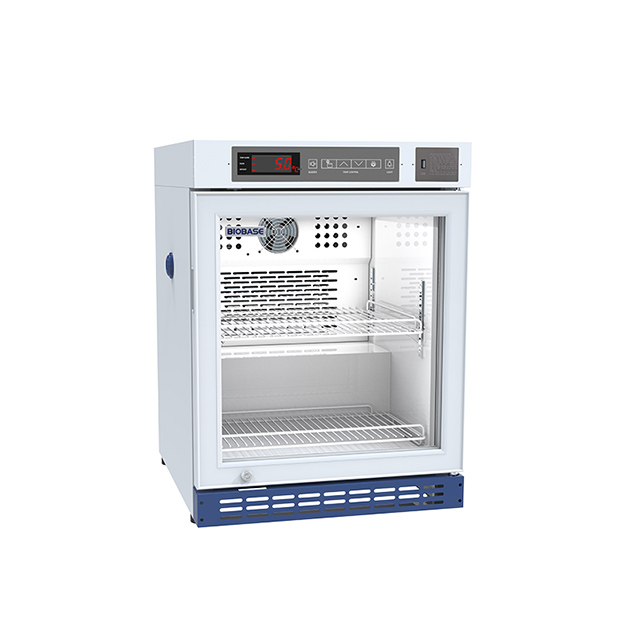

BPR-5V68 BPR-5V108 BPR-5V118 BPR-5V238
BIOBASE

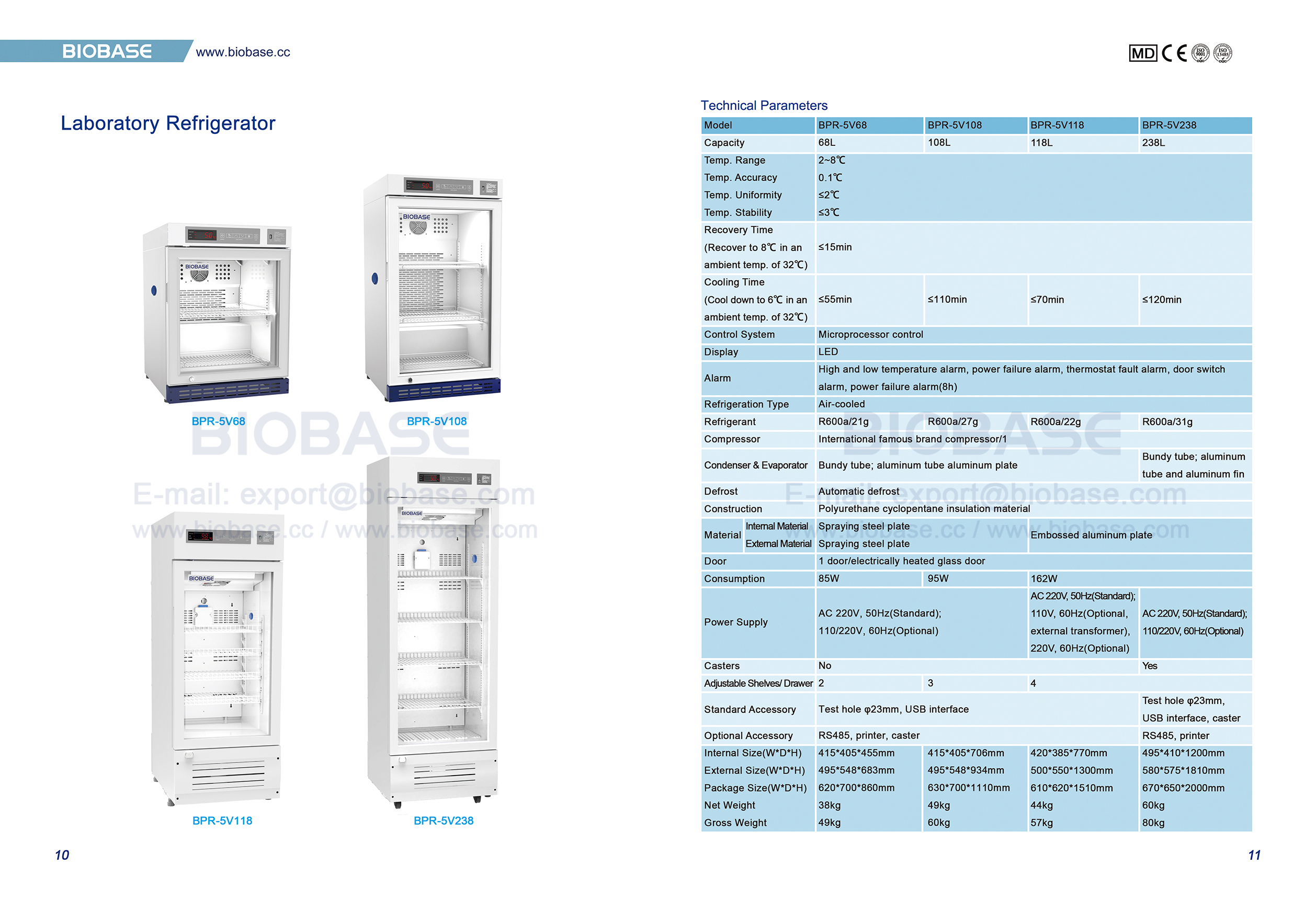

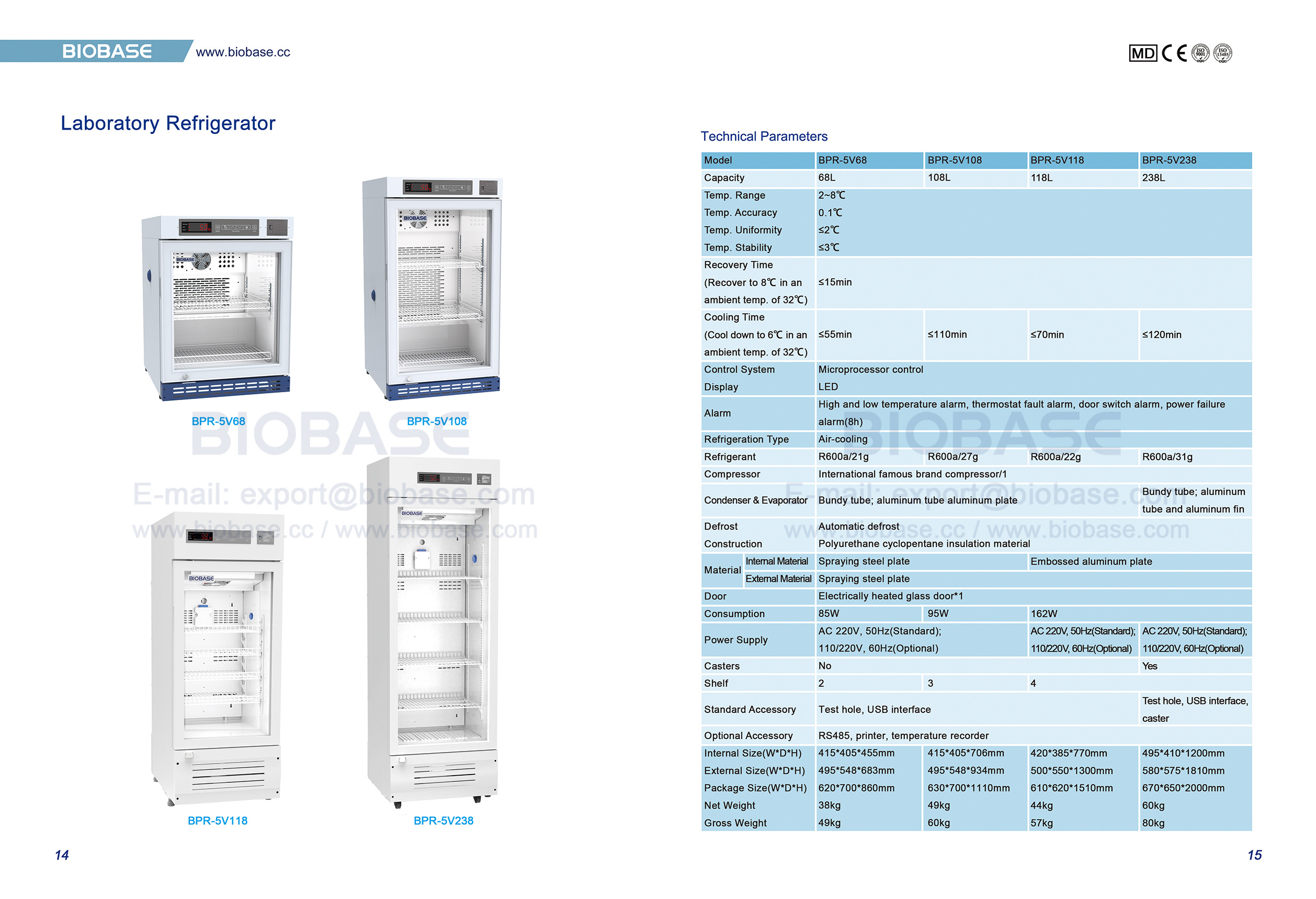

Technical Parameters:
Model | BPR-5V68 | BPR-5V108 | BPR-5V118 | BPR-5V238 | ||||
Capacity | 68L | 108L | 118L | 238L | ||||
Temp. Range | 2~8℃ | |||||||
Temp. Accuracy | 0.1℃ | |||||||
Temp. Uniformity | ≤2℃ | |||||||
Temp. Stability | ≤3℃ | |||||||
Recovery Time (Recover to 8℃ in an ambient temp. of 32℃) | ≤15min | |||||||
Cooling Time (Cool down to 6℃ in an ambient temp. of 32℃) | ≤55min | ≤110min | ≤70min | ≤120min | ||||
Control System | Microprocessor control | |||||||
Display | LED | |||||||
Alarm | High and low temperature alarm, power failure alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h) | |||||||
Refrigeration Type | Air-cooled | |||||||
Refrigerant | R600a/21g | R600a/27g | R600a/22g | R600a/31g | ||||
Compressor | International famous brand compressor/1 | |||||||
Condenser & Evaporator | Bundy tube; aluminum tube aluminum plate | Bundy tube; aluminum tube and aluminum fin | ||||||
Defrost | Automatic defrost | |||||||
Construction | Polyurethane cyclopentane insulation material | |||||||
Material | Internal Material | Spraying steel plate | Embossed aluminum plate | |||||
External Material | Spraying steel plate | |||||||
Door | 1 door/electrically heated glass door | |||||||
Consumption | 85W | 95W | 162W | |||||
Power Supply | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer), 220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | |||||
Casters | No | Yes | ||||||
Adjustable Shelves/ Drawer | 2 | 3 | 4 | |||||
Standard Accessory | Test hole φ23mm, USB interface | Test hole φ23mm, USB interface, caster | ||||||
Optional Accessory | RS485, printer, caster | RS485, printer | ||||||
Internal Size(W*D*H) | 415*405*455mm | 415*405*706mm | 420*385*770mm | 495*410*1200mm | ||||
External Size(W*D*H) | 495*548*683mm | 495*548*934mm | 500*550*1300mm | 580*575*1810mm | ||||
Package Size(W*D*H) | 620*700*860mm | 630*700*1110mm | 610*620*1510mm | 670*650*2000mm | ||||
Net Weight | 38kg | 49kg | 44kg | 60kg | ||||
Gross Weight | 49kg | 60kg | 57kg | 80kg | ||||

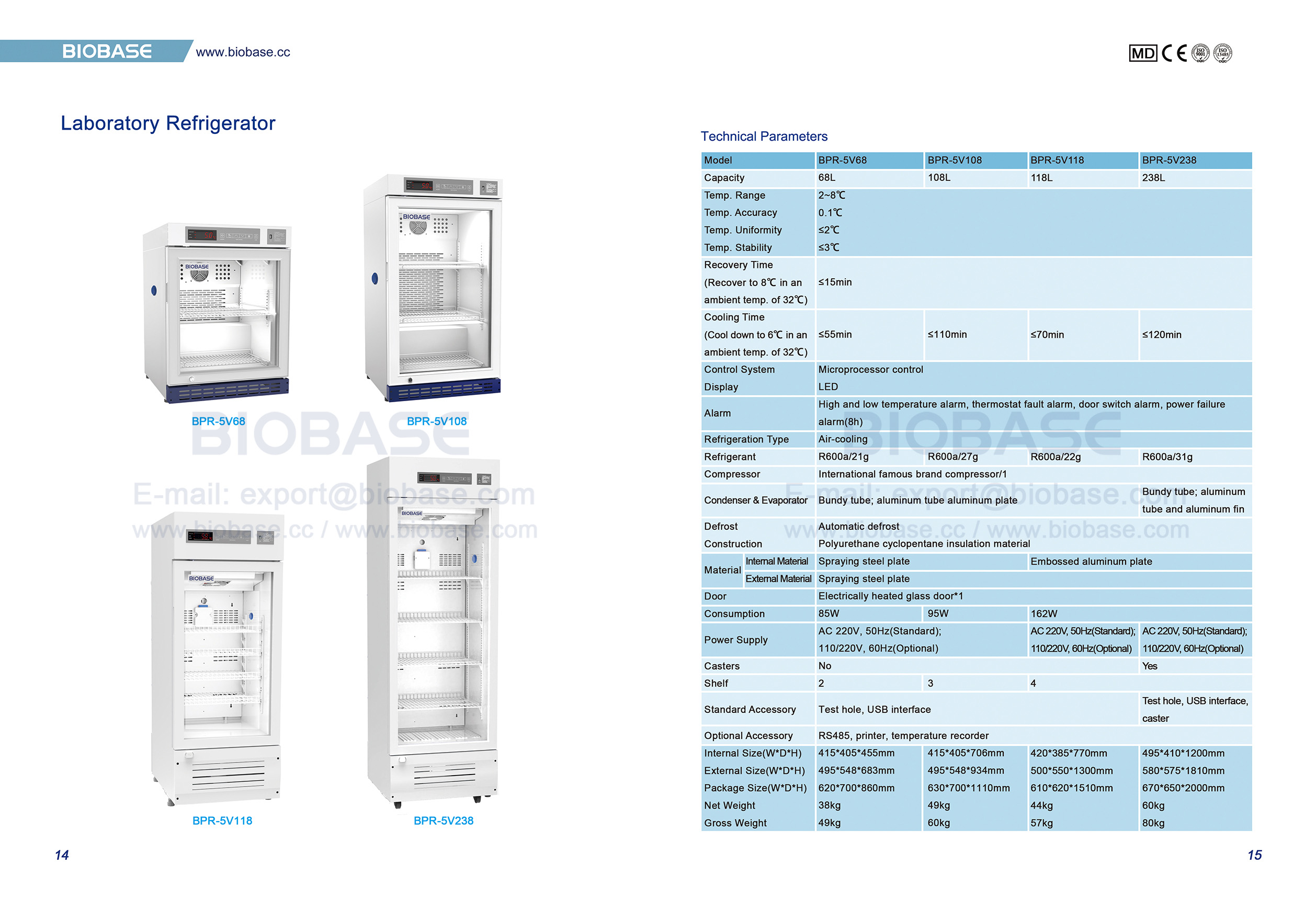

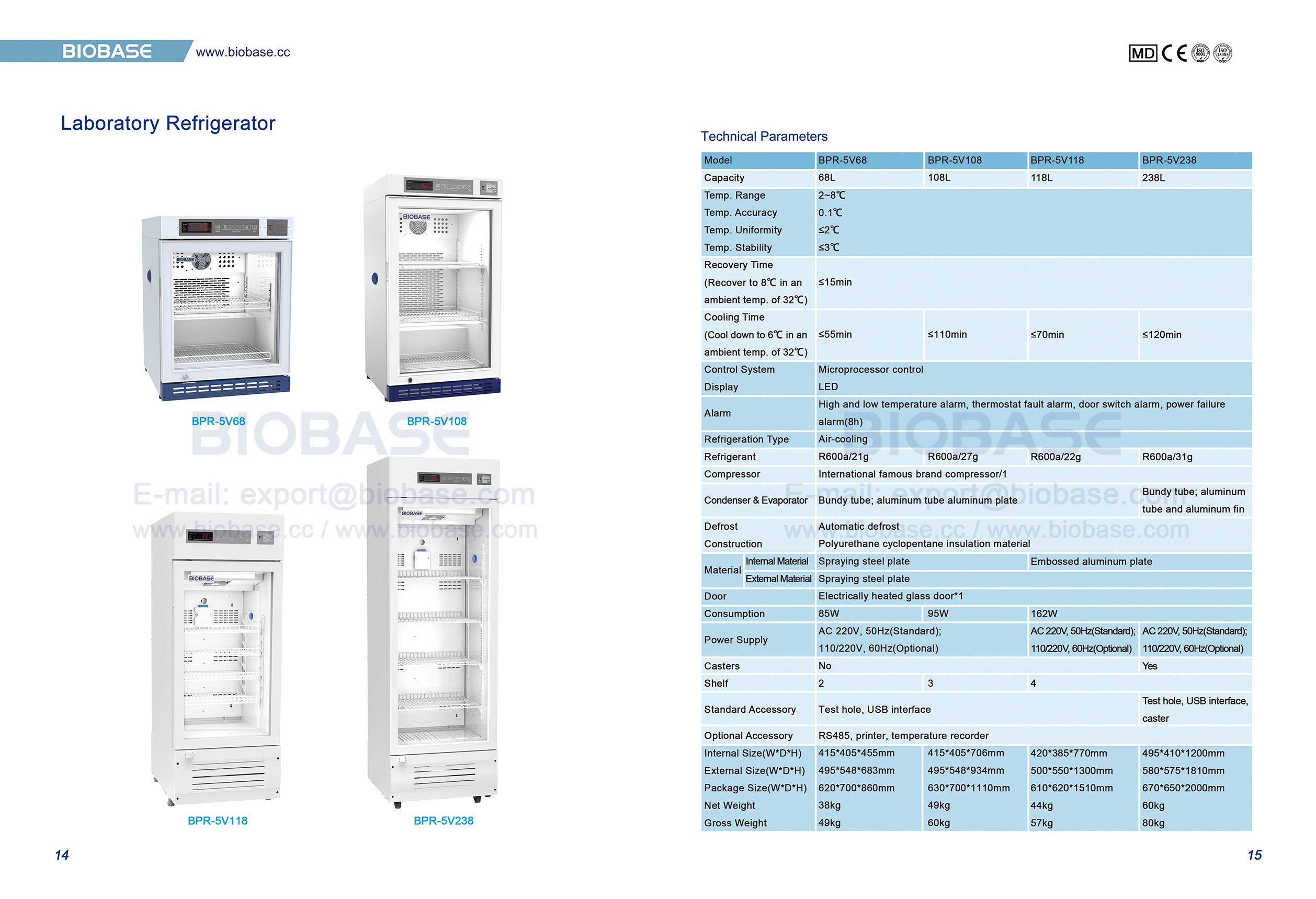

Technical Parameters:
