BJPX-SH23 BJPX-SH55 BJPX-SH88 BJPX-SH105 BJPX-SH140 BJPX-SH200

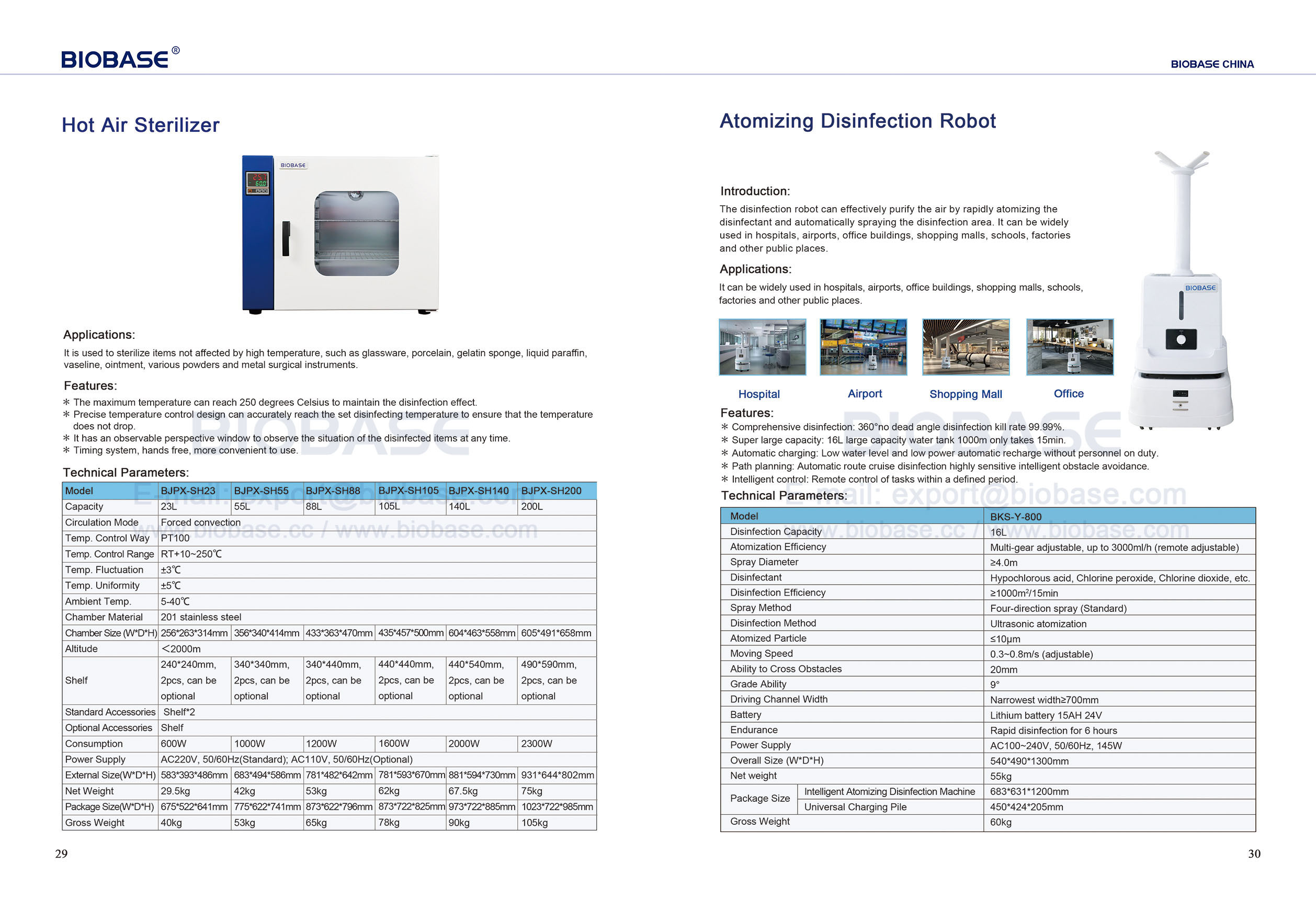

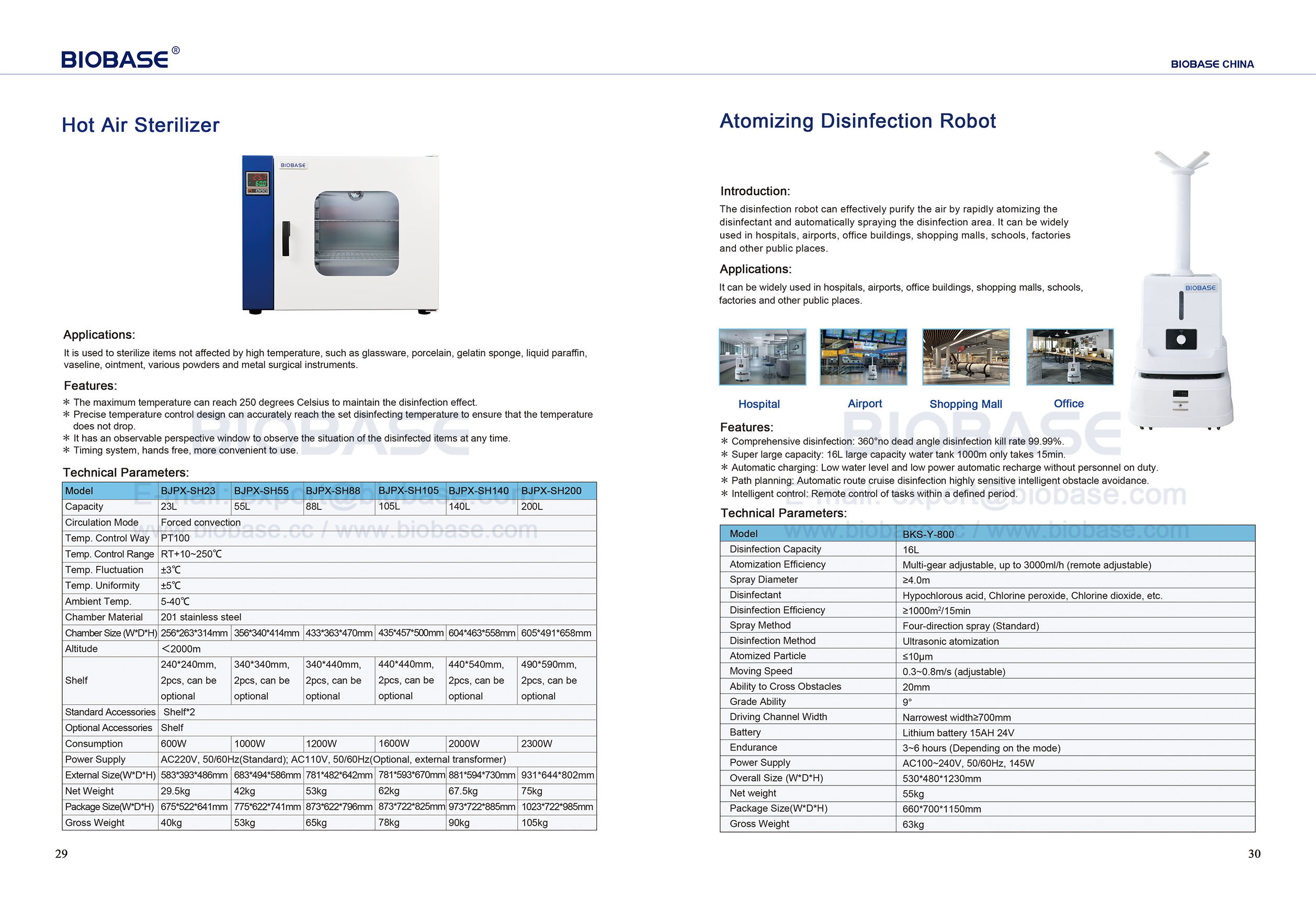

BIOBASE
Features:
1. The maximum temperature can reach 250 degrees Celsius to maintain the disinfection effect.
2. Precise temperature control design can accurately reach the set disinfecting temperature to ensure that the temperature does not drop.
3. It has an observable perspective window to observe the situation of the disinfected items at any time.
4. Timing system, hands free, more convenient to use.
Technical Parameters:
Model | BJPX-SH23 | BJPX-SH55 | BJPX-SH88 | BJPX-SH105 | BJPX-SH140 | BJPX-SH200 |
Capacity | 23L | 55L | 88L | 105L | 140L | 200L |
Circulation Mode | Forced convection | |||||
Temp. Control Way | PT100 | |||||
Temp. Control Range | RT+10~250℃ | |||||
Temp. Fluctuation | ±3℃ | |||||
Temp. Uniformity | ±5℃ | |||||
Ambient Temp. | 5~40℃ | |||||
Chamber Material | 201 stainless steel | |||||
Chamber Size(W*D*H)mm | 256*263*314 | 356*340*414 | 433*363*470 | 435*457*500 | 604*463*558 | 605*491*658 |
| Altitude | ＜2000m | |||||
| Shelf(mm) | 240*240mm, 2pcs, can be optional | 340*340mm, 2pcs, can be optional | 340*440mm, 2pcs, can be optional | 440*440mm, 2pcs, can be optional | 440*540mm, 2pcs, can be optional | 490*590mm, 2pcs, can be optional |
| Standard Accessories | Shelf*2 | |||||
| Optional Accessories | Shelf | |||||
Consumption | 600W | 1000W | 1200W | 1600W | 2000W | 2300W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | |||||
| External Size(W*D*H) | 583*393*486mm | 683*494*586mm | 781*482*642mm | 781*593*670mm | 881*594*730mm | 931*644*802mm |
Package Size(W*D*H) | 675*522*641mm | 775*622*741mm | 873*622*796mm | 873*722*825mm | 973*722*885mm | 1023*722*985mm |
Net Weight | 29.5kg | 42kg | 53kg | 62kg | 67.5kg | 75kg |
Gross Weight | 40kg | 53kg | 65kg | 78kg | 90kg | 105kg |
Features:
1. The maximum temperature can reach 250 degrees Celsius to maintain the disinfection effect.
2. Precise temperature control design can accurately reach the set disinfecting temperature to ensure that the temperature does not drop.
3. It has an observable perspective window to observe the situation of the disinfected items at any time.
4. Timing system, hands free, more convenient to use.
Technical Parameters:
Model | BJPX-SH23 | BJPX-SH55 | BJPX-SH88 | BJPX-SH105 | BJPX-SH140 | BJPX-SH200 |
Capacity | 23L | 55L | 88L | 105L | 140L | 200L |
Circulation Mode | Forced convection | |||||
Temp. Control Way | PT100 | |||||
Temp. Control Range | RT+10~250℃ | |||||
Temp. Fluctuation | ±3℃ | |||||
Temp. Uniformity | ±5℃ | |||||
Ambient Temp. | 5~40℃ | |||||
Chamber Material | 201 stainless steel | |||||
Chamber Size(W*D*H)mm | 256*263*314 | 356*340*414 | 433*363*470 | 435*457*500 | 604*463*558 | 605*491*658 |
| Altitude | ＜2000m | |||||
| Shelf(mm) | 240*240mm, 2pcs, can be optional | 340*340mm, 2pcs, can be optional | 340*440mm, 2pcs, can be optional | 440*440mm, 2pcs, can be optional | 440*540mm, 2pcs, can be optional | 490*590mm, 2pcs, can be optional |
| Standard Accessories | Shelf*2 | |||||
| Optional Accessories | Shelf | |||||
Consumption | 600W | 1000W | 1200W | 1600W | 2000W | 2300W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | |||||
| External Size(W*D*H) | 583*393*486mm | 683*494*586mm | 781*482*642mm | 781*593*670mm | 881*594*730mm | 931*644*802mm |
Package Size(W*D*H) | 675*522*641mm | 775*622*741mm | 873*622*796mm | 873*722*825mm | 973*722*885mm | 1023*722*985mm |
Net Weight | 29.5kg | 42kg | 53kg | 62kg | 67.5kg | 75kg |
Gross Weight | 40kg | 53kg | 65kg | 78kg | 90kg | 105kg |
