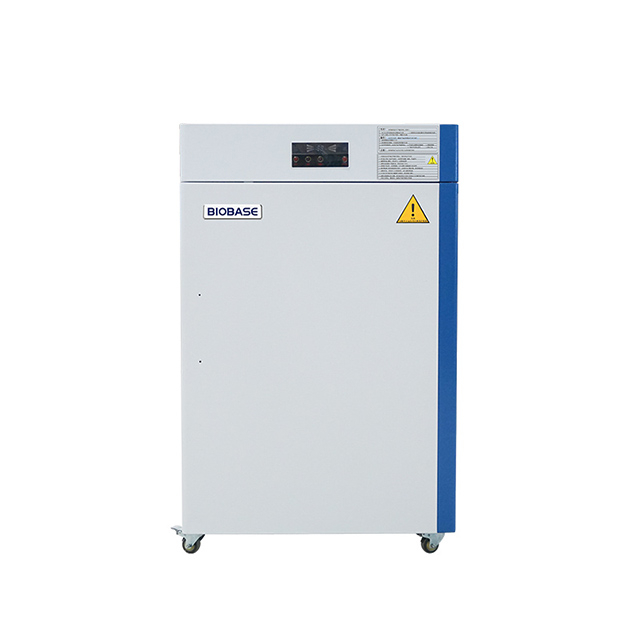

BJPX-SVO200 BJPX-SV200
BIOBASE
Technical Parameters:
Model | BJPX-SVO200 | |
Capacity | 200L | |
Type | With ozone | Without ozone |
UV Ray Wavelength | 253.7/184.9nm | 253.7nm |
Sterilization Way | 2 sides of UV ray + 1 side of ozone | 3 sides of UV ray |
UV Lamp Material | Quartz glass | |
Power Supply | Standard: AC220V, 50/60Hz Optional: AC110V, 50/60Hz | |
Consumption | 120W | |
Altitude | <2000m | |
Shelf | 500*520mm, Standard 2pcs, can be optional | |
Standard Accessories | Shelf*2, Doorknob*1, UV lamp*6 | |
Optional Accessories | Ozone UV lamp, wavelength is 184.9nm | |
External Size(W*D*H)mm | 750*663*1200 | |
Internal Size(W*D*H)mm | 518*523*778 | |
Package Size(W*D*H)mm | 875*788*1265 | |
Net Weight(kg) | 81 | |
Gross Weight(kg) | 100 |
Recommended UV Exposure Time:
Microorganism Species | Exposure Dose | Exposure Time |
Bacterial Propagules | ≥10000μW.s/cm2 | 10min |
Bacterial Spores | ≥100000μW.s/cm2 | 10min |
Virus | 10min | |
Fungal Spores | General Exposure Dose≤100000μW.s/cm2 Special Exposure Dose up to 600000μW.s/cm2 | 60min |
When the target microorganism is unknown | ≥100000μW.s/cm2 | 10min |
Remarks: The suitable temperature range for ultraviolet disinfection is 20℃~40℃. If the temperature is too high or too low, the disinfection effect will be affected, and the disinfection time can be appropriately extended.
