| Quantity: | |
|---|---|

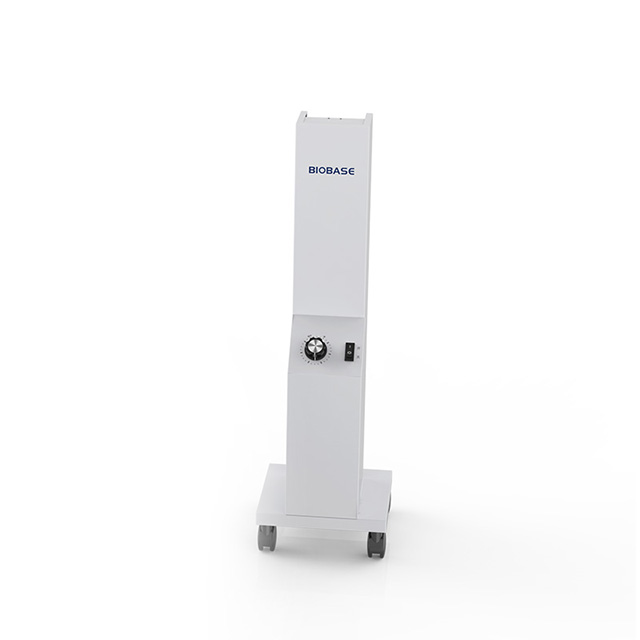

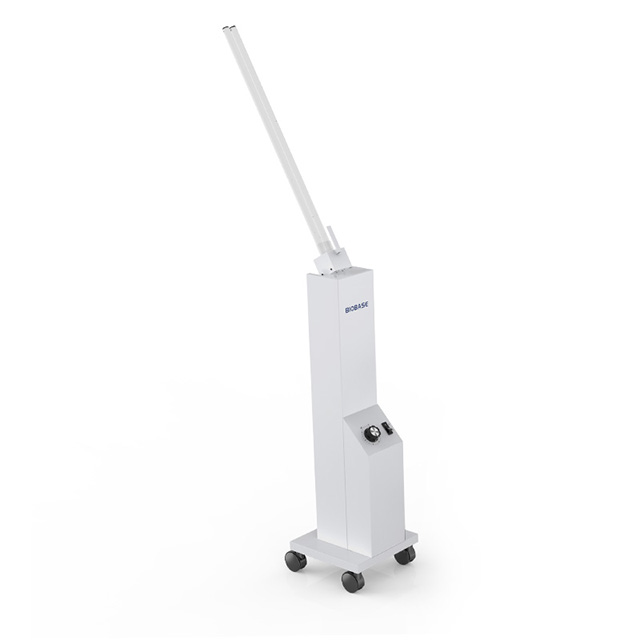

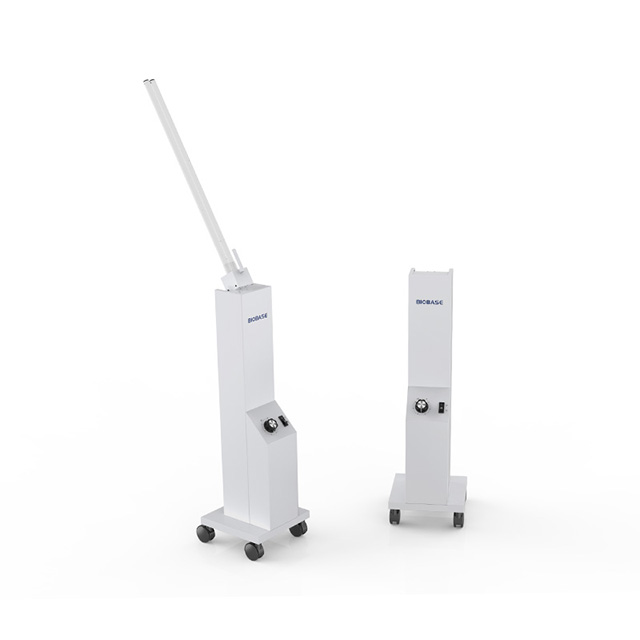

ZY-II-ZW65D17W ZY-II-ZW120D17W OLB-UDT1
BIOBASE
Application:
It is suitable for public places such as medical treatment, families, kindergartens, as well as food manufacturing, animal husbandry and poultry breeding, and can also be used for bacterial research units, photochemical reactions, etc., to solve the problems caused by traditional disinfection methods.
Features:
1. Chassis 360° universal wheels, all-round sterilization and disinfection.
2. The UV disinfection lamp can be adjusted freely within 0~180 degrees without fixed restrictions.
3. Safety quartz glass lamp, high ultraviolet perspective, high intensity, long life.
4. Optional wireless remote control switch, delayed start, one-button sterilization and disinfection.
5. It can be timed for 120 minutes, and the required sterilization time can be set according to the area of the disinfected place.
6. Fully enclosed UV lamp holder, not easy to fall off. The lamp can be concealed for convenient storage and better protection(Only for OLB-UDT1).
Technical Parameters:
Model | ZY-II-ZW65D17W | ZY-II-ZW120D17W | OLB-UDT1 |
Applicable Space | ≥30m3 | ||
UV Lamp Life | ≤8000h | ≤5000h | |
UV Wavelength | 253.7nm | ||
Length of Lamp Tube | 530mm | 960±3mm | |
Adjustable Angle of Lamp Tube | 0~180° | ||
Illumination | ≥200μW/cm2 | ≥107μW/cm2 | |
Teleswitch(Optional) | Remote control distance≤30 meters, can penetrate the wall, controllable switch, 20, 40, 60, 80, 100, 120 minutes timing | Remote control distance≤30 meters, can penetrate the wall thickness 80, 110cm, controllable switch, 15, 30, 60, 120 minutes timing | |
Power of Light Lamp Tube | 65W | 120W | 30W*2 |
Power Supply | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz | ||
External Size(W*D*H)mm | 200*200*674 | 251*251*872 | 280*340*1080 |
Package Size(W*D*H)mm | 221*221*695 | 273*273*895 | 220*310*1060 |
Net Weight(kg) | 2.55 | 3.22 | 6 |
Gross Weight(kg) | 3.5 | 5.1 | 7 |
Application:
It is suitable for public places such as medical treatment, families, kindergartens, as well as food manufacturing, animal husbandry and poultry breeding, and can also be used for bacterial research units, photochemical reactions, etc., to solve the problems caused by traditional disinfection methods.
Features:
1. Chassis 360° universal wheels, all-round sterilization and disinfection.
2. The UV disinfection lamp can be adjusted freely within 0~180 degrees without fixed restrictions.
3. Safety quartz glass lamp, high ultraviolet perspective, high intensity, long life.
4. Optional wireless remote control switch, delayed start, one-button sterilization and disinfection.
5. It can be timed for 120 minutes, and the required sterilization time can be set according to the area of the disinfected place.
6. Fully enclosed UV lamp holder, not easy to fall off. The lamp can be concealed for convenient storage and better protection(Only for OLB-UDT1).
Technical Parameters:
Model | ZY-II-ZW65D17W | ZY-II-ZW120D17W | OLB-UDT1 |
Applicable Space | ≥30m3 | ||
UV Lamp Life | ≤8000h | ≤5000h | |
UV Wavelength | 253.7nm | ||
Length of Lamp Tube | 530mm | 960±3mm | |
Adjustable Angle of Lamp Tube | 0~180° | ||
Illumination | ≥200μW/cm2 | ≥107μW/cm2 | |
Teleswitch(Optional) | Remote control distance≤30 meters, can penetrate the wall, controllable switch, 20, 40, 60, 80, 100, 120 minutes timing | Remote control distance≤30 meters, can penetrate the wall thickness 80, 110cm, controllable switch, 15, 30, 60, 120 minutes timing | |
Power of Light Lamp Tube | 65W | 120W | 30W*2 |
Power Supply | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz | ||
External Size(W*D*H)mm | 200*200*674 | 251*251*872 | 280*340*1080 |
Package Size(W*D*H)mm | 221*221*695 | 273*273*895 | 220*310*1060 |
Net Weight(kg) | 2.55 | 3.22 | 6 |
Gross Weight(kg) | 3.5 | 5.1 | 7 |
