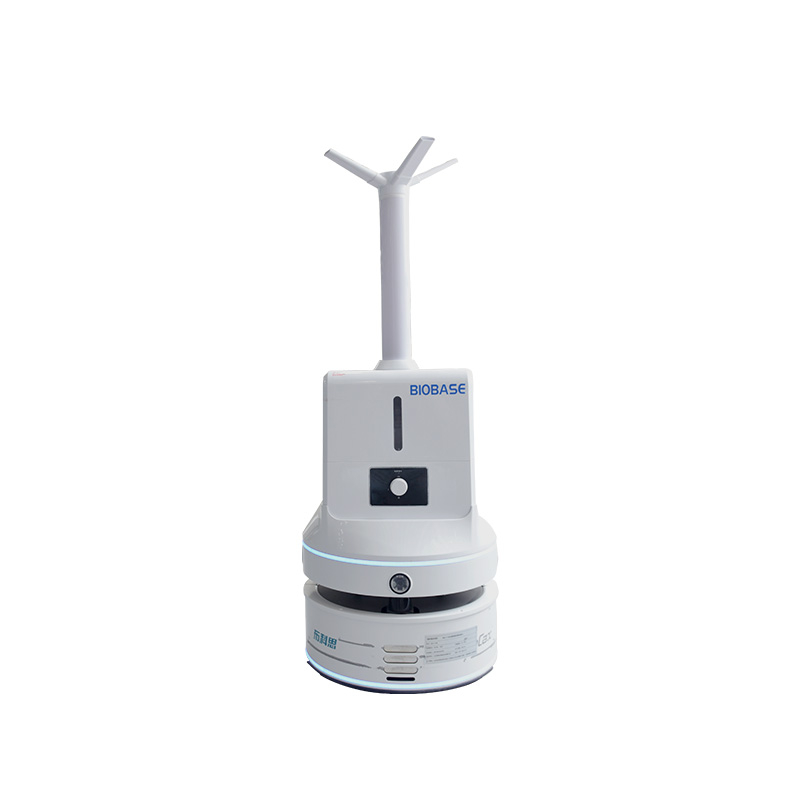

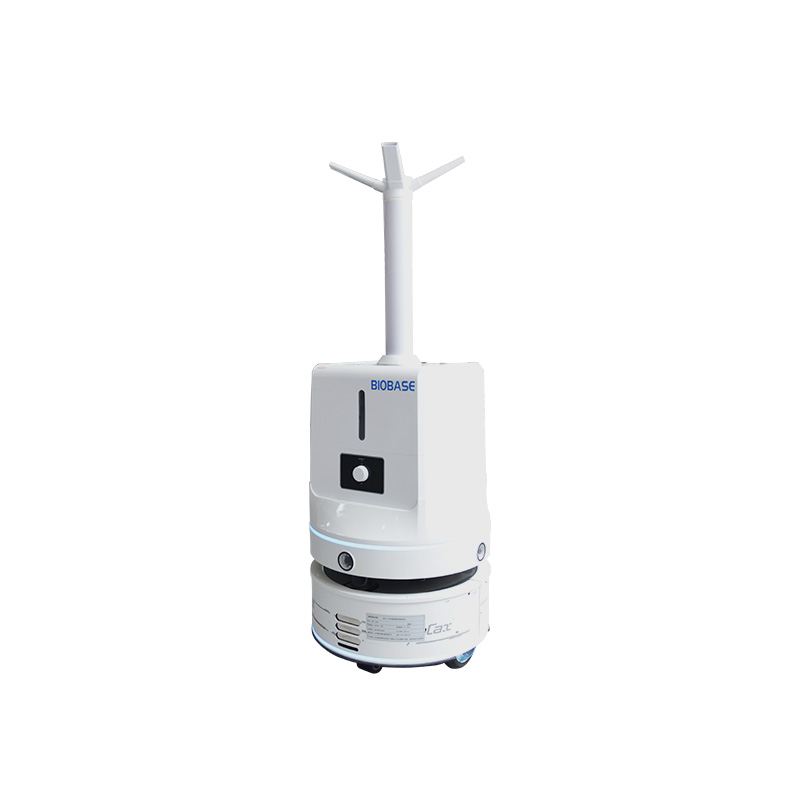

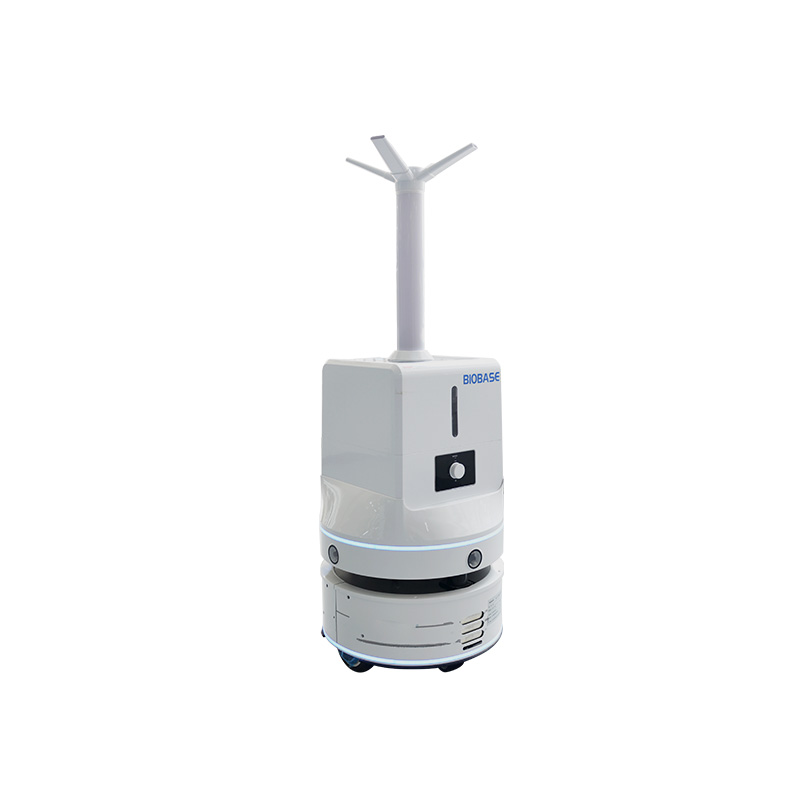

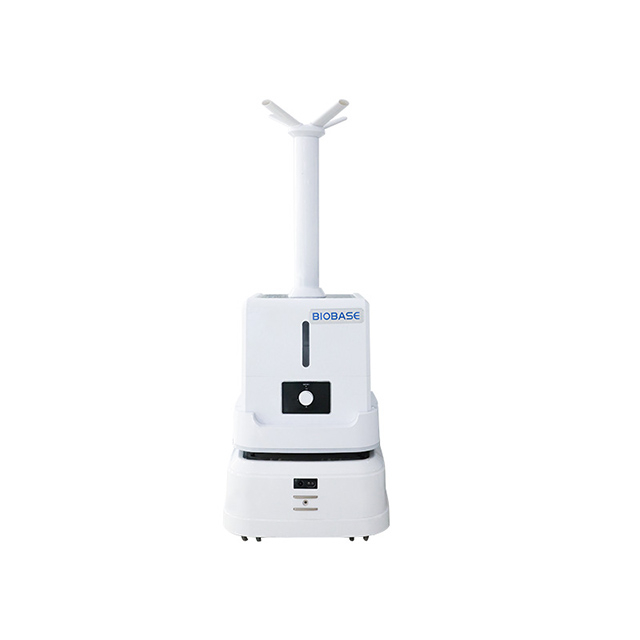

Atomizing Disinfection Robot

BKS-Y-800 atomizing disinfection robot is designed to purify the air by rapidly atomizing the liquid and automatically spraying the area. This robot can automatically navigate to the area for full-coverage spraying, and supports mobile app control to achieve man-machine separation and minimize personnel exposure, so that the use safety is greatly improved. With simple structure, it is easy to maintain and manage. The spray robot is widely applicable to hospitals, airports, office buildings, shopping malls, schools, factories and other public places.

Quantity:
  • BIOBASE

The atomizing disinfection robot is by quickly atomizing the disinfectant and automatically spraying into the disinfection area to get the air effectively purified. Using 100mg/L hypochlorous acid disinfectant, according to the amount of 5ml/m3, continue to spray evenly into the space to disinfect.

Features:

* Support the use of disinfectants such as hydrogen peroxide, sodium hypochlorite, and peracetic acid.

* The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection

  coverage is up to 4000 ~ 5000 m2.

* Support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process.

* Two disinfection modes: timed disinfection and immediate disinfection.

* With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area.

* Support automatic return to charge, human assistance isn’t required.

* When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray

  device automatically.


Models:

Technical Parameters:

Model

BKS-Y-800

External Size(mm)

φ500*1335

Atomization Efficiency

2L~3L/H(adjustable)

Disinfectant Capacity

16L

Spray Diameter

5-6m

Disinfection Medium

Hypochlorous acid,Chlorine dioxide,Hydrogen peroxide,Peroxyacetic acid, etc.

Spray Method

Four-direction spray, large opening spray(optional)

Moving Way

Autonomous path planning and automatic navigation

Moving Speed

0~0.6m/s

Power Supply

AC220±10%V 50Hz

Consumption

150W

Drive Method

Differential drive

Ability to Cross Obstacles

±10mm

Gradeability

≤8°

Driving Channel Width

≥700mm

Noise

≤50dB

Operating Time

5~6h

Battery

Lithium battery 28AH 24V

Charging Time

3~4h

Safety System

Lidar obstacle avoidance, power-off protection of disinfectant shortage

Package Size

Main Body

430*430*660mm

Chassis

650*650*770mm

Gross Weight

Main Body

10kg

Chassis

62kg
