Introduction:
Chicken isolator is a positive pressure isolator.

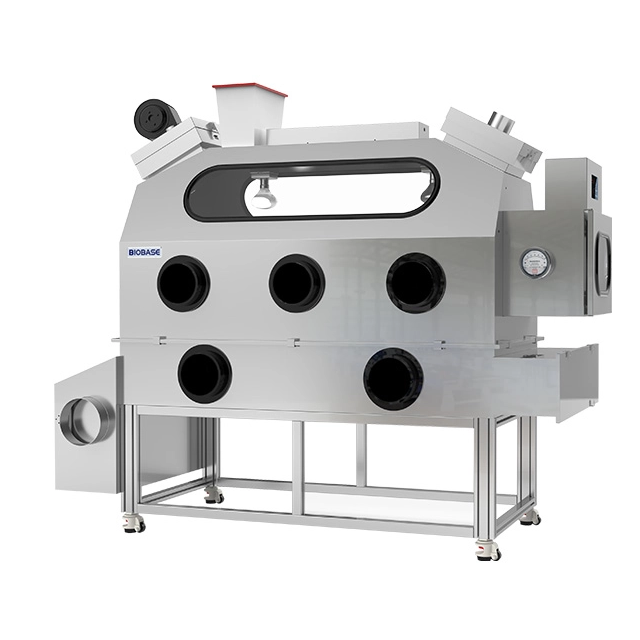

BCI-I Chicken Isolator is designed for SPF chicken feeding and poultry disease testing.
| Quantity: | |
|---|---|
BCI-I
BIOBASE
Features:
1. Automatic water supply system, adjustable height drinking tank.
2. Special sealing design, ensure good sealing performance.
3. Manipulation of the chicken can be realized via gloves from both sides.
4. Adopt full 304 stainless steel material, high quality accessories, such as Butyl gloves, HEPA filter etc.
5. Filtration system, can protect animals, environment and operator.
Pre-filter→ main HEPA filter→Filter cotton.
6. Three sterilization ways available.
① UV lamp for sterilization.
② Reserved hole for hot steam sterilization.
③ Reserved hole for disinfectant spraying sterilization.
7. Unique defecation system & fecal leakage shelf. Animal wastes drop from shelf to bottom fecal collection film, then pull of collecting film and clean out wastes conveniently and quickly, reduce the cleaning frequency.
8. The inner wall of the glove mouth is equipped with a sliding sealing plate, which can seal the glove mouth when there is no operation.
9. The heating lamp adopts high temperature resistant lamp holder, and has protective cover to prevent chickens from touching, safe and reliable.
Technical Parameters:
Model | BCI-I |
External Size(W*D*H) | 2200*850*1800mm |
Animal Activity Area(W*D*H) | 1600*750*820mm |
Waste Collection Area(W*D*H) | 1600*750*250mm |

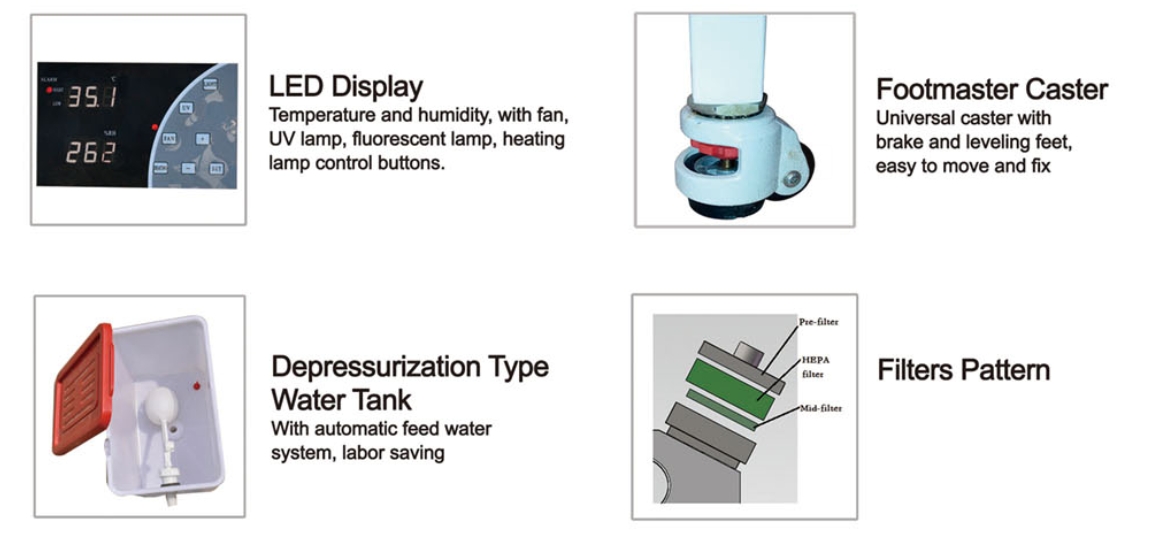

Display | LED display: temperature, humidity adjustable(10~50℃), with fluorescent lamp, UV lamp, heating lamp, fan button |
Air Change Rate | ≥20 times/h |
Airflow Velocity | 0.1m/s~0.2m/s within the chicken living space |
Falling Bacteria(numbers/utensil/hour) | 0 |
Filter | Pre-filter, Mid-filter, HEPA(H14) filter |
Noise | ≤70dB(A) |
Alarm | High and low temperature alarm |
Caster | Universal caster with brake and leveling feet |
Rated Power supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
Rated Consumption | 700W |
Gross Weight | 279kg |
Package Size(W*D*H) | 2430*1010*2070mm |
Standard Accessories | Pre-filter*2, HEPA filter*2, Mid-filter*2, UV lamp, heating lamp*2, high quality butyl gloves*6(pairs), feeding and drinking system |
