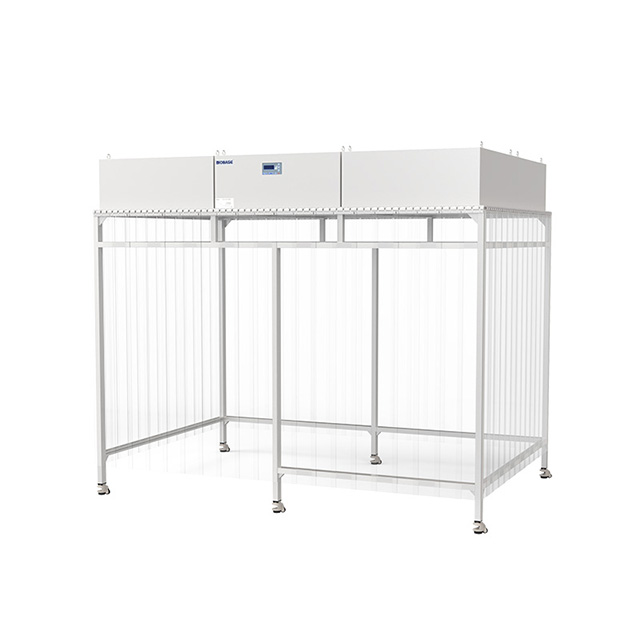

Clean Booth(Down Flow Booth)

Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation,short construction time, and movable.
It can be installed in part of clean room of general level which requires high cleanliness to save cost.
Quantity:
  • BIOBASE

Clean booth is a kind of air purifying equipment providing partial high clean environment, it’s the easiest and fastest way to build  a simple clean room. Equipped with a lot of clean level and space collocation, it can be designed as request. Main characteristics: simple use, good flexibility, easy installation, short construction time, and movable. It can be installed in part of clean room of general level which requires high cleanliness to save cost.

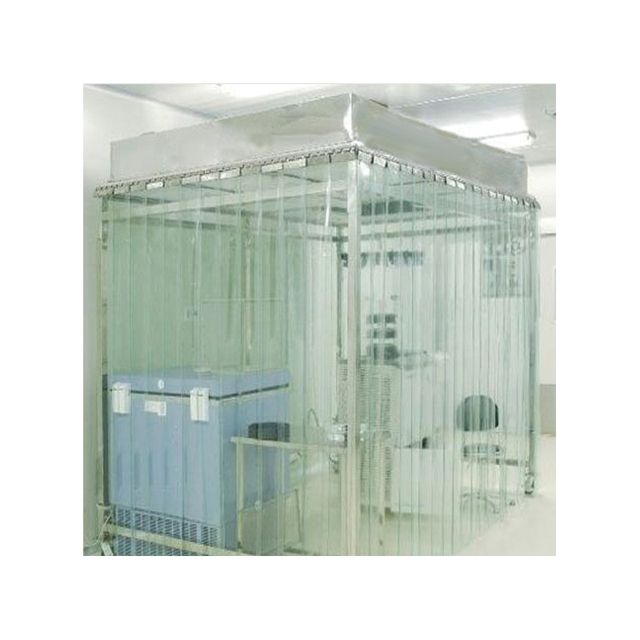

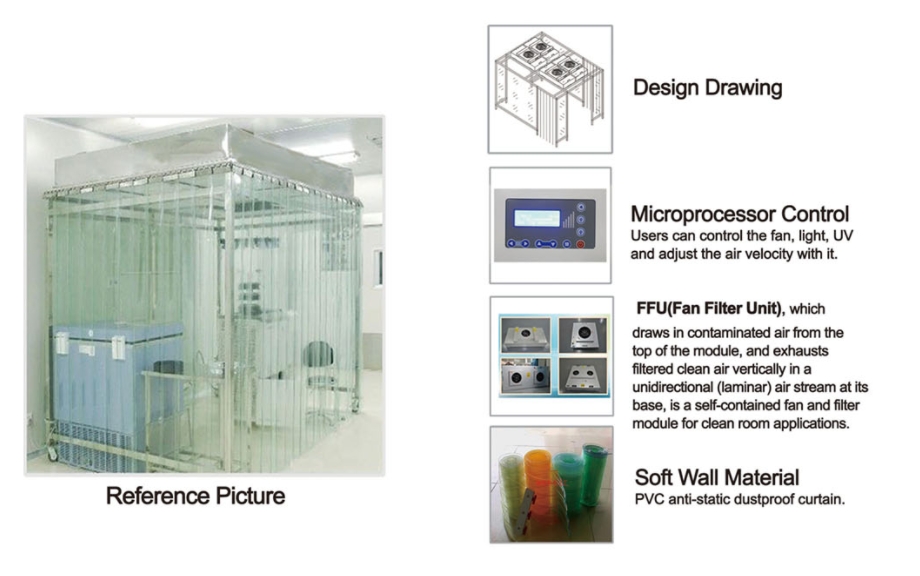

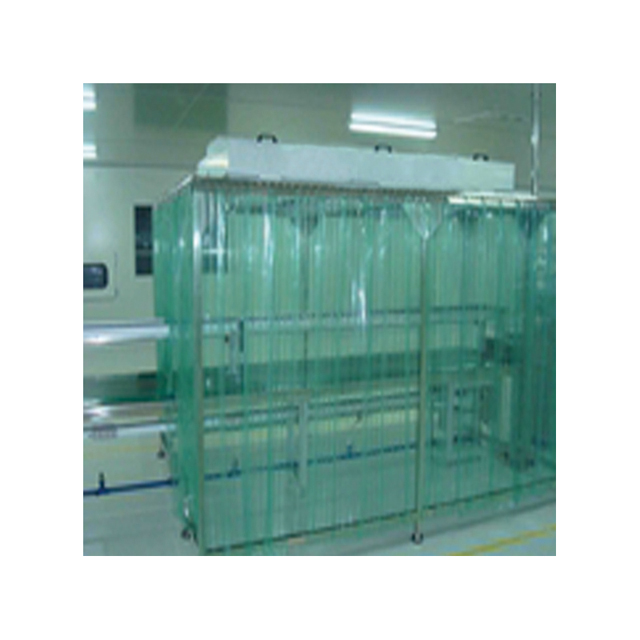

Reference picture                                                      Reference picture



FFU(Fan Filter Unit)                                                   Microprocessor Control

which draws in contaminated air from the top             Users can control the fan, light, UV and adjust the

of the module, and exhausts filtered clean air               air velocity with it.

vertically in a unidirectional(laminar) air stream

at its base, is a self-contained fan and filter

module for clean room applications.




Design drawing                                                       Soft Wall Material

                                                                                PVC anti-static dustproof curtain.



FEATURES:

1. Customized design is welcomed.

2. It can be used singly or combined.

3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost

and fast effect and can be easily installed.

4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement

(Universal wheel can be installed).


Models:

Model

BKCB-1500

BKCB-2000

BKCB-3000

BKCB-5000

External Size (W*D*H)

1500*2000*2530mm

2000*3000*2530mm

3000*4000*2530mm

5000*5000*2530mm

HEPA Filters

99.999% efficiency at 0.3 um

Consumption

800W

1500W

2800W

5000W

FFU Nos.

4 pcs

6 pcs

12 pcs

25 pcs

Clean Level

ISO 5 (Class 100), Class A

Control System

Microprocessor control system

Rectangular Tube Material

Aluminium alloy

Wall Material

Anti-static dustproof curtain

Blower

Built-in centrifugal blower; speed adjustable

UV Lamp

40W*2

40W*2

40W*3

40W*5

Emission of 253.7nanometers, with UV timer

Illuminating Lamp

16W*1

16W*2

16W*3

16W*5

LED Lamp,Illumination :≥500lux

Air Velocity

0.1~0.6m/s, average 0.45m/s

Noise

≤75db

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Gross Weight

390Kg

670Kg

1100Kg

2900Kg

Package Size (W*D*H)

2110*930*920mm

2280*660*500mm

3080*980*1280mm

3080*660*550mm

3080*980*1280mm

3080*980*1280mm

4080*660*550mm



4080*980*1280mm

4080*980*1280mm

4080*980*1280mm

1260*660*1280mm

5080*460*500mm

Customized design for clean level, size or material is available
