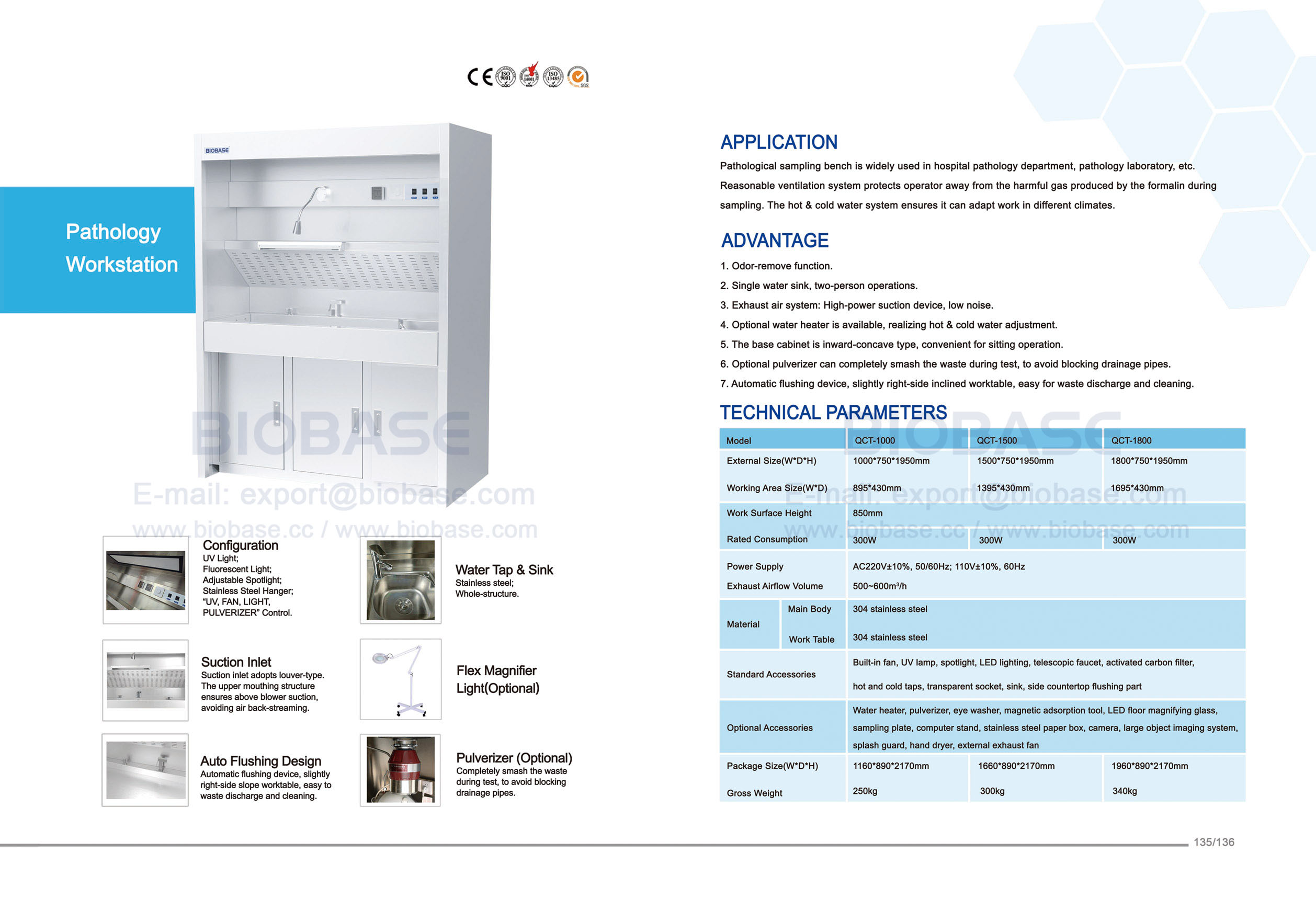

Pathology Workstation

Quantity:
  • BIOBASE

Pathological sampling bench is widely used in hospital pathology department, pathology laboratory, etc. Reasonable ventilation system protects operator away from the harmful gas produced by the formalin during sampling. The hot & cold water system ensures it can adapt work in different climates.

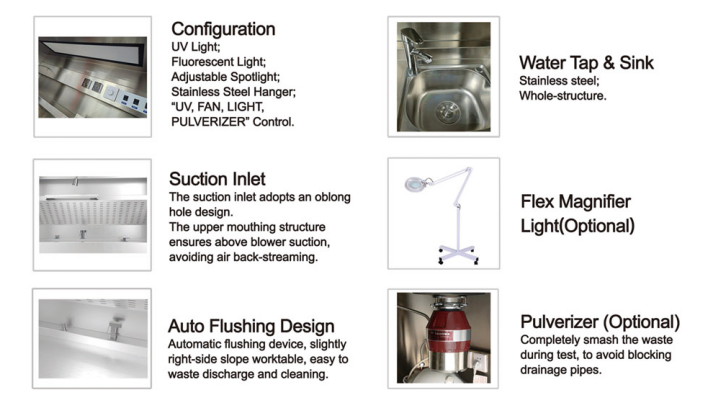

Configuration                                                                        Suction Inlet

UV Light;                                                                             Suction inlet adopts louver-type. The upper

Fluorescent Light;                                                                 mouthing structure ensures above blower

Adjustable Spotlight;                                                             suction, avoiding air back-streaming.

Stainless Steel Hanger;

“UV, FAN, LIGHT, PULVERIZER” Control.




Water Tap & Sink                                                                   Auto Flushing Design

Stainless steel;                                                                       Automatic flushing device, slightly right-side

Whole-structure.                                                                   slope worktable, easy to waste discharge and cleaning.




Pulverizer (Optional)                                                                    Flex Magnifier Light(Optional)

Completely smash the waste during test, to avoid blocking drainage pipes.


Advantages:

1. Odor-remove function.

2. Single water sink, two-person operations.

3. Exhaust air system: High-power suction device, low noise.

4. Optional water heater is available, realizing hot & cold water adjustment.

5. The base cabinet is inward-concave type, convenient for sitting operation.

6. Optional pulverizer can completely smash the waste during test, to avoid blocking drainage pipes.

7. Automatic flushing device, slightly right-side inclined worktable, easy for waste discharge and cleaning.


Models:

Model

QCT-1000

QCT-1500

QCT-1800

External Size (W*D*H)

1000*750*1950mm

1500*750*1950mm

1800*750*1950mm

Working Area Size (W*D*H)

895*430*900mm

1395*430*900mm

1695*430*900mm

Work Surface Height

900mm

Consumption

250W

300W

 300W

Optional water heater

1500W

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Exhaust Airflow Volume

500-600m3/h

Material

Main Body

304 stainless steel

Work Table

304 stainless steel

Standard Accessories

Spotlight;

UV lamp;

Fluorescent lamp;

Exhaust system;

4m exhaust duct;

Pipe strap;

Auto flushing device;

Stainless steel hanger;

Adjustable hot and cold water tap;

180mm deep stainless steel water sink, funnel with filter.

Active carbon filter

Optional Accessories

Pulverizer, Electrical water heater, Automatic induction hand dryer, Eye washer, Camera.

Flex magnifier light, laptop bracket

Package Size(W*D*H)mm

1160*890*2170

1660*890*2170

1960*890*2170

Gross Weight

250kg

300kg

340kg


Accessories:

Standard Accessories

Spotlight    1pc

UV lamp     1pc

Fluorescent lamp

1pc

Exhaust system    1pc

Auto flushing device           1pc

Stainless steel hanger     1pc

Adjustable hot and cold water tap      1pc

180mm deep stainless steel water sink, funnel with filter            1pc

Active carbon filter       1pc


Optional Accessory

Pulverizer

Electrical water heater

Automatic induction hand dryer

Eye washer

Camera



53-54 Pathology Workstation
