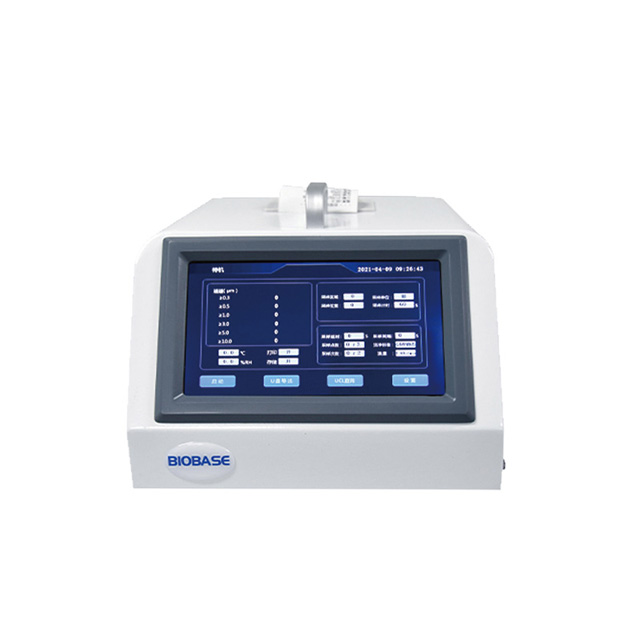

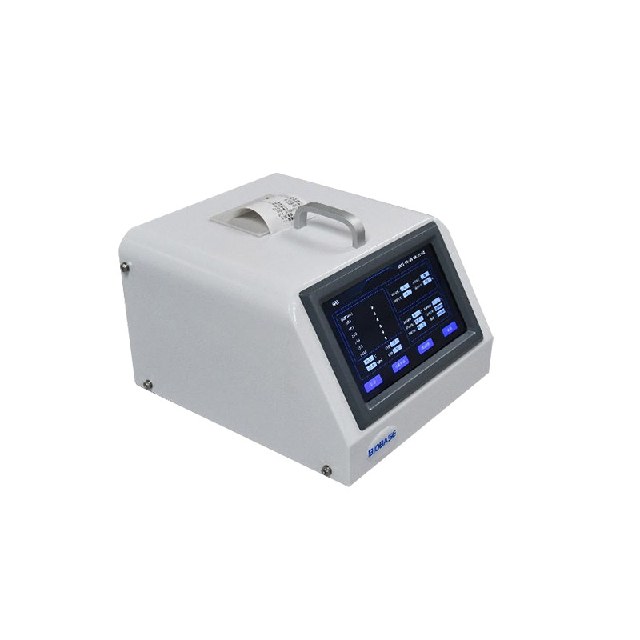

CLJ-2083
Biobase
Features:
1. 7-inch touch screen control, friendly interface and convenient operation.
2. Calculated by 95% confidence level (UCL), it can directly display particle concentration (particles/m³) and purification level.
3. 4GB data storage card, data storage management.
4. The material of the chassis is cold-rolled steel plate(anti-rust treatment, electrostatic spraying)
5. Built-in thermal printer.
6. Imported semiconductor laser tube and imported semiconductor photosensitive receiver tube.
7. The counting result can be converted into cubic meters and cubic feet.
Technical Parameters:
Model | CLJ-2083 |
Dimension | 220*280*185mm |
Sampling Volume | 2.83L/min (0. 1cfm/min) |
Ambient Temperature | 10~35℃ |
Ambient Relative Humidity | ≤75% |
Power | 100W |
Six Particle Size Channels | 0.3μm, 0.5μm,1μm, 3μm, 5μm, 10μm |
Vacuum Source | Built-in air pump, under control flow |
Light Source | Semi-conductor laser, more than 30,000h |
Zero Count | Less than 10min |
Communication Interface | USB |
Cleanliness Level Range | ISO5~ISO9 |
Main Body Material | Cold-rolled steel with powder coated |
Voltage | 110V/220V, 50/60Hz |
Optional Parts | Temperature sensor, humidity sensor |
Packing Size | 500*500*350mm |
Gross Weight | 11kg |
