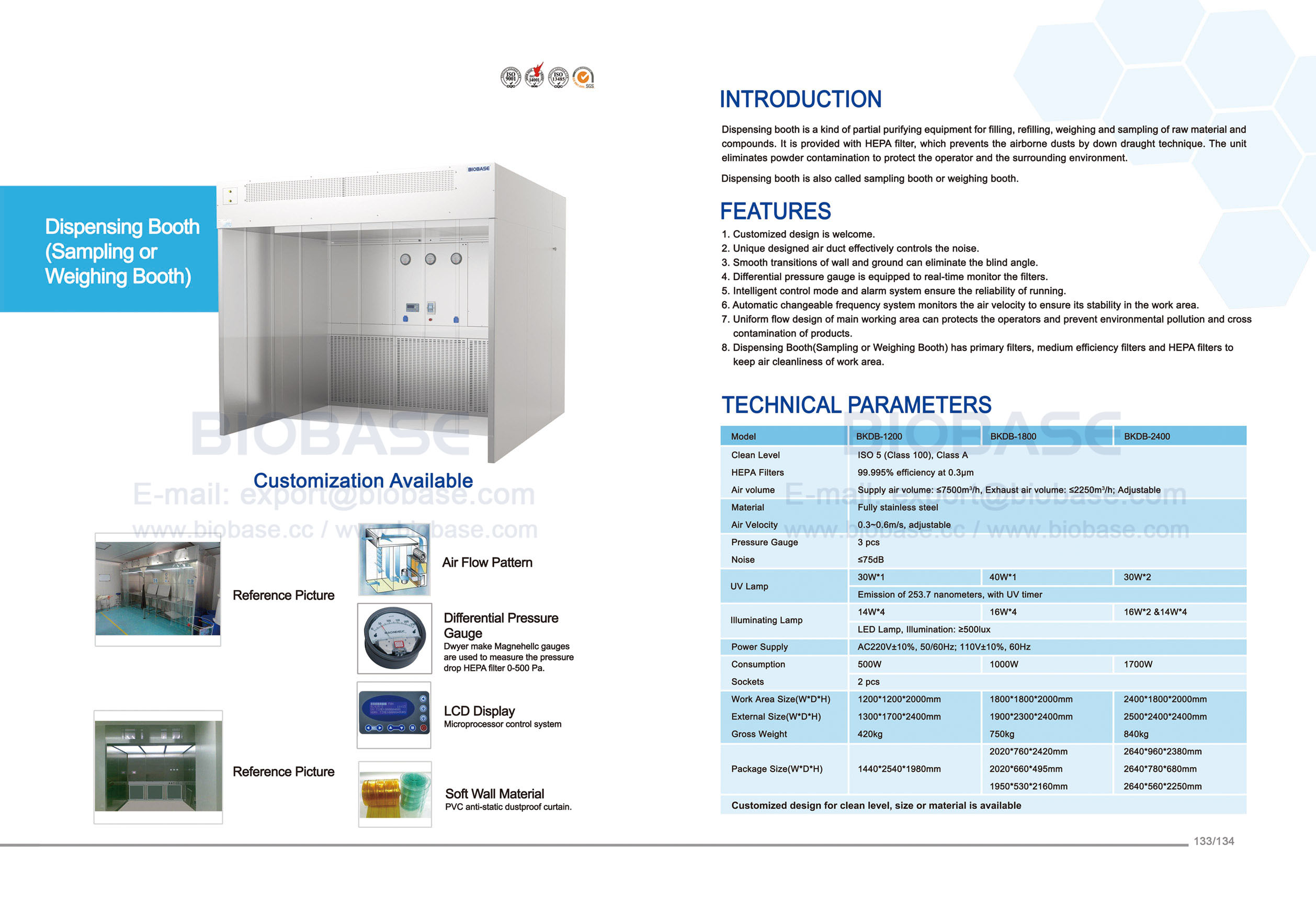

Dispensing Booth (Sampling or Weighing Booth)

Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or weighing booth.
Quantity:
  • BIOBASE

Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Dispensing booth is also called sampling booth or weighing booth.

18

FEATURES:

1. Customized design is welcome.

2. Unique designed air duct effectively controls the noise.

3. Smooth transitions of wall and ground can eliminate the blind angle.

4. Differential pressure gauge is equipped to real-time monitor the filters.

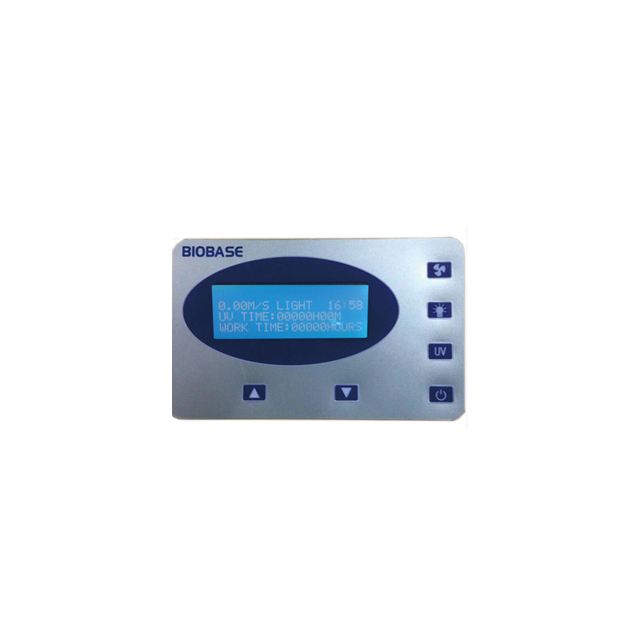

5. Intelligent control mode and alarm system ensure the reliability of running.

6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.

7. Uniform flow design of main working area can protects the operators and prevent environmental pollution

and cross contamination of products.

8. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.


Models:

TECHNICAL PARAMETERS:

Model

BKDB-1200

BKDB-1800

BKDB-2400

Clean Level

ISO 5 (Class 100), Class A

HEPA Filters

99.999% efficiency at 0.3 um

Air volume

Supply air volume: ≤7500m3/h,

Exhaust air volume: ≤2250m3/h; Adjustable

Material

Fully stainless steel

Air Velocity

0.3~0.6m/s, adjustable

Pressure Gauge

3pcs

Noise

≤75dB

UV Lamp

30W*1

40W*1

30W*2

Emission of 253.7 nanometers, with UV timer

Illuminating Lamp

14W*4

16W*4

16W*4 & 14W*2

LED lamp, Illumination:≥500lux

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Consumption

600W

1000W

1700W

Sockets

2pcs

Work Area Size (W*D*H)

1200*1200*2000mm

1800*1800*2000mm

2400*1800*2000mm

External Size(W*D*H)

1300*1700*2400mm

1900*2300*2400mm

2500*2400*2400mm

Gross Weight

420kg

750kg

840kg

Package Size (W*D*H)

1440*2540*1980mm

2020*760*2420mm

2020*660*495mm

1950*530*2160mm

2640*960*2380mm

2640*780*680mm

2640*560*2250mm

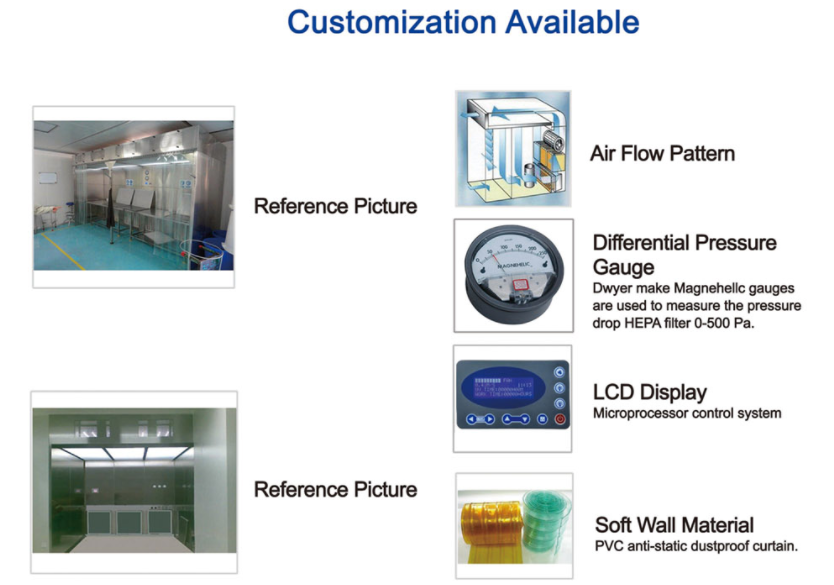

Customized design for clean level, size or material is available
