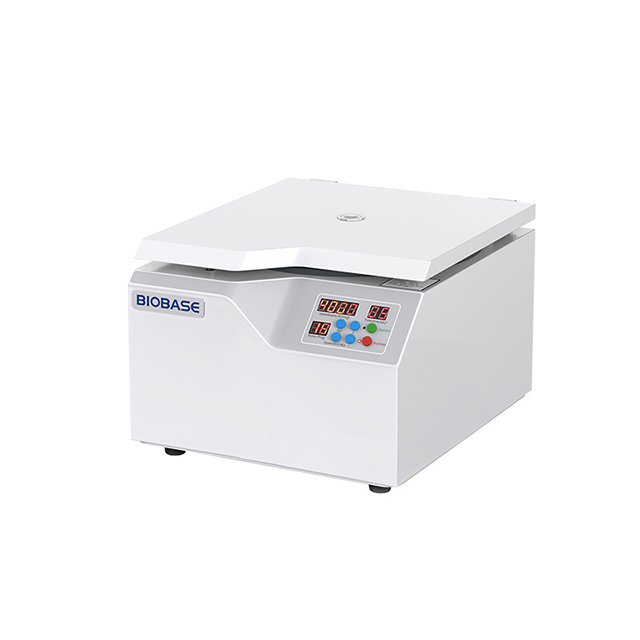

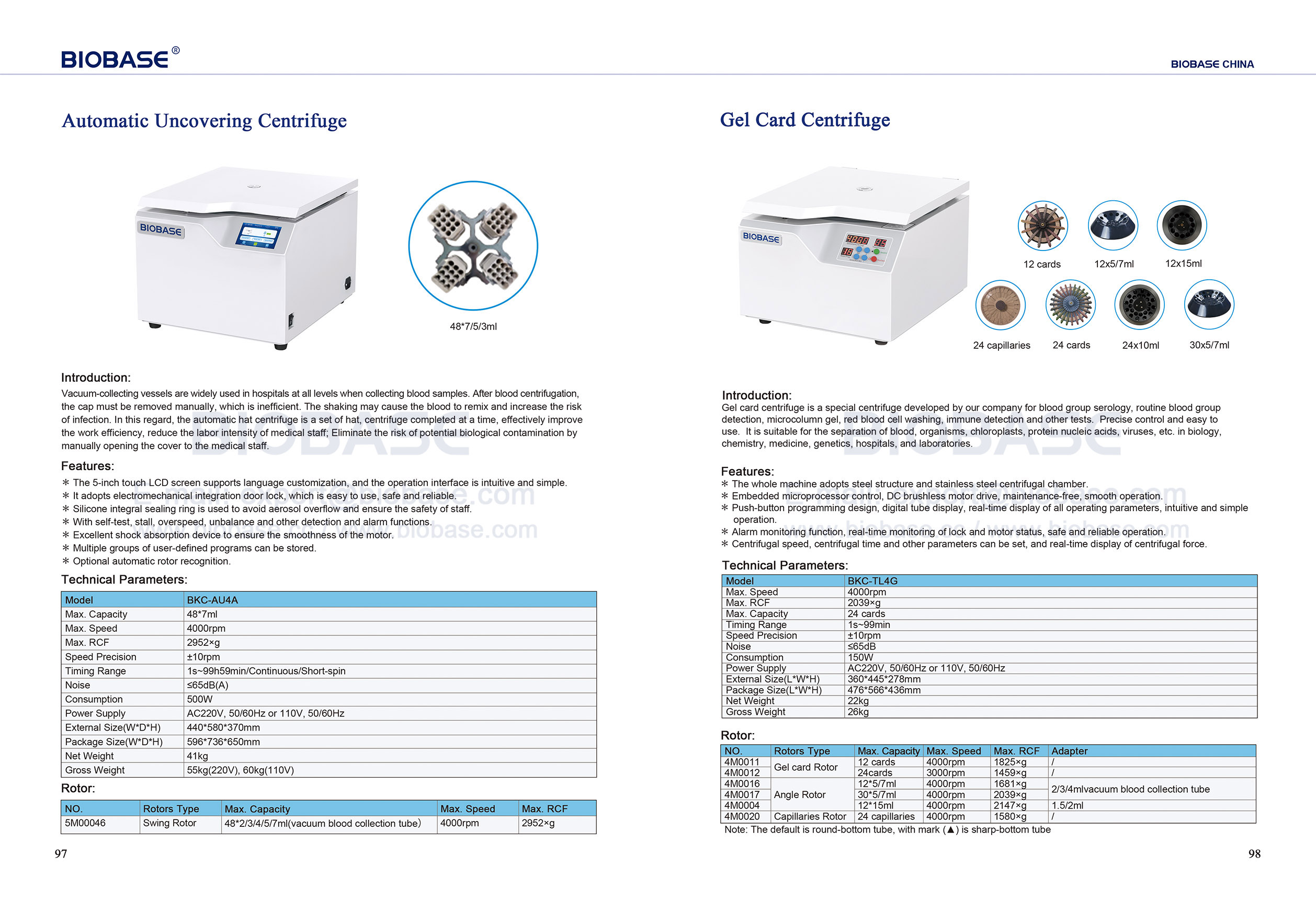

Gel Card Centrifuge BKC-TL4G

Introduction:
Gel card centrifuge is a special centrifuge developed by our company for blood group serology, routine blood group detection, microcolumn gel, red blood cell washing, immune detection and other tests. Precise control and easy to use. It is suitable for the separation of blood, organisms, chloroplasts, protein nucleic acids, viruses, etc. in biology, chemistry, medicine, genetics, hospitals, and laboratories.

Availability:

Quantity:



Inquire Add to Basket

Model:
BKC-TL4G
Brand:
BIOBASE

Features:

1. The whole machine adopts steel structure and stainless steel centrifugal chamber.

2. Embedded microprocessor control, DC brushless motor drive, maintenance-free, smooth operation.

3. Push-button programming design, digital tube display, real-time display of all operating parameters, intuitive and simple operation.

4. Alarm monitoring function, real-time monitoring of lock and motor status, safe and reliable operation.

5. Centrifugal speed, centrifugal time and other parameters can be set, and real-time display of centrifugal force.

Technical Parameters:

Model	BKC-TL4G
Max. Speed	4000rpm
Max. RCF	2039×g
Max. Capacity	24 cards
Timing Range	1s~99min
Speed Precision	±10rpm
Noise	≤65dB
Consumption	150W
Power Supply	AC220V, 50/60Hz or 110V, 50/60Hz
External Size(LWH)	360445278mm
Package Size(LWH)	476566436mm
Net Weight	22kg
Gross Weight	26kg

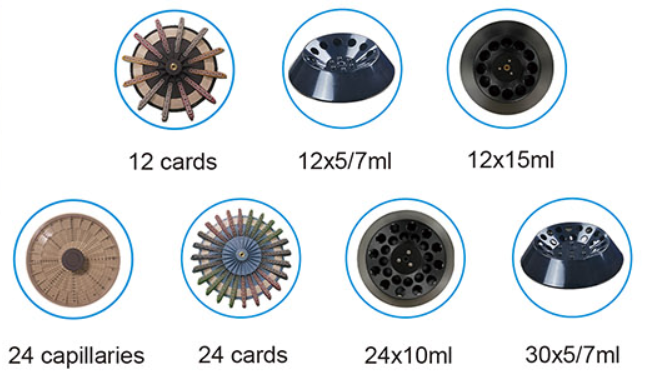

Rotor:

NO.	Rotors Type	Capacity	Max. Speed	Max. RCF	Adapter
4M0011	Gel card Rotor	12 cards	4000rpm	1825×g	/
4M0012	Gel card Rotor	24cards	3000rpm	1459×g	/
4M0016	Angle Rotor	12*5/7ml	4000rpm	1681×g	2/3/4mlvacuum blood collection tube
4M0017		30*5/7ml	4000rpm	2039×g	2/3/4mlvacuum blood collection tube
4M0004		12*15ml	4000rpm	2147×g	1.5/2ml
4M0020	Capillaries Rotor	24 capillaries	4000rpm	1580×g	/
