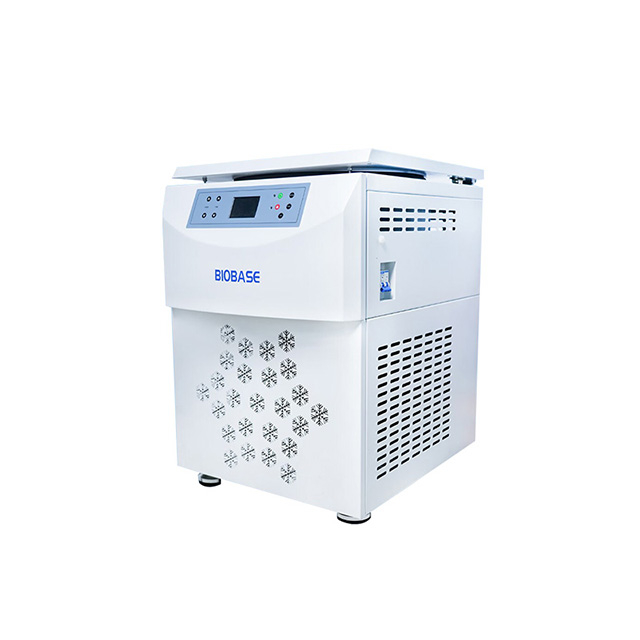

BKC-VL5RML
BIOBASE
Features:
1. Embedded microprocessor control, precise control of speed, time, temperature and relative centrifugal force.
2. The entire unit is constructed with a full steel structure, featuring a stainless steel centrifuge chamber.
3. Push-button programming design, real-time display of all operating parameters, intuitive and easy to operate.
4. With door cover protection, over-speed and advanced electronic unbalance detection system, the centrifuge process is monitored in real time to ensure the safe operation of the instrument.
5. Adopt imported fluorine-free compressor unit, R404a refrigerant.

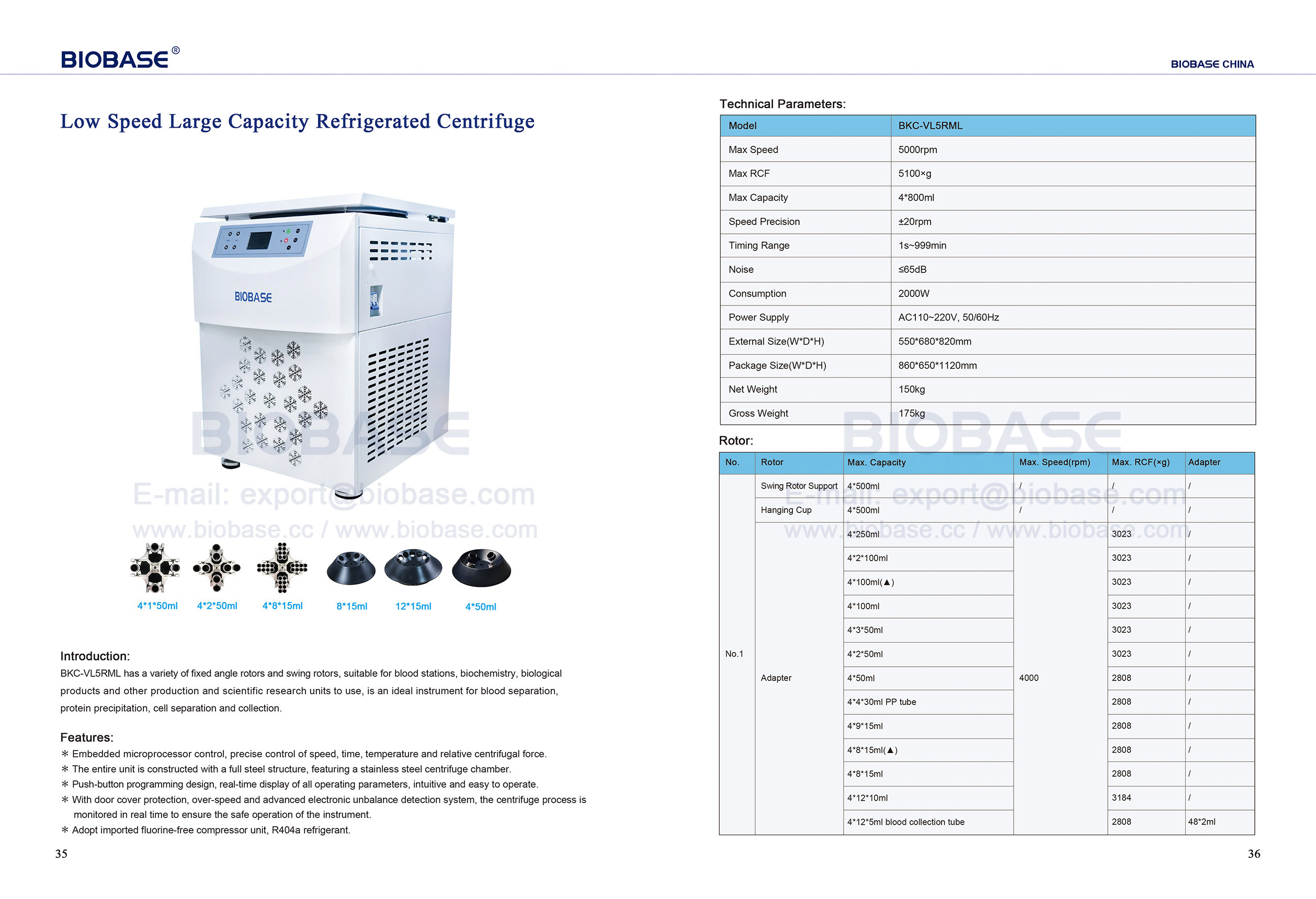

Technical Parameters:
Model | BKC-VL5RML |
Max Speed | 5000rpm |
Max RCF | 5100×g |
Max Capacity | 4*800ml |
Speed Precision | ±20rpm |
Timing Range | 1s~999min |
Noise | ≤65dB |
Consumption | 2000W |
Power Supply | AC110~220V, 50/60Hz |
External Size(W*D*H) | 550*680*820mm |
Package Size(W*D*H) | 860*650*1120mm |
Net Weight | 150kg |
Gross Weight | 175kg |

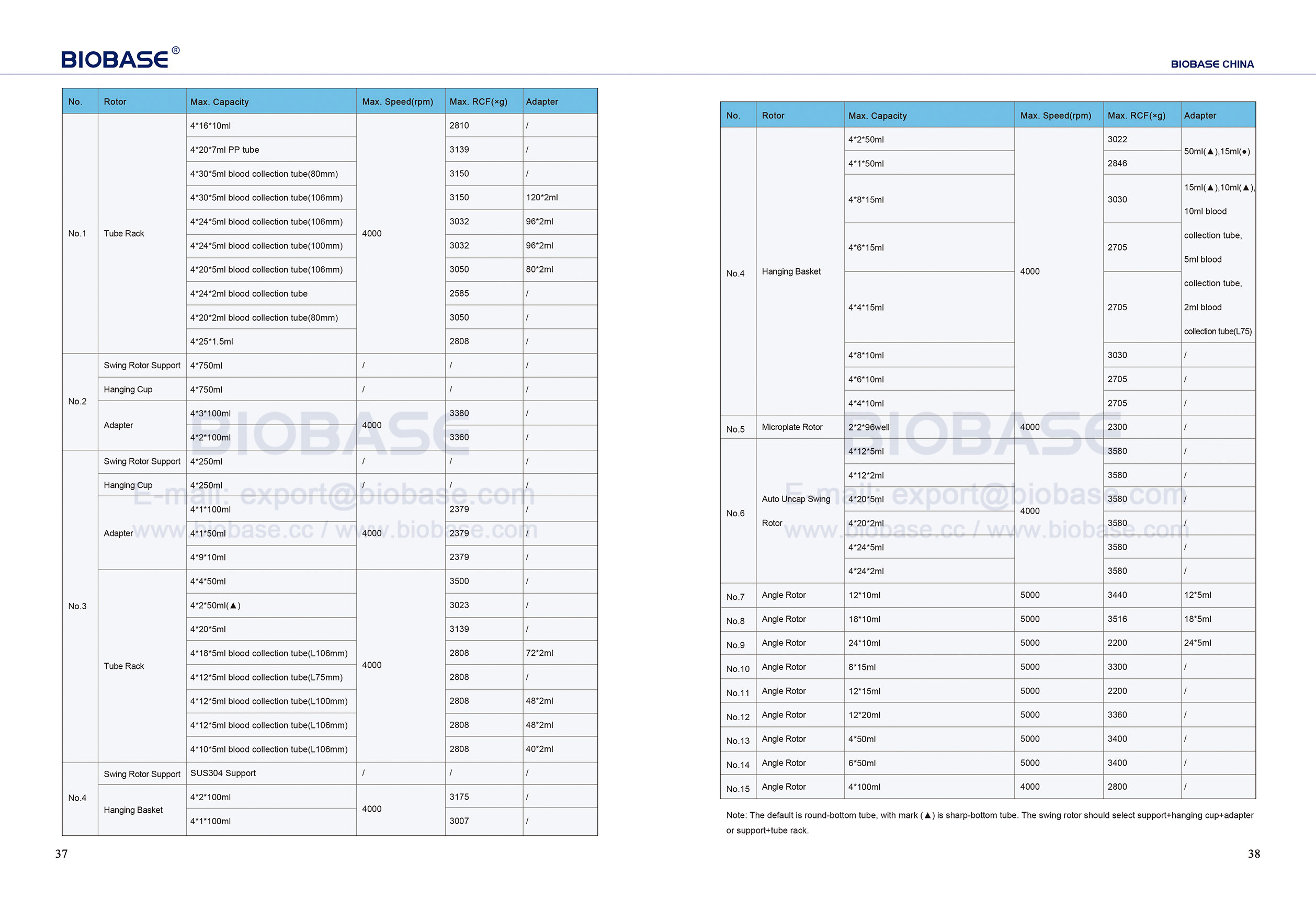

Rotor:
No. | Rotor | Capacity | Max. Speed(rpm) | Max. RCF(×g) | Adapter |
No.1 | Swing Rotor Support | 4*500ml | / | / | / |
Hanging Cup | 4*500ml | / | / | / | |
Adapter | 4*250ml | 4000 | 3023 | / | |
4*2*100ml | 3023 | / | |||
4*100ml(▲) | 3023 | / | |||
4*100ml | 3023 | / | |||
4*3*50ml | 3023 | / | |||
4*2*50ml | 3023 | / | |||
4*50ml | 2808 | / | |||
4*4*30ml PP tube | 2808 | / | |||
4*9*15ml | 2808 | / | |||
4*8*15ml(▲) | 2808 | / | |||
4*8*15ml | 2808 | / | |||
4*12*10ml | 3184 | / | |||
4*12*5ml blood collection tube | 2808 | 48*2ml | |||
Tube Rack | 4*16*10ml | 4000 | 2810 | / | |
4*20*7ml PP tube | 3139 | / | |||
4*30*5ml blood collection tube(80mm) | 3150 | / | |||
4*30*5ml blood collection tube(106mm) | 3150 | 120*2ml | |||
4*24*5ml blood collection tube(106mm) | 3032 | 96*2ml | |||
4*24*5ml blood collection tube(100mm) | 3032 | 96*2ml | |||
4*20*5ml blood collection tube(106mm) | 3050 | 80*2ml | |||
4*24*2ml blood collection tube | 2585 | / | |||
4*20*2ml blood collection tube(80mm) | 3050 | / | |||
4*25*1.5ml | 2808 | / | |||
No.2 | Swing Rotor Support | 4*750ml | / | / | / |
Hanging Cup | 4*750ml | / | / | / | |
Adapter | 4*3*100ml | 4000 | 3380 | / | |
4*2*100ml | 3360 | / | |||
No.3 | Swing Rotor Support | 4*250ml | / | / | / |
Hanging Cup | 4*250ml | / | / | / | |
Adapter | 4*1*100ml | 4000 | 2379 | / | |
4*1*50ml | 2379 | / | |||
4*9*10ml | 2379 | / | |||
Tube Rack | 4*4*50ml | 4000 | 3500 | / | |
4*2*50ml(▲) | 3023 | / | |||
4*20*5ml | 3139 | / | |||
4*18*5ml blood collection tube(L106mm) | 2808 | 72*2ml | |||
4*12*5ml blood collection tube(L75mm) | 2808 | / | |||
4*12*5ml blood collection tube(L100mm) | 2808 | 48*2ml | |||
4*12*5ml blood collection tube(L106mm) | 2808 | 48*2ml | |||
4*10*5ml blood collection tube(L106mm) | 2808 | 40*2ml | |||
No.4 | Swing Rotor Support | SUS304 Support | / | / | / |
Hanging Basket | 4*2*100ml | 4000 | 3175 | / | |
4*1*100ml | 3007 | / | |||
4*2*50ml | 3022 | 50ml(▲),15ml(●) | |||
4*1*50ml | 2846 | ||||
4*8*15ml | 3030 | 15ml(▲),10ml(▲),10ml blood collection tube, 5ml blood collection tube, 2ml blood collection tube(L75) | |||
4*6*15ml | 2705 | ||||
4*4*15ml | 2705 | ||||
4*8*10ml | 3030 | / | |||
4*6*10ml | 2705 | / | |||
4*4*10ml | 2705 | / | |||
No.5 | Microplate Rotor | 2*2*96well | 4000 | 2300 | / |
No.6 | Auto Uncap Swing Rotor | 4*12*5ml | 4000 | 3580 | / |
4*12*2ml | 3580 | / | |||
4*20*5ml | 3580 | / | |||
4*20*2ml | 3580 | / | |||
4*24*5ml | 3580 | / | |||
4*24*2ml | 3580 | / | |||
No.7 | Angle Rotor | 12*10ml | 5000 | 3440 | 12*5ml |
No.8 | Angle Rotor | 18*10ml | 5000 | 3516 | 18*5ml |
No.9 | Angle Rotor | 24*10ml | 5000 | 2200 | 24*5ml |
No.10 | Angle Rotor | 8*15ml | 5000 | 3300 | / |
No.11 | Angle Rotor | 12*15ml | 5000 | 2200 | / |
No.12 | Angle Rotor | 12*20ml | 5000 | 3360 | / |
No.13 | Angle Rotor | 4*50ml | 5000 | 3400 | / |
No.14 | Angle Rotor | 6*50ml | 5000 | 3400 | / |
No.15 | Angle Rotor | 4*100ml | 4000 | 2800 | / |
Note: The default is round-bottom tube, with mark (▲) is sharp-bottom tube. The swing rotor should select support+hanging cup+adapter or support+tube rack.
