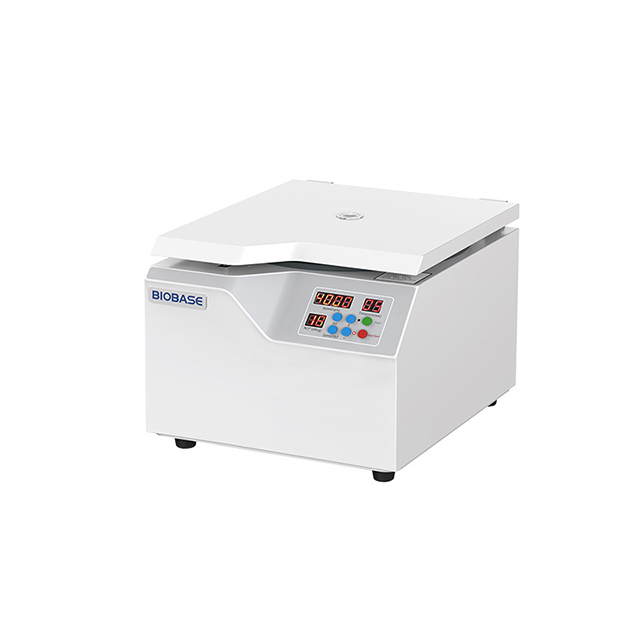

BKC-TL4B
BIOBASE
Application:
It can be widely used in the separation of particles of different density at single temperature in scientific research laboratory and production of radioimmunity, biochemistry and so on.
Features:
1. Featuring an all-metal build and multi-layer explosion-proof design, it ensures ultra-safe and stable operation.
2. Embedded microprocessor control, DC brushless motor drive, maintenance-free, smooth operation.
3. Push-button programming design, digital tube display, real-time display of all operating parameters, intuitive and simple operation.
4. Alarm monitoring function, real-time monitoring of lock and motor status, safe and reliable operation.
5. Centrifugal speed, centrifugal time and other parameters can be set, and real-time display of centrifugal force.
6. Equipped with a variety of Angle rotors, to meet different test requirements, a multi-purpose machine.
Technical Parameters:
Model | BKC-TL4B |
Max. Capacity | 4*100ml |
Max. Speed | 4000rpm |
Max. RCF | 2250×g |
Timing Range | 1s~99min |
Speed Precision | ±10rpm |
Noise | ≤60dB |
Consumption | 150W |
Power Supply | AC110 or 220V, 50/60Hz |
External Size(L*W*H)mm | 340*430*278 |
Net Weight(kg) | 20 |
Package Size(L*W*H)mm | 476*566*436 |
Gross Weight(kg) | 24 |

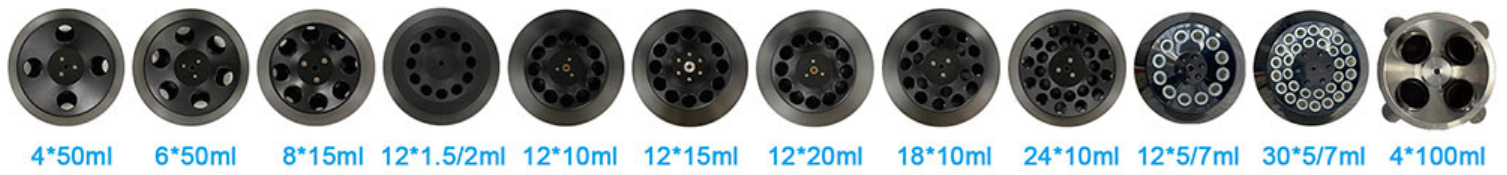

Rotor:
No. | Rotor | Max. Speed(rpm) | Max. RCF(xg) | Capacity |
4M0001 | Angle Rotor | 4000 | 2058 | 6*50ml |
Adapter | 6*50ml(▲), 6*20ml, 6*15ml, 6*10ml, 6*5ml, 6*1.5/2ml | |||
4M0002 | Angle Rotor | 2058 | 4*50ml | |
Adapter | 4*50ml(▲), 4*20ml, 4*15ml, 4*10ml, 4*5ml, 4*1.5/2ml | |||
4M0003 | Angle Rotor | 2250 | 12*20ml | |
Adapter | 12*15ml, 12*10ml, 12*5ml, 12*1.5/2ml | |||
4M0004 | Angle Rotor | 2147 | 12*15ml | |
Adapter | 12*1.5/2ml | |||
4M0005 | Angle Rotor | 1700 | 8*15ml | |
Adapter | 8*1.5/2ml | |||
4M0006 | Angle Rotor | 2147 | 24*10ml | |
Adapter | 24*1.5/2ml, 24*2/3/4ml blood collecting tube | |||
4M0007 | Angle Rotor | 2147 | 18*10ml | |
Adapter | 18*1.5/2ml, 18*2/3/4ml blood collecting tube | |||
4M0008 | Angle Rotor | 2147 | 12*10ml | |
Adapter | 12*1.5/2ml, 12*2/3/4ml blood collecting tube | |||
4M0009 | Angle Rotor | 1127 | 12*1.5ml/2ml | |
Adapter | 12*0.5ml, 12*0.2ml | |||
4M0010 | Angle Rotor | 2058 | 4*100ml | |
Adapter | / | |||
4M0016 | Angle Rotor | 1681 | 12*5/7ml | |
Adapter | 12*2/3/4ml blood collecting tube | |||
4M0017 | Angle Rotor | 2039 | 30*5/7ml | |
Adapter | 30*2/3/4ml blood collecting tube | |||
4M0018 | Angle Rotor | 1073 | 2*8*0.2ml pcr | |
Adapter | / | |||
4M0021 | Angle Rotor | 1342 | 4*8*0.2ml pcr | |
Adapter | / |
Note: With mark(▲) is sharp-bottom tube.
