| Quantity: | |
|---|---|

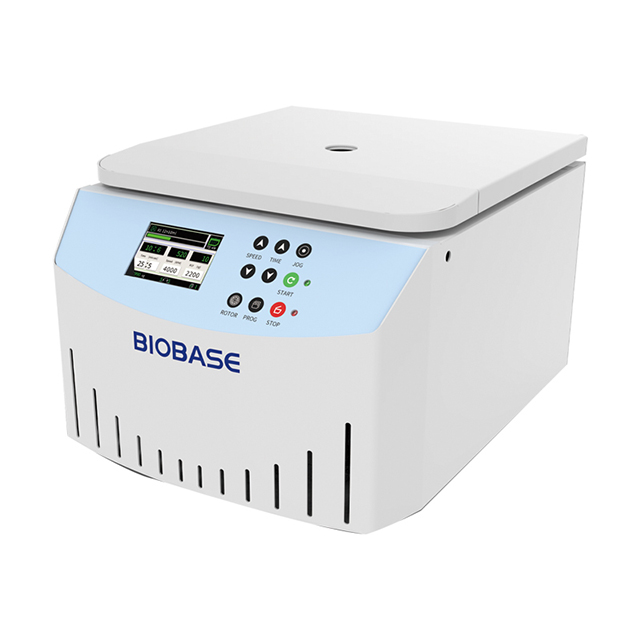

BKC-TL5M
BIOBASE
Application：
It is often used for separating serum, plasma, precipitated protein or urine sediment examination.
Fetures:
* It can store 20 programs, automatic memory from the last running programs.
* Power failure self-recovery, improve efficiency.
* The program is adjustable during running, convenient and fast;
* Adjustable acceleration levels: 10, deceleration levels: 10.
* Large torque frequency conversion motor direct drive, no carbon powder pollution, maintenance free, long service life.
* OLED LCD digital display, real-time display of all operating parameters.
* Multi-stage shock absorption, overspeed, unbalanced, door cover multiple protection, fault self-inspection, safe and reliable.
* Program memory function, automatic memory of the last running parameters,
* English and Chinese could be change freely.
* Centrifugal complete automatic door opening and remind.
Technical Parameters:
Model | BKC-TL5M |
Max. Speed | 5000rpm |
Max. Capacity | 4*500ml |
Max. RCF | 4390xg |
Temp. Range | Normal Temperature |
Speed Precision | ±1%rpm or ±20rpm |
Time Range | 1～999min |
Noise | ≤65dB |
Power Supply | AC 220±10%V ,50/60±10%Hz |
Consumption | 550W |
External Size(L*W*H)mm | 620*450*350 |
Net Weight/Gross Weight(kg) | 45/60 |
Rotor:
with mark(●) is round-bottom tube, with mark(▲) is sharp-bottom tube. We can do custom adapter according the user's requirements.
No. | Rotor | Capacity | Max.Speed(rpm) | Max.RCF(xg) |
No.1 | Swing Rotor | 4*9*15ml basket | 4000 | 3580 |
No.2 | 4*12*5ml vacuum tube basket | 4000 | ||
No.3 | 4*1*250ml basket | 4000 | ||
No.4 | 4*8*15ml(▲)basket | 4000 | ||
No.5 | 4*1*50ml(basket) | 5000 | ||
No.6 | 4*2*50ml(basket) | 4000 | ||
No.7 | 4*3*50ml(basket) | 4000 | ||
No.8 | 4*1*100ml(●)basket | 4000 | ||
No.9 | 4*1*100ml(▲)basket | 4000 | ||
No.10 | 4*2*100ml basket | 4000 | ||
No.11 | 4*4*30ml(●)PP basket | 4000 | ||
No.12 | 4*8*15ml basket | 4000 | ||
No.13 | 4*12*10ml basket | 4000 | ||
No.14 | 4*250ml basket | 4000 | ||
No.15 | 4*20*2ml vacuum tube（L80mm) | 4000 | ||
No.16 | 4*20*5ml vacuum tube (L106mm) | 4000 | ||
No.17 | 4*24*2ml vacuum tube | 4000 | ||
No.18 | 4*24*5ml vacuum tube (L75mm) | 4000 | ||
No.19 | 4*24*5ml vacuum tube (L100mm) | 4000 | ||
No.20 | 4*24*5ml vacuum tube( L106mm) | 4000 | ||
No.21 | 4*20*7ml PP transparency tube rack | 4000 | 3500 | |
No.22 | 4*16*10ml tube rack | 4000 | ||
No.23 | 4*25*1.5ml tube rack | 4000 | ||
No.24 | 4*2*50ml basket | 4000 | 3200 | |
No.25 | 4*9*10ml basket | 4000 | 2810 | |
No.26 | 4*1*50ml basket | 5000 | 4390 | |
No.27 | 4*1*100ml basket | |||
No.28 | 4*50ml PRP cup | 4000 | 3200 | |
No.29 | 4*2*50ml(▲) | 4000 | 3500 | |
No.30 | 4*4*50ml tube rack | 4000 | ||
No.31 | 4*10*5ml vacuum tube (L106mm) | 4000 | ||
No.32 | 4*12*5ml vacuum tube(L75mm) | 4000 | ||
No.33 | 4*12*5ml vacuum tube(L80mm） | 4000 | ||
No.34 | 4*12*5ml vacuum tube(L100mm） | 4000 | ||
No.35 | 4*12*5ml vacuum tube (L106mm) | 4000 | ||
No.36 | 4*18*5ml vacuum tube （L106mm） | 4000 | ||
No.37 | 4*20 *5ml | 4000 | ||
No.39 | Microplate Rotor | 2*2*96well | 4000 | 2300 |
No.1 | Angle Rotor | 4*50ml | 5000 | 2520 |
No.2 | 4*100ml | 2630 | ||
No.3 | 6*50ml | 2850 | ||
No.4 | 8*15ml | 2600 | ||
No.5 | 12*5/7ml | 3080 | ||
No.6 | 12*10ml | |||
No.7 | 12*15ml | |||
No.8 | 18*10ml | 2810 | ||
No.9 | 24*10ml | 3500 | ||
No.10 | 30*5/7ml |
