It can be used as utensils that are not resistant to high temperatures, glass enamel cups, plastics, ceramics, machinery and equipment, production supplies, currency, non-woven fabrics, composite paper, packaging boxes, packaging bags, utensils, cleaning utensils, molds, tableware, containers, towels , Work clothes, clothes, work shoes, packaging materials, raw materials, solid objects and other disinfection devices.
| Quantity: | |
|---|---|
BJPX-SVO60, BJPX-SVO80
BIOBASE
Introduction：

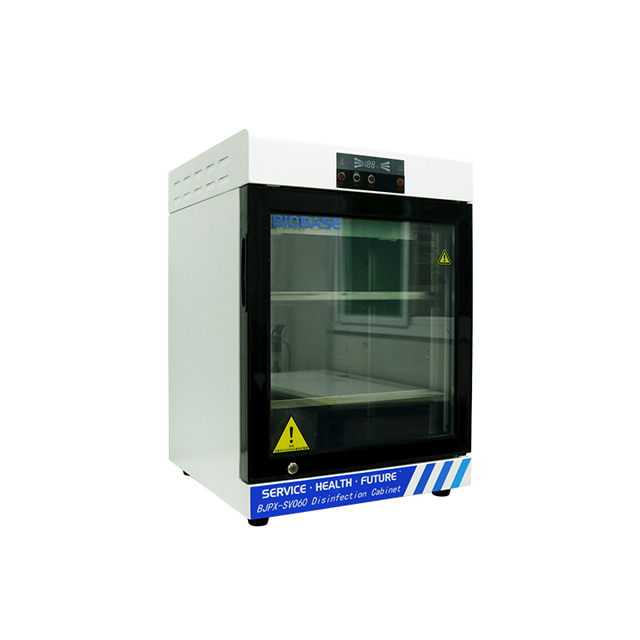

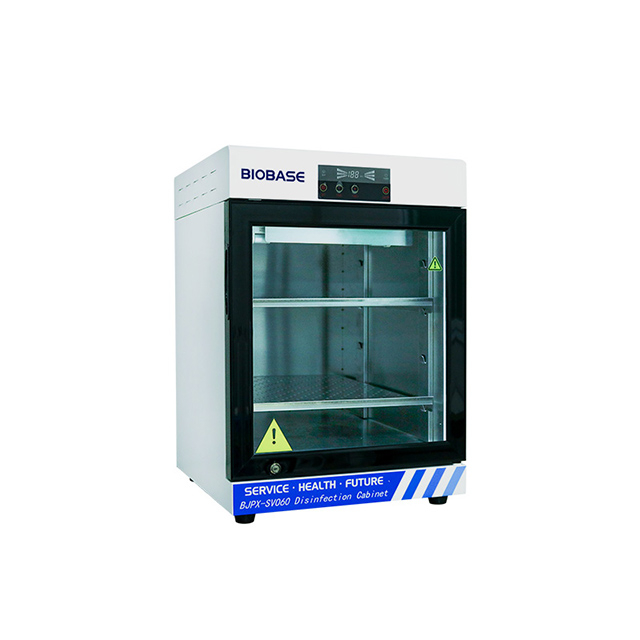

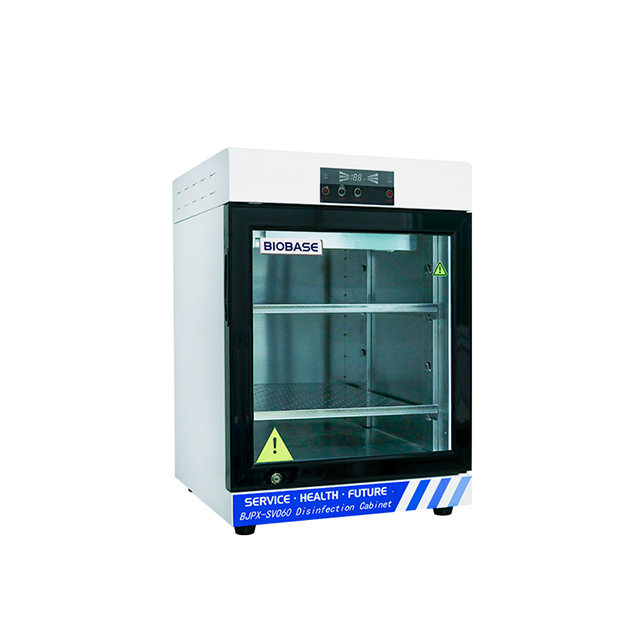

The ozone UV sterilization cabinet can sterilize the following appliances that are not resistant to high temperature: glass enamel cups, plastics, ceramics, machinery and equipment, production supplies, currency, non-woven fabrics, composite paper, packing boxes, packaging bags, appliances, cleaning appliances, mold, tableware, container, towels, work clothing, clothing, shoes,packaging materials, raw materials, solid objects.
It is suitable for banks, hotels, restaurants, schools, production workshops with hygienic requirements, public places that need to be sterilized, and family rooms.
Features:
* Humanized design
High quality sealing materials, adjustable shelves, several layers can be customized according
to the requirements, easy to use;
* Control system
Fully automatic control, adjustable sterilization time and shut down automatically after sterilization.
* Ozone sterilization
Sterilization is more thorough, rapid, comprehensive, stable, 360-degree coverage.
* High temperature resistance and anti-corrosion
304 stainless steel inner cavity, luxurious appearance, fashionable and beautiful.
* Low noise
Stable operation, convenient operation, safe and reliable use, long service life, firmness and durablilty.
Technical Parameters:
Sterilization Level | Medium and low Level |
Indicator bacteria | Escherichia Coli, StaphylococcusAureus, CandidaAlbicans |
Index | Each point of the log kill value should be≥3.00 |
Models:
Model | BJPX-SVO60 | BJPX-SVO80 |
Capacity | 70L | 90L |
Internal Size(W*D*H) | 398*398*452mm | 398*498*452mm |
External Size(W*D*H) | 495*501*760mm | 495*601*760mm |
Sterilization Method | Ozone | |
Shelves | 2 pcs, optional 2 pcs, adjustable | |
Material | Work Zone: 304 stainless steel, 1.0mm thick | |
Main Body: Cold-rolled steel with coating | ||
Ozone Concentration | ＞60㎎/m3 | |
Ozone Leakage | ＜0.16㎎/m3 | |
Sterilization Level | Medium and low level | |
Indicator Bacteria | Escherichia Coli, Staphylococcus Aureus, Candida Albicans | |
Index | Each point of the log kill value should be≥3.00 | |
Sterilization Rate | Over 99.99%, for all kinds of bacteria, viruses, fungi | |
Control System | Automatic | |
Working Condition | （a） Ambient temperature range 5℃-40℃ （b） Relative humidity is not more than 85% （c） Atmospheric pressure 70 Kpa-106Kpa （d） No flammable, corrosive gas or conductive dust around | |
Power Supply | AC 220V 50Hz (Standard); 110V 60Hz (Optional) | |
Package Size(W*D*H) | 626*620*860mm | 726*620*860mm |
Gross Weight | 50kg | 55kg |
Introduction：
The ozone UV sterilization cabinet can sterilize the following appliances that are not resistant to high temperature: glass enamel cups, plastics, ceramics, machinery and equipment, production supplies, currency, non-woven fabrics, composite paper, packing boxes, packaging bags, appliances, cleaning appliances, mold, tableware, container, towels, work clothing, clothing, shoes,packaging materials, raw materials, solid objects.
It is suitable for banks, hotels, restaurants, schools, production workshops with hygienic requirements, public places that need to be sterilized, and family rooms.
Features:
* Humanized design
High quality sealing materials, adjustable shelves, several layers can be customized according
to the requirements, easy to use;
* Control system
Fully automatic control, adjustable sterilization time and shut down automatically after sterilization.
* Ozone sterilization
Sterilization is more thorough, rapid, comprehensive, stable, 360-degree coverage.
* High temperature resistance and anti-corrosion
304 stainless steel inner cavity, luxurious appearance, fashionable and beautiful.
* Low noise
Stable operation, convenient operation, safe and reliable use, long service life, firmness and durablilty.
Technical Parameters:
Sterilization Level | Medium and low Level |
Indicator bacteria | Escherichia Coli, StaphylococcusAureus, CandidaAlbicans |
Index | Each point of the log kill value should be≥3.00 |
Models:
Model | BJPX-SVO60 | BJPX-SVO80 |
Capacity | 70L | 90L |
Internal Size(W*D*H) | 398*398*452mm | 398*498*452mm |
External Size(W*D*H) | 495*501*760mm | 495*601*760mm |
Sterilization Method | Ozone | |
Shelves | 2 pcs, optional 2 pcs, adjustable | |
Material | Work Zone: 304 stainless steel, 1.0mm thick | |
Main Body: Cold-rolled steel with coating | ||
Ozone Concentration | ＞60㎎/m3 | |
Ozone Leakage | ＜0.16㎎/m3 | |
Sterilization Level | Medium and low level | |
Indicator Bacteria | Escherichia Coli, Staphylococcus Aureus, Candida Albicans | |
Index | Each point of the log kill value should be≥3.00 | |
Sterilization Rate | Over 99.99%, for all kinds of bacteria, viruses, fungi | |
Control System | Automatic | |
Working Condition | （a） Ambient temperature range 5℃-40℃ （b） Relative humidity is not more than 85% （c） Atmospheric pressure 70 Kpa-106Kpa （d） No flammable, corrosive gas or conductive dust around | |
Power Supply | AC 220V 50Hz (Standard); 110V 60Hz (Optional) | |
Package Size(W*D*H) | 626*620*860mm | 726*620*860mm |
Gross Weight | 50kg | 55kg |
