| Quantity: | |
|---|---|
BKB-G-1600 ZY-Y-800
BIOBASE

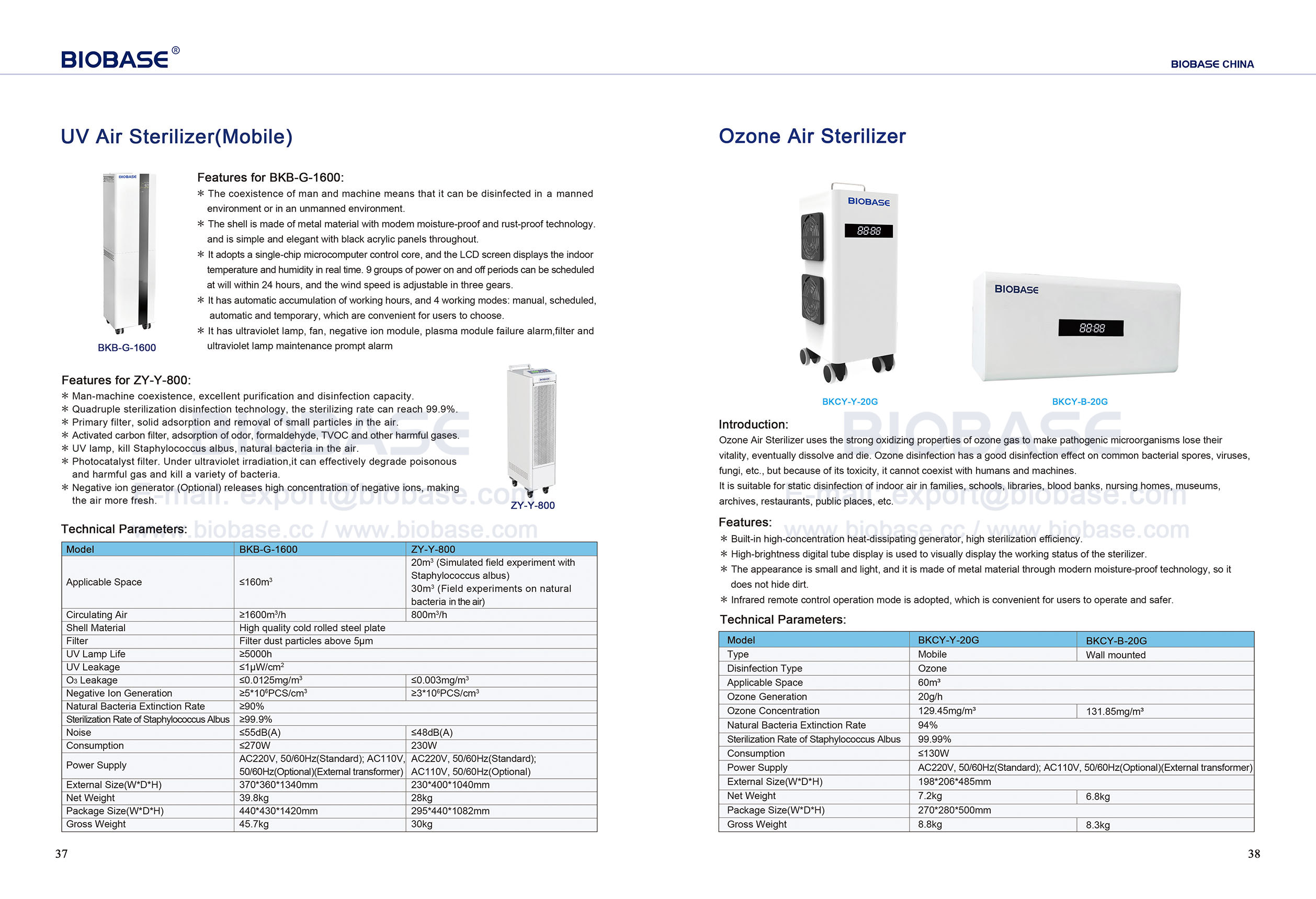

Features for BKB-G-1600:
1. The coexistence of man and machine means that it can be disinfected in a manned environment or in an unmanned environment.
2. The shell is made of metal material with modem moisture-proof and rust-proof technology and is simple and elegant with black acrylic panels throughout.
3. It adopts a single-chip microcomputer control core, and the LCD screen displays the indoor temperature and humidity in real time. 9 groups of power on and off periods can be scheduled at will within 24 hours, and the wind speed is adjustable in three gears.
4. It has automatic accumulation of working hours, and 4 working modes: manual, scheduled automatic and temporary, which are convenient for users to choose.
5. It has ultraviolet lamp, fan, negative ion module, plasma module failure alarm,filter and ultraviolet lamp maintenance prompt alarm.
Features for ZY-Y-800:
1. Man-machine coexistence, excellent purification and disinfection capacity.
2. Quadruple sterilization disinfection technology, the sterilizing rate can reach 99.9%.
3. Primary filter, solid adsorption and removal of small particles in the air.
4. Activated carbon filter, adsorption of odor, formaldehyde, TVOC and other harmful gases.
5. UV lamp, kill Staphylococcus albus, natural bacteria in the air.
6. Photocatalyst filter. Under ultraviolet irradiation,it can effectively degrade poisonous and harmful gas and kill a variety of bacteria.
7. Negative ion generator(Optional) releases high concentration of negative ions, making the air more fresh.
Technical Parameters:
Model | BKB-G-1600 | ZY-Y-800 |
Applicable Space | ≤160m3 | 20m3(Simulated field experiment with Staphylococcus albus) 30m3(Field experiments on natural bacteria in the air) |
Circulating Air | ≥1600m3/h | 800m3/h |
Shell Material | High quality cold rolled steel plate | |
Filter | Filter dust particles above 5μm | |
UV Lamp Life | ≥5000h | |
UV Leakage | ≤1μW/cm2 | |
O3 Leakage | ≤0.0125mg/m3 | ≤0.003mg/m3 |
Negative Ion Generation | ≥5*10^6pcs/cm3 | ≥3*10^6pcs/cm3 |
Natural Bacteria Extinction Rate | ≥90% | |
Sterilization Rate of Staphylococcus Albus | ≥99.9% | |
Noise | ≤55dB(A) | ≤48dB(A) |
Consumption | ≤270W | 230W |
Power Supply | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz(External transformer) | Standard: AC220V, 50/60Hz Optional: 110V, 50/60Hz |
External Size(W*D*H)mm | 370*360*1340 | 230*400*1040 |
Package Size(W*D*H)mm | 440*430*1420 | 295*440*1082 |
Net Weight(kg) | 39.8 | 28 |
Gross Weight(kg) | 45.7 | 30 |
