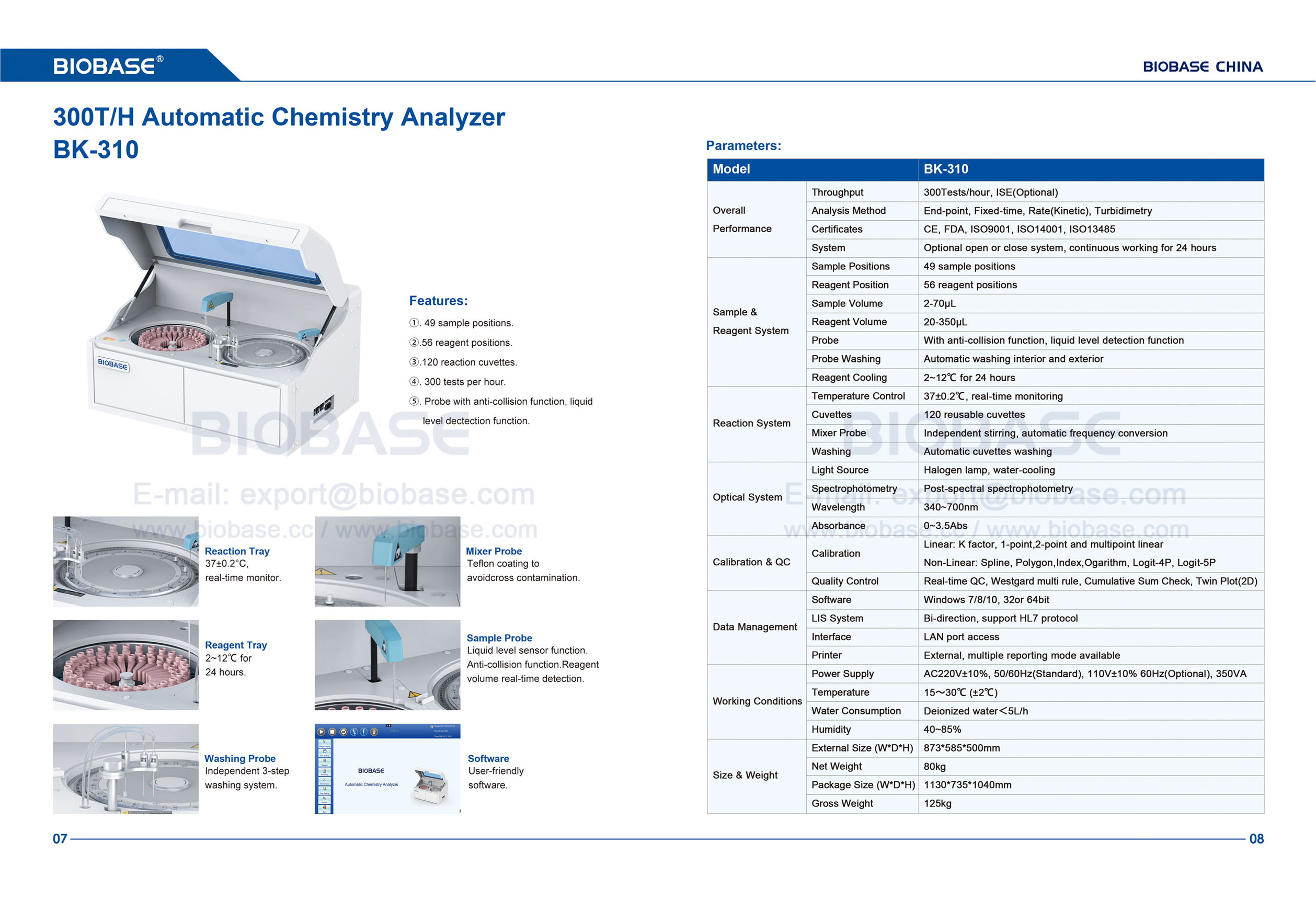

BK-310
BIOBASE
Features:
1. 49 sample positions
2. 56 reagent positions.
3. 120 reaction cuvettes.
4. 300 tests per hour.
5. Probe with anti-collision function, liquid level dectection function.
Model
Model | BK-310 | |
Overall | Throughput | 300Tests/hour, ISE(Optional) |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
System | Optional open or close system, continuous working for 24 hours | |
Sample & Reagent System | Sample Positions | 49sample positions |
Reagent Position | 56 reagent positions | |
Sample Volume | 2-70μL | |
Reagent Volume | 20-350μL | |
Probe | With anti-collision function, liquid level detection function | |
Probe Washing | Automatic washing interior and exterior | |
Reagent Cooling | 2~12℃ for 24 hours | |

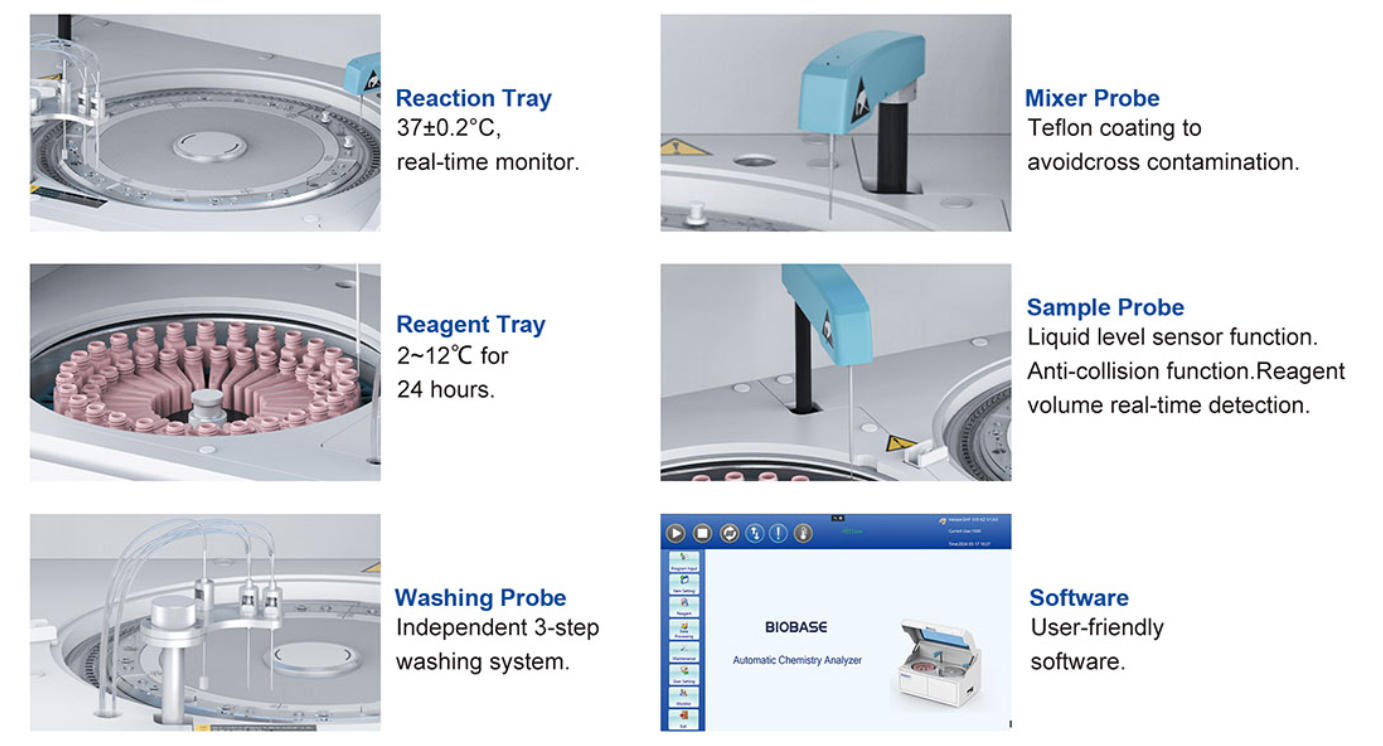

Reaction System | Temperature Control | Water bath37±0.2℃, real-time monitoring |
Cuvettes | ||
Mixer Probe | Independent stirring， automatic frequency conversion | |
Washing | Automatic cuvettes washing | |
Optical System | Light Source | Halogen lamp, water-cooling |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 340~700nm | |
Absorbance | 0~3.0Abs | |
Calibration & QC | Calibration | Linear: K factor, 1-point,2-point and multipoint linear Non-Linear: Spline, Polygon,Index,Ogarithm, Logit-4P, Logit-5P |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) | |
Data Management | Software | Windows 7/8/10, 32or 64bit |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz(Standard), 110V±10% 60Hz(Optional), 350VA |
Temperature | 15～30℃（±2℃） | |
Water Consumption | Deionized water＜5L/h | |
Humidity | 40~85% | |
Size & Weight | External Size (W*D*H) | 873*585*500mm |
Net Weight | 80kg | |
Package Size (W*D*H) | 1130*735*1040mm | |
Gross Weight | 125kg | |
Features:
1. 49 sample positions
2. 56 reagent positions.
3. 120 reaction cuvettes.
4. 300 tests per hour.
5. Probe with anti-collision function, liquid level dectection function.
Model
Model | BK-310 | |
Overall | Throughput | 300Tests/hour, ISE(Optional) |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
System | Optional open or close system, continuous working for 24 hours | |
Sample & Reagent System | Sample Positions | 49sample positions |
Reagent Position | 56 reagent positions | |
Sample Volume | 2-70μL | |
Reagent Volume | 20-350μL | |
Probe | With anti-collision function, liquid level detection function | |
Probe Washing | Automatic washing interior and exterior | |
Reagent Cooling | 2~12℃ for 24 hours | |
Reaction System | Temperature Control | Water bath37±0.2℃, real-time monitoring |
Cuvettes | ||
Mixer Probe | Independent stirring， automatic frequency conversion | |
Washing | Automatic cuvettes washing | |
Optical System | Light Source | Halogen lamp, water-cooling |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 340~700nm | |
Absorbance | 0~3.0Abs | |
Calibration & QC | Calibration | Linear: K factor, 1-point,2-point and multipoint linear Non-Linear: Spline, Polygon,Index,Ogarithm, Logit-4P, Logit-5P |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) | |
Data Management | Software | Windows 7/8/10, 32or 64bit |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz(Standard), 110V±10% 60Hz(Optional), 350VA |
Temperature | 15～30℃（±2℃） | |
Water Consumption | Deionized water＜5L/h | |
Humidity | 40~85% | |
Size & Weight | External Size (W*D*H) | 873*585*500mm |
Net Weight | 80kg | |
Package Size (W*D*H) | 1130*735*1040mm | |
Gross Weight | 125kg | |
