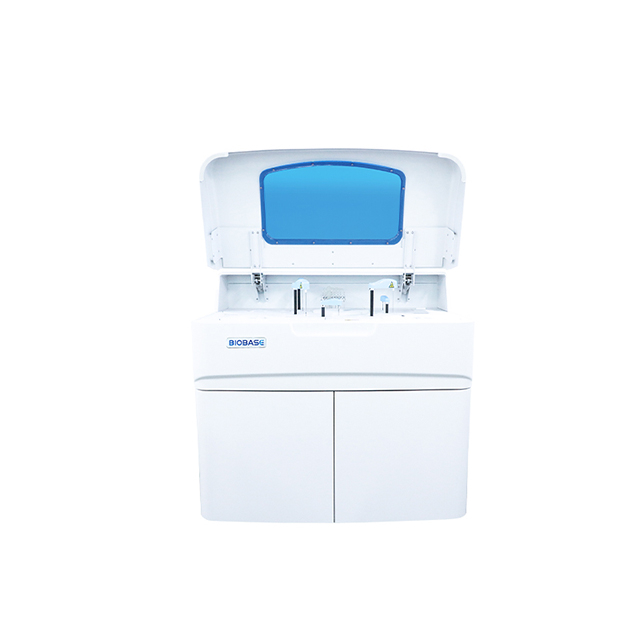

Auto Chemistry Analyzer BK-600

Quantity:
  • BIOBASE

Features:

①. 600 Tests per hour.

②. 120 Reaction cuvettes.

③. 180 Refrigerated reagent positions.

④. Built-insample barcode system optional.

⑤.90 Sample positions(120 sample positions optional).

⑥. Probe with anti-collision function, liquid level detection function.

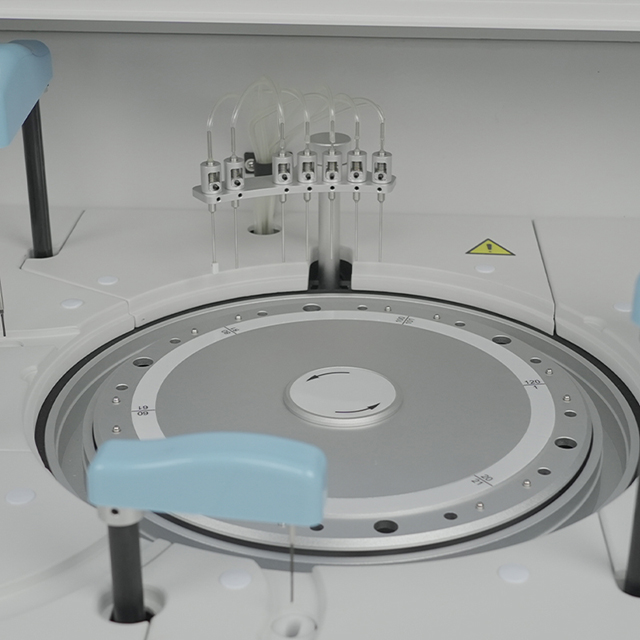

Reaction tray

37°C±0.1°C, real-time monitor.


Reagent tray

2°C~8°C cooling for 24 hours.

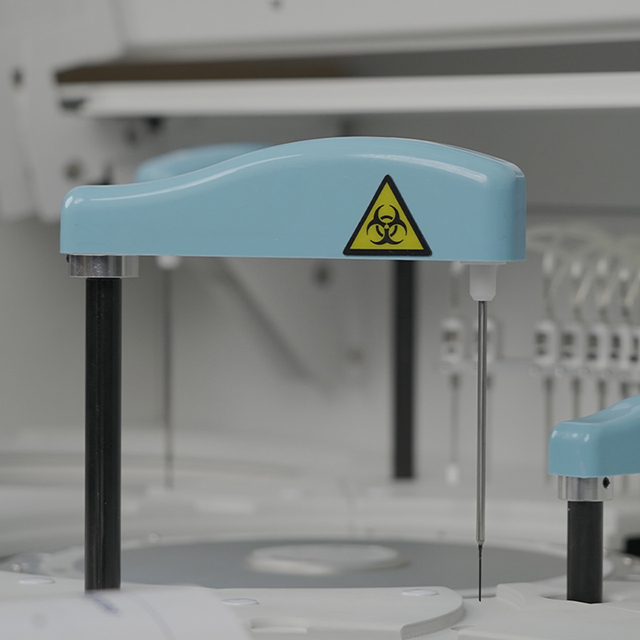

Mixer needle

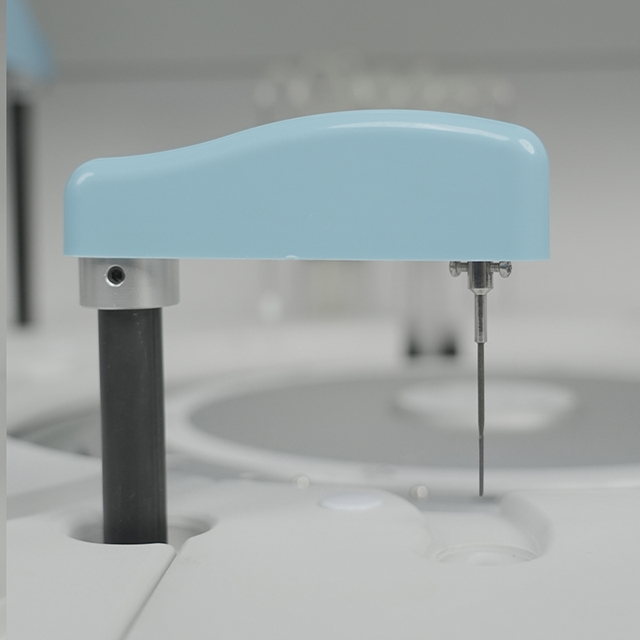

Sample needle

Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.

Software

User-friendly software.

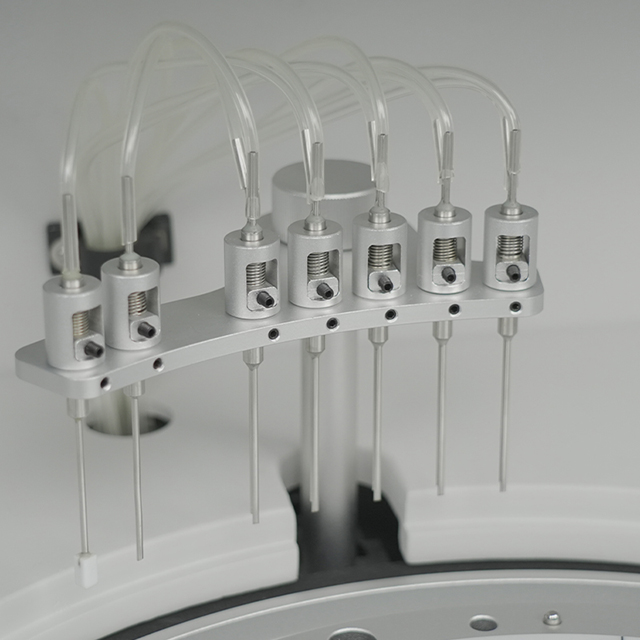

Washing Probe

Independent 7-step washing system.



Models:


Model

BK-600

Overall

Performance

Throughput

600Tests/hour

Analysis Method

End-point, Fixed-time, Rate, Two-point, Turbidimetry

Certification

CE, FDA, ISO9001, ISO14001, ISO13485



Sample & Reagent System

Sample Positions

90sample positions, built-in barcode system available

Reagent Positions

180refrigerated reagent positions(R1:45 & R2:45)

Probe Washing

Automatic washing interior and exterior

Reagent Cooling

Refrigerated tray with independent switch



Reaction System

Temperature Control

37±0.1℃, real-time monitoring

Cuvettes

120reusable cuvettes, optical length 6mm

Mixer Probe

Independent stirring

Washing

Automatic cuvettes washing

STAT function

YES

Optical System

Light Source

12V/30W halogen lamp

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

340,405,450,510,546,578,630,700nm

Absorbance

0~3.0Abs

Calibration & QC

Calibration

1-point, 2-point and multipoint, factor, Spline Logit-4P, Logit-5P

Quality Control

Inserting quality control at random

Data Management

Software

Windows 7/8/10

LIS System

Available

Interface

LAN port access

Printer

External,multiple reporting mode available

 Working Conditions

Power Supply

AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W

Temperature

10~30℃

Water Consumption

Deionized water:15L/H

Humidity

30-80%

Size & Weight

External Size (W*D*H)

1167*780*1016mm

Net Weight

216kg

Package Size (W*D*H)

1348*928*1399mm

Gross Weight

290kg

Accessory Package Size

678*624*548mm

Accessory Gross Weight

70kg
