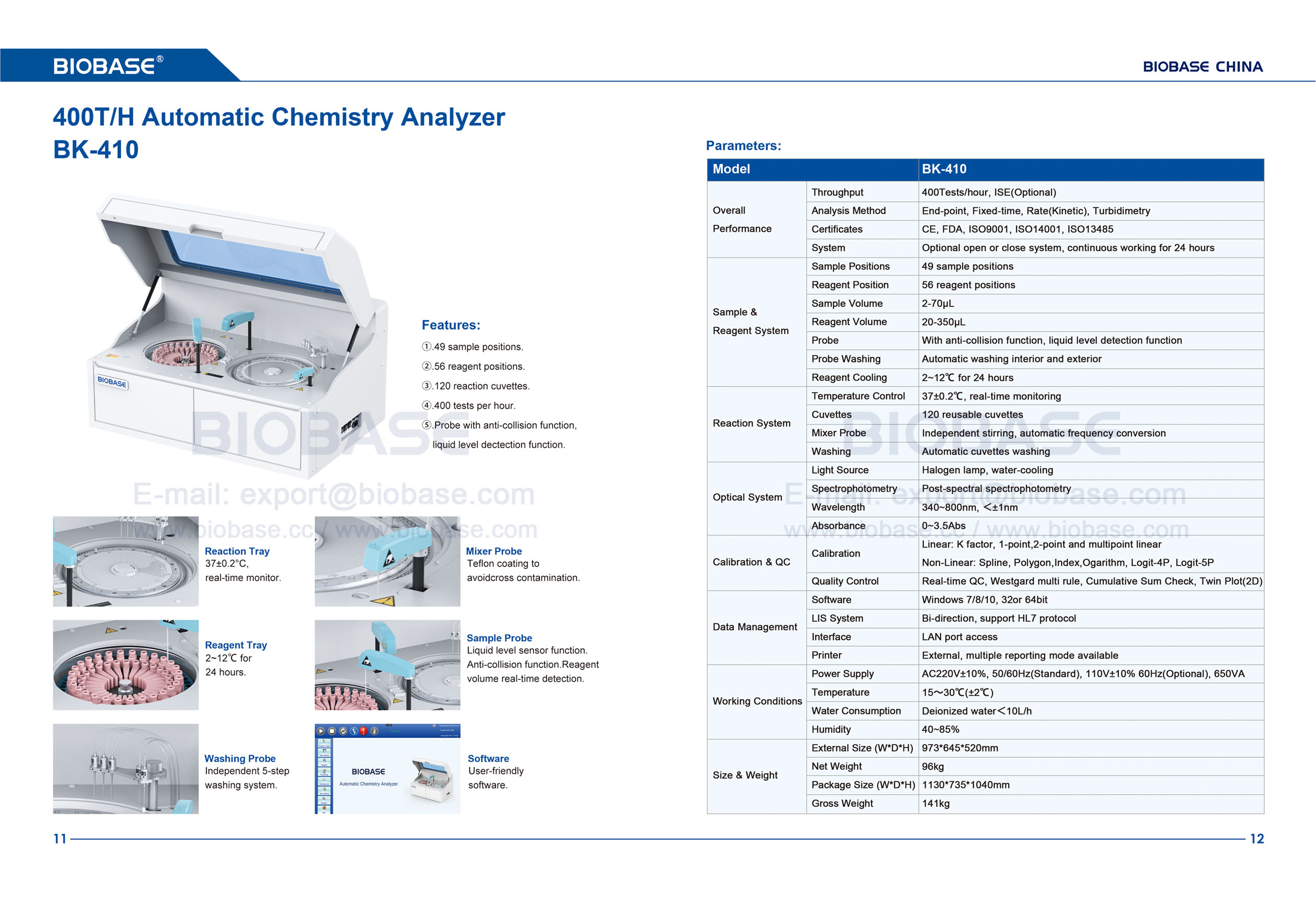

BK-410
BIOBASE
Features:
1. 49 sample positions
2. 56 reagent positions.
3. 120 reaction cuvettes.
4. 400 tests per hour.
5. Probe with anti-collision function, liquid level dectection function.
Technical Parameters:
Model | BK-410 | |
Overall | Throughput | 400 tests/hour, ISE(Optional) |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Certificates | CE, FDA, ISO9001, ISO14001, ISO13485 | |
System | Optional open or close system, continuous working for 24 hours | |
Sample & Reagent System | Sample Positions | 49 sample positions |
Reagent Position | 56 reagent positions | |
Sample Volume | 2~70μL | |
Reagent Volume | 20~350μL | |
Probe | With anti-collision function, liquid level detection function | |
Probe Washing | Automatic washing interior and exterior | |
Reagent Cooling | 2~12℃ for 24 hours | |
Reaction System | Temperature Control | Water bath37±0.2℃, real-time monitoring |
Cuvettes | 120 reusable cuvettes | |
Mixer Probe | Independent stirring, automatic frequency conversion | |
Washing | Automatic cuvettes washing | |
Optical System | Light Source | Halogen lamp, water-cooling |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 340~800nm, <±1nm | |
Absorbance | 0~3.0Abs | |
Calibration & QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) | |
Data Management | Software | Windows 7/8/10, 32 or 64 bit |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz(Standard); 110V±10% 60Hz(Optional), 650VA |
Temperature | 15~30℃(±2℃) | |
Water Consumption | Deionized water<10L/h | |
Humidity | 40~85% | |
Size & Weight | External Size (W*D*H) | 973*645*520mm |
Net Weight | 96kg | |
Package Size (W*D*H) | 1130*735*1040mm | |
Gross Weight | 141kg |
