Statement of BIOBASE Brand ：
 |
Introduction:
It is used to quantitatively analyze the clinical chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.
| Quantity: | |
|---|---|

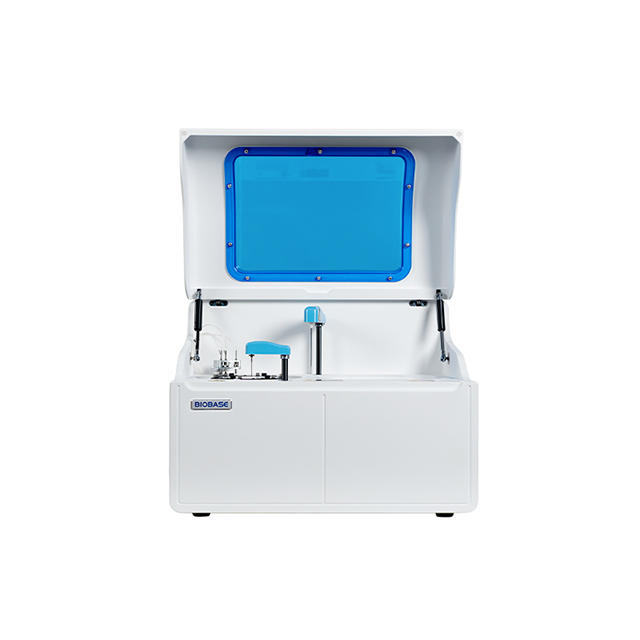

BK-200
BIOBASE
Features:

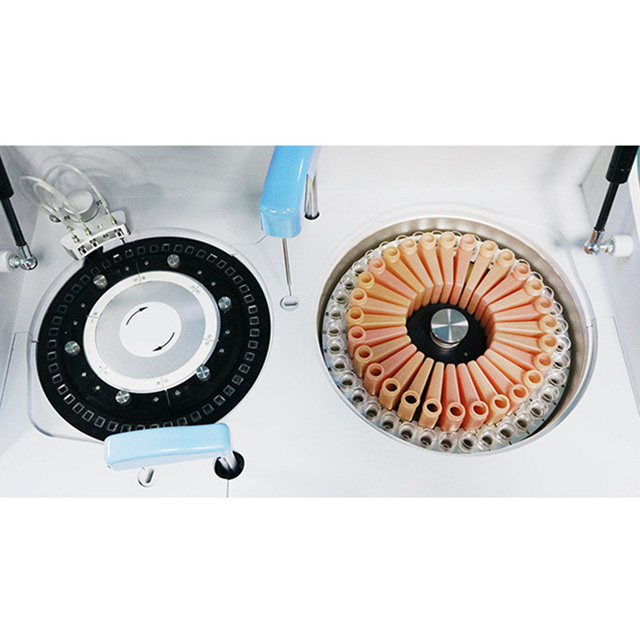

1. 37 sample positions.
2. 28 reagent positions.
3. 48 reaction cuvettes.
4. 200 tests per hour.
5. Probe with anti-collision function, liquid level dectection function.
Technical Parameters:
Model | BK-200 | |
Overall | Throughput | 200 tests/hour |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Certificates | CE, FDA, ISO9001, ISO13485 | |
Sample&Reagent System | Sample Positions | 37 sample positions |
Reagent Position | 28 reagent positions | |
Sample Volume | 2~70µl | |
Reagent Volume | 20~350µl | |

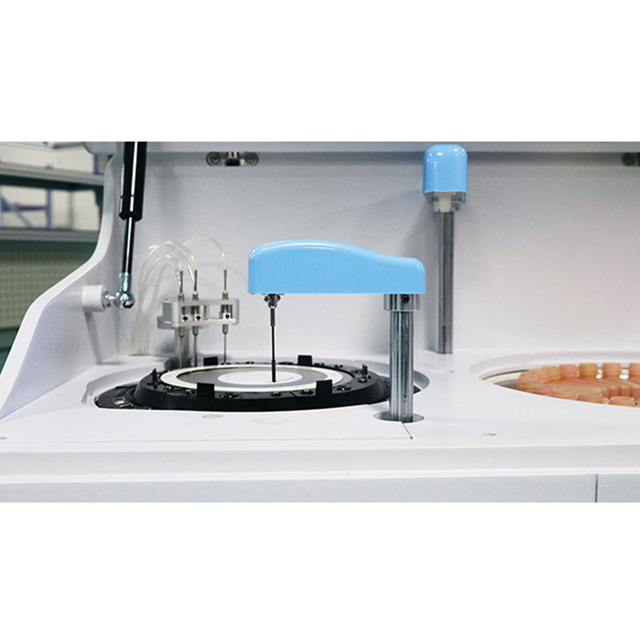

Probe | Teflon coating, with anti-collision function, liquid level detection function | |
Probe Washing | Automatic washing interior and exterior | |
Reagent Cooling | Refrigerated tray with independent switch | |
Reaction System | Temperature Control | 37±0.2℃ |
Cuvettes | 48 reusable cuvettes, optical length 6mm | |
Mixer Probe | Independent stirring | |
Washing | Automatic cuvettes washing | |
STAT Function | YES | |
Optical System | Light Source | 6V/10W halogen lamp |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 340, 405, 450, 510, 546, 578, 630, 700nm | |
Absorbance | 0~3.0Abs | |
Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D), Daily QC, Monthly QC | |
Data Management | Software | Windows 7/8/10, 32 or 64 bit |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External optional, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 300W |
Temperature | 15~30℃ | |
Water Consumption | Deionized water:＜5L/H | |
Humidity | 40%~85% | |
Size&Weight | External Size (W*D*H) | 625*425*460mm |
Net Weight | 36kg | |
Package Size (W*D*H) | 750*560*900mm | |
Gross Weight | 55kg | |
Features:
1. 37 sample positions.
2. 28 reagent positions.
3. 48 reaction cuvettes.
4. 200 tests per hour.
5. Probe with anti-collision function, liquid level dectection function.
Technical Parameters:
Model | BK-200 | |
Overall | Throughput | 200 tests/hour |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Certificates | CE, FDA, ISO9001, ISO13485 | |
Sample&Reagent System | Sample Positions | 37 sample positions |
Reagent Position | 28 reagent positions | |
Sample Volume | 2~70µl | |
Reagent Volume | 20~350µl | |
Probe | Teflon coating, with anti-collision function, liquid level detection function | |
Probe Washing | Automatic washing interior and exterior | |
Reagent Cooling | Refrigerated tray with independent switch | |
Reaction System | Temperature Control | 37±0.2℃ |
Cuvettes | 48 reusable cuvettes, optical length 6mm | |
Mixer Probe | Independent stirring | |
Washing | Automatic cuvettes washing | |
STAT Function | YES | |
Optical System | Light Source | 6V/10W halogen lamp |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 340, 405, 450, 510, 546, 578, 630, 700nm | |
Absorbance | 0~3.0Abs | |
Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
Quality Control | Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D), Daily QC, Monthly QC | |
Data Management | Software | Windows 7/8/10, 32 or 64 bit |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External optional, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 300W |
Temperature | 15~30℃ | |
Water Consumption | Deionized water:＜5L/H | |
Humidity | 40%~85% | |
Size&Weight | External Size (W*D*H) | 625*425*460mm |
Net Weight | 36kg | |
Package Size (W*D*H) | 750*560*900mm | |
Gross Weight | 55kg | |
