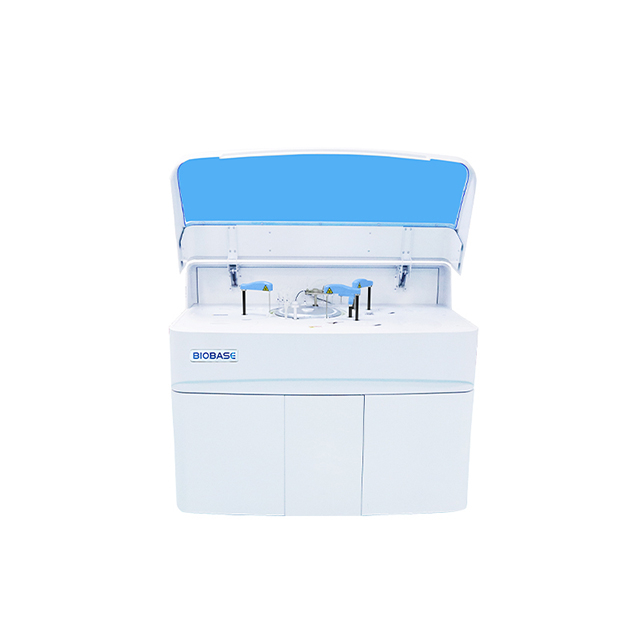

BK-1200
BIOBASE
Features:
1. 150 sample positions.
2. 160 reaction cuvettes.
3. 180 refrigerated reagent positions.
4. Optical filter/fiber bragg grating selectable.
5. 800 tests per hour(1200 tests with ISE module).
6. Built-in sample barcode system optional.
7. Probe with anti-collision function, liquid level detection function.
Technical Parameters:
Model | BK-1200 | |
Overall Performance | Throughput | 800 tests/hour, 1200 tests/hour with ISE(Optional) |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Certificates | CE, FDA, ISO9001, ISO13485 | |
Sample&Reagent System | Sample Positions | 150 sample positions |
Reagent Positions | 180 reagent positions | |
Sample Volume | 1~70μl | |
Reagent Volume | 10~350μl | |
Probe | Teflon coating, with anti-collision function, Liquid level detection function | |
Probe Washing | Automatic washing interior and exterior | |
Reagent Cooling | Refrigerated tray with independent switch | |
Reaction System | Temperature Control | Water bath 37±0.1℃, real-time monitoring |
Cuvettes | 160 reusable cuvettes, optical length 6mm | |
Mixer Probe | Independent stirring | |
Washing | Automatic cuvettes washing | |
STAT Function | YES | |
Optical System | Light Source | 12V/20W halogen lamp/fiber bragg grating optional |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 12 wavelength from 340~800nm | |
Absorbance | 0~3.5Abs | |
Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
Quality Control | Real-time QC, Westgard Multi Rule, Cumulative Sum Check, Twin Plot(2D), Daily QC, Monthly QC | |
Data Management | Software | Windows 7/8/10, 32 or 64 bit |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External optional, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 1500W |
Temperature | 15~30℃(±2℃) | |
Water Consumption | Deionized water: <25L/H | |
Humidity | 40%~85% | |
Size&Weight | External Size (W*D*H) | 1360*795*1155mm |
Net Weight | 290kg | |
Package Size (W*D*H) | 1729*969*1435mm | |
Gross Weight | 400kg | |
Features:
1. 150 sample positions.
2. 160 reaction cuvettes.
3. 180 refrigerated reagent positions.
4. Optical filter/fiber bragg grating selectable.
5. 800 tests per hour(1200 tests with ISE module).
6. Built-in sample barcode system optional.
7. Probe with anti-collision function, liquid level detection function.
Technical Parameters:
Model | BK-1200 | |
Overall Performance | Throughput | 800 tests/hour, 1200 tests/hour with ISE(Optional) |
Analysis Method | End-point, Fixed-time, Rate(Kinetic), Turbidimetry | |
Certificates | CE, FDA, ISO9001, ISO13485 | |
Sample&Reagent System | Sample Positions | 150 sample positions |
Reagent Positions | 180 reagent positions | |
Sample Volume | 1~70μl | |
Reagent Volume | 10~350μl | |
Probe | Teflon coating, with anti-collision function, Liquid level detection function | |
Probe Washing | Automatic washing interior and exterior | |
Reagent Cooling | Refrigerated tray with independent switch | |
Reaction System | Temperature Control | Water bath 37±0.1℃, real-time monitoring |
Cuvettes | 160 reusable cuvettes, optical length 6mm | |
Mixer Probe | Independent stirring | |
Washing | Automatic cuvettes washing | |
STAT Function | YES | |
Optical System | Light Source | 12V/20W halogen lamp/fiber bragg grating optional |
Spectrophotometry | Post-spectral spectrophotometry | |
Wavelength | 12 wavelength from 340~800nm | |
Absorbance | 0~3.5Abs | |
Calibration&QC | Calibration | Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Logit-4P, Logit-5P |
Quality Control | Real-time QC, Westgard Multi Rule, Cumulative Sum Check, Twin Plot(2D), Daily QC, Monthly QC | |
Data Management | Software | Windows 7/8/10, 32 or 64 bit |
LIS System | Bi-direction, support HL7 protocol | |
Interface | LAN port access | |
Printer | External optional, multiple reporting mode available | |
Working Conditions | Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, 1500W |
Temperature | 15~30℃(±2℃) | |
Water Consumption | Deionized water: <25L/H | |
Humidity | 40%~85% | |
Size&Weight | External Size (W*D*H) | 1360*795*1155mm |
Net Weight | 290kg | |
Package Size (W*D*H) | 1729*969*1435mm | |
Gross Weight | 400kg | |
