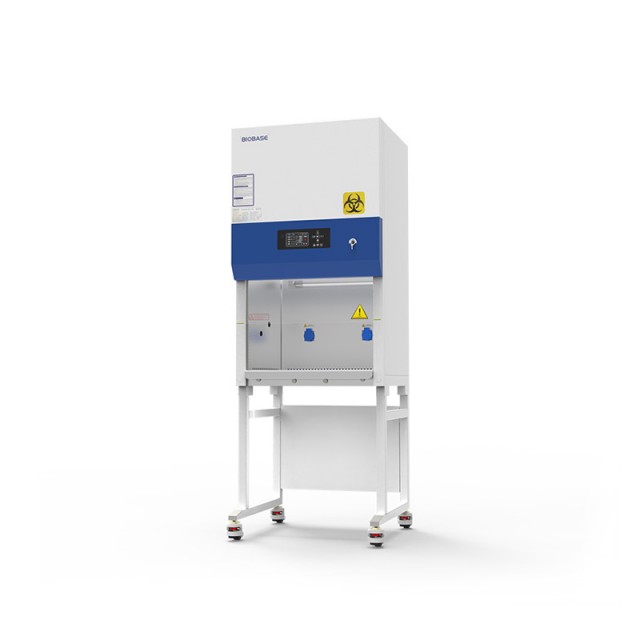

BSC-700IIA2-Z
BIOBASE
Features:
1. Small dimension, save space.
2. Centrifugal fan, speed adjustable. ULPA filter.
3. Motorized front window: The front window is motorized for convenient, one-hand operation.
4. Audio and visual alarm:Abnormal airflow velocity,Filter replacement,Front window at unsafe height.High flter pressure alarm.
5. Time reserve function: This can save 30 minutes waiting time after activating the cabinet and the sterlization time after experiment.
6. Remote control:Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.
7. Large LCD display: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
8. With memory function in case of power-failure.
9. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
Technical Parameters:
Model | BSC-700IIA2-Z | |
External Size(W*D*H) | 700*650*1920mm(700*650*1280mm without base stand) | |
Internal Size(W*D*H) | 600*500*540mm | |
Tested Opening | Safety height 200mm | |
Max Opening | 380mm | |
Inflow Velocity | 0.53±0.025m/s | |
Down Flow Velocity | 0.33±0.025m/s | |
ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator | |
Front Window | Motorized | |
Noise | ≤65dB | |
UV Lamp | 15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination | |
LED Lamp | 8W*2 | |
Illumination | ≥1000Lux | |
Consumption | ≤500W | |
Socket | Two, total load of two sockets: 500W | |
Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc | |
Control System | 70% air recirculation, 30% air exhaust | |
Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm, abnormal power failure | |
Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria power coating | |
Work Surface Height | 750mm with base stand | |
Power Supply | AC220V, 50/60Hz; 110V, 60Hz | |
Standard Accessory | Cabinet*1, LED lamp*2, UV lamp*2, Remote control, Drain valve*1, Waterproof socket*2, Foot swith | |
Optional Accessory | Water and gas tap, Electric height adjustable base stand, Armrest, Base stand*1 | |
Package Size(W*D*H) | Without Base Stand | 800*760*1470mm |
With Base stand | 800*900*1470mm | |
Gross Weight | Without Base Stand | 130kg |
With Base stand | 154kg | |
