Statement of BIOBASE Brand ：
 |
Biological Safety Cabinet is necessary equipment in the laboratory in the search of microbiology, biomedical, DNA recombinant, animal experiment, and biological products, especially in the occasion that operator need to adopt protective measure, such as medical and health, pharmacy, medical research. Our equipment provides a safety working environment which don’t have bacterial and dust in the process of bacterial culture.
| Quantity: | |
|---|---|
11224BBC86 11234BBC86
BIOBASE
Models:

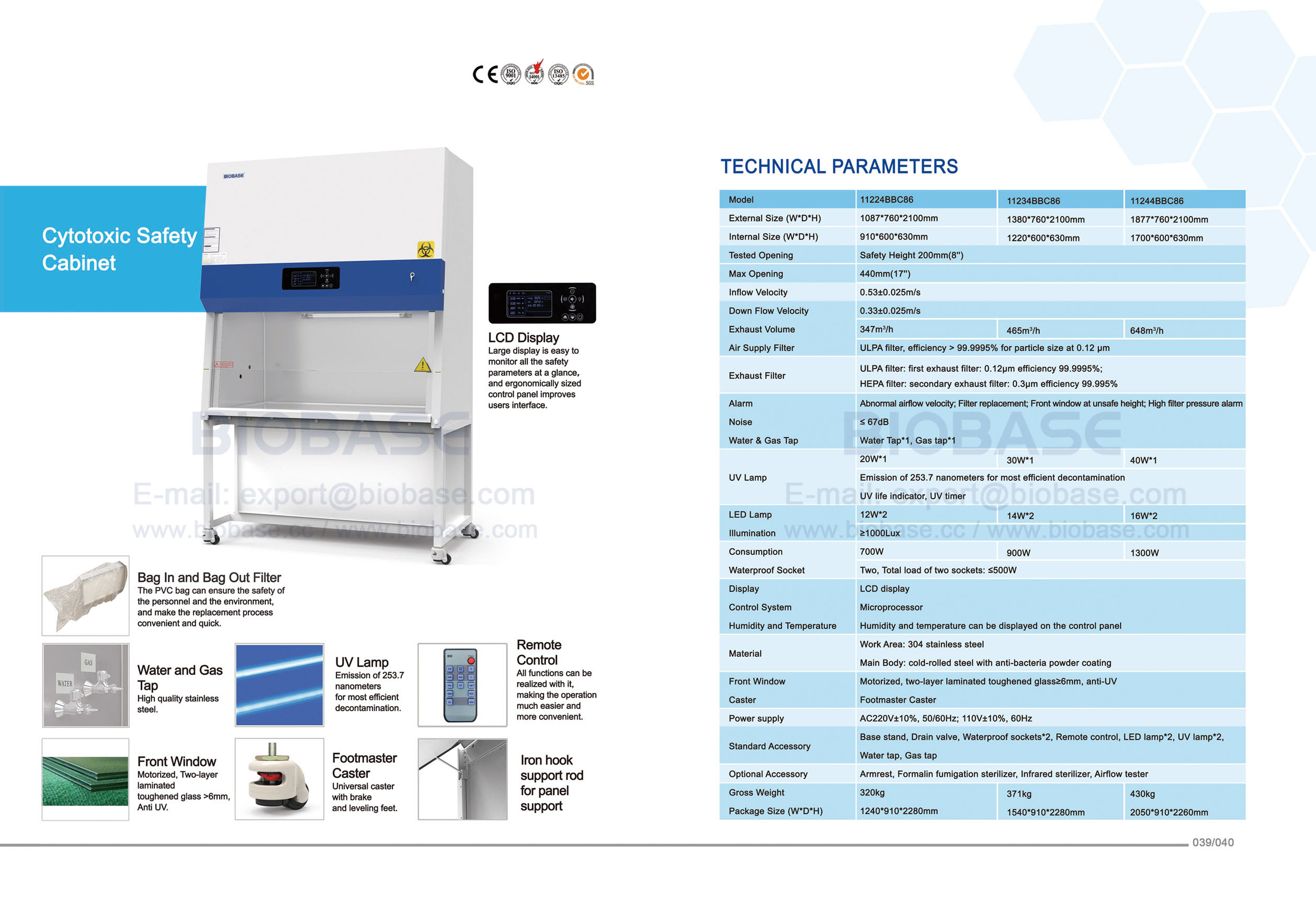

Model | 11224BBC86 | 11234BBC86 | 11244BBC86 |
External Size (W*D*H) | 1087*760*2100mm | 1380*760*2100mm | 1877*760*2100mm |
Internal Size (W*D*H) | 910*600*630mm | 1220*600*630mm | 1700*600*630mm |
Tested Opening | Safety Height 200mm(8n) | ||
Max Opening | 440mm(17") | ||
Inflow Velocity | 0.53±0.025m/s | ||
Down Flow Velocity | 0.33±0.025m/s | ||
Exhaust Volume | 347m³/h | 465m³/h | 648m³/h |
Air Supply Filter | ULPA filter, efficiency > 99.9995% for particle size at 0.12 pm | ||
Exhaust Filter | ULPA filter: first exhaust filter :0.12pm efficiency 99.9995%; HEPA filter: secondary exhaust filter :0.3pm efficiency 99.995% | ||
Alarm Noise Water & Gas Tap | Abnormal airflow velocity; Filter replacement; Front window at unsafe height; High filter pressure alarm ≤67dB Water Tap*1, Gas tap*1 | ||
20W*1 | 30W*1 | 40W*1 | |
UV Lamp | Emission of 253.7 nanometers for most efficient decontamination UV life indicator, UV timer | ||
LED Lamp | 12W*2 | 14W*2 | 16W*2 |
Illumination | ≥1000Lux | ||
Consumption | 700W | 900W | 1300W |
Waterproof Socket | Two, Total load of two sockets: ≤500W | ||
Display Control System Humidity and Temperature | LCD display Microprocessor Humidity and temperature can be displayed on the control panel | ||
Material | Work Area: 304 stainless steel Main Body: cold-rolled steel with anti-bacteria powder coating | ||
Front Window Caster | Motorized, two-layer laminated toughened glassN6mm, anti-UV Footmaster Caster | ||
Power supply | AC220V±10%, 50/60HZ； 110V±10%, 60Hz | ||

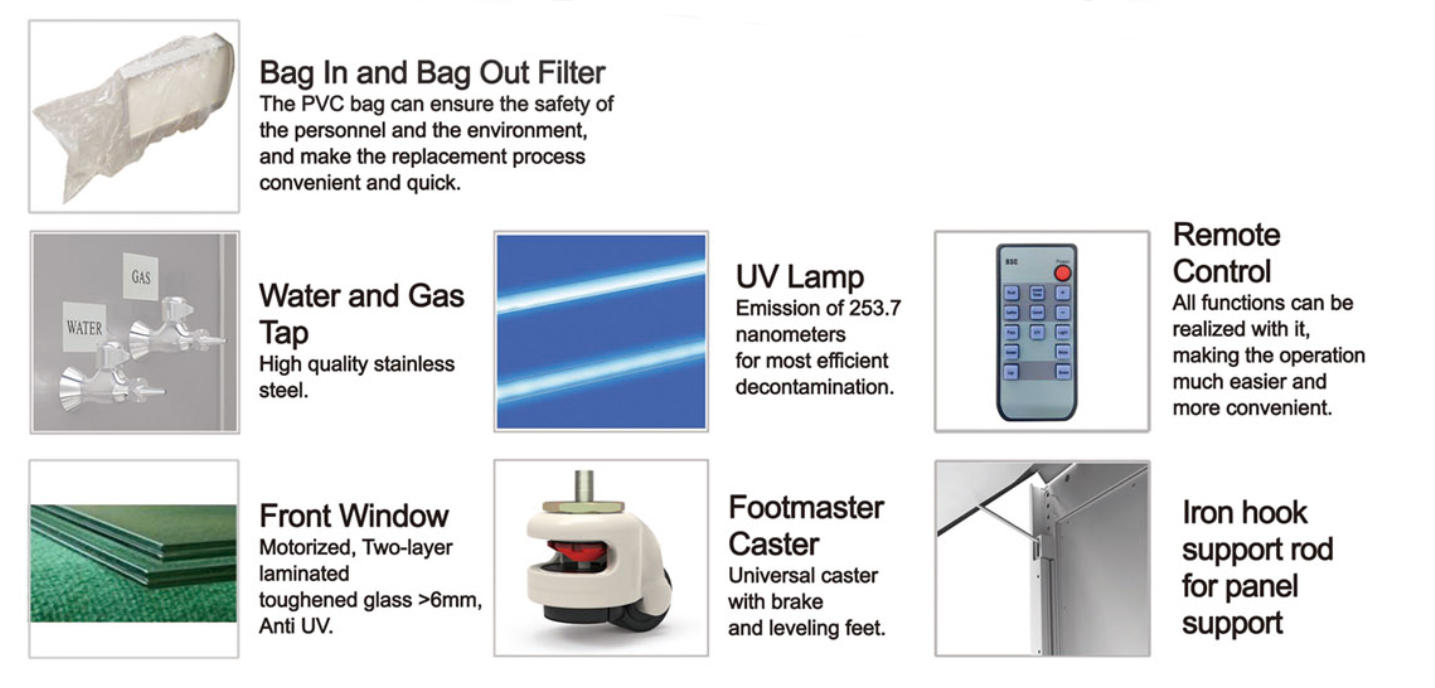

Standard Accessory | Base stand, Drain valve, Waterproof sockets*2, Remote control, LED lamp*2, UV lamp*1, Water tap, Gas tap | ||
Optional Accessory | Armrest, Formalin fumigation sterilizer, Infrared sterilizer, Airflow tester | ||
Gross Weight Package Size (W*D*H) | 320kg 1240*910*2280mm | 371kg 1540*910*2280mm | 430kg 2050*910*2260mm |
Standard Accessory:
Base stand 1pc.
Drain valve 1pc.
Waterproof sockets 2pcs.
Remote control 1pc.
Foot switch 1pc.
UV lamp 2pcs.
Fluorescent lamp 1pc.
Water tap 1pc.
Gas tap 1pc.
Optional Accessory:
Armrest
Formalin fumigation sterilizer
Infrared sterilizer
Airflow tester
PVC duct
