Class III Biosafety Cabinet is totally enclosed and gas-tight, it also can meet the requirement of operating Class I,II,III,IV pathogenic factor. It can be used in P3,P4 laboratory.
| Quantity: | |
|---|---|
BSC-1100IIIX BSC-1500IIIX
BIOBASE

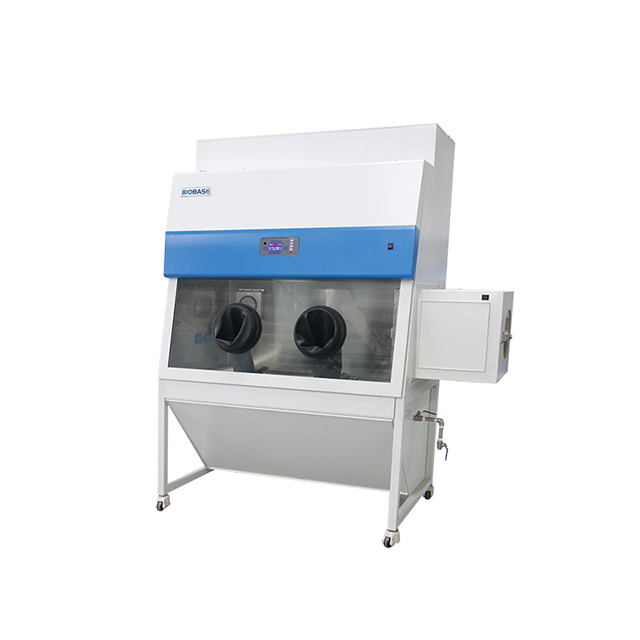

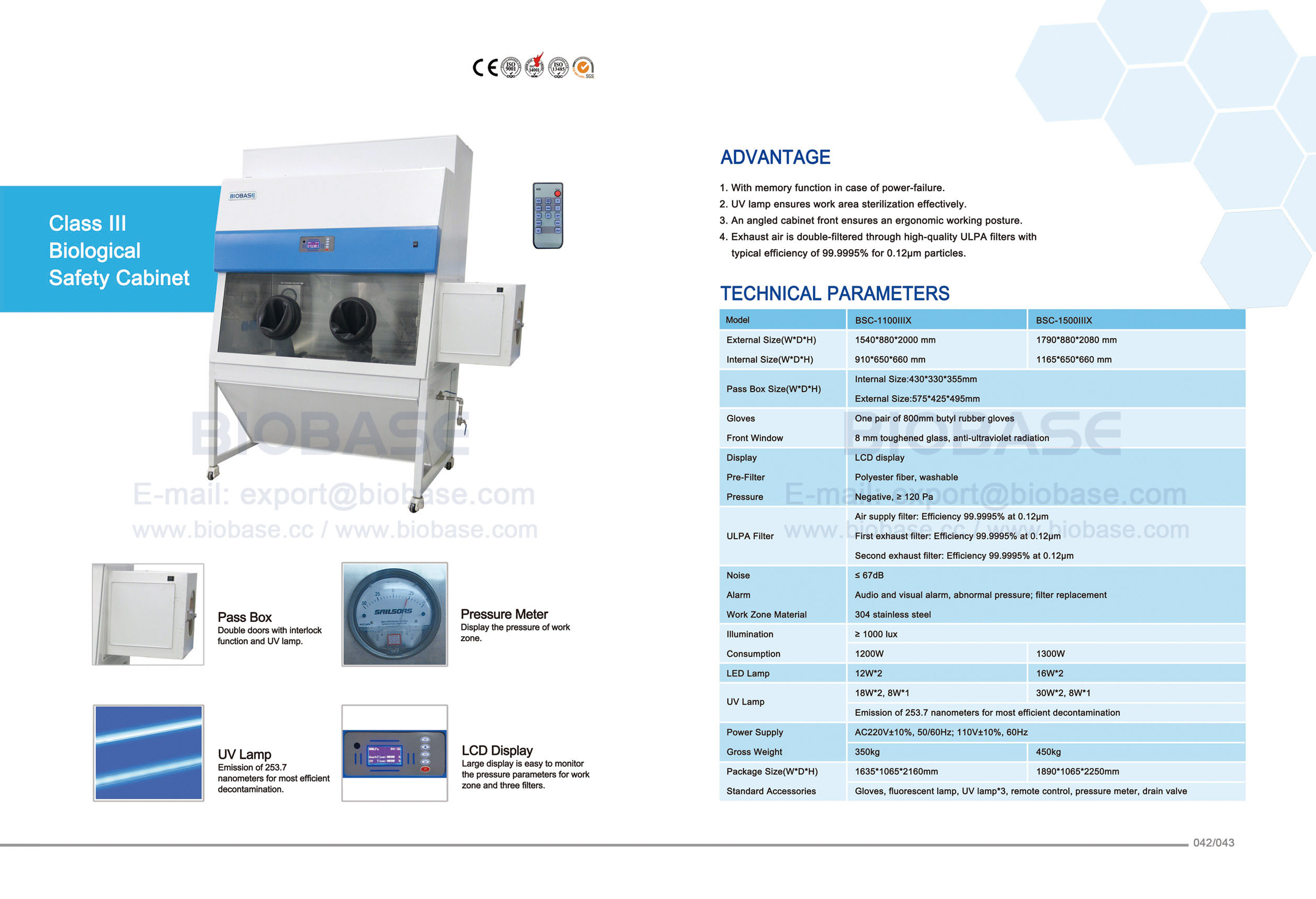

Class III Biosafety Cabinet is totally enclosed and gas-tight with ULPA filtered supply and exhaust air. Work is performed with long-sleeved gloves. The cabinet is kept under negative pressure of at least 120Pa, and airflow is maintained by a dedicated exterior exhaust system. It can protect the operator, product and environment.
Advantage:
1.With memory function in case of power-failure.
2. UV lamp ensures work area sterilization effectively.
3.An angled cabinet front ensure an ergonomic working posture.
4.Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.9995% for 0.12μmparticles.
Models:
Model | BSC-1100IIIX | BSC-1500IIIX |
External Size(W*D*H) | 1540*880*2000 mm | 1790*880*2080 mm |
Internal Size(W*D*H) | 910*650*660 mm | 1165*650*660 mm |
Pass Box Size(W*D*H) | Internal Size:430*330*355mm | |
External Size:575*425*495mm | ||
Gloves | One pair of 800mm butyl rubber gloves | |
Front Window | 8 mm toughened glass, anti-ultraviolet radiation | |
Display | LCD display | |
Pre-filter | Polyester fiber, washable | |
Pressure | ≥ negative120 Pa | |
ULPA Filter | Air supply filter: Efficiency 99.9995% at 0.12μm | |
First exhaust filter: Efficiency 99.9995% at 0.12μm | ||
Second exhaust filter: Efficiency 99.9995% at 0.12μm | ||
Noise | ≤67dB | |
Alarm | Audio and visual alarm, abnormal pressure; filter replacement | |
Work Zone Material | 304 stainless steel | |
Illumination | ≥ 1000 lux | |
Consumption | 1200W | 1300W |
LED Lamp | 12W*2 | 16W*2 |
UV Lamp | 18W*2 ,8W*1 | 30W*2, 8W*1, |
Emission of 253.7 nanometers for most efficient decontamination | ||
Power Supply | AC220V±10% ,50/60 Hz;110V±10%,60Hz | |
Gross Weight | 350kg | 450kg |
Package Size(W*D*H) | 1635*1065*2160mm | 1890*1065*2250mm |
Standard Accessories | Gloves, fluorescent lamp, UV lamp*3, remote control, pressure meter, drain valve | |

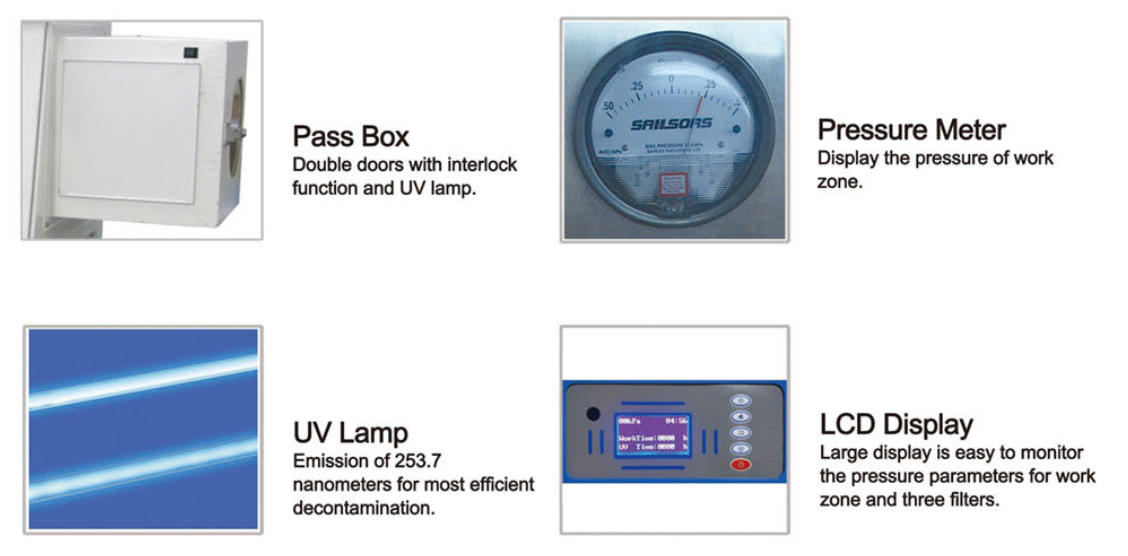

Accessories:
Standard Accessory:rescent
Gloves 1pair.
Fluorescent lamp 2pc.
UV lamp 4pcs.
Remote control 1pc.
Pressure meter 1pc.
Drain valve 1pc.
