Introduction:

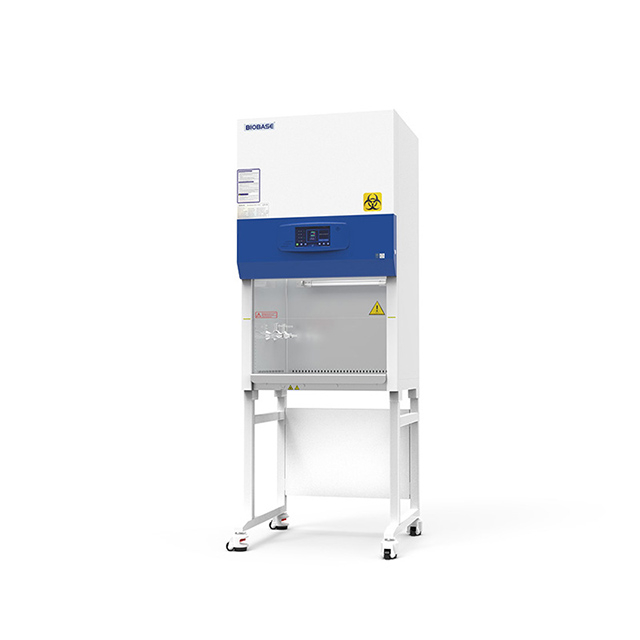

The NSF Certified Class II Biosafety Cabinet is a top-tier laboratory safety enclosure designed to provide maximum protection for operators, samples, and the environment when working with moderate-risk biological agents.
| Quantity: | |
|---|---|
BSC-2FA2-NA BSC-2FA2-GL
BIOBASE
Features:

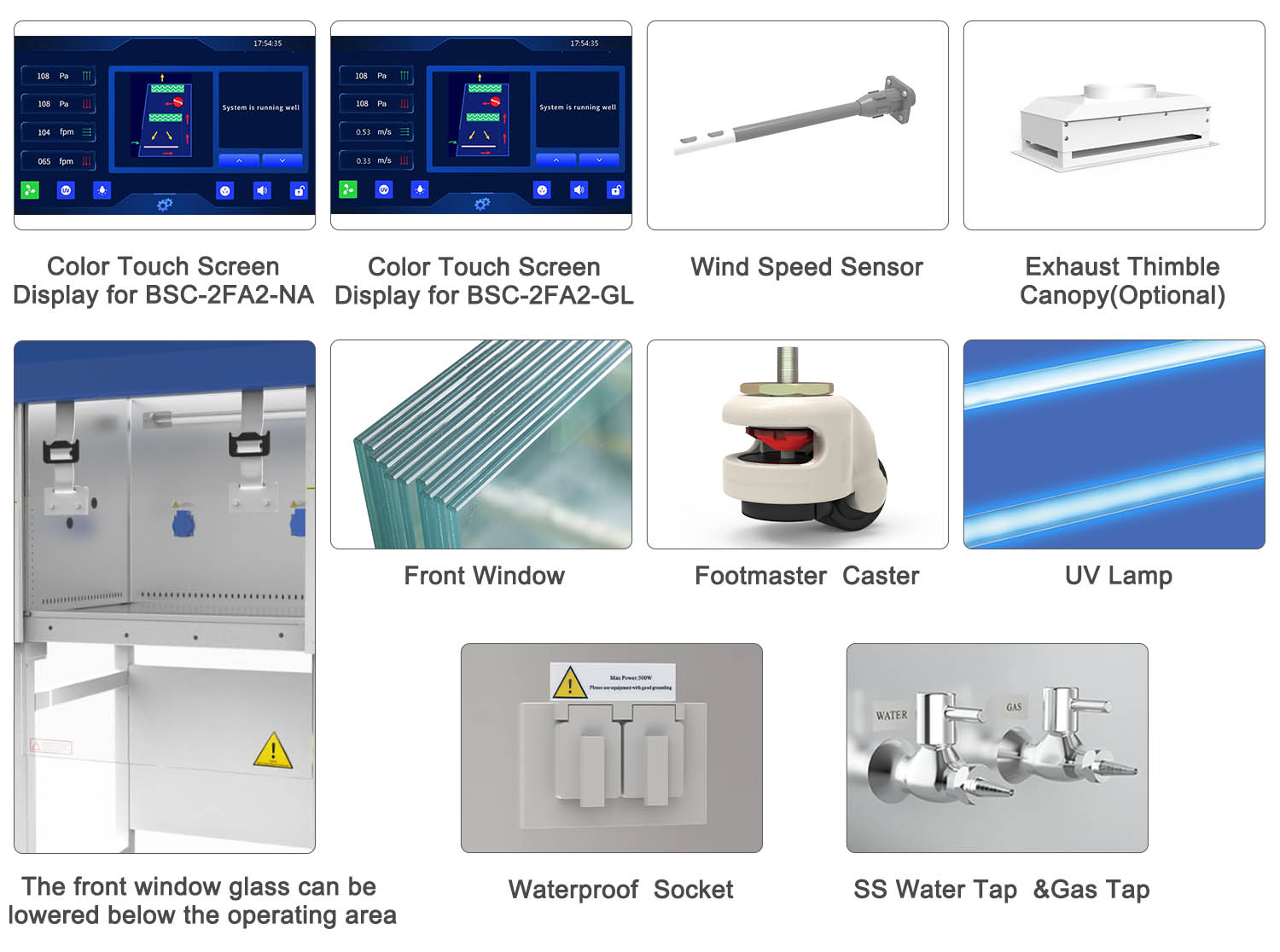

1. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
7. The rear of the operating area is equipped with anti-paper dust structure to prevent paper scraps from entering the air duct cavity.
Technical Parameters:
Model | BSC-2FA2-NA |
BSC-2FA2-GL | |
External Size(W*D*H) | 700*650*1920mm |
Internal Size(W*D*H) | 600*500*540mm |
Work Surface Hight | 750mm |
Max Opening | 370mm |
Tested Opening | Safety height 254mm(10") |
Inflow | 290m³/h(170cfm) |
Downflow | 55%: 360m³/h(211cfm) |
Exhausl | 45%: 290m³/h(170cfm) |
Front Window | Two-layer laminated toughened glass>6mm, Anti UV |
U PA Filter | ≥99.9995% efficiency at 0.12μm |
Filter Guard Type | Aluminum alloy frame |
Noise | NSF 49≤67dB |
Ilumination | ≥1000Lux |
Display | Capacitive touch screen |
Waterproof Socket | Two, total consumption≤500W |
Ground Resistance | ≤0.1Ω |
Power Supply | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 |
Consumption | ≤500W |
Alarn | Abnormal airlow velocity; Filter replacement; Front window at unsafe height |
Motor | EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption |
Material | Working area: 304 stainless steel |
Frame and decoratve plate: cold-rolled steel with anti-bacteria power coating | |
UV Lamp | 15W |
LED Lamp | 10W*2 |
Standard Accessory | LED Lamp*2, UV lamp*2, Base stand, Drain valve, Waterproof sockets, Remote control |
Optional Accessory | Armrest, Airlow tester, Formalin fumigation sterlizer, Infrared sterlizer, Remote control, SS water tap*1&gas tap*1 |
Net Weight | 150kg |
Package Size(W*D*H) | Carton: 820*880*1470mm |
Gross Weight | 152kg |
