Introduction:
The EN Class II A2 Biosafety Cabinet is a crucial piece of laboratory equipment designed to provide a safe working environment when handling biological materials that pose a moderate risk to the user and the environment.
| Quantity: | |
|---|---|
BSC-3FA2 BSC-4FA2
BIOBASE

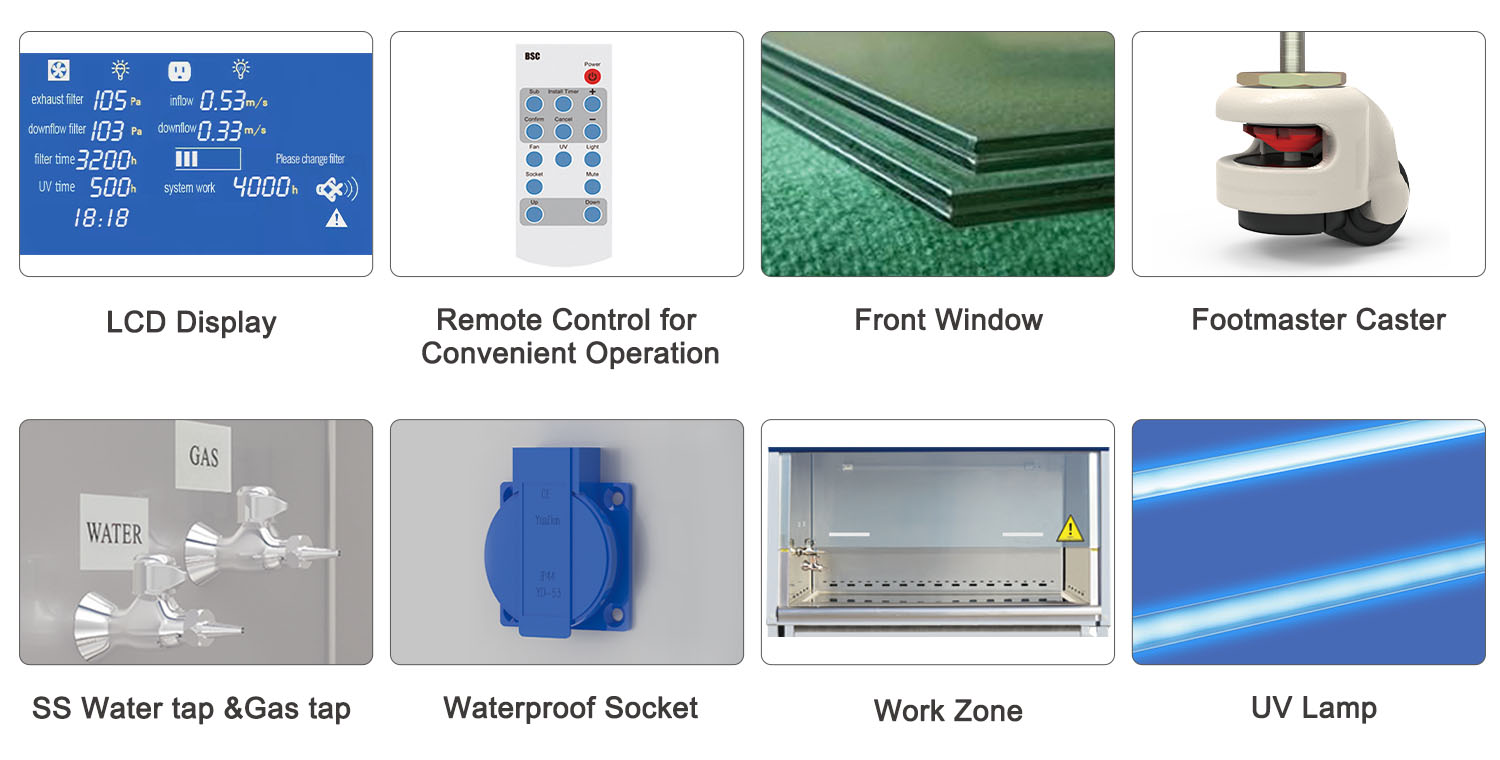

Features:
1. Large LCD display, all information displayed.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-failure memory, restore the state before power-failure, and have a visual reminder to alarm.
5. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window.
6. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.

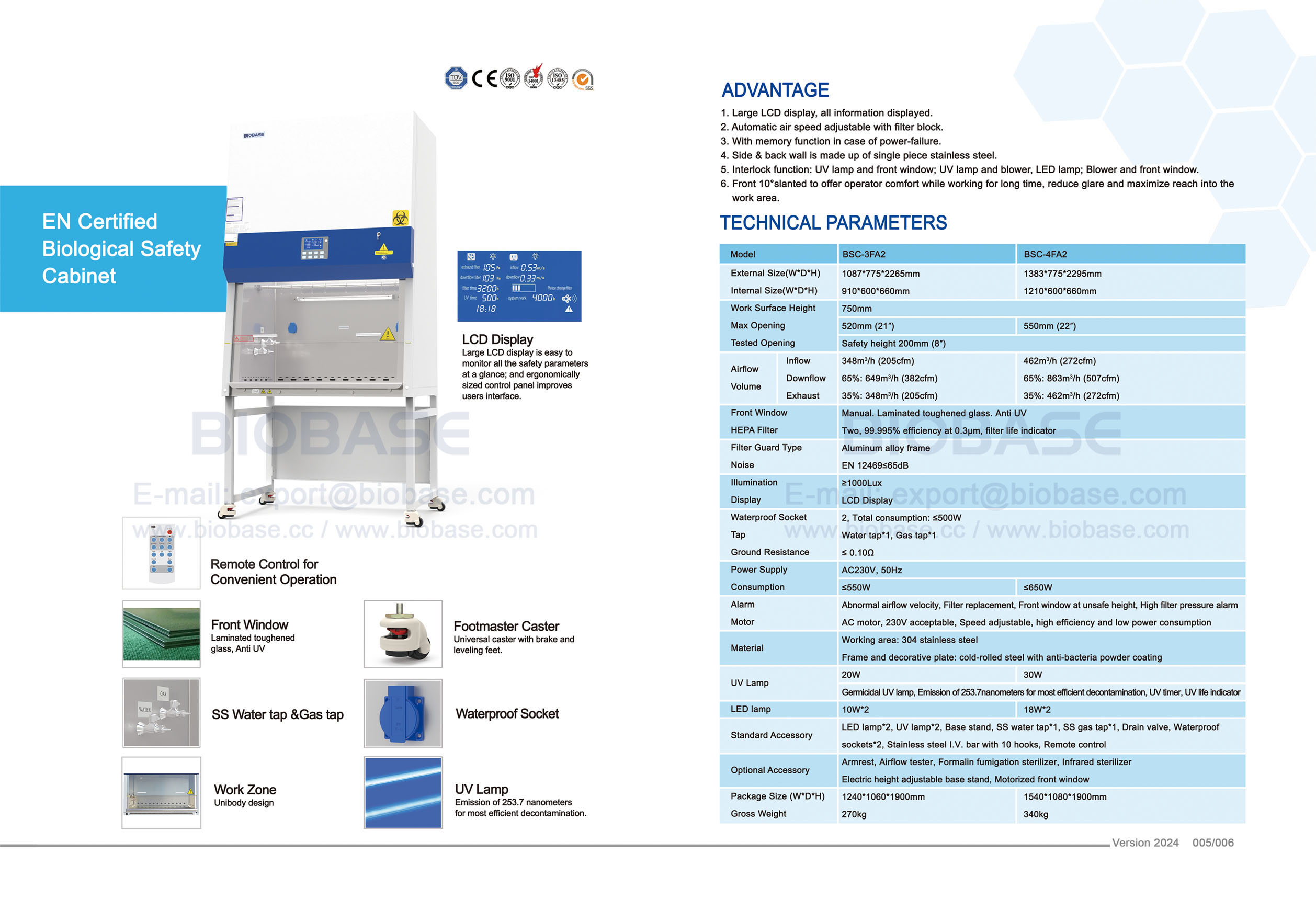

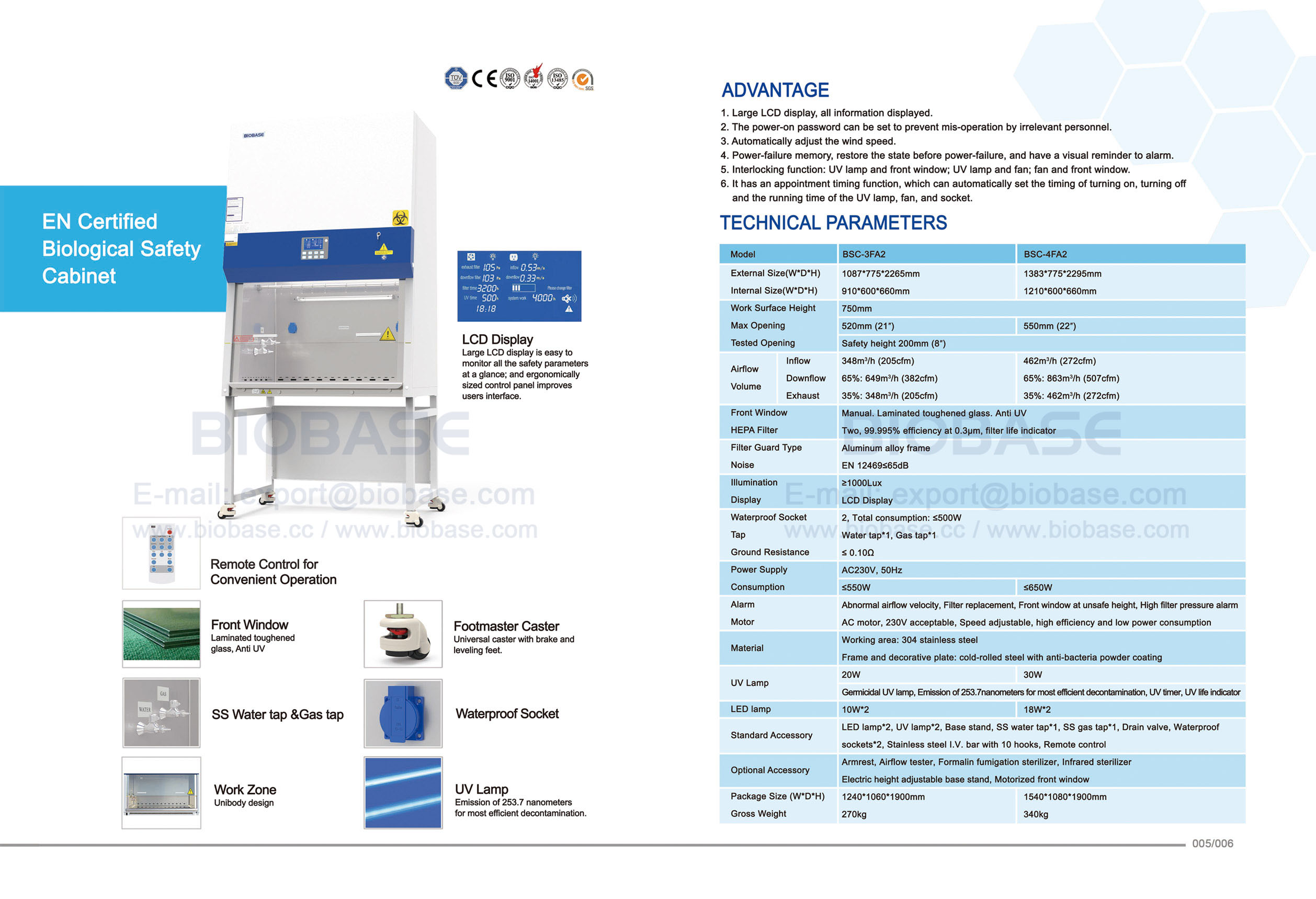

Technical Parameters:
Model | BSC-3FA2 | BSC-4FA2 | |
External Size(W*D*H) | 1087*775*2265mm | 1383*775*2295mm | |
Internal Size(W*D*H) | 910*600*660mm | 1210*600*660mm | |
Work Surface Height | 750mm | ||
Max Opening | 520mm(21") | 550mm(22") | |
Tested Opening | Safety height 200mm(8") | ||
Airflow Volume | Inflow | 348m³/h(205cfm) | 462m³/h(272cfm) |
Down Flow | 65%: 649m³/h(382cfm) | 65%: 863m³/h(507cfm) | |
Exhaust | 35%: 348m³/h(205cfm) | 35%: 462m³/h(272cfm) | |
Front Window | Manual. Laminated toughened glass. Anti UV | ||
HEPA Filter | Two, 99.995% efficiency at 0.3μm, filter life indicator | ||
Filter Guard Type | Aluminum alloy frame | ||
Noise | EN 12469≤65dB | ||
Illumination | ≥1000Lux | ||
Display | LCD display | ||
Waterproof Socket | 2, total consumption: ≤500W | ||
Tap | Water tap*1, Gas tap*1 | ||
Ground Resistance | ≤ 0.10Ω | ||
Power Supply | AC230V, 50Hz | ||
Consumption | ≤550W | ≤650W | |
Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | ||
Motor | AC motor, 230V acceptable, speed adjustable, high efficiency and low power consumption | ||
Material | Working area: 304 stainless steel Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | ||
UV Lamp | 20W | 30W | |
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination, UV timer, UV life indicator | |||
LED Lamp | 10W*2 | 18W*2 | |
Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless steel I.V. bar with 10 hooks, Remote control | ||
Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, | ||
Package Size(W*D*H) | 1240*1060*1900mm | 1540*1080*1900mm | |
Gross Weight | 270kg | 340kg | |
