| Quantity: | |
|---|---|

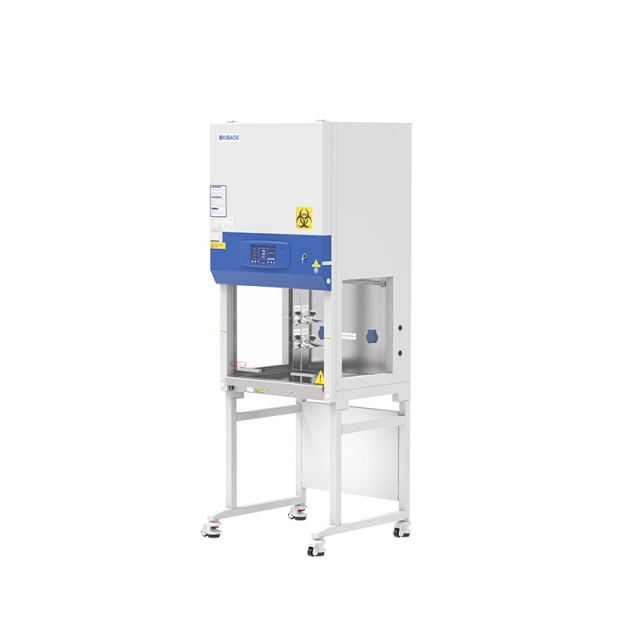

BSC-2FA2-HA
BIOBASE
Advantages:
I. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt.
2. The power-on password can be set to prevent mis-operation by irrelevant personnel.
3. Automatically adjust the wind speed.
4. Power-off memory, restore the state before power-off, and have a visual reminder to alarm.
5. Side windows on both sides for easy observation.
6. The operation area is integrally formed, which is easy to disassemble and clean.
7. A breeze speed sensor is equipped at the working area and the outer exhaust air outlet to detect the wind speed in real time.
8. It can be used both manually and electrically, and the glass door can be pulled down to close the front window when the power is off.
9. The cabinet is separated from the base. The height of the adjustable base can be customized.
10. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.
II. It has an appointment timing function, which can automatically set the timing of turning on, turning off and the running time of the UV lamp, fan, and socket.
12. The closing of the front window can double trigger the signal, so that the sterilization and disinfection function of the UV lamp can be turned on normally.
13. Anti-paper dust structure at the air inlet to prevent paper dust from entering the air cavity.
14. Split countertop is easier to clean.
15. One button front window lifting function.
Technical Parameters:
Model | BSC-2FA2-HA |
External Size(W*D*H) Internal Size(W*D*H) | 700*700*2000mm 600*500*540mm |
Work Surface Height Max Opening Height | 750mm 350mm |
Safe Operation Opening Height | 200mm |
Inflow | 230m³/h(135cfm) |
Airflow Down flow | 65%: 428 m³/h(252cfm) |
Volume Exhaust | 35%: 230m³/h(135cfm) |
Front Window ULPA Filter | Manual and electric, glass thickness> 5mm, anti-ultraviolet 2pcs, filtration efficiency for 0.12um particles299.9995% |
Illumination Noise | ≥1000Lux EN12469≤65dB |
Display European Standard Socket | Color Touch Screen 230V, 3A |
Power Supply | AC 230V, 50/60Hz |
Rated Power Alarm | 950W Alarm for abnormal wind speed, alarm for glass door not at safe height, alarm for abnormal power failure |
Motor | DC single fan, Adjustable speed, high efficiency, low power |
Material | Working Area: 304 stainless steel, side window glass; Frame and decorative plate: cold-rolled steel with anti-bacteria powder coating |
LED Lamp | 8W*2 |
UV Lamp | 15W |
Standard Accessory | Cabinet*1, Base stand*1, LED lamp*2, UV lamp*1, Drain ball valve*1, European Standard Socket*2 |
Optional Accessory | Arm rest, Formalin fumigation sterilizer, Infrared sterilizer S.S. water tap*2, S.S. gas tap*2 |
Package Size (W*D*H) Gross Weight | 850*880*1550mm 170kg |
