Statement of BIOBASE Brand ：
 |
This product belong to Class II B2 Biosafety Cabinet(BSC) which fully meets the requirements of US Standard ANSI/NSF49:2016. BSC is a kind of negative pressure filtration system for protecting operator, laboratory environment and experiment materials.
| Quantity: | |
|---|---|

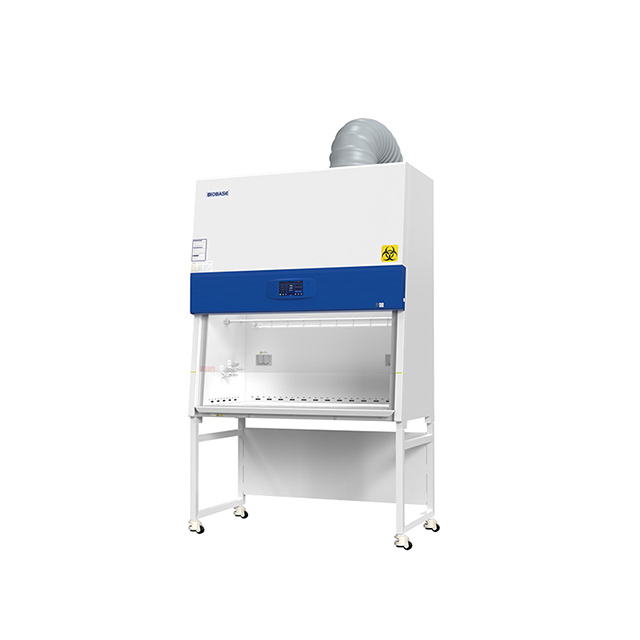

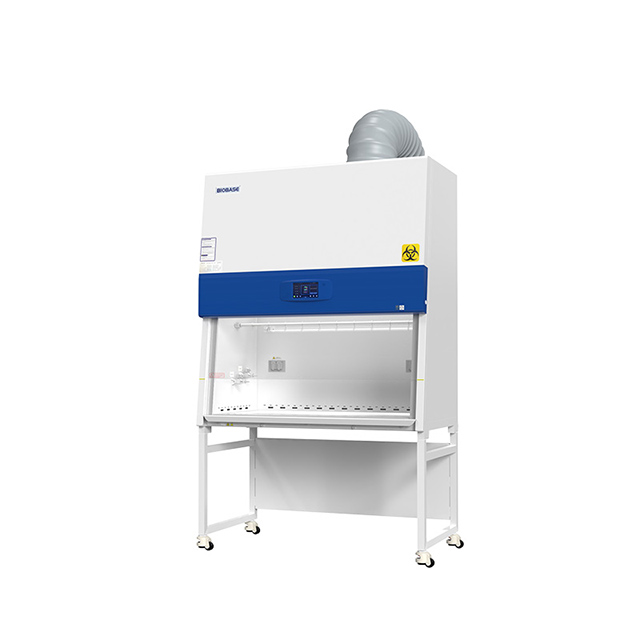

BSC-4FB2-NA BSC-4FB2-GL
BIOBASE

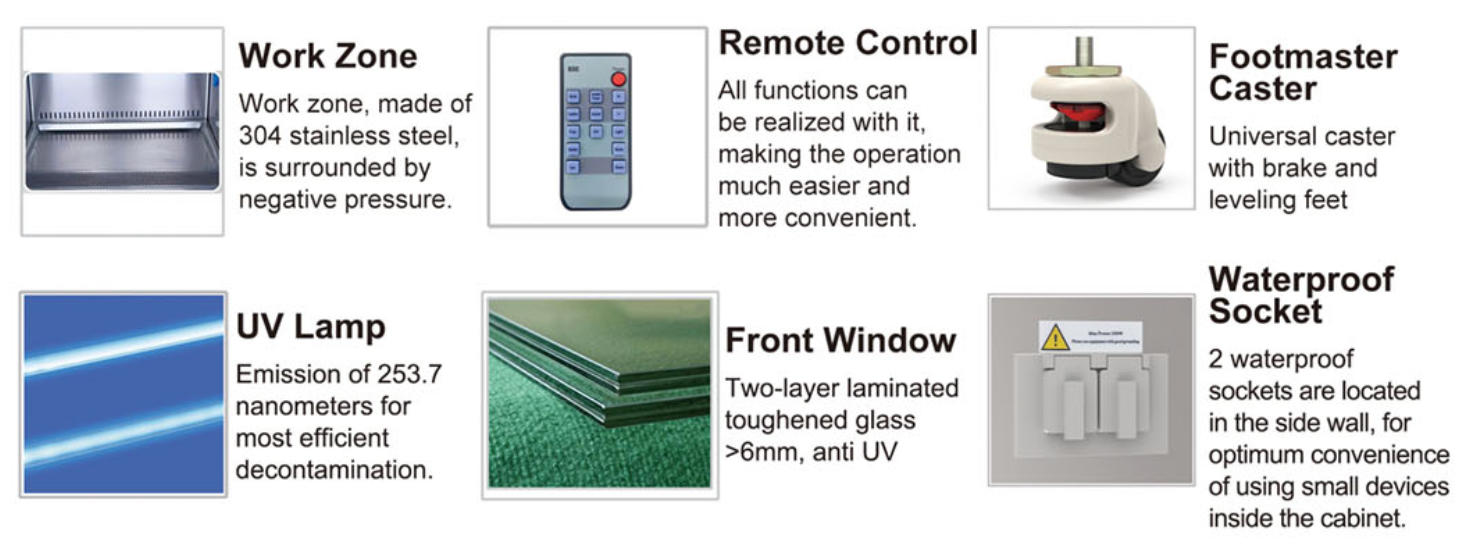

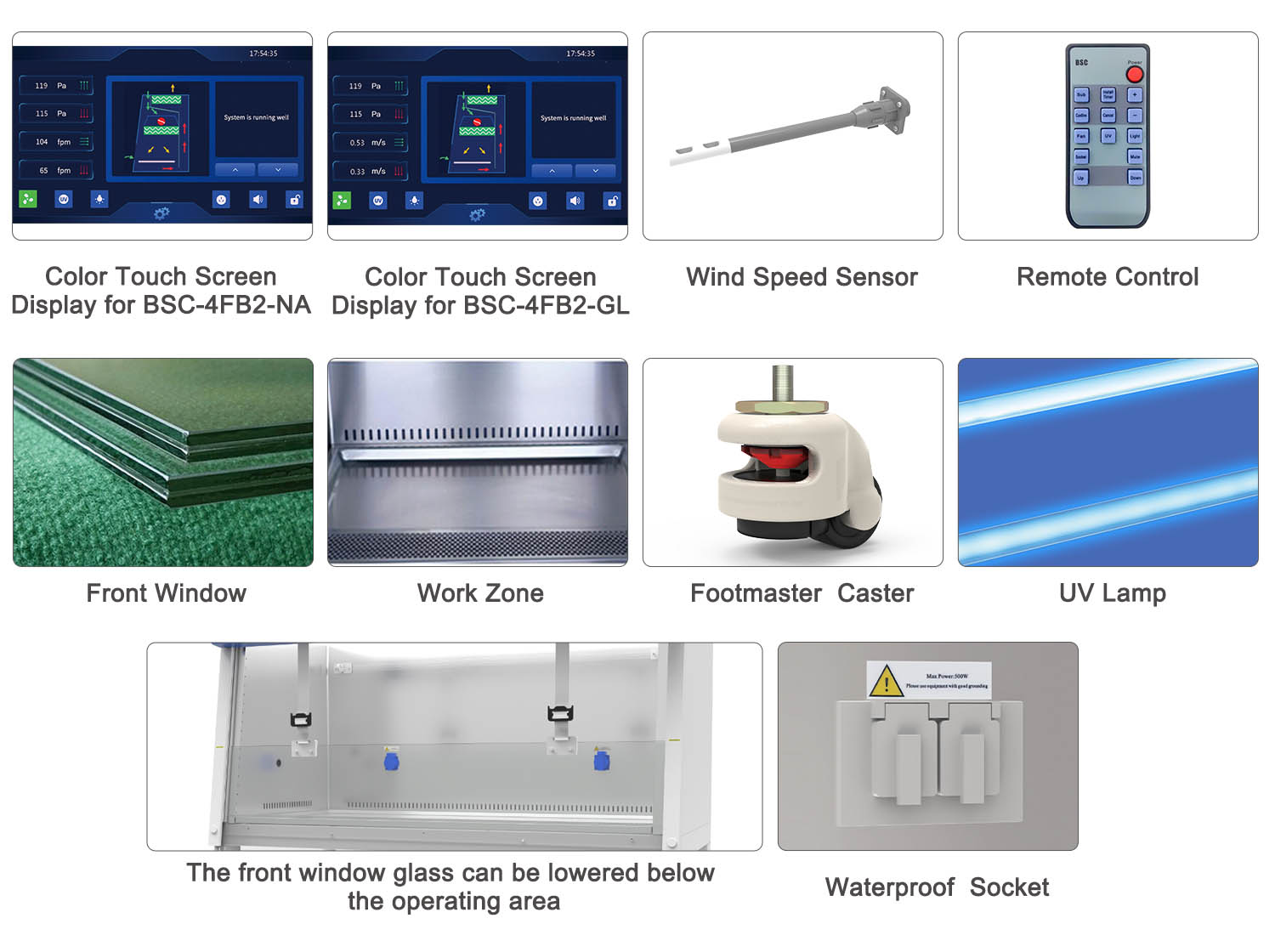

Features:
1. Motorized front window.
2. HEPA filter life and UV life indicator.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Most accessories are standard, which saves your money. There is no need to pay more.
7. Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
8. Remote control. All functions can be realized with it, making the operation much easier and more convenient.
9. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.
Technical Parameters:
Model | BSC-4FB2-NA | BSC-4FB2-GL |
External Size(W*D*H) | 1383*775*2250mm | |
Internal Size(W*D*H) | 1210*600*660 mm | |
Tested Opening | Safety height 200mm (8") | |
Max Opening | 470mm | |
Exhaust Airflow Volume | 100%:1320m³/h(776cfm) | |
Front Window | Motorized. Two-layer laminated toughened glass ≥6mm. Anti UV | |
HEPA Filter | Two, 99.995% efficiency at 0.12μm, filter life indicator | |
Filter Guard Type | Aluminum alloy frame | |
Noise | NSF 49≤67 dB/EN 12469≤65dB | |
Illumination | ≥1000Lux | |
Display | Color Touch Screen | |
Waterproof Socket | 2, Total consumption: ≤500W | |
Tap | Water tap*1, Gas tap *1 | |
Ground Resistance | ≤ 0.10Ω | |
Power Supply | AC230V, 50Hz; 115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | |
Consumption | 400w | |
Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | |
DC Motor | One ECM motor, 115V& 230V acceptable, Speed adjustable, high efficiency and low power consumption | |
Material | Working area: 304 stainless steel Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating | |
UV Lamp | 30W | |
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | ||
Illuminating Lamp | 20W*2 | |
LED lamp | ||
Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks,Remote control | |
Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand,exhaust duct | |
Package Size (W*D*H) | 1540*1080*1900mm | |
Gross Weight | 340Kg | |
Note: Customers need to prepare an external exhaust fan or exhaust system by themselves.
Features:
1. Motorized front window.
2. HEPA filter life and UV life indicator.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Most accessories are standard, which saves your money. There is no need to pay more.
7. Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
8. Remote control. All functions can be realized with it, making the operation much easier and more convenient.
9. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.
Technical Parameters:
Model | BSC-4FB2-NA | BSC-4FB2-GL |
External Size(W*D*H) | 1383*775*2250mm | |
Internal Size(W*D*H) | 1210*600*660 mm | |
Tested Opening | Safety height 200mm (8") | |
Max Opening | 470mm | |
Exhaust Airflow Volume | 100%:1320m³/h(776cfm) | |
Front Window | Motorized. Two-layer laminated toughened glass ≥6mm. Anti UV | |
HEPA Filter | Two, 99.995% efficiency at 0.12μm, filter life indicator | |
Filter Guard Type | Aluminum alloy frame | |
Noise | NSF 49≤67 dB/EN 12469≤65dB | |
Illumination | ≥1000Lux | |
Display | Color Touch Screen | |
Waterproof Socket | 2, Total consumption: ≤500W | |
Tap | Water tap*1, Gas tap *1 | |
Ground Resistance | ≤ 0.10Ω | |
Power Supply | AC230V, 50Hz; 115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | |
Consumption | 400w | |
Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | |
DC Motor | One ECM motor, 115V& 230V acceptable, Speed adjustable, high efficiency and low power consumption | |
Material | Working area: 304 stainless steel Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating | |
UV Lamp | 30W | |
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | ||
Illuminating Lamp | 20W*2 | |
LED lamp | ||
Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve, Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks,Remote control | |
Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand,exhaust duct | |
Package Size (W*D*H) | 1540*1080*1900mm | |
Gross Weight | 340Kg | |
Note: Customers need to prepare an external exhaust fan or exhaust system by themselves.
