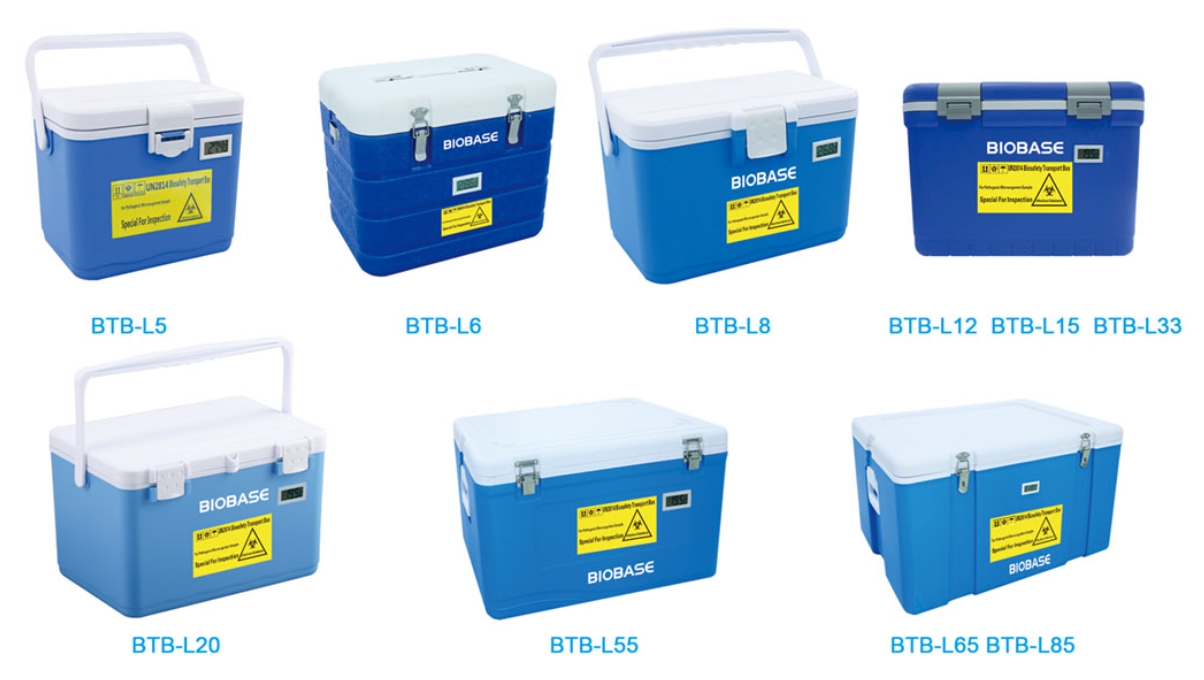

BTB-L5 BTB-L6 BTB-L8 BTB-L12 BTB-L15 BTB-L20 BTB-L33 BTB-L55 BTB-L65 BTB-L85
BIOBASE
Features：
1. Real time temperature value display
2. Refrigeration and temperature control to ensure the consistency of samples
3. Easy to operate and could be used repeatedly
4. Meet the basic requirements of cold chain transportation and storage of vaccines
Technical Parameters:
Model | BTB-L5 | BTB-L6 | BTB-L8 | BTB-L12 | BTB-L15 |
Capacity | 5L | 6L | 8L | 12L | 15L |
Internal & External Materials | PP+PE | ||||
Insulation Material | PU | ||||
Temp. Resolution | 0.1℃ | ||||
Manufacturing Process | Blow molding + injection molding, burr-free surface | ||||
Cooling Source Material | Sodium polyacrylate | ||||
Cooling Retention Time | Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C | ||||
Sponge Test Tube Holder | Standard: 20 holes, compatible with 10ml test tubes Optional: 11 holes, compatible with 20ml test tubes | ||||
Configuration | Box*1, phase-change ice box(250ml)*2, absorbent cotton*1, digital thermometer*1, sponge test tube holder*1, 95KPa biosafety transport tank*1 | Box*1, phase-change ice box(400ml)*4, absorbent cotton*1, shoulder strap*1, digital thermometer*1, sponge test tube holder*1 | Box*1, phase-change ice box(400ml)*4, absorbent cotton*2, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 | Box*1, phase-change ice box(400ml)*6, absorbent cotton*2, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 | Box*1, phase-change ice box(400ml)*6, absorbent cotton*3, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*3, 95KPa biosafety transport tank*3 |
Internal Size(W*D*H) | 200*142*165mm | 240*145*180mm | 295*167*168mm | 325*170*225mm | 363*203*244mm |
External Size(W*D*H) | 266*215*225mm | 330*235*275mm | 335*225*205mm | 425*262*305mm | |
Package Size(W*D*H) | 380*270*300mm | 380*270*300mm | 460*340*340mm | 460*340*340mm | 460*355*360mm |
Net Weight | 1.4kg | 2.5kg | 2.2kg | 4kg | 4.3kg |
Gross Weight | 2kg | 3.2kg | 4.5kg | 4.8kg | |
Model | BTB-L20 | BTB-L33 | BTB-L55 | BTB-L65 | BTB-L85 |
Capacity | 20L | 33L | 55L | 65L | 85L |
Internal & External Materials | PP+PE | ||||
Insulation Material | PU | ||||
Temp. Resolution | 0.1℃ | ||||
Manufacturing Process | Blow molding + injection molding, burr-free surface | ||||
Cooling Source Material | Sodium polyacrylate | ||||
Cooling Retention Time | Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C | ||||
Sponge Test Tube Holder | Standard: 20 holes, compatible with 10ml test tubes Optional: 11 holes, compatible with 20ml test tubes | ||||
Configuration | Box*1, phase-change ice box(400ml)*9, shoulder strap*1, absorbent cotton*4, digital thermometer*1, tray*1, divider panel*1, sponge test tube holder*4, 95KPa biosafety transport tank*4 | Box*1, phase-change ice box(400ml)*11, absorbent cotton*5, digital thermometer*1, sponge test tube holder*5, 95KPa biosafety transport tank*5 | Box*1, phase-change ice box(400ml)*11, absorbent cotton*8, digital thermometer*1, sponge test tube holder*8, 95KPa biosafety transport tank*8 | Box*1, phase-change ice box(400ml)*15, absorbent cotton*12, digital thermometer*1, sponge test tube holder*12, 95KPa biosafety transport tank*12 | Box*1, phase-change ice box(400ml)*15, absorbent cotton*20, digital thermometer*1, sponge test tube holder*20, 95KPa biosafety transport tank*20 |
Internal Size(W*D*H) | 380*245*230mm | 480*250*290mm | 590*335*320mm | 540*425*315mm | 580*465*320mm |
External Size(W*D*H) | 450*330*300mm | 570*310*360mm | 640*395*395mm | 620*485*375mm | 640*520*375mm |
Package Size(W*D*H) | 580*320*380mm | 585*325*390mm | 670*430*430mm | 640*505*395mm | 650*540*400mm |
Net Weight | 4.8kg | 5.5kg | 8.3kg | 9.8kg | 13kg |
Gross Weight | 5.5kg | 6.5kg | 9.3kg | 11kg | 14.3kg |
Features：
1. Real time temperature value display
2. Refrigeration and temperature control to ensure the consistency of samples
3. Easy to operate and could be used repeatedly
4. Meet the basic requirements of cold chain transportation and storage of vaccines
Technical Parameters:
Model | BTB-L5 | BTB-L6 | BTB-L8 | BTB-L12 | BTB-L15 |
Capacity | 5L | 6L | 8L | 12L | 15L |
Internal & External Materials | PP+PE | ||||
Insulation Material | PU | ||||
Temp. Resolution | 0.1℃ | ||||
Manufacturing Process | Blow molding + injection molding, burr-free surface | ||||
Cooling Source Material | Sodium polyacrylate | ||||
Cooling Retention Time | Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C | ||||
Sponge Test Tube Holder | Standard: 20 holes, compatible with 10ml test tubes Optional: 11 holes, compatible with 20ml test tubes | ||||
Configuration | Box*1, phase-change ice box(250ml)*2, absorbent cotton*1, digital thermometer*1, sponge test tube holder*1, 95KPa biosafety transport tank*1 | Box*1, phase-change ice box(400ml)*4, absorbent cotton*1, shoulder strap*1, digital thermometer*1, sponge test tube holder*1 | Box*1, phase-change ice box(400ml)*4, absorbent cotton*2, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 | Box*1, phase-change ice box(400ml)*6, absorbent cotton*2, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2 | Box*1, phase-change ice box(400ml)*6, absorbent cotton*3, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*3, 95KPa biosafety transport tank*3 |
Internal Size(W*D*H) | 200*142*165mm | 240*145*180mm | 295*167*168mm | 325*170*225mm | 363*203*244mm |
External Size(W*D*H) | 266*215*225mm | 330*235*275mm | 335*225*205mm | 425*262*305mm | |
Package Size(W*D*H) | 380*270*300mm | 380*270*300mm | 460*340*340mm | 460*340*340mm | 460*355*360mm |
Net Weight | 1.4kg | 2.5kg | 2.2kg | 4kg | 4.3kg |
Gross Weight | 2kg | 3.2kg | 4.5kg | 4.8kg | |
Model | BTB-L20 | BTB-L33 | BTB-L55 | BTB-L65 | BTB-L85 |
Capacity | 20L | 33L | 55L | 65L | 85L |
Internal & External Materials | PP+PE | ||||
Insulation Material | PU | ||||
Temp. Resolution | 0.1℃ | ||||
Manufacturing Process | Blow molding + injection molding, burr-free surface | ||||
Cooling Source Material | Sodium polyacrylate | ||||
Cooling Retention Time | Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C | ||||
Sponge Test Tube Holder | Standard: 20 holes, compatible with 10ml test tubes Optional: 11 holes, compatible with 20ml test tubes | ||||
Configuration | Box*1, phase-change ice box(400ml)*9, shoulder strap*1, absorbent cotton*4, digital thermometer*1, tray*1, divider panel*1, sponge test tube holder*4, 95KPa biosafety transport tank*4 | Box*1, phase-change ice box(400ml)*11, absorbent cotton*5, digital thermometer*1, sponge test tube holder*5, 95KPa biosafety transport tank*5 | Box*1, phase-change ice box(400ml)*11, absorbent cotton*8, digital thermometer*1, sponge test tube holder*8, 95KPa biosafety transport tank*8 | Box*1, phase-change ice box(400ml)*15, absorbent cotton*12, digital thermometer*1, sponge test tube holder*12, 95KPa biosafety transport tank*12 | Box*1, phase-change ice box(400ml)*15, absorbent cotton*20, digital thermometer*1, sponge test tube holder*20, 95KPa biosafety transport tank*20 |
Internal Size(W*D*H) | 380*245*230mm | 480*250*290mm | 590*335*320mm | 540*425*315mm | 580*465*320mm |
External Size(W*D*H) | 450*330*300mm | 570*310*360mm | 640*395*395mm | 620*485*375mm | 640*520*375mm |
Package Size(W*D*H) | 580*320*380mm | 585*325*390mm | 670*430*430mm | 640*505*395mm | 650*540*400mm |
Net Weight | 4.8kg | 5.5kg | 8.3kg | 9.8kg | 13kg |
Gross Weight | 5.5kg | 6.5kg | 9.3kg | 11kg | 14.3kg |
