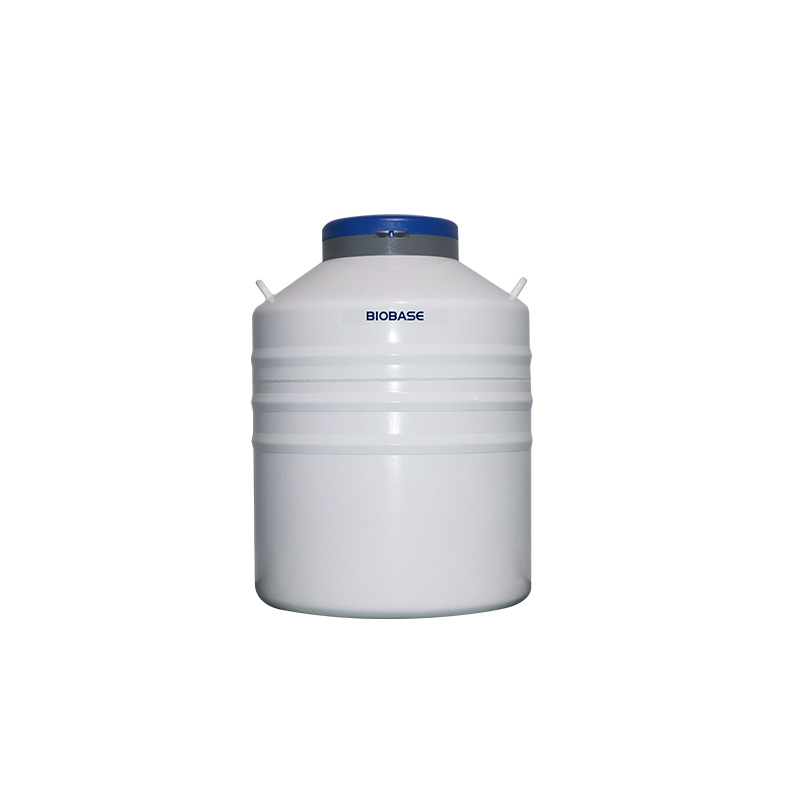

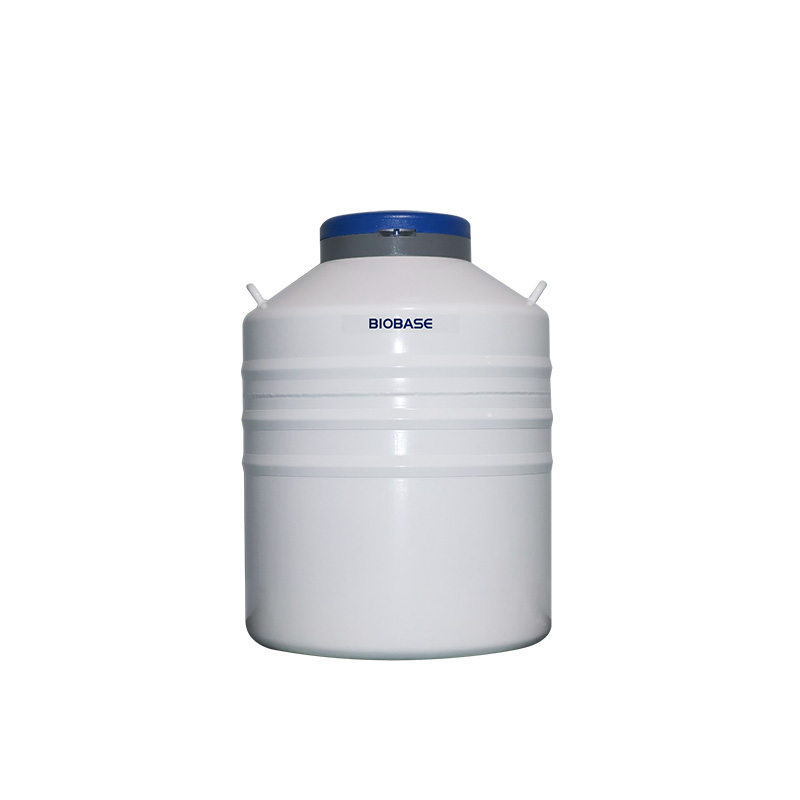

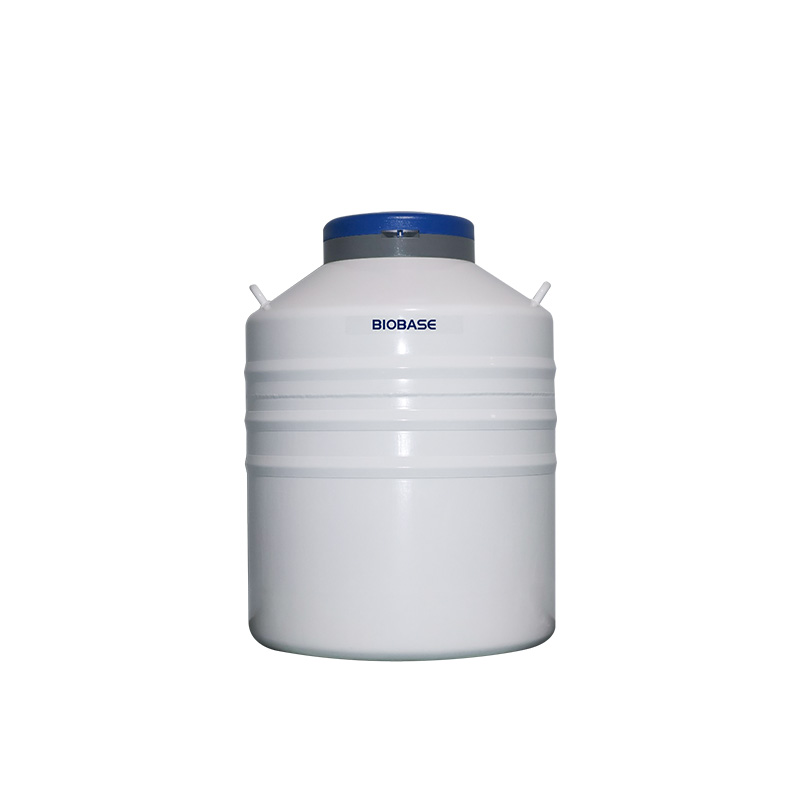

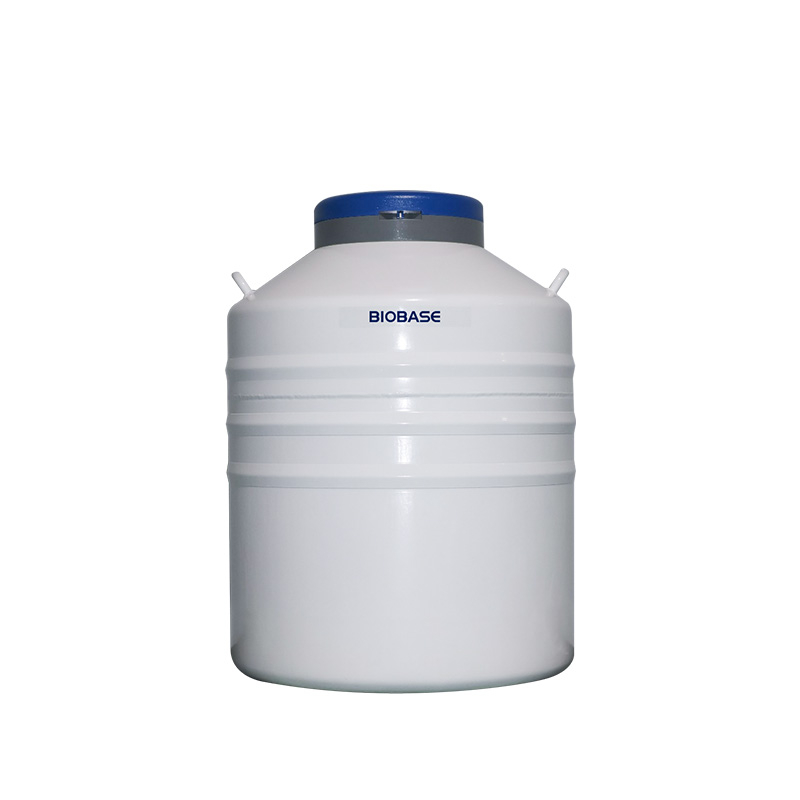

Static Storage Liquid Nitrogen Container YDS-47-127-FS

Introduction:
Liquid nitrogen tank is a kind of equipment for storing and transporting liquid nitrogen, which is mainly used in scientific research, industrial production, medical treatment and agriculture. ‌ The design of liquid nitrogen tank is based on the principle of vacuum jacket insulation invented by Dewar, which can effectively reduce the evaporation loss of liquid nitrogen due to heat convection, conduction and radiation.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Biobase

Features:

1. High vacuum, multi-layer thermal insulation design

2. Low static evaporation rate, ultra-low evaporation loss

3. Made of high-quality alloy aluminum

4. Vacuum warranty for 5 years

5. Optional liquid level ruler

YDS-47-127-FS/YDS-47-127LS(6)/YDS-47-127/YDS-65-216-FS/YDS-65-216S/YDS-95-216-FS/YDS-95-216S/YDS-120-216-FS/YDS-120-216S/YDS-145-216-FS/YDS-145-216S/YDS-175-216-FS/YDS-175-216S

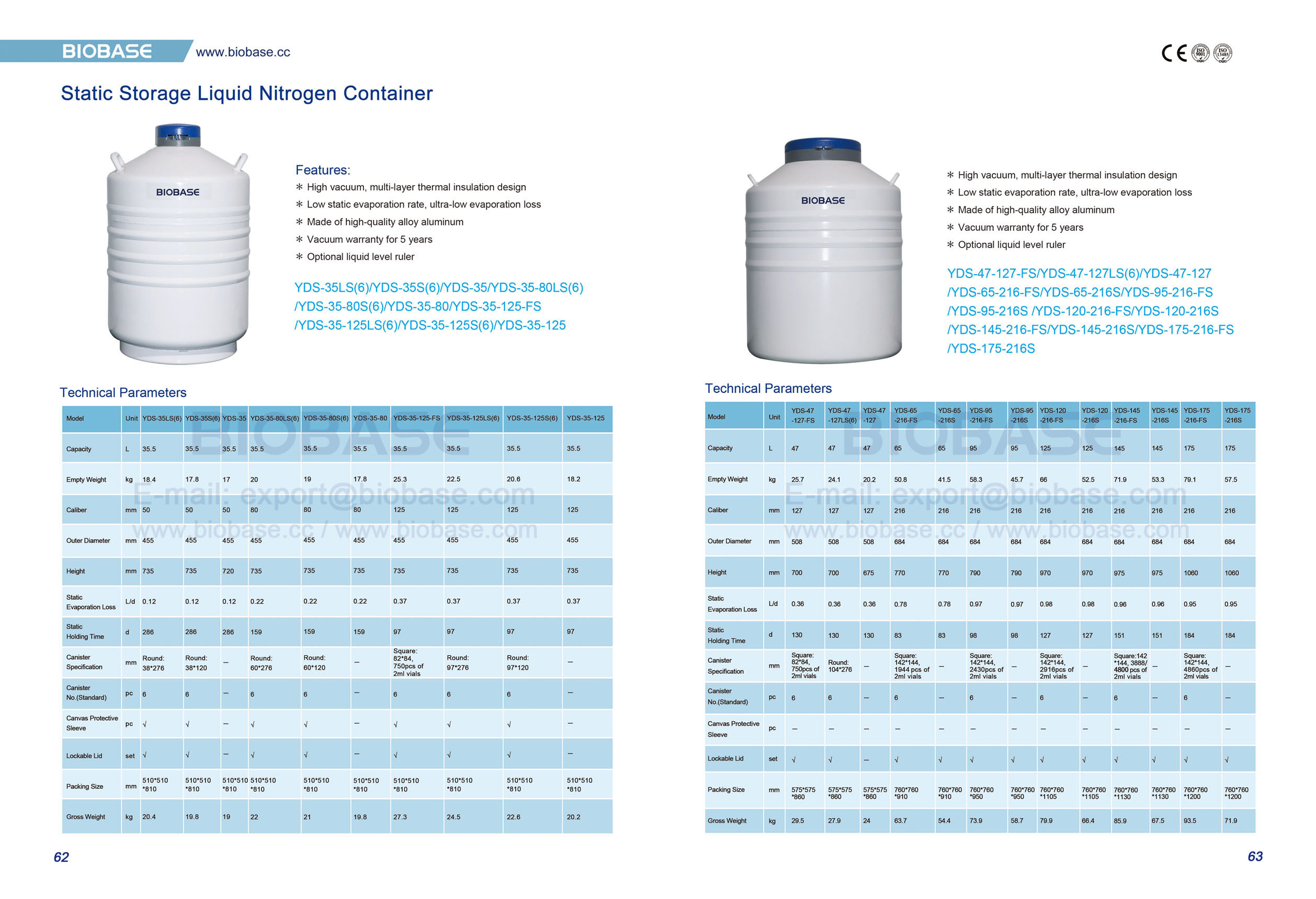

Technical Parameters:

Model	Unit	YDS-47 -127-FS	YDS-47 -127LS(6)	YDS-47 -127	YDS-65 -216-FS	YDS-65 -216S	YDS-95 -216-FS	YDS-95 -216S	YDS-120 -216-FS	YDS-120 -216S	YDS-145 -216-FS	YDS-145 -216S	YDS-175 -216-FS	YDS-175 -216S
Capacity	L	47	47	47	65	65	95	95	125	125	145	145	175	175
Empty Weight	kg	25.7	24.1	20.2	50.8	41.5	58.3	45.7	66	52.5	71.9	53.3	79.1	57.5
Caliber	mm	127	127	127	216	216	216	216	216	216	216	216	216	216
Outer Diameter	mm	508	508	508	684	684	684	684	684	684	684	684	684	684
Height	mm	700	700	675	770	770	790	790	970	970	975	975	1060	1060
Static Evaporation Loss	L/d	0.36	0.36	0.36	0.78	0.78	0.97	0.97	0.98	0.98	0.96	0.96	0.95	0.95
Static Holding Time	d	130	130	130	83	83	98	98	127	127	151	151	184	184

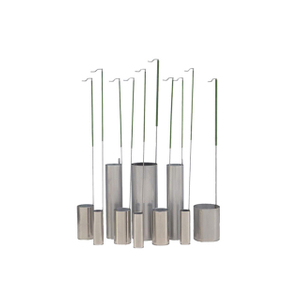

Canister Specification	mm	Square: 82*84, 750pcs of 2ml vials	Round: 104*276	一	Square: 142*144, 1944pcs of 2ml vials	—	Square: 142*144, 2430pcs of 2ml vials	一	Square: 142*144, 2916pcs of 2ml vials	一	Square: 142 *144, 3888/4800pcs of 2ml vials	一	Square: 142*144, 4860pcs of 2ml vials	—
Canister NO.(Standard)	pc	6	6	一	6	一	6	一	6	一	6	一	6	一
Canvas Protective Sleeve	pc	一	一	一	一	一	一	一	一	一	一	一	一	一
Lockable Lid	set	√	√	一	√	√	√	√	√	√	√	√	√	√
Packing Size	mm	575575 860	575575 860	575575 860	760760 910	760760 910	760760 950	760760 950	760760 1105	760760 1105	7607601130	760760 1130	760760 1200	760760 1200
Gross Weight	kg	29.5	27.9	24	63.7	54.4	73.9	58.7	79.9	66.4	85.9	67.5	93.5	71.9
