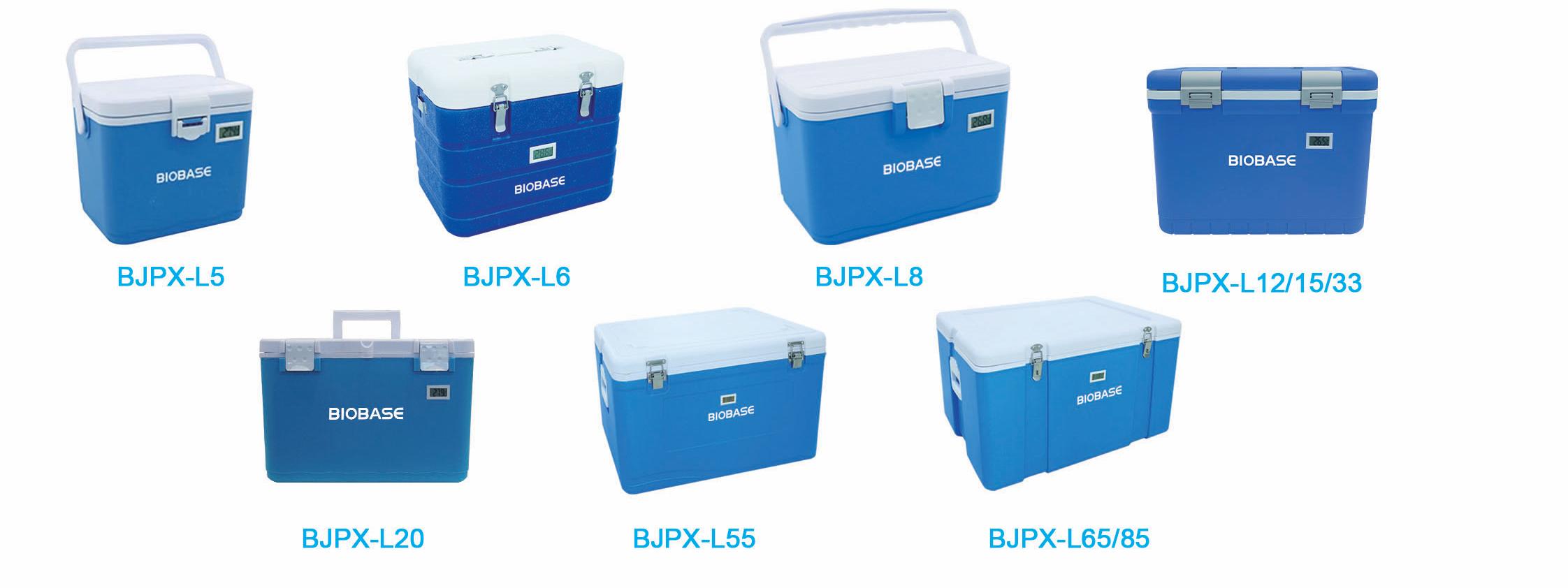

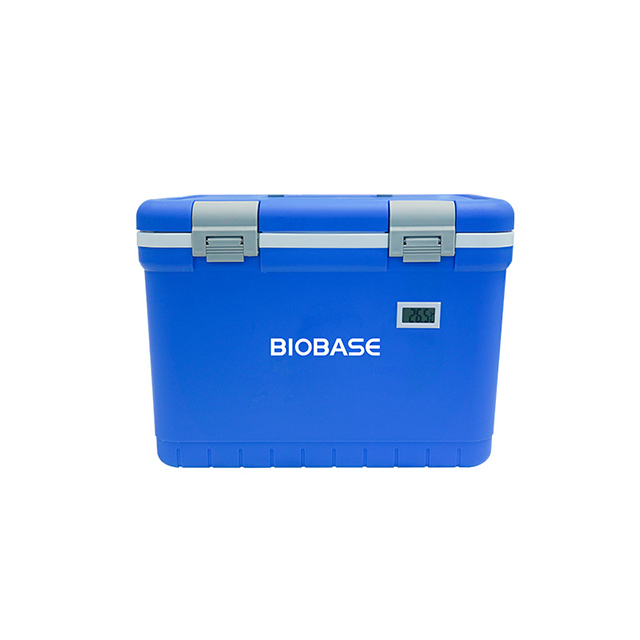

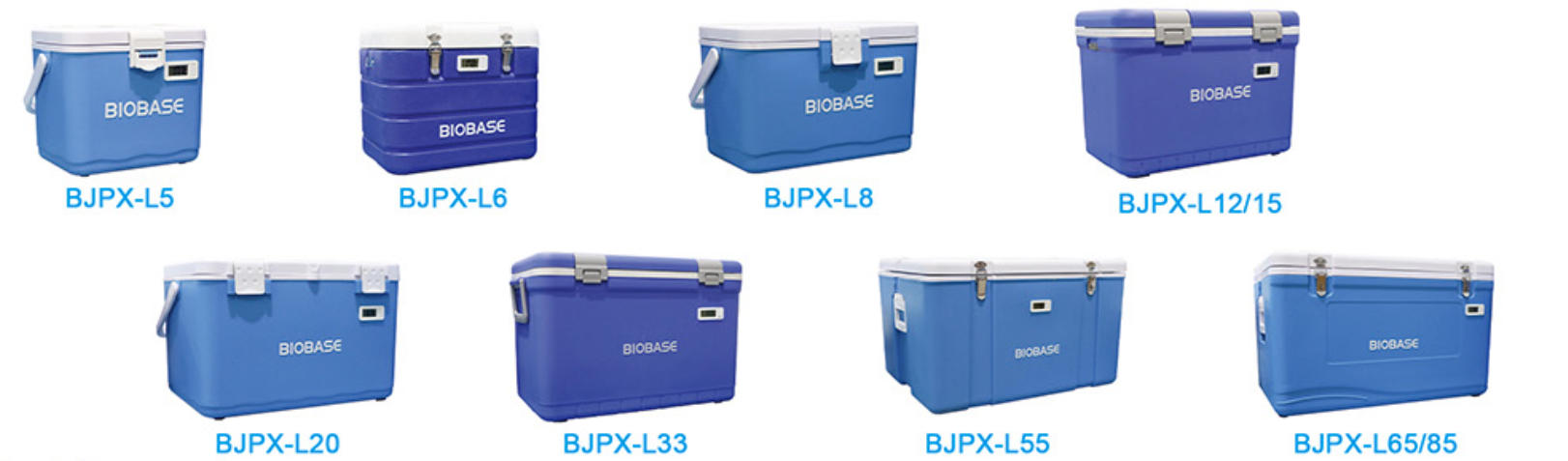

BJPX-L5, BJPX-L8, BJPX-L12, BJPX-L15, BJPX-L5, BJPX-L33, BJPX-L55, BJPX-L65, BJPX-L85
BIOBASE

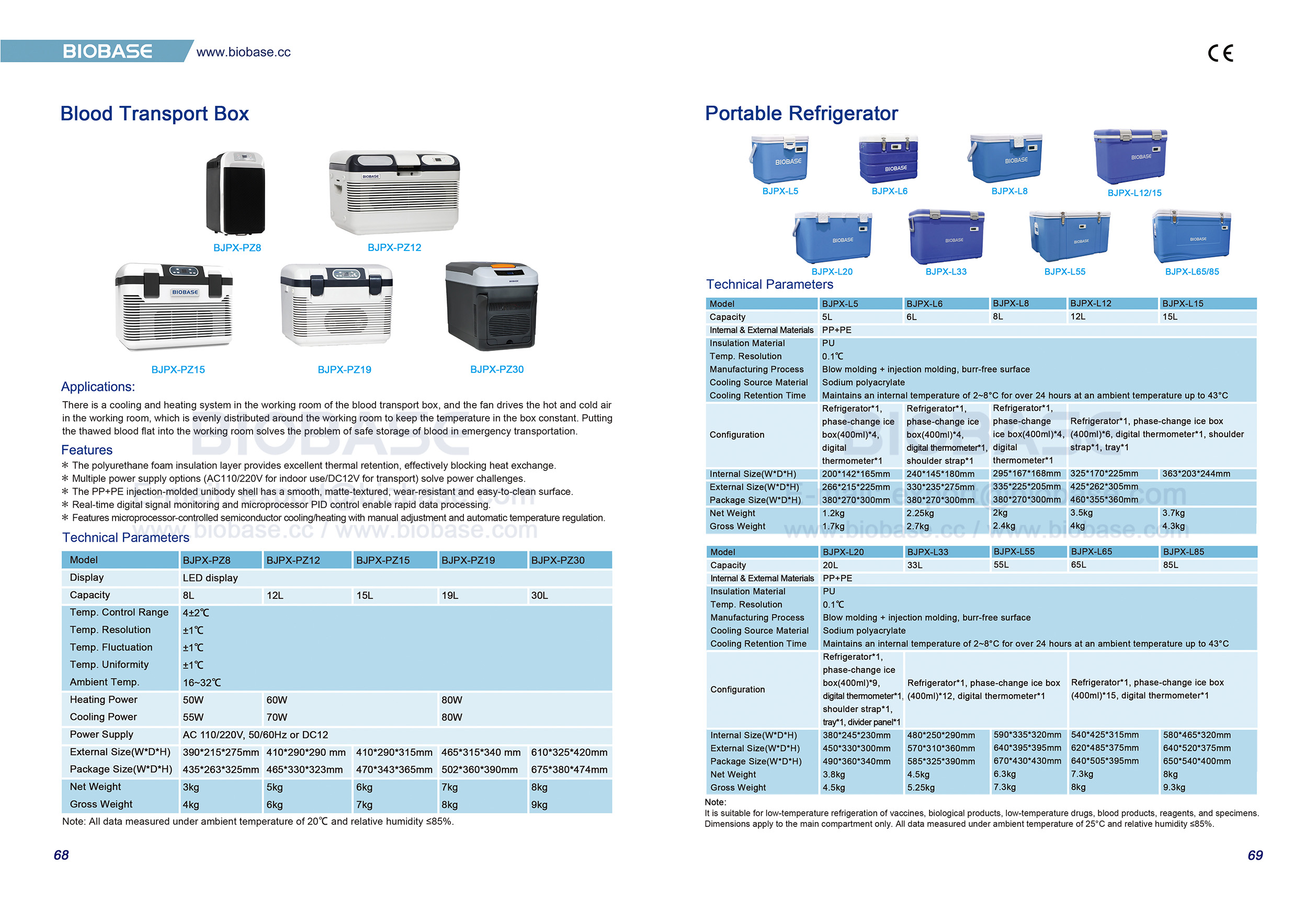

Technical Parameters:

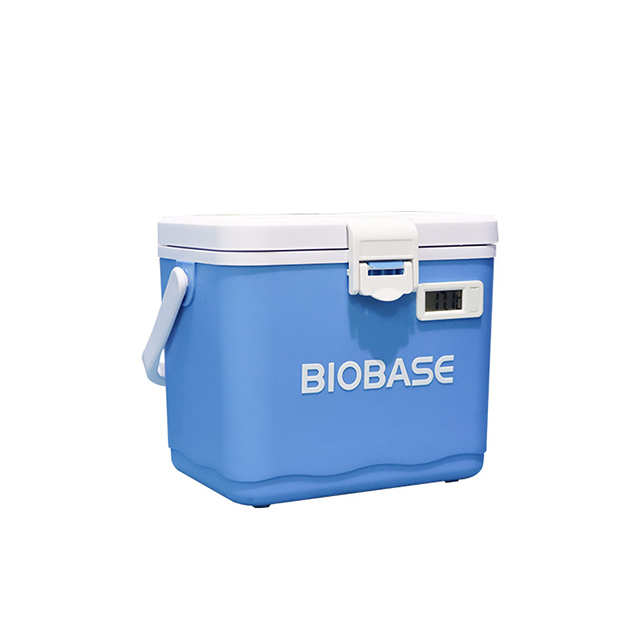

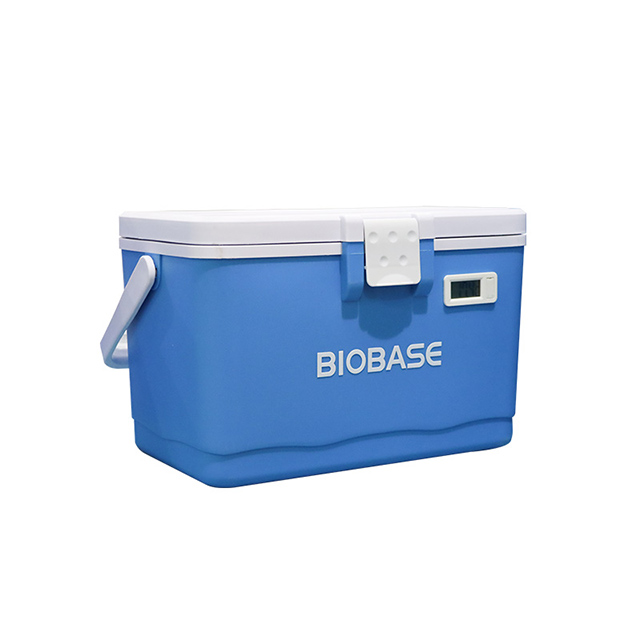

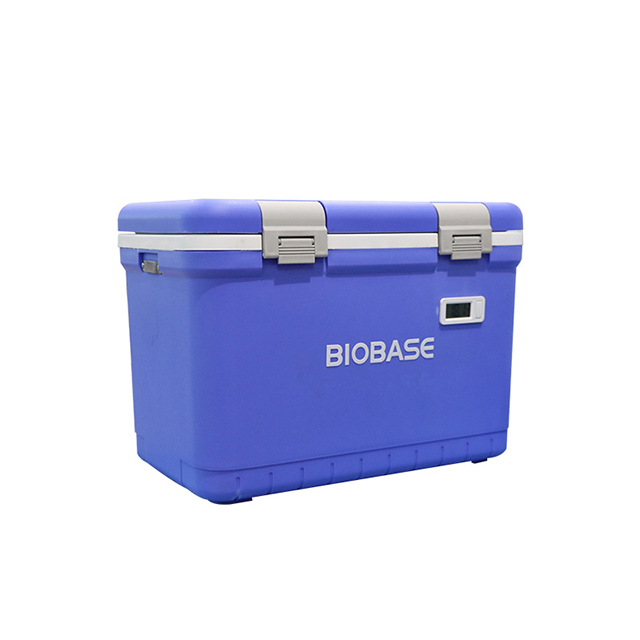

Model | BJPX-L5 | BJPX-L6 | BJPX-L8 | BJPX-L12 | BJPX-L15 |
Capacity | 5L | 6L | 8L | 12L | 15L |
Internal & External Materials | PP+PE | ||||
Insulation Material | PU | ||||
Temp. Resolution | 0.1℃ | ||||
Manufacturing Process | Blow molding + injection molding, burr-free surface | ||||
Cooling Source Material | Sodium polyacrylate | ||||
Cooling Retention Time | Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C | ||||
Configuration | Refrigerator*1, phase-change ice box(400ml)*4, digital thermometer*1 | Refrigerator*1, phase-change ice box(400ml)*4, digital thermometer*1, shoulder strap*1 | Refrigerator*1, phase-change ice box(400ml)*4, digital thermometer*1 | Refrigerator*1, phase-change ice box(400ml)*6, digital thermometer*1, shoulder strap*1, tray*1 | |
Internal Size(W*D*H) | 200*142*165mm | 240*145*180mm | 295*167*168mm | 325*170*225mm | 363*203*244mm |
External Size(W*D*H) | 266*215*225mm | 330*235*275mm | 335*225*205mm | 425*262*305mm | |
Package Size(W*D*H) | 380*270*300mm | 380*270*300mm | 380*270*300mm | 460*355*360mm | |
Net Weight | 1.2kg | 2.25kg | 2kg | 3.5kg | 3.7kg |
Gross Weight | 1.7kg | 2.7kg | 2.4kg | 4kg | 4.3kg |

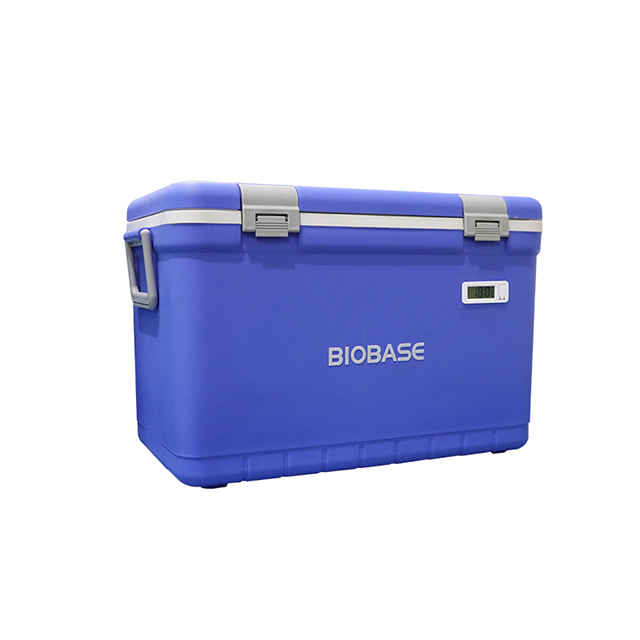

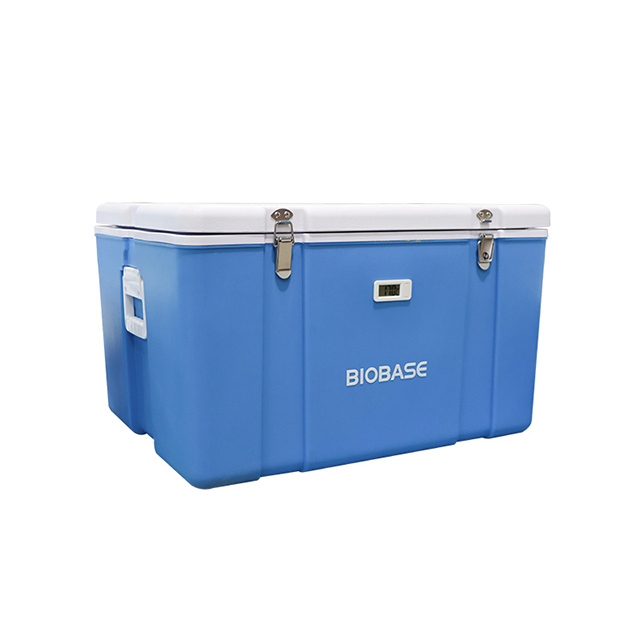

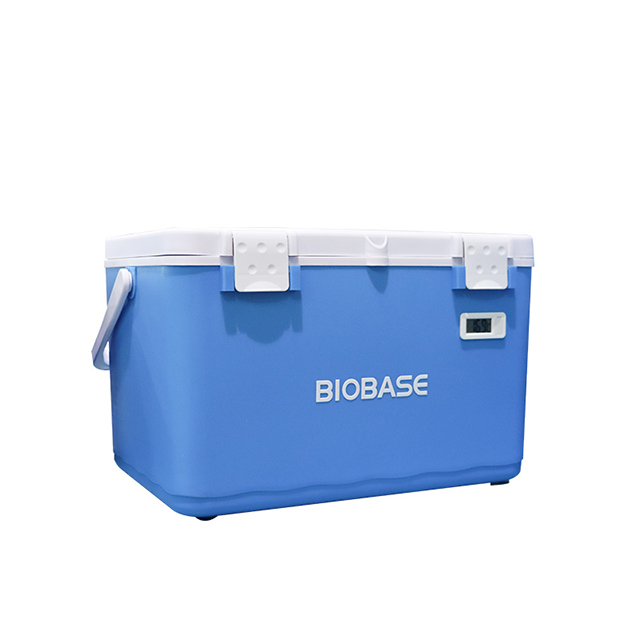

Model | BJPX-L20 | BJPX-L33 | BJPX-L55 | BJPX-L65 | BJPX-L85 |
Capacity | 20L | 33L | 55L | 65L | 85L |
Internal& External Materials | PP+PE | ||||
Insulation Material | PU | ||||
Temp. Resolution | 0.1℃ | ||||
Manufacturing Process | Blow molding + injection molding, burr-free surface | ||||
Cooling Source Material | Sodium polyacrylate | ||||
Cooling Retention Time | Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C | ||||
Configuration | Refrigerator*1, phase-change ice box(400ml)*9, digital thermometer*1, shoulder strap*1, tray*1, divider panel*1 | Refrigerator*1, phase-change ice box(400ml)*12, digital thermometer*1 | Refrigerator*1, phase-change ice box(400ml)*15, digital thermometer*1 | ||
Internal Size(W*D*H) | 380*245*230mm | 480*250*290mm | 590*335*320mm | 540*425*315mm | 580*465*320mm |
External Size(W*D*H) | 450*330*300mm | 570*310*360mm | 640*395*395mm | 620*485*375mm | 640*520*375mm |
Package Size(W*D*H) | 490*360*340mm | 585*325*390mm | 670*430*430mm | 640*505*395mm | 650*540*400mm |
Net Weight | 3.8kg | 4.5kg | 6.3kg | 7.3kg | 8kg |
Gross Weight | 4.5kg | 5.25kg | 7.3kg | 8kg | 9.3kg |
Note: It is suitable for low-temperature refrigeration of vaccines, biological products, low-temperature drugs, blood products, reagents, and specimens.
Dimensions apply to the main compartment only. All data measured under ambient temperature of 25°C and relative humidity ≤85%.
