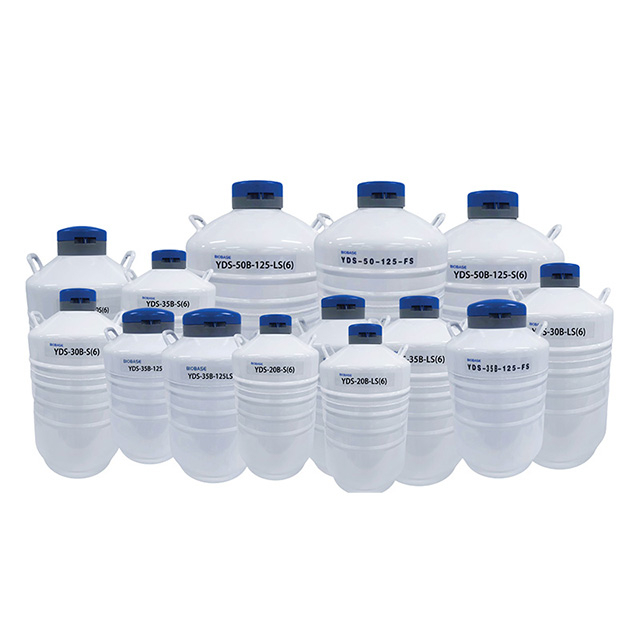

Static Storage Liquid Nitrogen Container YDS-3 Series

Introduction:
Liquid nitrogen tank is a kind of equipment for storing and transporting liquid nitrogen, which is mainly used in scientific research, industrial production, medical treatment and agriculture. ‌ The design of liquid nitrogen tank is based on the principle of vacuum jacket insulation invented by Dewar, which can effectively reduce the evaporation loss of liquid nitrogen due to heat convection, conduction and radiation.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Biobase

Features:

1. High vacuum, multi-layer thermal insulation design

2. Low static evaporation rate, ultra-low evaporation loss

3. Made of high-quality alloy aluminum

4. Vacuum warranty for 5 years

5. Optional liquid level ruler

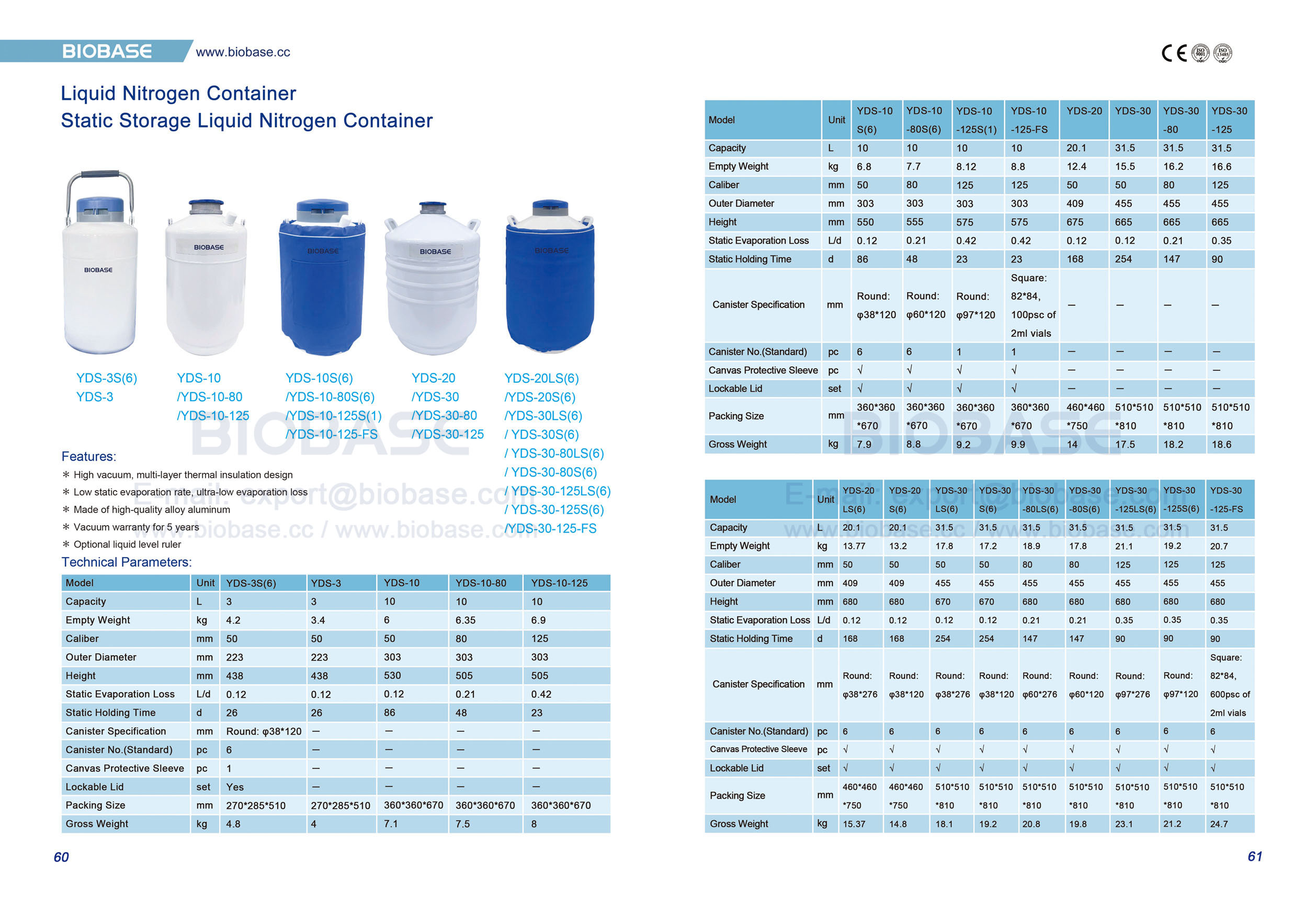

Technical Parameters:

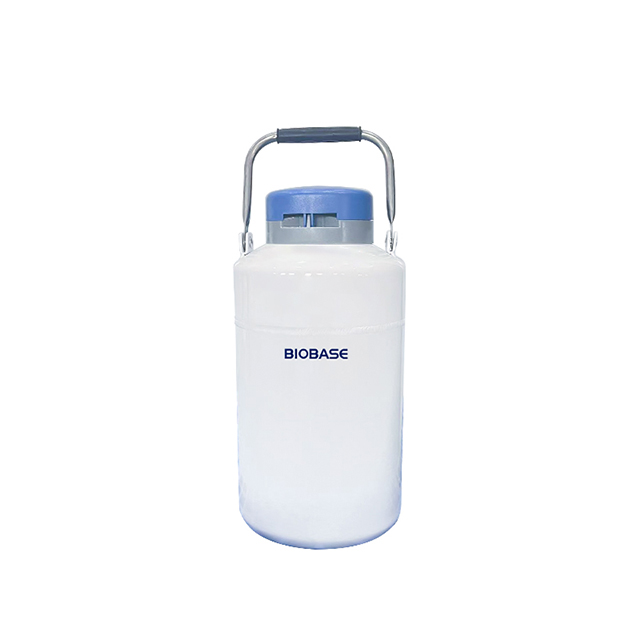

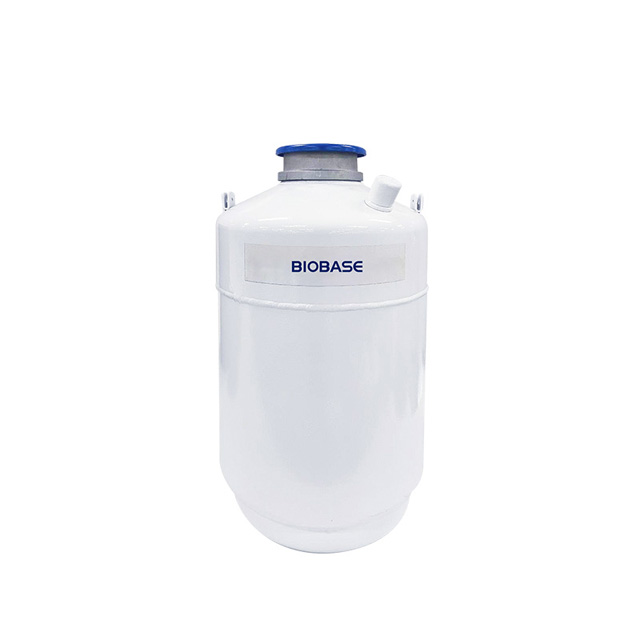

Model	Unit	YDS-3S(6)			YDS-3				YDS-10			YDS-10-80			YDS-10-125
Capacity	L	3			3				10			10			10
Empty Weight	kg	4.2			3.4				6			6.35			6.9
Caliber	mm	50			50				50			80			125
Outer Diameter	mm	223			223				303			303			303
Height	mm	438			438				530			505			505
Static Evaporation Loss	L/d	0.12			0.12				0.12			0.21			0.42
Static Holding Time	d	26			26				86			48			23
Canister Specification	mm	Round: φ38*120			-				-			-			-
Canister No.(Standard)	pc	6			-				-			-			-
Canvas Protective Sleeve	pc	1			-				-			-			-
Lockable Lid	set	Yes			-				-			-			-
Packing Size	mm	270285510							360360670
Gross Weight	kg	4.8			4				7.1			7.5			8

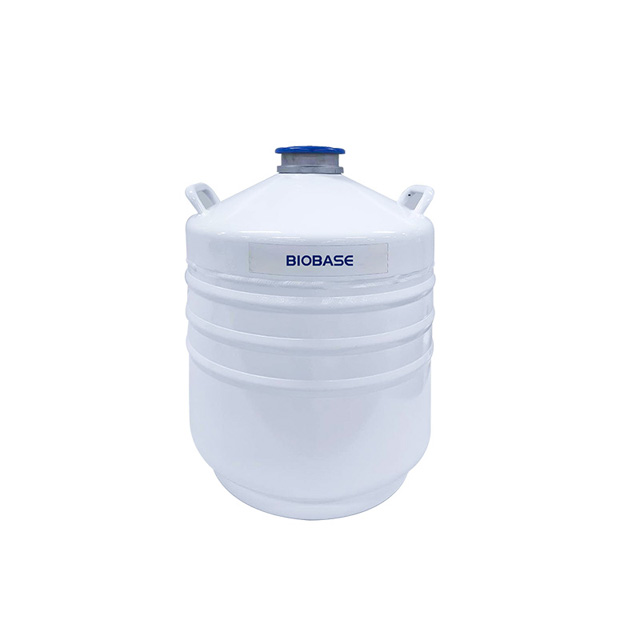

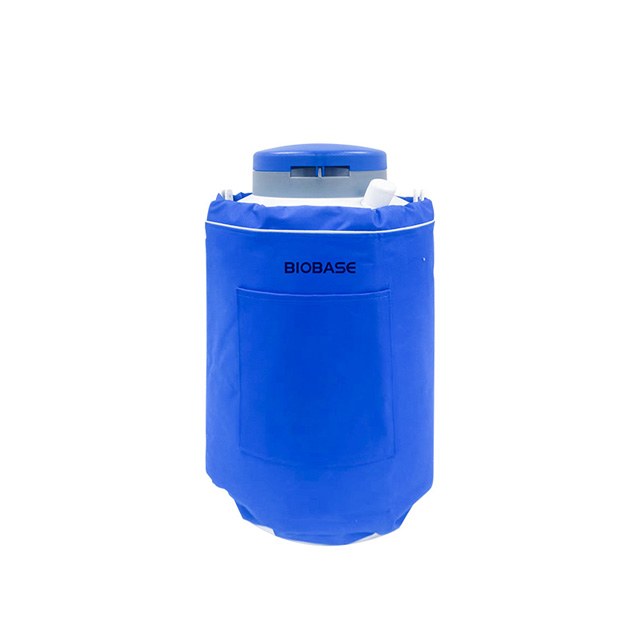

Model	Unit	YDS-10 S(6)		YDS-10 -80S(6)		YDS-10 -125S(1)		YDS-10 -125-FS			YDS-20		YDS-30		YDS-30 -80	YDS-30 -125
Capacity	L	10		10		10		10			20.1		31.5		31.5	31.5
Empty Weight	kg	6.8		7.7		8.12		8.8			12.4		15.5		16.2	16.6
Caliber	mm	50		80		125		125			50		50		80	125
Outer Diameter	mm	303		303		303		303			409		455		455	455
Height	mm	550		555		575		575			675		665		665	665
Static Evaporation Loss	L/d	0.12		0.21		0.42		0.42			0.12		0.12		0.21	0.35
Static Holding Time	d	86		48		23		23			168		254		147	90
Canister Specification	mm	Round: φ38*120		Round: φ60*120		Round: φ97*120		Square: 82*84, 100psc of 2ml vials			-		-		-	-
Canister No.(Standard)	pc	6		6		1		1			-		-		-	-
Canvas Protective Sleeve	pc	√		√		√		√			-		-		-	-
Lockable Lid	set	√		√		√		√			-		-		-	-
Packing Size	mm	360360670									460460750		510510810
Gross Weight	kg	7.9		8.8		9.2		9.9			14		17.5		18.2	18.6
Model	Unit	YDS-20 LS(6)	YDS-20 S(6)		YDS-30 LS(6)		YDS-30 S(6)			YDS-30 -80LS(6)		YDS-30 -80S(6)		YDS-30 -125LS(6)	YDS-30 -125S(6)	YDS-30 -125-FS
Capacity	L	20.1	20.1		31.5		31.5			31.5		31.5		31.5	31.5	31.5
Empty Weight	kg	13.77	13.2		17.8		17.2			18.9		17.8		21.1	19.2	20.7
Caliber	mm	50	50		50		50			80		80		125	125	125
Outer Diameter	mm	409	409		455		455			455		455		455	455	455
Height	mm	680	680		670		670			680		680		680	680	680
Static Evaporation Loss	L/d	0.12	0.12		0.12		0.12			0.21		0.21		0.35	0.35	0.35
Static Holding Time	d	168	168		254		254			147		147		90	90	90
Canister Specification	mm	Round: φ38*276	Round: φ38*120		Round: φ38*276		Round: φ38*120			Round: φ60*276		Round: φ60*120		Round: φ97*276	Round: φ97*120	Square: 82*84, 600psc of 2ml vials
Canister No.(Standard)	pc	6	6		6		6			6		6		6	6	6
Canvas Protective Sleeve	pc	√	√		√		√			√		√		√	√	√
Lockable Lid	set	√	√		√		√			√		√		√	√	√
Packing Size	mm	460460750			510510810
Gross Weight	kg	15.37	14.8		18.1		19.2			20.8		19.8		23.1	21.2	24.7
